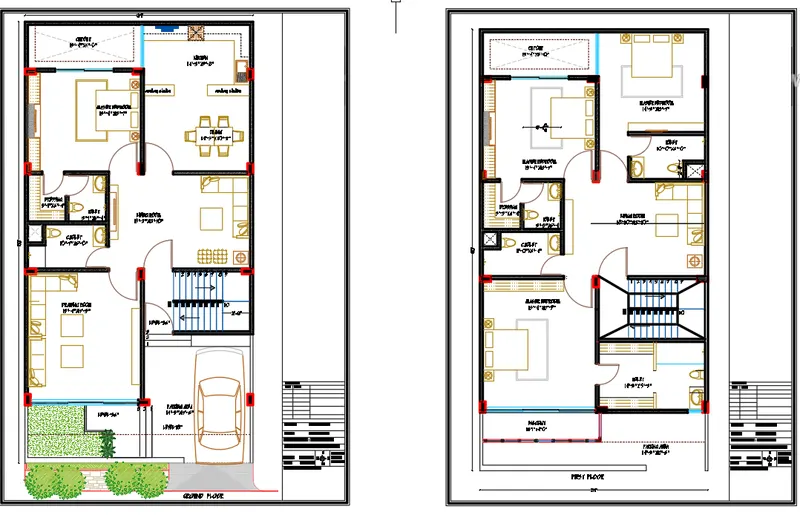

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Column dead load :

1. Size of column Height 2.55 m, Length = 300 mm, Width = 600 mm
2. Volume of Concrete = 0.30 x 0.60 x 2.55 =0.459 m³
3. Weight of Concrete = 0.459 x 2400 = 1101.60 kg
4. Weight of Steel (1%) in Concrete = 0.459 x 1% x 7850 = 36.03 kg
5. Total Weight of Column = 1101.60 + 36.03 = 1137.63 kg = 11.12 KN

Beam dead load :

1. 300 mm x 600 mm excluding slab.
2. Volume of Concrete = 0.30 x 0.60 x 1 =0.18 m³
3. Weight of Concrete = 0.18 x 2400 = 432 kg
4. Weight of Steel (2%) in Concrete = 0.18 x 2% x 7850 = 28.26 kg
5. Total Weight of Column = 432 + 28.26 = 460.26 kg/m = 4.51 KN/m

Slab dead load :

0.150 x 1 x 2400 = 360 kg which is equivalent to 3.53 kN.

Now, If we consider the Floor Finishing load to be 1 kN per meter, superimposed live load to be 2 kN per meter, and Wind Load as per Is 875 Near about 2 kN per meter.

the building is not taller than 10 meters so the wind load is not applcable
