Challenge

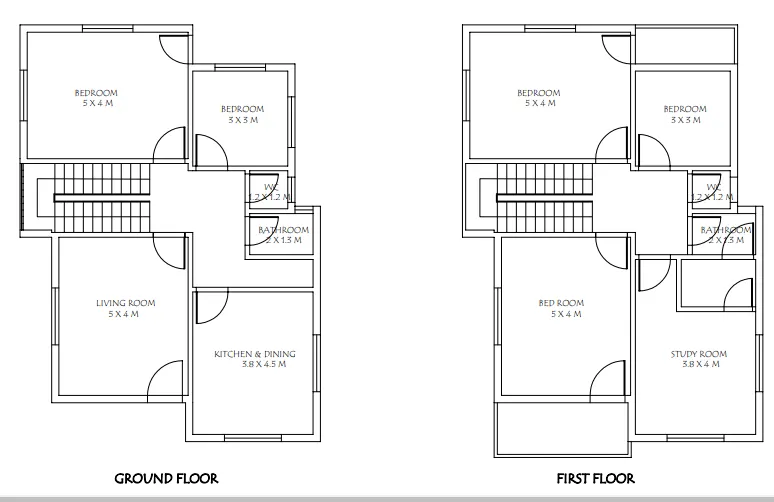

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code by Aditya Kulkarni

Dead load :

Column = 2 x 12 x 25 x 0.4 x 0.4 x 3.1 = 297.6 KN

Beam = 2 x 25 x 0.23 x 0.3 = 3.45 Kn/m

Slab = 2 x 25 x 0.125 x 116.1043 = 725.65 KN

Live load :

For residential building = 2 Kn/m2
