Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

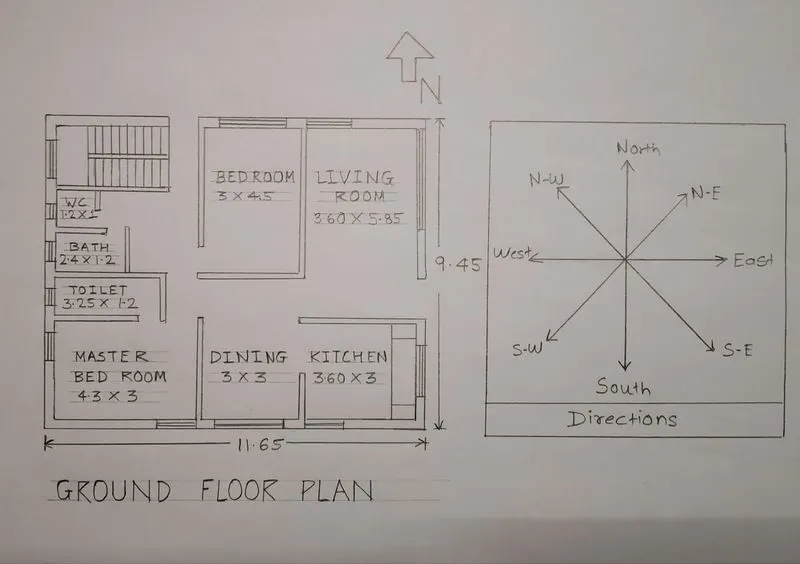

Ground Floor plan-

(Dimensions are in Meters)

Dimensions of Ground Floor plan-

Living room- 3.60m X 5.85m

Kitchen room- 3.60m X 3m

Dining room- 3m X 3m

Master bedroom- 4.3m X 3m

Bedroom- 3m X 4.5m

Toilet- 3.25m X 1.2m

Bath- 2.4m X 1.2m

WC- 1.2m X 1m

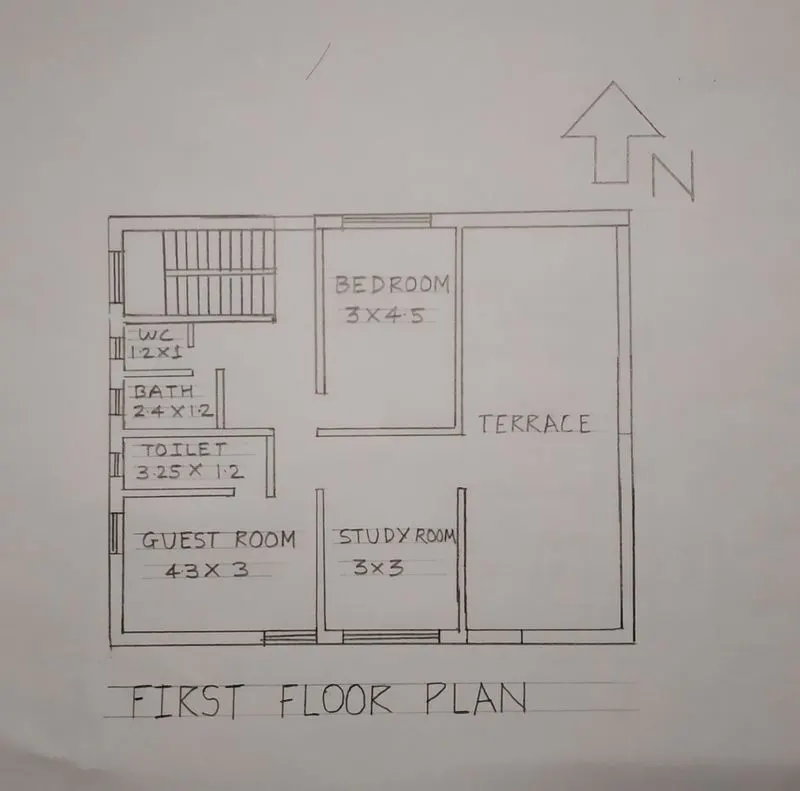

First Floor plan-

Dimensions of First Floor Plan-

Guest room- 4.3m X 3m

Study room- 3m X 3m

Bedroom- 3m X 4.5m

Toilet- 3.25m X 1.2m

Bath- 2.4m X 1.2m

WC- 1.2m X 1m

Other dimensions

-Thickness of internal wall- 0.15m (150mm)

-Thickness of external wall- 0.23m (230mm)

-Thickness of slab- 0.25m (250mm)

-Dimensions of column – 0.3m X 0.3m

-Dimensions of beam-0.3m X 0.45m

-Height of the wall of each floor- 3m

Vastu Shastra followed during planning is-

• Entrance of the house is provided in the east direction which is the symbol of progress in life.
• Living room is placed in north east direction.
• Master bedroom is placed in south west position this direction brings good health and prosperity.
• Kitchen is placed in south east direction.
• Study room is placed in east direction.
• Staircase is placed at Northwest corner.
• Bathroom, WC and toilet is placed in West direction.
