Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

1)AIM: Sketch G+1 floor residential plan according to Vaasu Shastra and list different type of drawings needed ,caculate loads as per IS code .

Vaastu shastra: It is an ancient architecture of india used to design and construct forts,homes,temples.

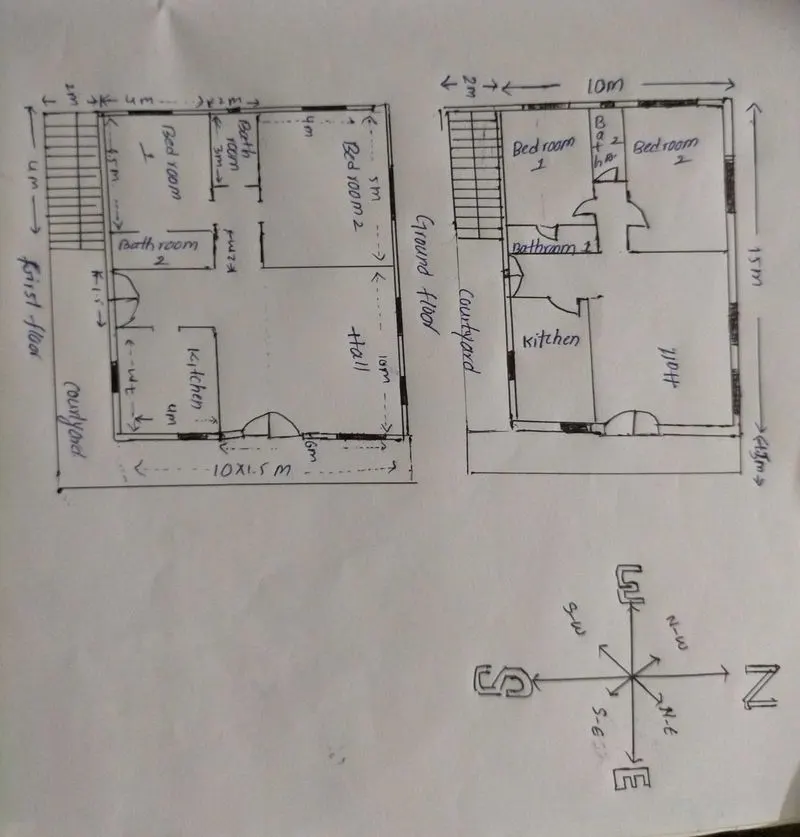

plan drawing

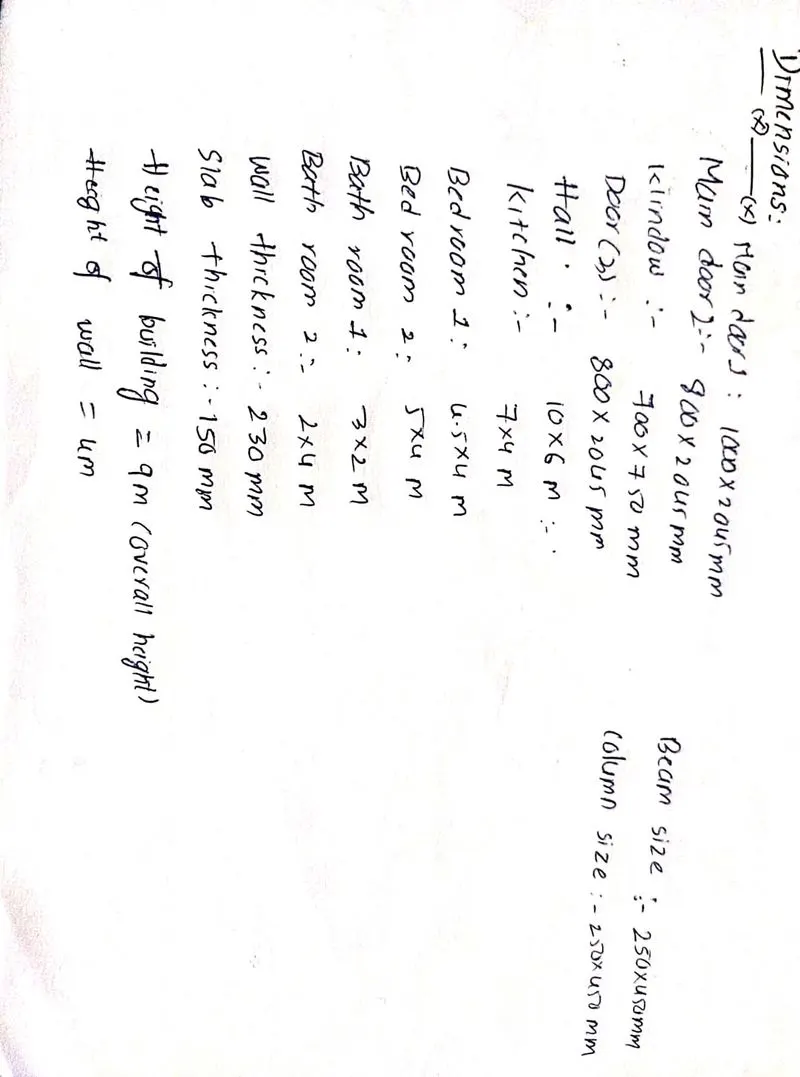

Dimensions: External door :1000*2045 mm

Internal door:800*2045mm beam size:250*50mm

window:700*750mm column size:250*450mm

external wall thickness:230mm Overall height of building:9m

Internal wall thickness:150mm

staircase:4*2m

Slab thickness:150mm

hall size:10*6m

kitchen:7*4m

Bedroom1:4.5*4m

Bedroom2: 5*4m

Bathroom 1: 3*2m,bathroom2:2*m

Height of wall:4m

Concept of Vaastu Shastra:

Main entrance is at the East direction good life,Kitchen is at south east ,staircase is at north west,master bedroom at south west,guest room at north west,bathroom is at west and south.

DIMENSIONS SAME FOR FIRST AND GROUND FLOOR

List of drawings required are:

rcc drawing,steel drawing,plumbing ,electric plan,centre line distance,linthel,plinth,footing,column drawing,slab and staircase drawing,beam and wall section etc.

Load calculations

a) Wind load: for height less than 10m ,it is not required to calculate wid load.

b)seismic load:here there is no required of sesimic load as it is small construction.

c)dead load:

coloumn: 0.250*0.450*2*(0.150+4)m^3= 0.93375m^3 height=4.150 for each floor

total dead load of coloum=25*0.93375=23.343kn

beam:0.250*0.450*1*25=2.81kn

slab:1*1*0.150*25=3.75kn

external wall=4*0.23*20=18.kn

internal wall:4*0.150*20=12kn

d)live load as per IS code875 part 2

bedroom:2kn/m^2

living room:2kn/m^2

bath:2kn/m^2

terrace/courtyard:3kn/m^2

staircase:3kn/m^2

kichen:2kn/m^2

Refernce:

IS code 875 part 1 dead

is code 875 part 2 live

IS code 875 part 3 wind

IS 456 2000 rcc

result:

Hence the plan is prepared as per vaastu and load calculations are done based on Is code reference.
