Simulating BTMS - Challenge

Simulate the flow through the BTMS model

in this project, we calculated the results of BTMS by using Ansys Workbench 2020 R1

Software used: Ansys Workbench 2020 R1

Mesh type: Auto

Nodes: 28463

Elements: 130476

Energy Density Calculator

There Was 4 battery cell used in the system. The diameter of the cell is 0.02m & the leng

& the power density obtained 4202.13609 w/m 3 by using an excel calculator,

Named Selection

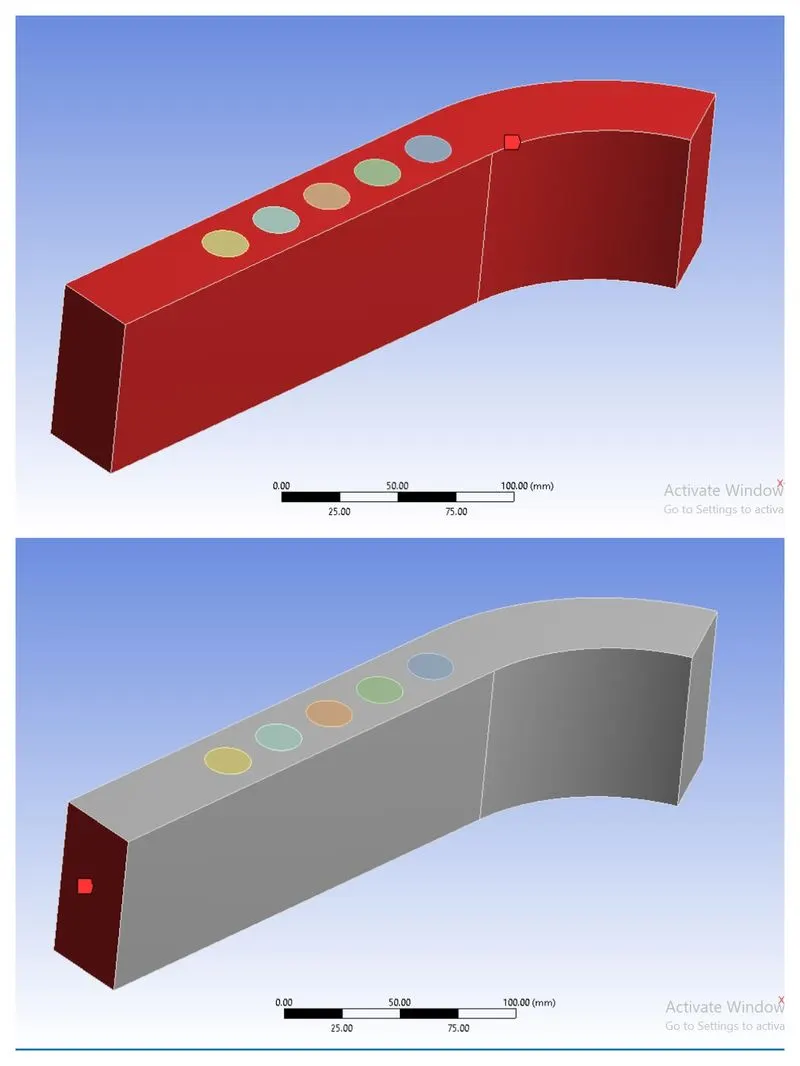

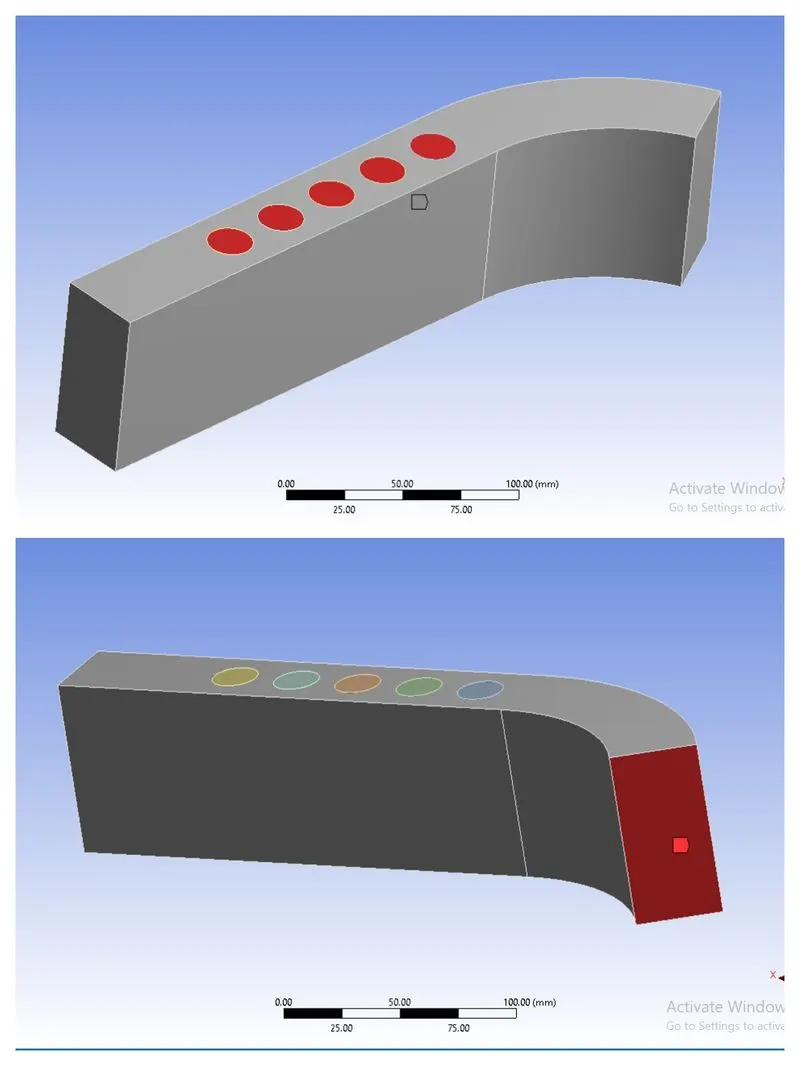

In this, we can create named selection to Inlet Outlet, Fluid Volume & Solid cells to our geometry

Element Size

A volumetric heat source to be equal to 30000 W/m^3 and set inlet velocity to 4m/s for the given problem

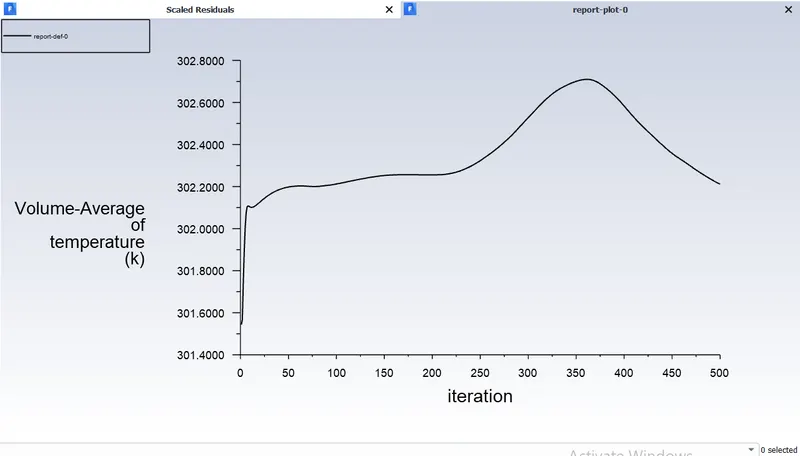

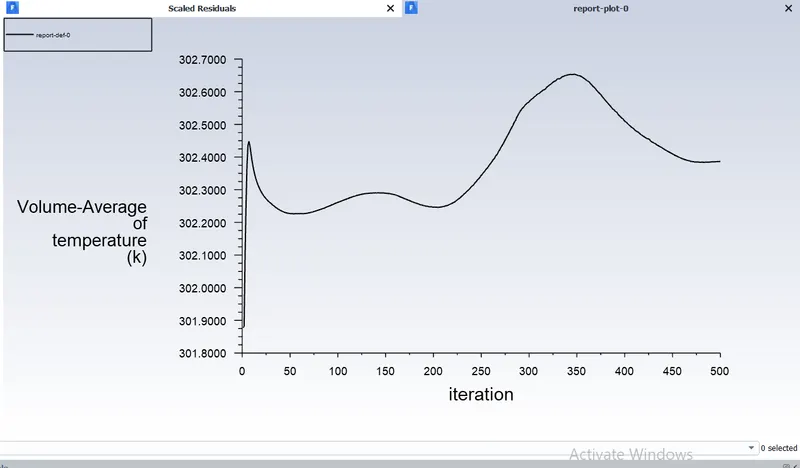

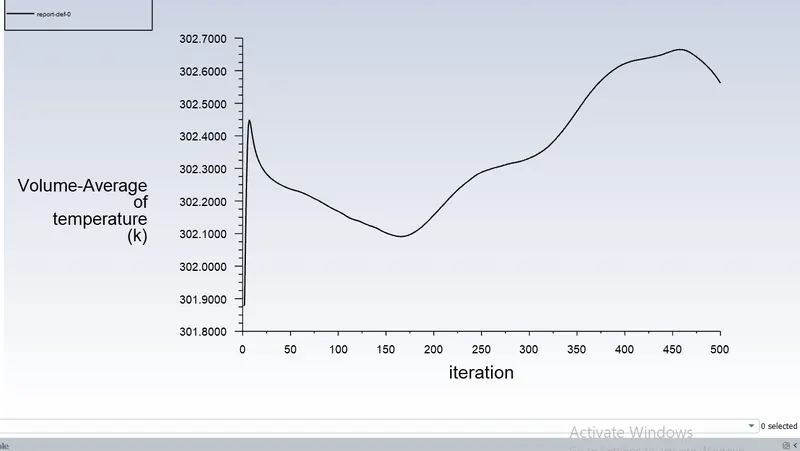

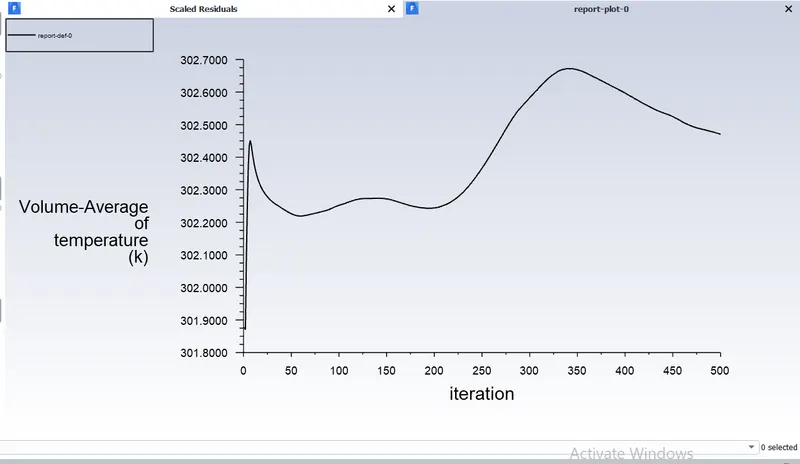

The below chart shows the change in volume avg. temp chart with respect to different Element Size:

4 mm

6 mm

8 mm

12 mm

Results:

4 mm result gives finer element size:

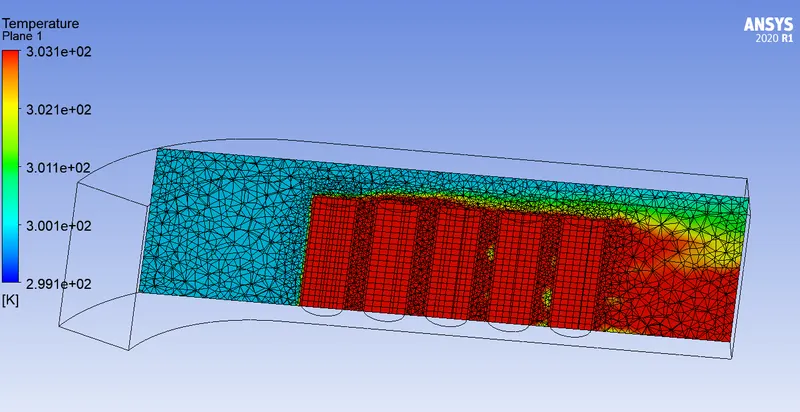

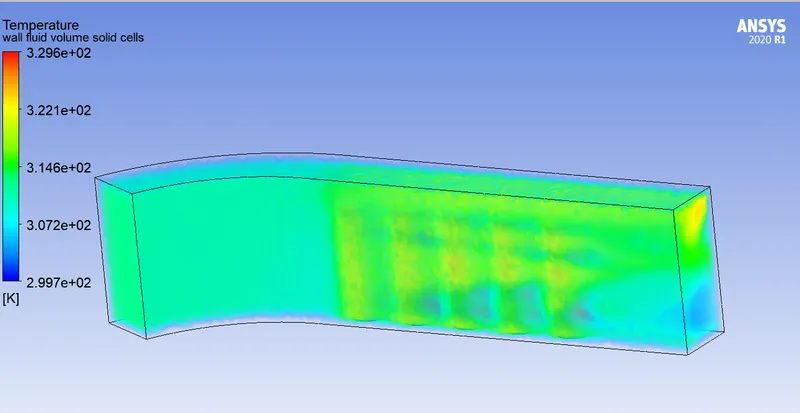

Temperature contour:-

Velocity contour:-
