Section Modulus calculation and optimization

Section modulus:

Section modulus is the ratio of min moment of inertia to the distance between the neutral axis and the extreme end of the object

By section modulus we can identify how much load can take.

S = I / Y

Here

S = Section modulus

I = moment of inertia

Y = the distance between the neutral axis and the extreme end of the object

SI Unit of Section Modulus is mm3

Using the Section from your Hood design and calculate the section modulus

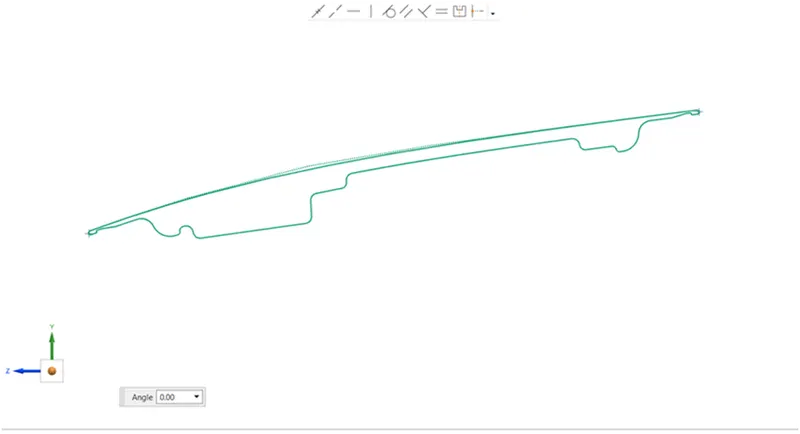

This the Section from your Hood design

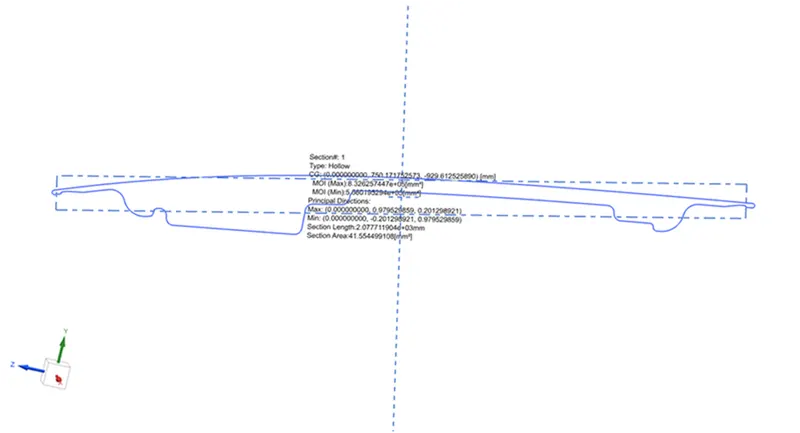

Case 1^st

Here

I = Min moment of inertia = 5.560195294e+0.5(mm)

Y = the distance between the neutral axis and the extreme end of the hood = 243.02935

Calculating the section modulus (S)

S = I / Y

   = 5.560195294e+0.5/243.02935

   = 0.4595 mm3

the section modulus (S) is 0.4594 mm3

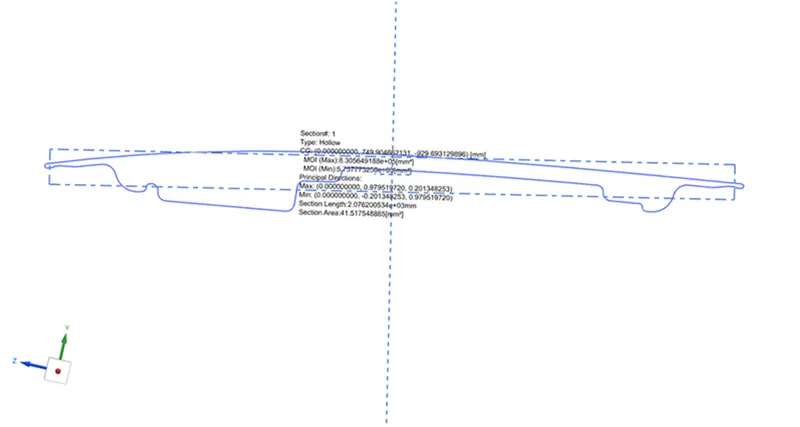

Case 2nd

Changing in depth of inner panel

After changing in depth, we got another MI

I = 5. 757773258e03

Y = 243.0935

To find S,

S = I/Y

   =   5.757773258e03 / 243.0935

   = 0.4758mm3

 the section modulus (S) is 0.4758mm3

Conclusion:

After comparing Case 1st and 2nd we got to observe that as we change in depth of inner panel there is also change of moment of inertia so the section modulus also changes

As section modulus increases the strength of hood is increases
