Section Modulus calculation and optimization

AIM - To calculate the section modulus of the hood and optimizing it for increasing the strength of the hood.

INTRODUCTION - SECTION MODULUS - Section modulus is a geometric property for a given cross-section used in the design of beams or flexural members. It does not represent anything physically. To define section modulus, it may be defined as the ratio of total moment resisted by the section to the stress in the extreme fiber which is equal to yield stress.

There are two types of section moduli

1) Elastic section modulus - For general design, the elastic section modulus is used, applying up to the yield point for most metals and other common materials. The elastic section modulus is defined as S = I / y, where I is the second moment of inertia (or area moment of inertia, not to be confused with the moment of inertia) and y is the distance from the neutral axis to any given fibre. It is often reported using y = c, where c is the distance from the neutral axis to the most extreme fibre. It is also often used to determine the yield moment (M_y) such that M_y = S × σ_y, where σ_y is the yield strength of the material.

2) Plastic section modulus - The plastic section modulus is used for materials where elastic yielding is acceptable and plastic behavior is assumed to be an acceptable limit. Designs generally strive to ultimately remain below the plastic limit to avoid permanent deformations, often comparing the plastic capacity against amplified forces or stresses. The plastic section modulus depends on the location of the plastic neutral axis (PNA). The PNA is defined as the axis that splits the cross-section such that the compression force from the area in compression equals the tension force from the area in tension. So, for sections with constant yielding stress, the area above and below the PNA will be equal, but for composite sections, this is not necessarily the case.

But here I have to calculate the elastic section modulus. The elastic section modulus is given by:

S = I/y

S = Section Modulus

I = Moment of Inertia

y = distance between the neutral axis and the extreme end of the object

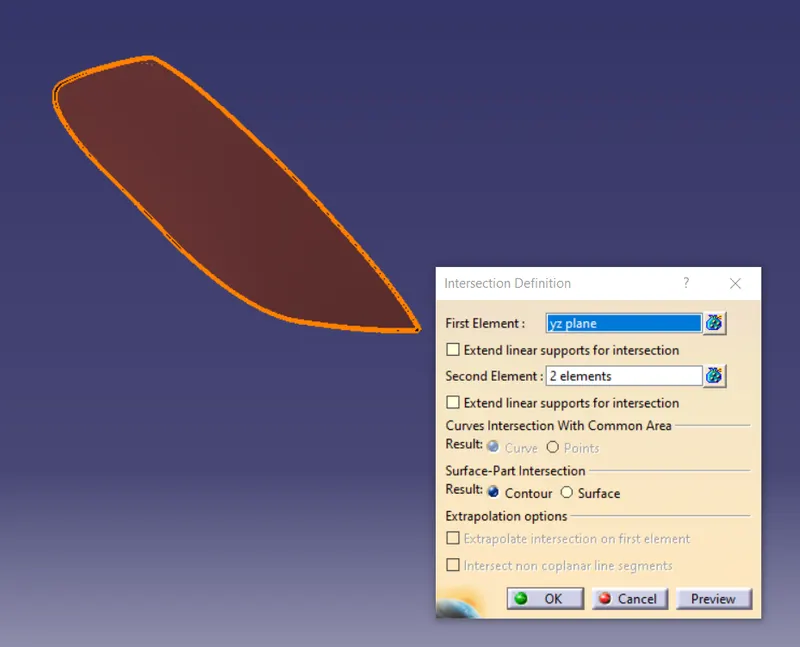

PROCEDURE - For calculating the section modulus first I have to take an intersect of the outer panel and the inner panel of the hood with a plane. The intersection parameter is shown below:



Now I will use the multiple extracts feature and will extract the outer boundary of the outer panel or outer part of the hood.

The boundary is shown below:

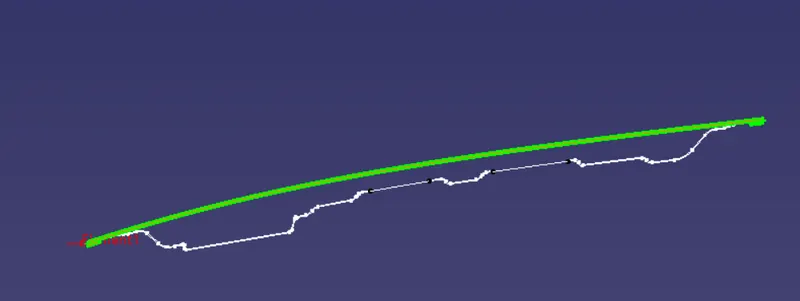

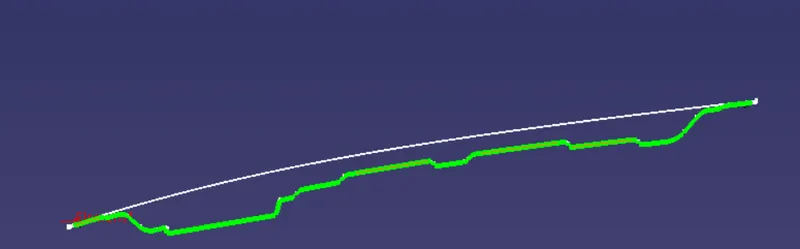

The same thing I will do for the inner panel is I will extract the outer boundary of that. The boundary is shown below:

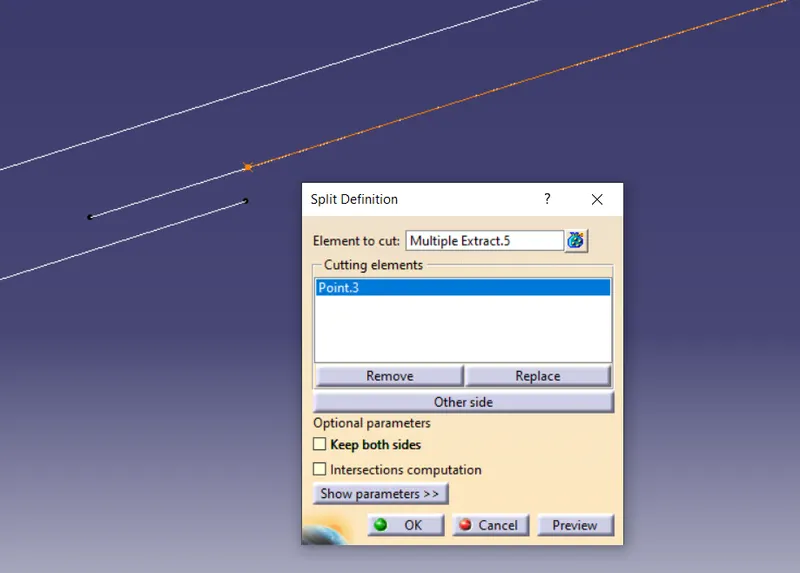

Now I have to join the inner panel boundary with the outer panel. But before that, I will split the extra portion of the inner panel. so for splitting, I will make a point on the outer boundary that I have just extracted and will use that point as the cutting element. The split is shown below:

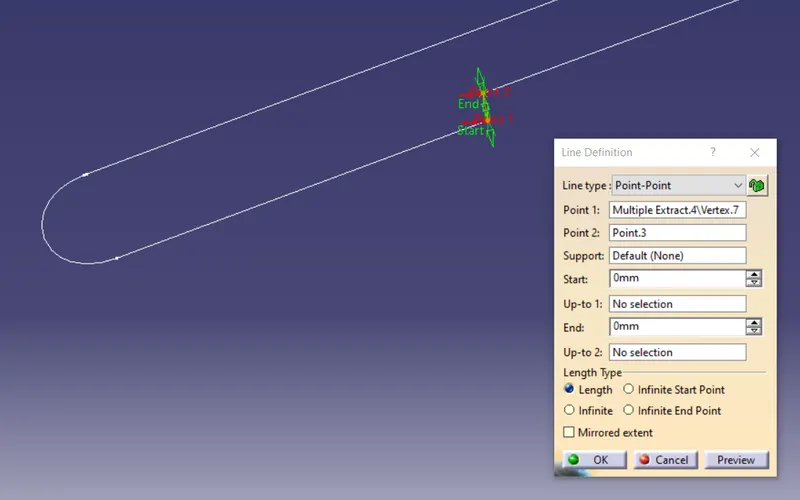

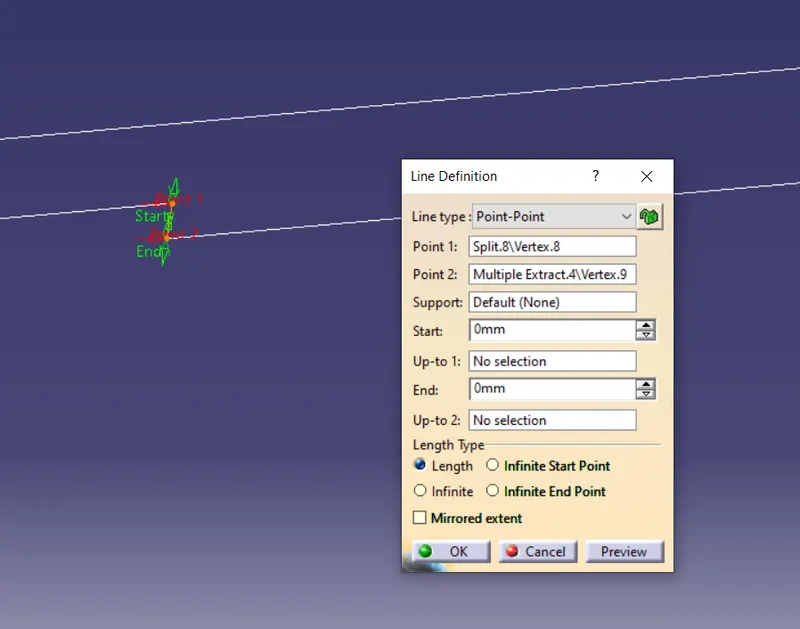

A similar thing I will do to the other side also and then I will create two lines on each side which will be a point-to-point line to connect the inner panel to the outer panel to make it a closed section. The lines are shown below:

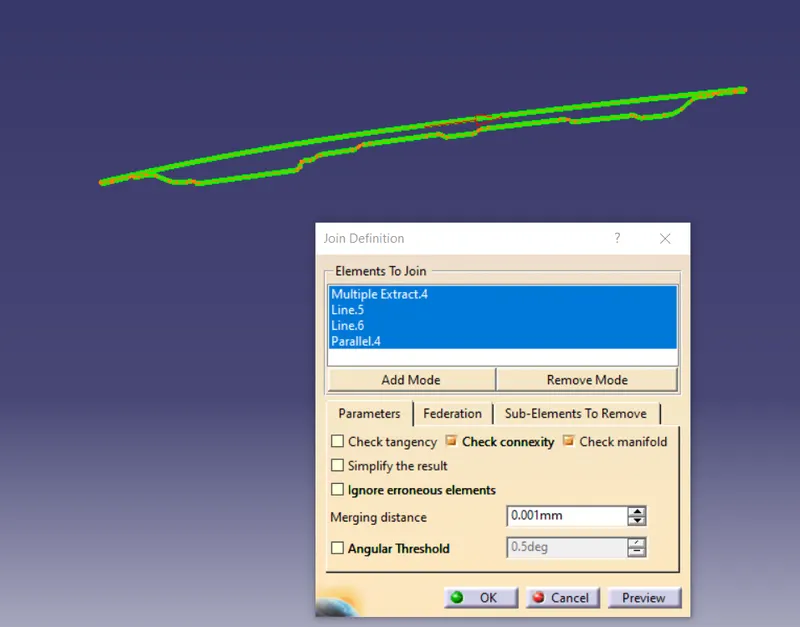

Then I will join the lines and the inner and outer panels. The join is shown below:

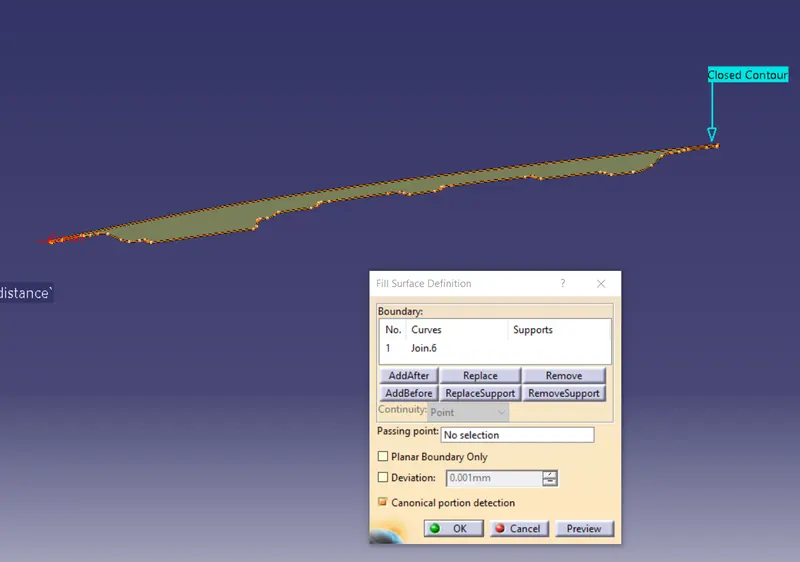

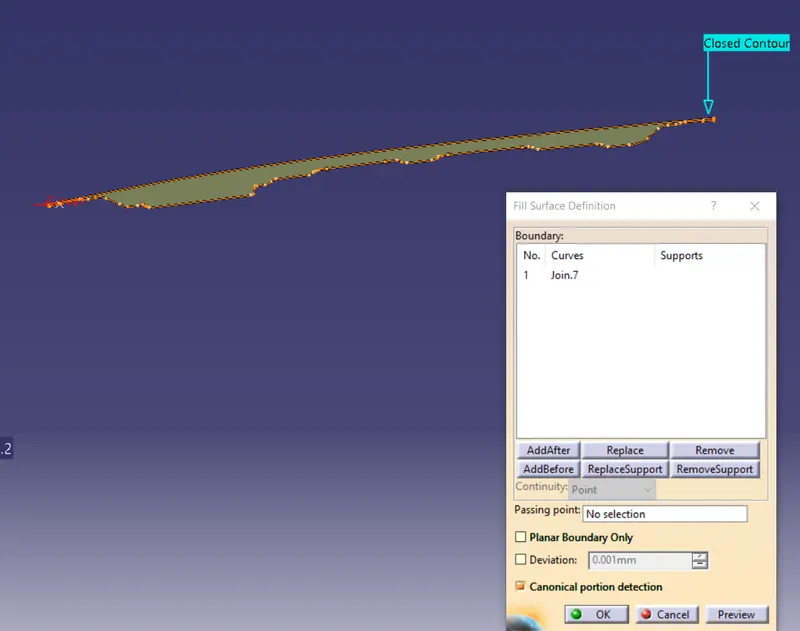

Then I will make the closed surface from this boundary. The closed surface is shown below:

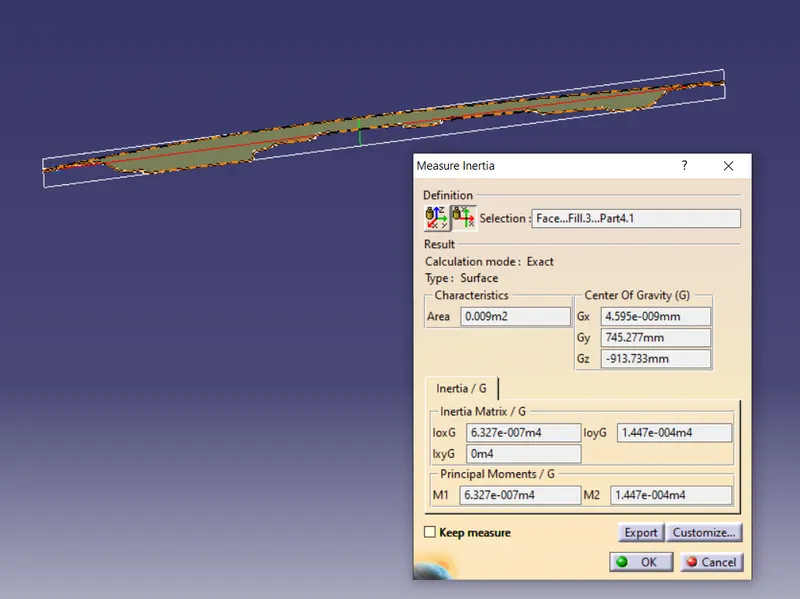

Then I will just go to the inertia measuring tool in CATIA which will be there at the bottom and measure it on the fill surface that I created. The inertia parameters are shown below:



so here I got two values M1 and M2

M1 was 6.327e-007m4">m4m4 and M2 was 1.447e-004m4">m4m4. Here u can see that values are in metres so I will just change them into mm by multiplying 1012">10121012

Here I will select the lesser value of inertia between M1 and M2 so M1 is less than M2 so that will my inertia value

Here now I got the value of I = 632700 mm4">mm4

Now I have to calculate the value of y which is the distance between the neutral axis and the extreme end of the object.

so for calculating y I will measure the distance between the extreme ends of the outer panel and then divide it by 2 to get the value of y.

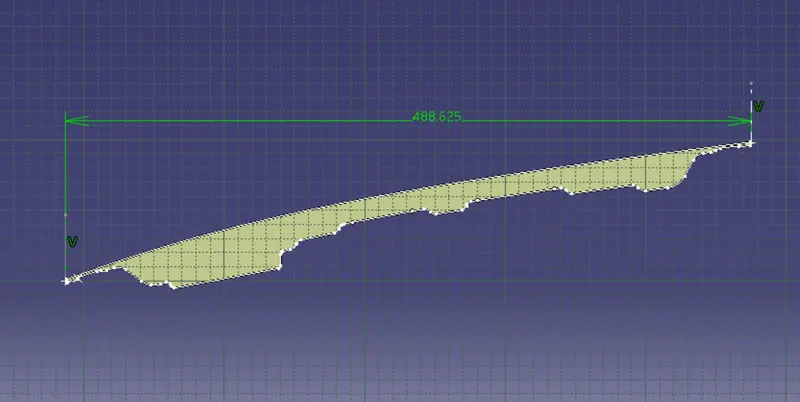

For measuring, I will create points and line on the extreme ends and measure them. The distance is shown below:



the distance between the two extreme ends I got was 488.625 mm. I will just divide this length by 2 to get the value of y

y = 488.6252">488.625/2 = 244.3125 mm

so now I have the values of both I and Y and I will now calculate the section modulus (S)

S = Iy=632700244.3125">I/y=632700/244.3125 = 2589.71mm3">mm3

Optimization - Now I will optimize the above-calculated section modulus. optimizing means here I will try to increase the value of section modulus for increasing the strength of the component which is the hood. For optimization, I will neglect the thickness of the hood.

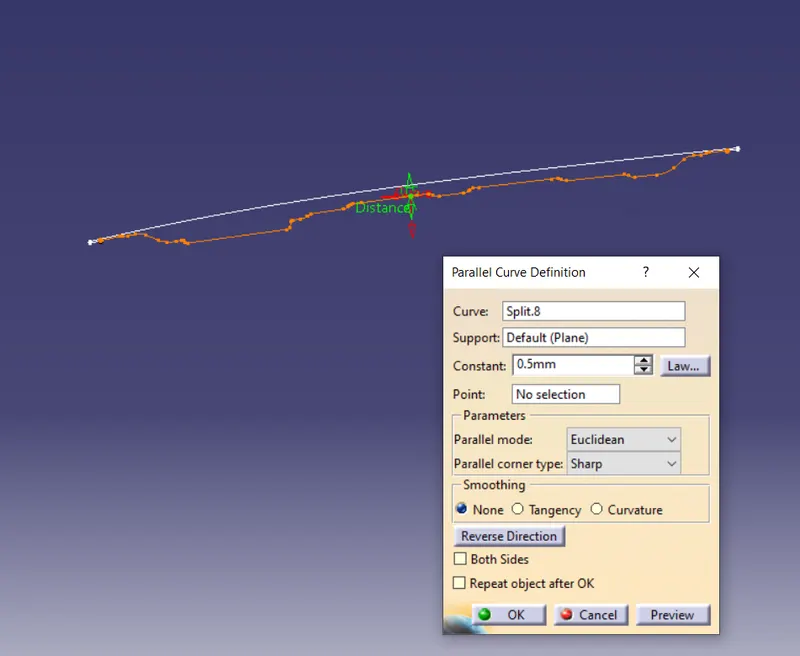

so for this, I will offset the boundary of the inner panel to 0.5 mm which will increase the inner area and therefore increase the inertia also. The offset is shown below:

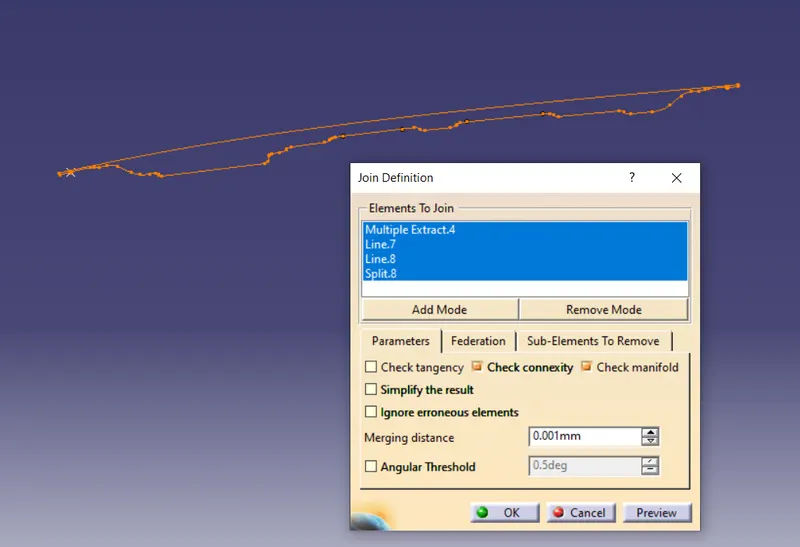

Now again I will follow the same procedure that is I will create the lines which will connect the two panels. Then I will just join the lines and boundary of both the panels. The join is shown below:



Then again I use the fill surface feature to make a surface. The surface is shown below:

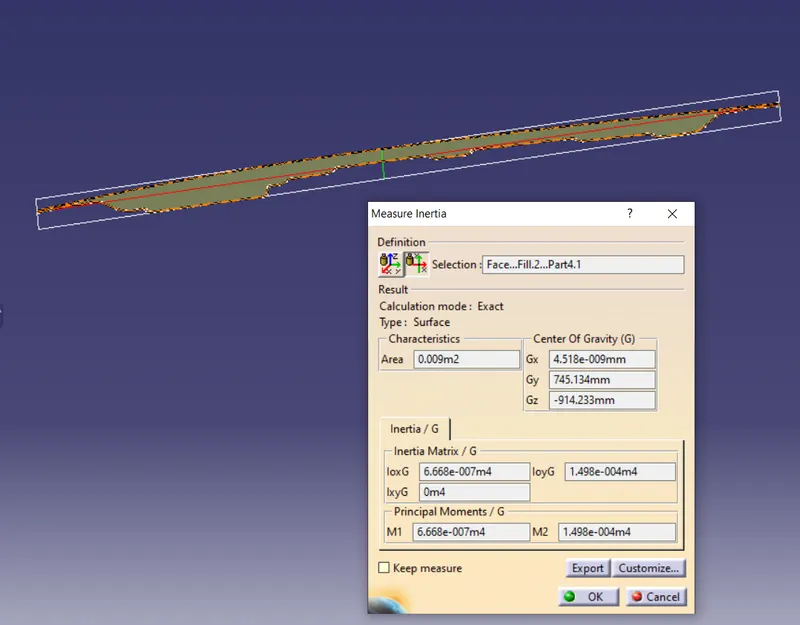

Now I will calculate the moment of inertia for this surface. The moment of inertia is shown below:



The new values of inertia I got were M1 was 6.668e-007m4">m4m4 and M2 was 1.498e-004m4">m4m4 again taking the minimum value of the two and converting the value into mm The inertia value I got was 666800 mm4">mm4mm4

The value of y will be the same as it was for the previous case that is 244.3125 mm.

The new section modulus is:

S = Iy=666800244.3125">I/y=666800/244.3125= 2729.29 mm3">mm3

RESULT - The values of section modulus I got are shown below:

S.NO	Moment of inertia(I)	Distance between the neutral axis and the extreme end of the object (y)	Section modulus (S)
1	632700 mm4">mm4	244.3125 mm	2589.71 mm3">mm3
2 ( optimization)	666800 mm4">mm4	244.3125 mm	2729.29 mm3">mm3

As u can see in the above table the initial value of section modulus I got was 2589.71 but after optimizing it I got the value as 2729.29 which shows that the strength of the component in that section is increased.

CONCLUSION - This concludes the calculation and optimization of the section modulus of the hood design.
