Section Modulus calculation and optimization

SECTION MODULUS

For finding the section modulus i follows the below process

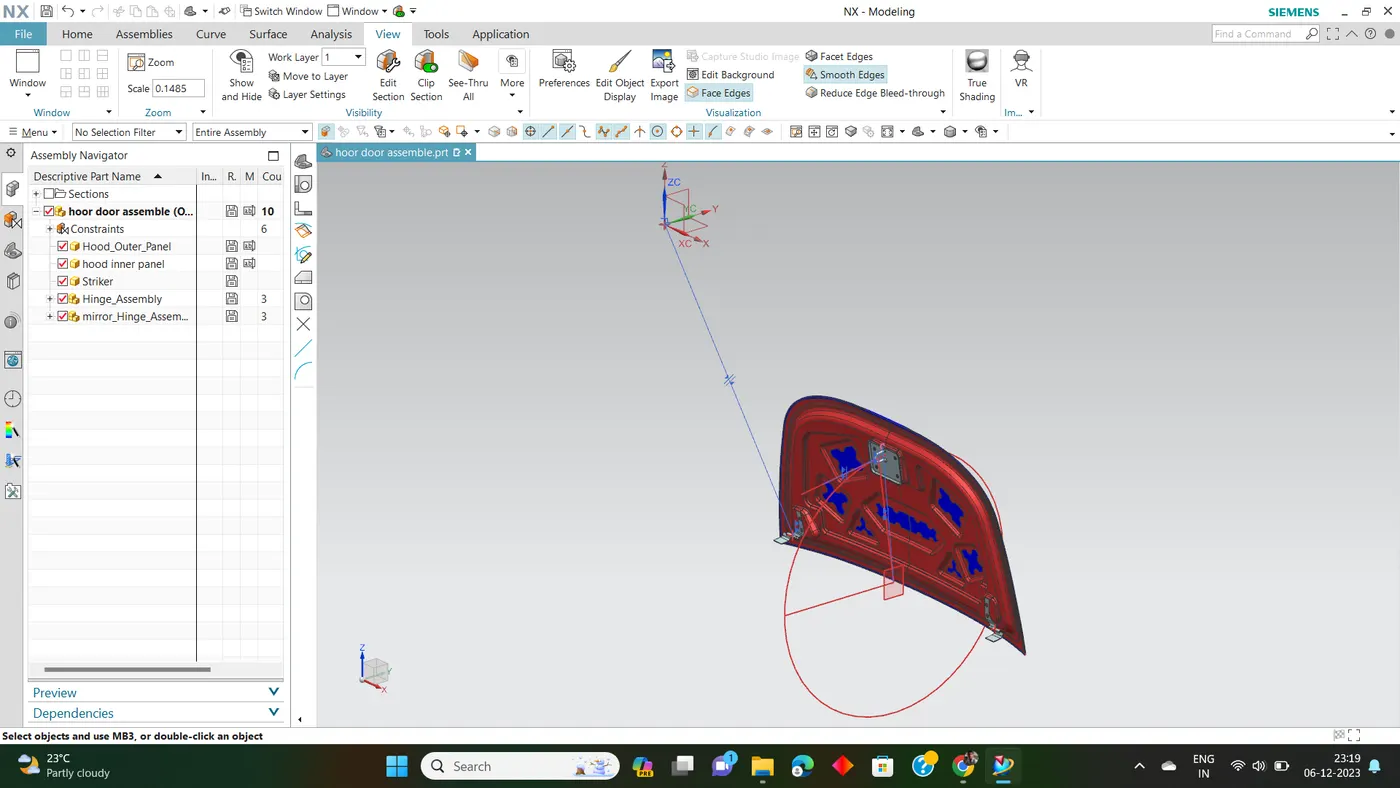

Take hood file go to view tool clip section

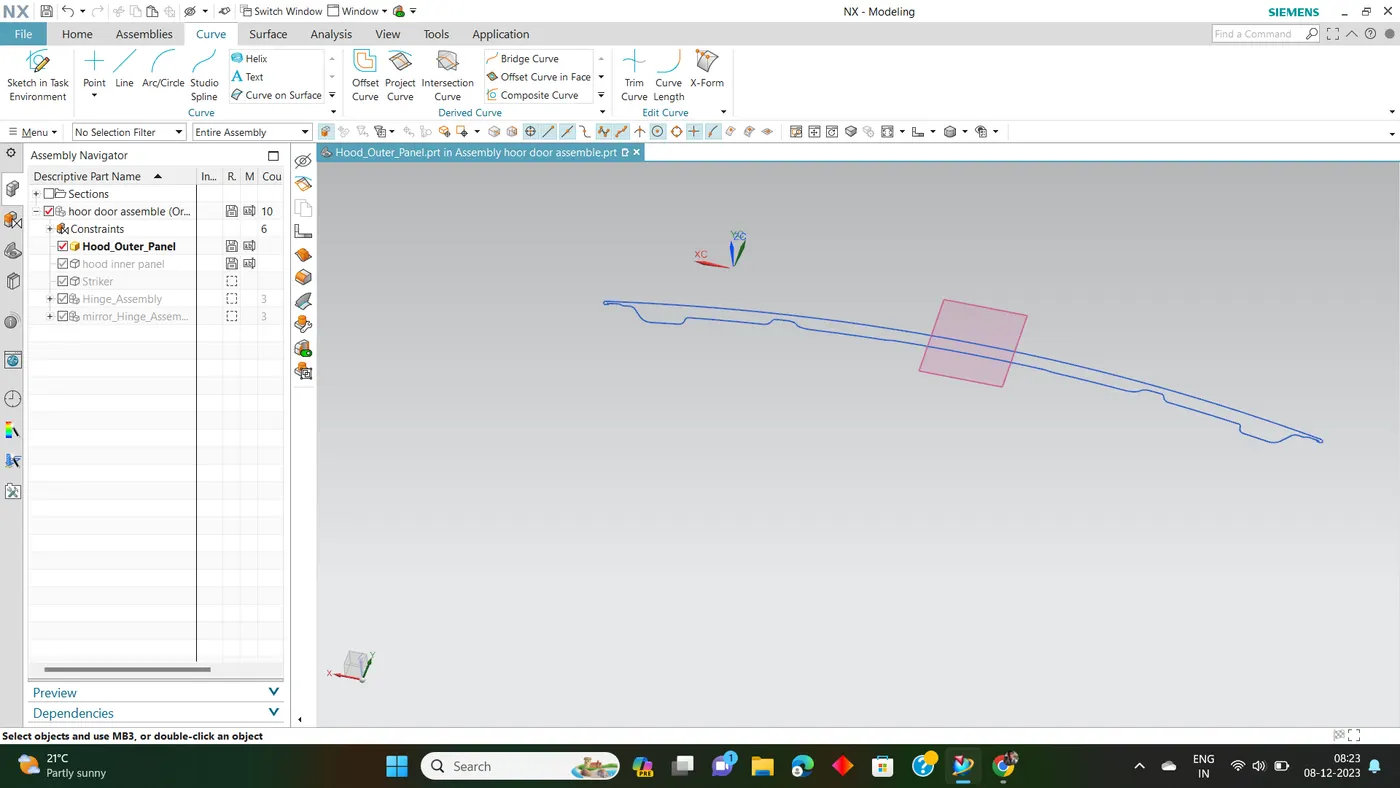

take THE intresection of the hood

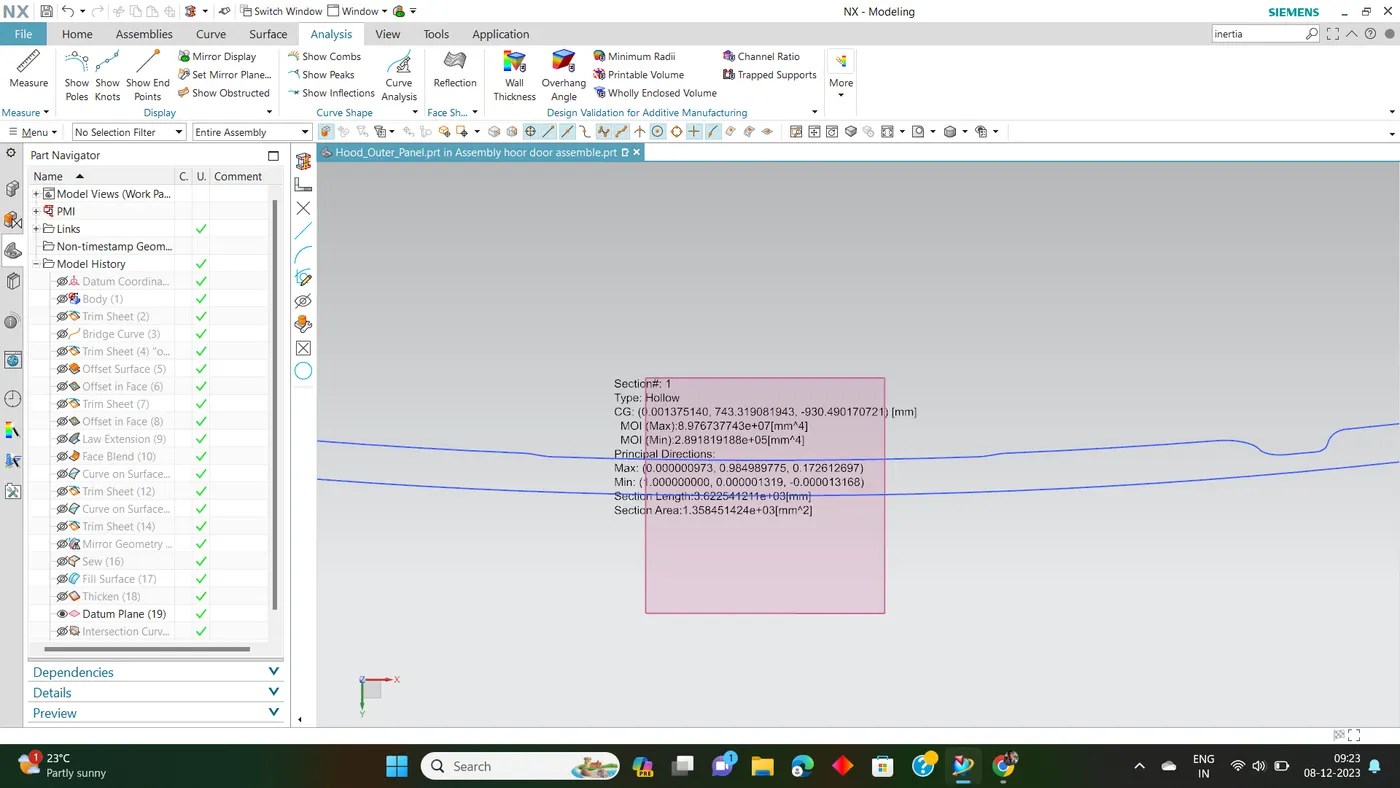

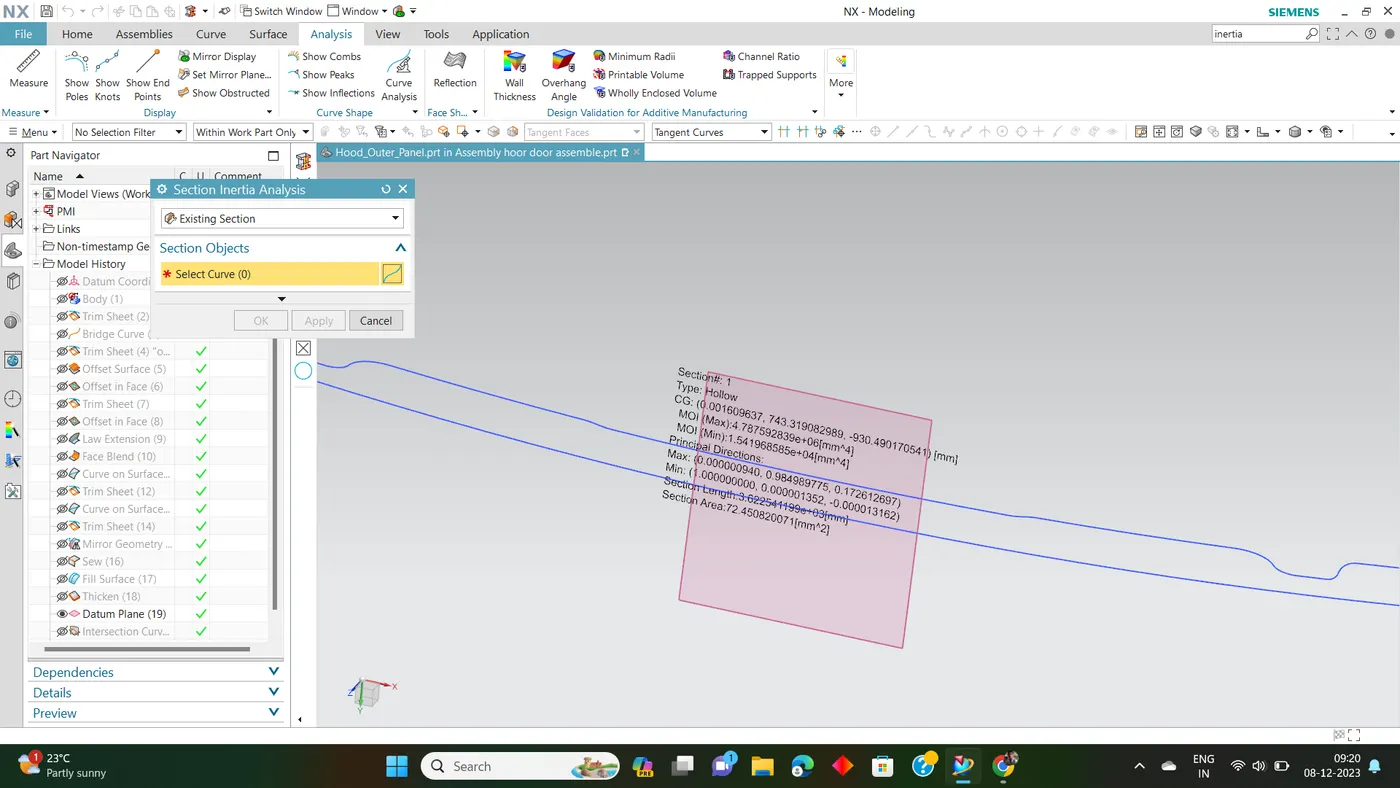

go to analysis done the section modulus analysis i find the moment of inertia two times one is narmal another impured

calculations case 1

I = 8.9 mm4

Y = 897mm = 897/2 = 448.5

z = ?

Z = I/Y

Z = 8.97673774/448.5

Z = 0.020015

Calculations case 2

I = 4.78

Y = 448.5

Z = ?

Z = I/Y

Z = 4.78/448.5

Z = 0.01065774
