Challenge

Section Modulus calculation and optimization

SECTION MODULUS

CASE-1

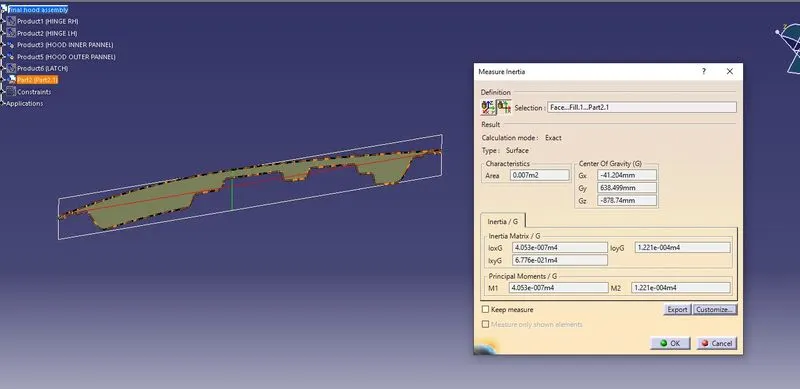

IN THIS CASE I GOT Mmin = 1.221*10^(-4)m^4

CASE-2

Here i did offset the inner pannel about 0.5mm away

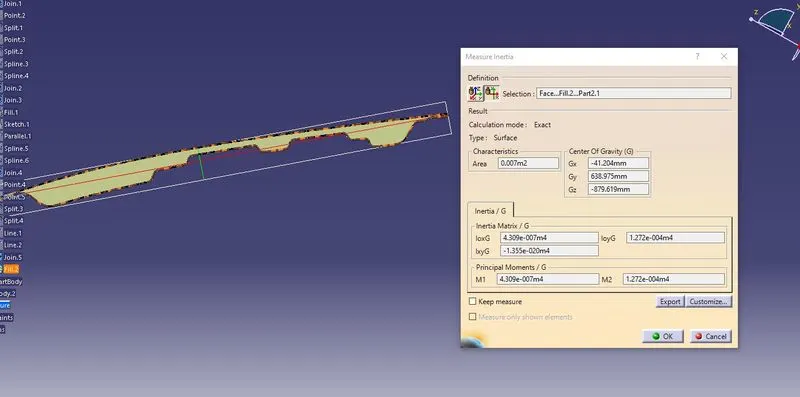

IN THIS CASE I GOT Mmin = 1.272*10^(-4)m^4

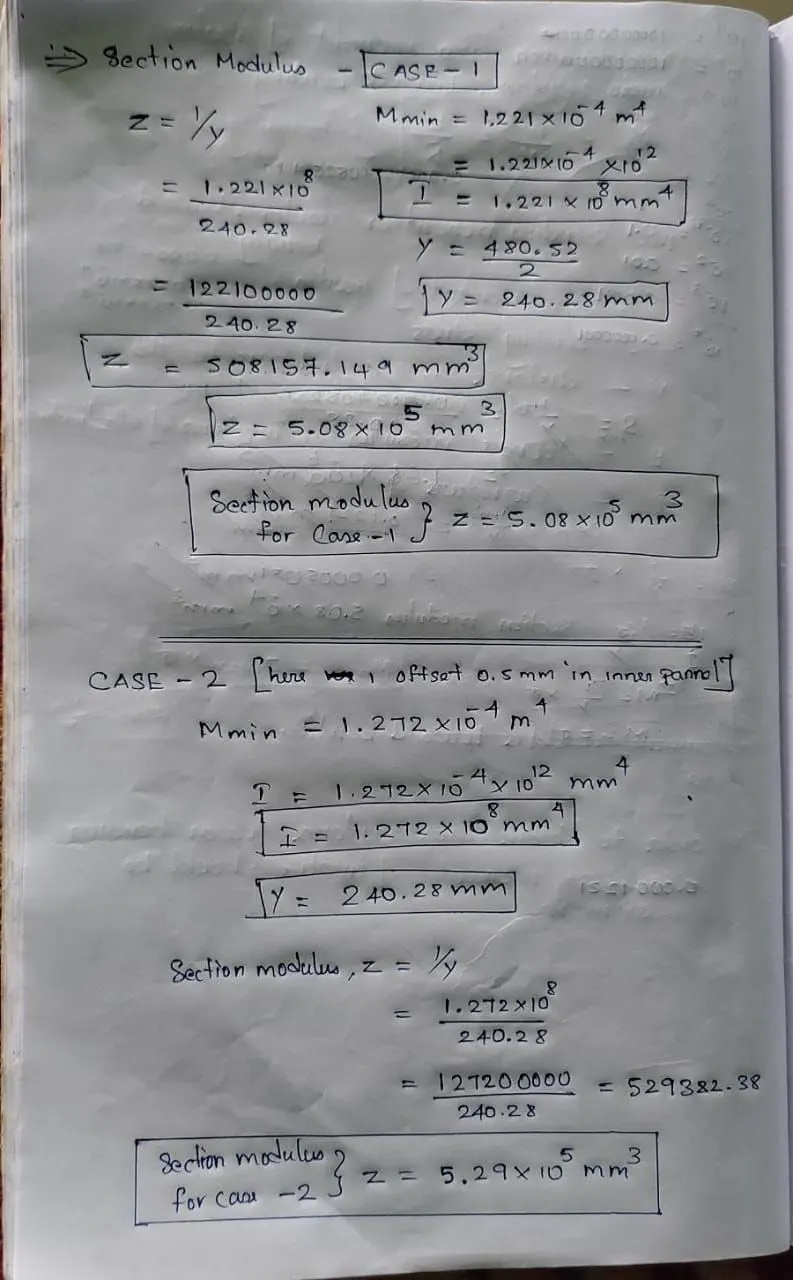

SECTION MODULUS CALCULATION

CONCLUSION :

CASE-1

Z=5.08*10^5mm^3

CASE-2

Z=5.29*10^5mm^3

BY OFFSETING THE INNER PANEL ABOUT 0.5 MM INCREASES THE SECTION MODULUS VALUE, HENCE I HAVE INCREASED THE LOAD BEARING CAPACITY OF MY HOOD.
