Section Modulus calculation and optimization
Section Modulus Means
Section Modulus is a geometric property used to calculate the bending stresses in a structural member.
Mathematically,

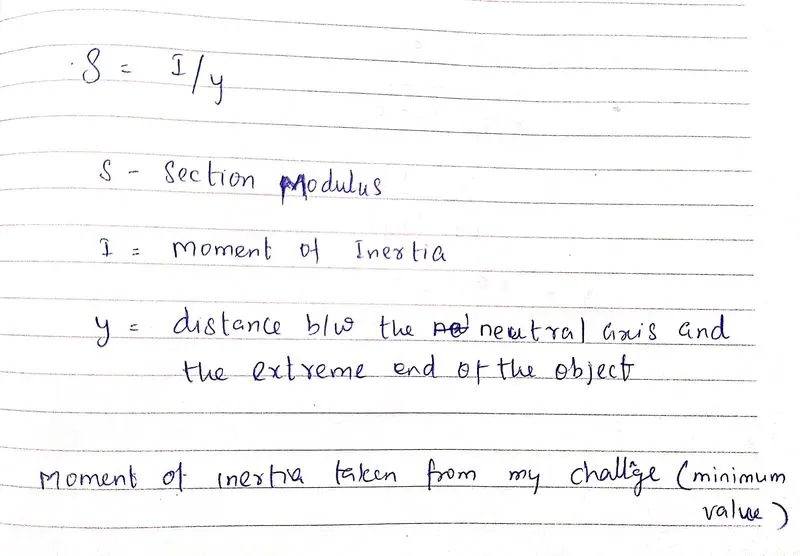

It is defined as the ratio of the moment of inertia of a section about its centroidal axis and to the distance of the extreme layer from the neutral axis.
It is denoted by Z.

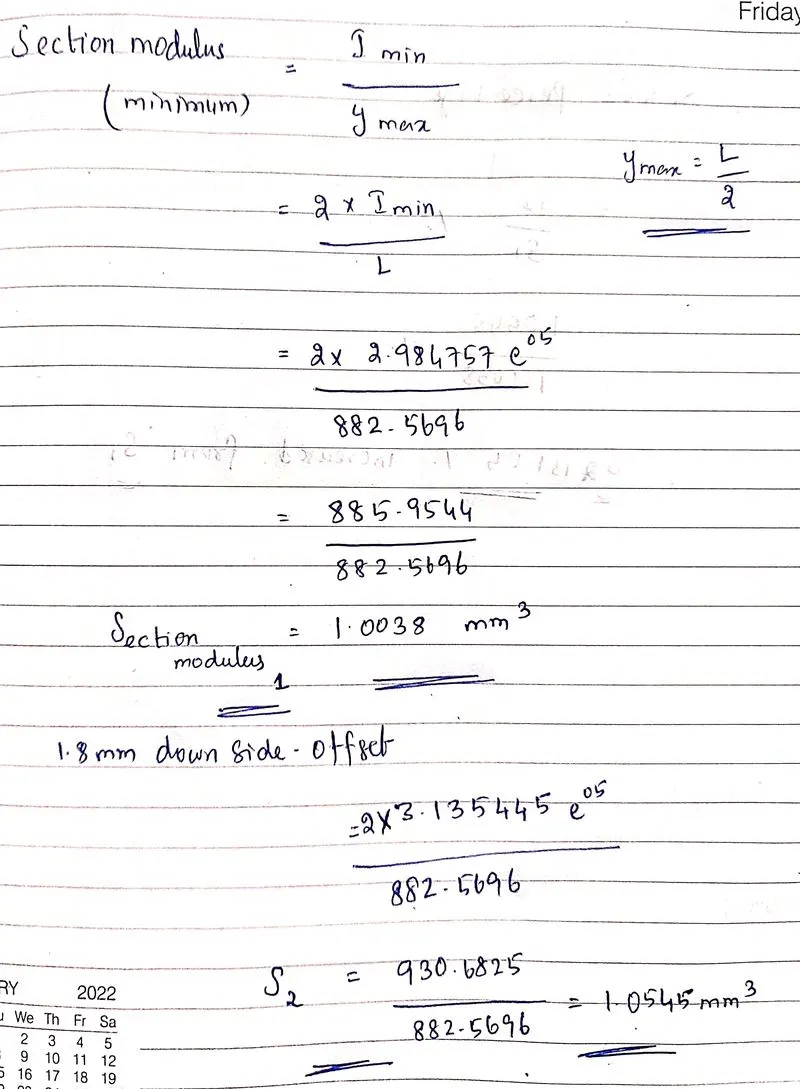

Z = I/ymax

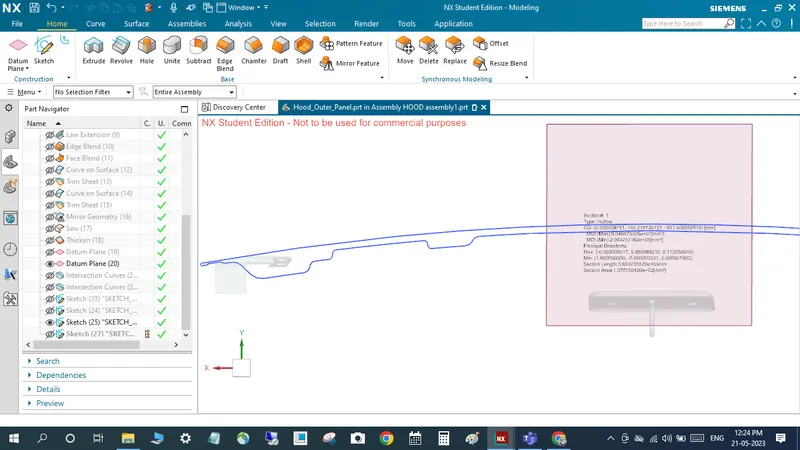

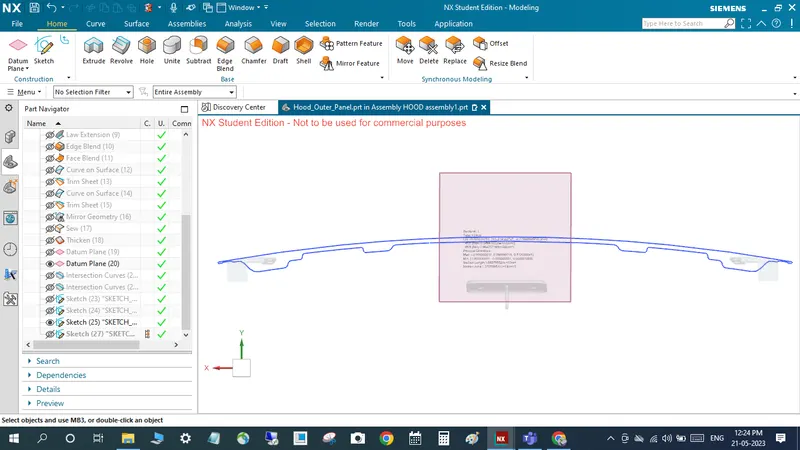

Section inertia analysis for closed outer and inner hood panel

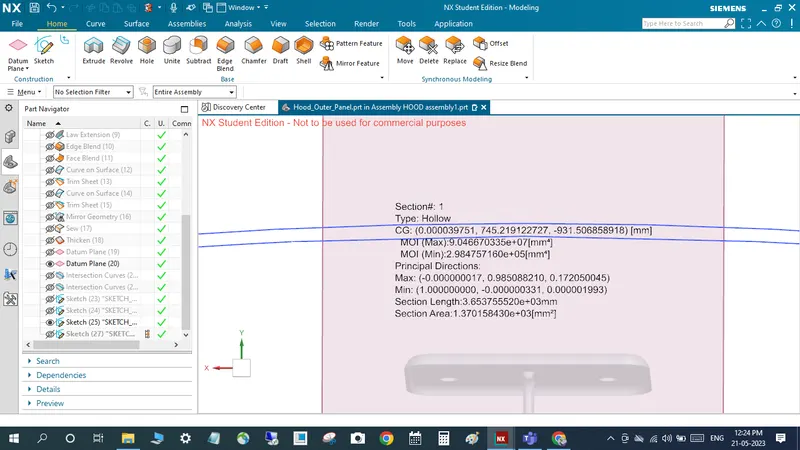

Moment of inertia max 9.046670335e^07 mm^4
moment of inertia min 2.984757160e^05mm^4

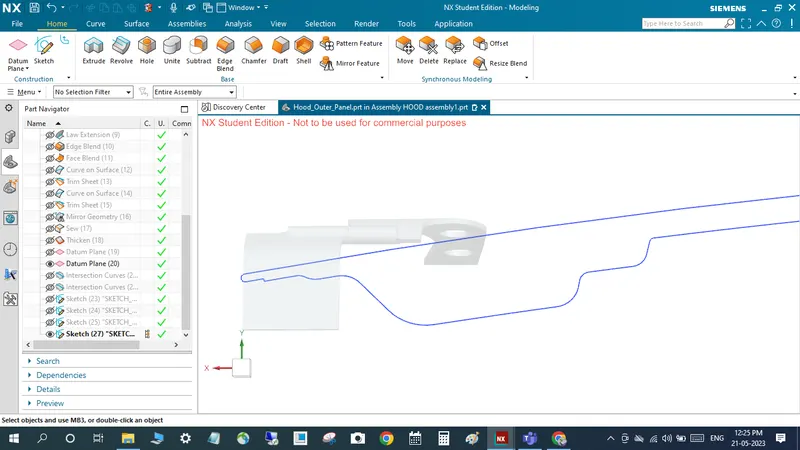

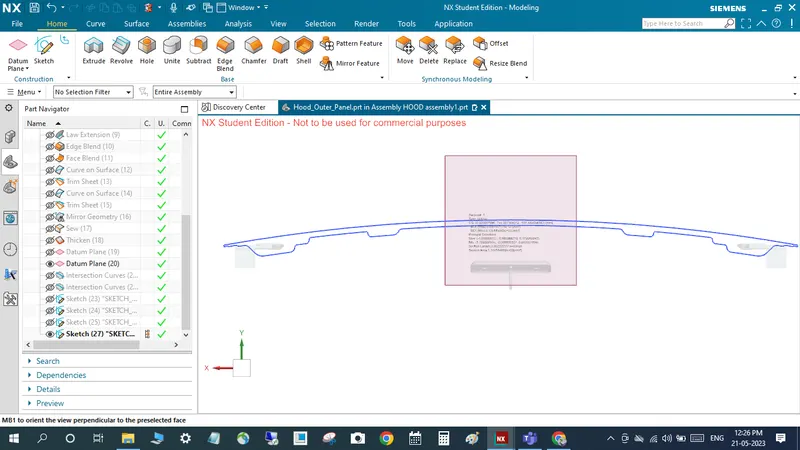

Section inertia analysis for closed outer and offset 1.8mm inner hood panel improve of moment of inertia

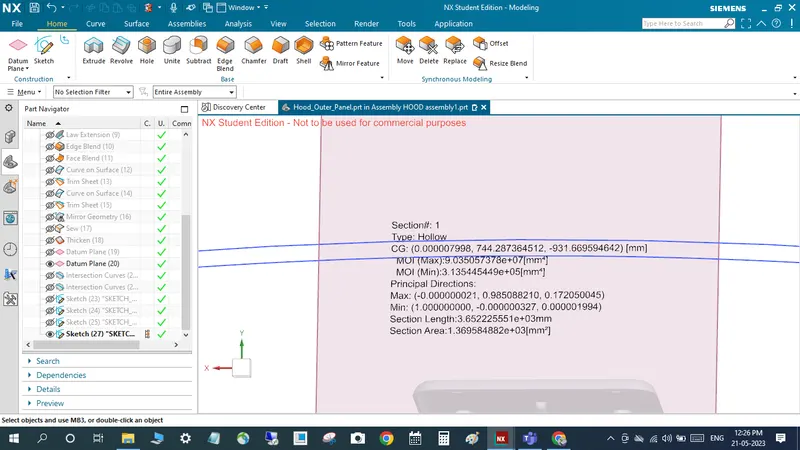

Moment of inertia max 9.035057378e^07 mm^4
moment of inertia min 3.135445449e^05mm^4
