Section Modulus calculation and optimization
Aim
To Calculate the section modulus of the hood
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product: Face...Fill.1...Hood
Date: Monday, 05 April 2021 16:34:11
Author: Admin
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Component | Sub-Component | Area[m2] | Gx[mm] | Gy[mm] | Gz[mm] | M1[m4] | M2[m4] | IoxG[m4] | IoyG[m4] | IxyG[m4] |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

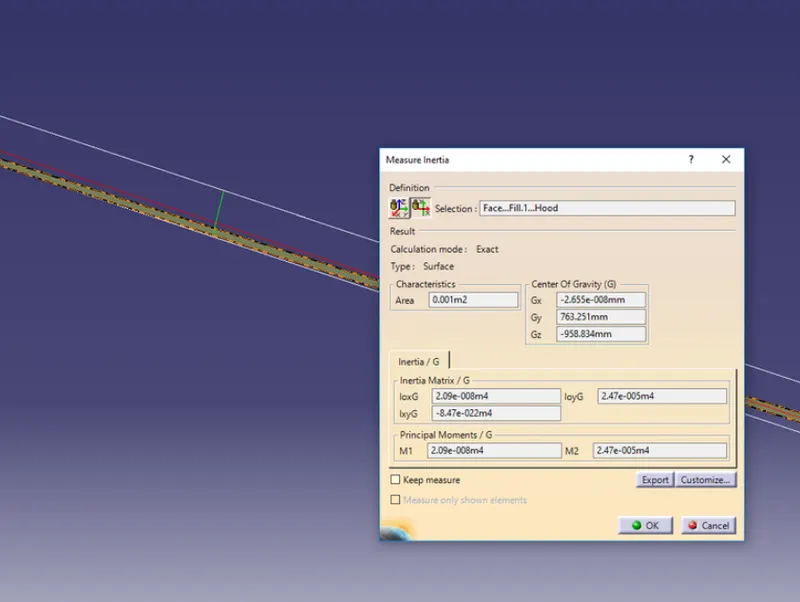

Face...Fill.1...Hood | | 0.001 | -2.65516e-08 | 763.251 | -958.834 | 2.09036e-08 | 2.4698e-05 | 2.09e-008 | 2.47e-005 | 9.148e-020 |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
S=I/Y

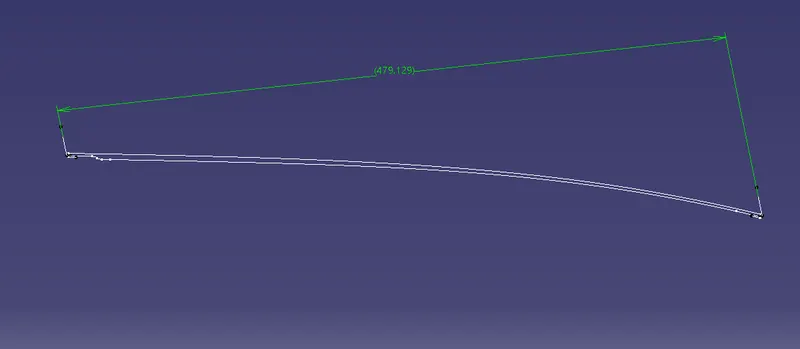

Y=479.129/2
=239.5645mm
I=2.09*10^8m^4
S=(2.09*10^8)/239.5645=87.241*10^6 mm^4
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product: Face...Fill.2...Hood
Date: Monday, 05 April 2021 17:09:11
Author: Admin
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Component | Sub-Component | Area[m2] | Gx[mm] | Gy[mm] | Gz[mm] | M1[m4] | M2[m4] | IoxG[m4] | IoyG[m4] | IxyG[m4] |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

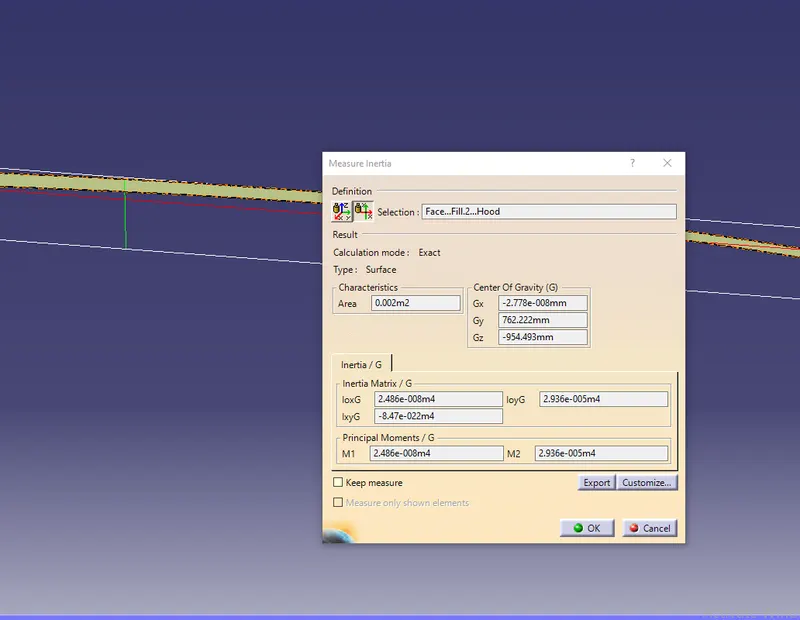

Face...Fill.2...Hood | | 0.002 | -2.77849e-08 | 762.222 | -954.493 | 2.48638e-08 | 2.93598e-05 | 2.486e-008 | 2.936e-005 | 2.795e-019 |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
S=I/Y
Y=479.129/2
=239.5645mm
I=2.486*10^8m^4
S=(2.486*10^7)/239.5645=103.771mm^4
Conclusion
So decreasing the distance between the 2 panels leads to increment in section modulus, so resistance to bending also increases, the strength of the hood also increases
