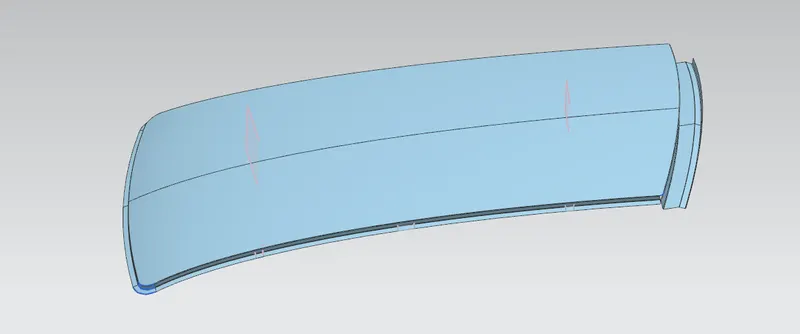

Roof Design

AUTOMOTIVE SHEETMETAL ROOF DESIGN USING NX CAD

OBJECTIVE:

1.Main objective of the project is to create the Roof Sheetmetal design in NX cad, and also designing Front roof rail, rear roof rail, bow roof front, bow roof rear, center roof rail and Reinforcement are creating to build the strong roof.

2.Do curvature study on Roof and performance calculations for Heat distortion and Snow load criteria to determine the position of the Bow roofs.

3.Finding the moment of inertia and section modulus for Bow-roofs and center roof rail.

4.And, also finding the Draft Analysis of each part.

DESIGN CONSIDERATION OF ROOF:

• Visibility criteria
• Head room clearance
• Bow roof position
• Heat distortion and Snow load criteria
• Draft analysis

CURVATURE STUDY ON THE ROOF:

• Heat Distortion
• Snow Load

HEAT DISTORTION:

The heat distortion study the plays an important role in Sheetmetal application. Heat distortion is temperature limit above which material cannot be used for structural application. This study is useful to fin the where the material starts to soften when exposed to a fixed load at elevated temperature. In order to avoid the bending, damage to the roof based on the heat distortion temperature. This study will provide the which position of the bow roof give enough strengthen to roof.

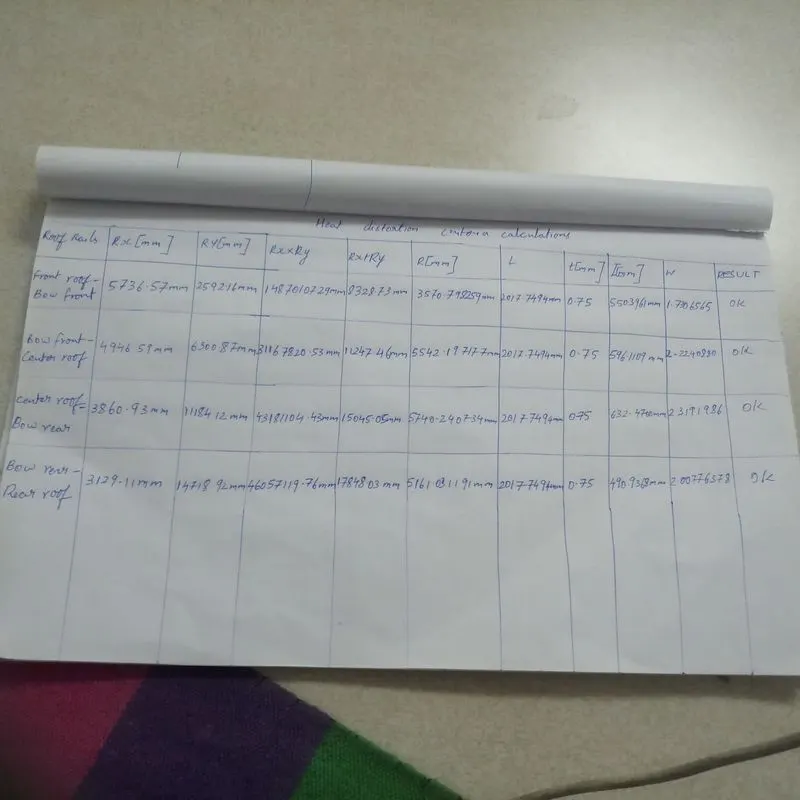

Bow–Roof Prediction Formula

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

Where,

L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)

R = Roof curvature

R = 2(Rx*Ry)/(Rx+Ry)

Rx = X curvature

Ry = Y curvature

t = Roof plate thickness [mm]

l = Bow Roof Span [mm]

Judgment Condition

OK< 2.7

ROOF LENGTH (L):

R_X & R_Y (X & Y Curvature):

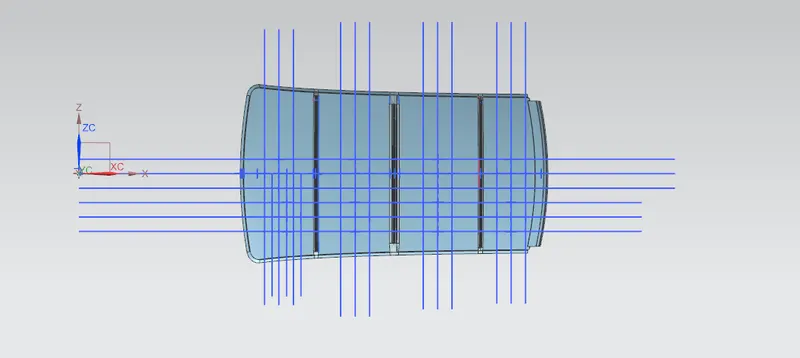

• From 0-Y axis, at -3Y about distance 300mm is drawn parallel on the perpendicular plane. After that 100mm lines are offset to either side of -3Y line. Now center lines are drawn between each adjacent roof rail edges respectively. Intersection points are marked on the sketch. Make all geometry lines are construction lines except points.
• Project the intersection points on sketch to the Roof surface.
• Join the intersection points in roof surface using the arc curve an measure the radius using the minimum radius comment.

From the above table we, conclude that all the values are of W< 2.7 and also W> 3.1. So, that all bow roofs areas are placed at the right place.

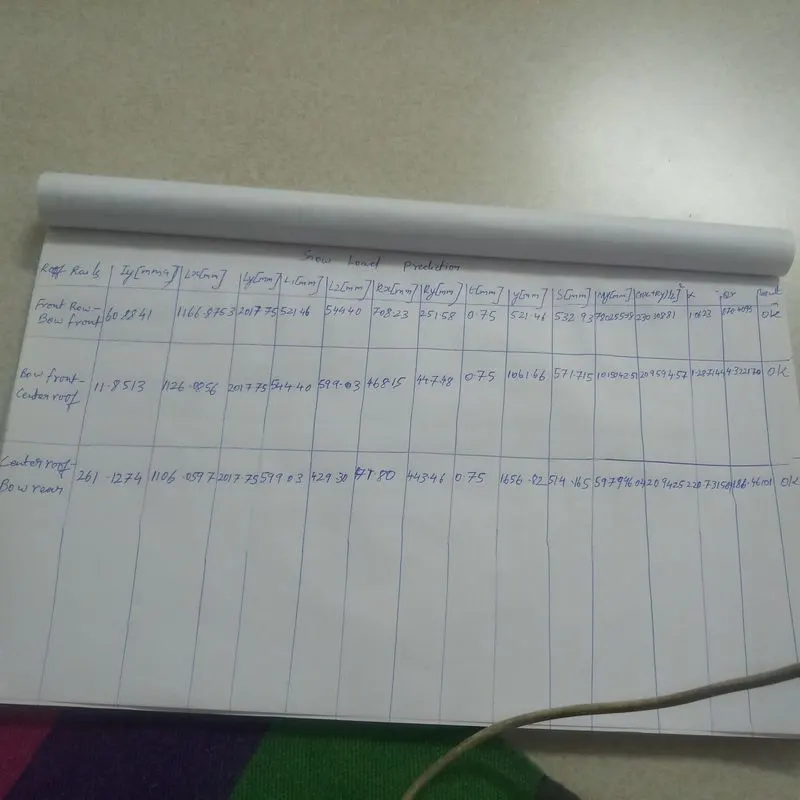

Snow Load Prediction Formula

Qr = [Iy x t²] / [α x s x [(Rx + Ry)/2]² x 10^-8]

Note: The Qr value given over here is correct. There was a typo error in the formula given in the video.

Where,

α = My x Lx² x 10^-12 , My = Y(Ly-Y)

t = Roof plate thickness [mm]

Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]

Length of Roof panel with the center point between Roof rail Front /Rear as the front and rear reference point.

Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]

The width of the roof panel is exposed on the surface.

Y = Distance front Front Roof Rail to Roof BOW[mm]

s = Distance for which Roof BOW bears divided load [mm]

s = L1/2 + L2/2

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]

Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]

Roof panel curvature Radius of the Length Lx in Front view

Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]

Roof panel X curvature radius of length s in Side view

Judgment condition

Qr ≥ 3.1

250 ≤ s ≤ 380

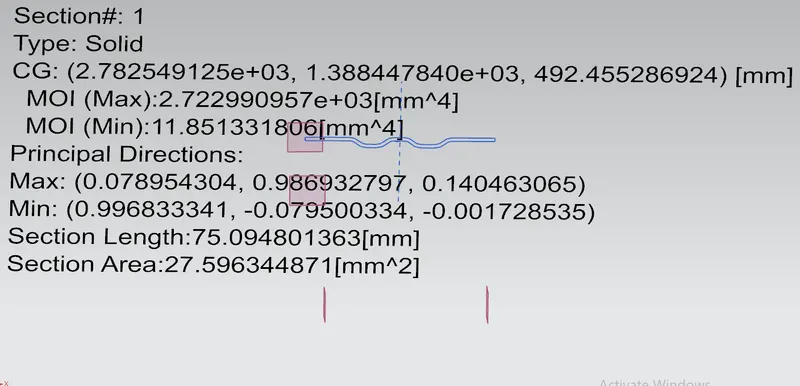

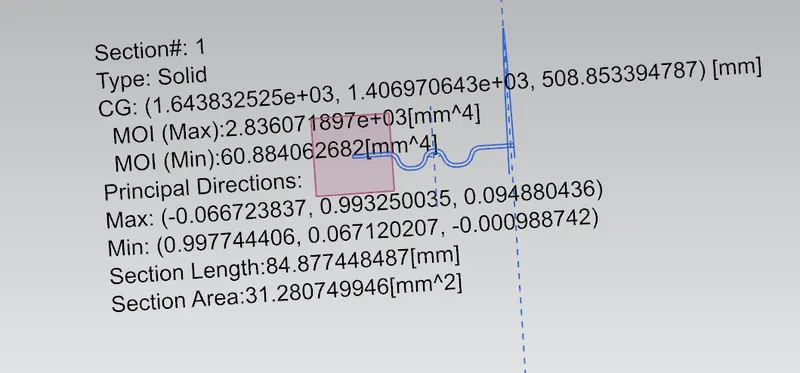

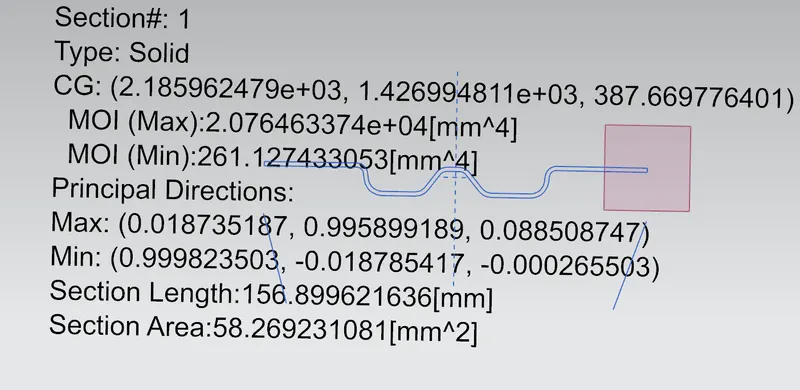

Moment of inertia:

BOW ROOF1:

B0W ROOF2:

CENTRE REINFORCEMENT RAIL:

If roof structure pass to the snow load condition. They, must have Q_r values from above 3.1.

Q_r > 3.1

So, we done the curvature study on the roof. Heat distortion and snow load condition my roof is pass the two criteria, so position of the bow roofs and center reinforcement roofs placed at right area.

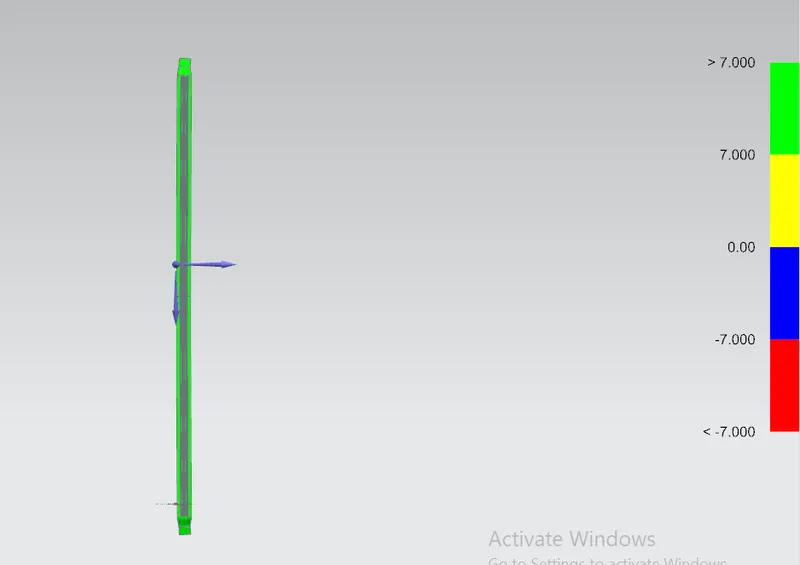

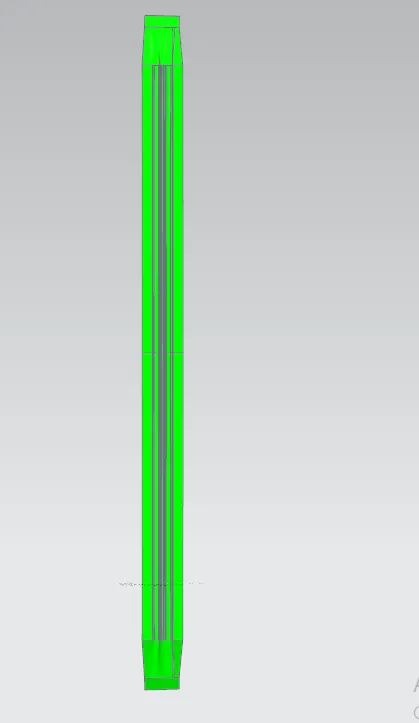

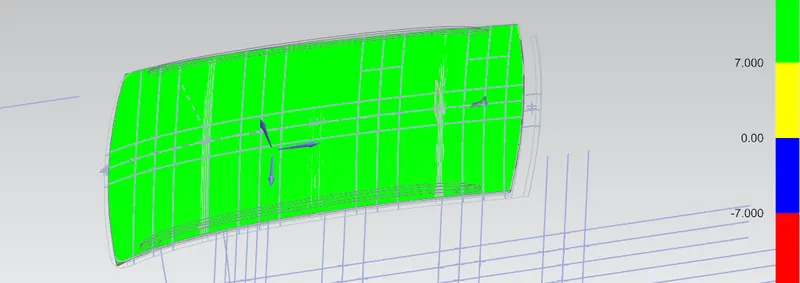

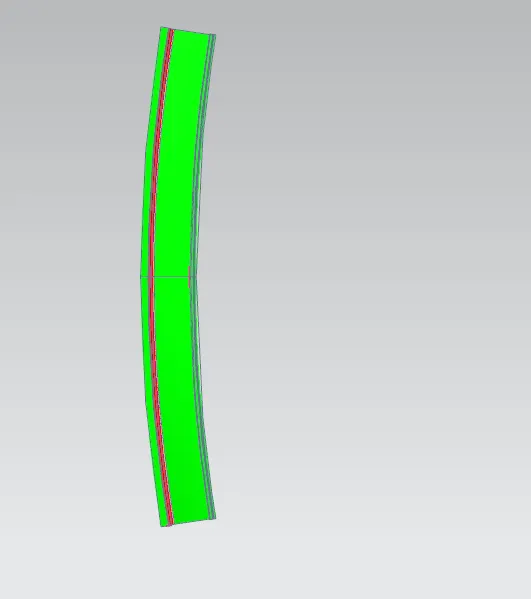

DRAFT ANALYSIS:

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

Minimum draft angle is 7 degree is considered for analysis. Green colour show positive draft angle of the part more than 7 degree.

BOW ROOF1:

CENTRE ROOF RAIL:

FRONT ROOF RAIL:

CONCLUSION:

I did the My roof design and check heat distortion and snow load condition for bow roofs are placed at right place or not. So, after finishing my design I did the heat distortion and snow load condition.

After, finishing the curvature study. Then go to check the section modulus. And last, we check the draft analysis. Because, whether part is manufacturable or not. That, why we doing this analysis. That’s all my design pass the all requirements for placing the roof on the car.
