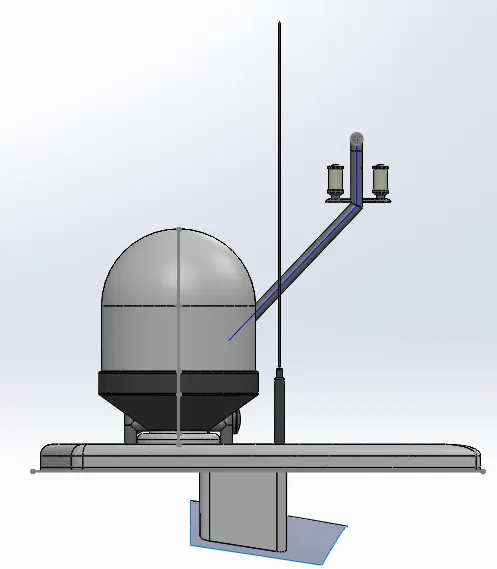

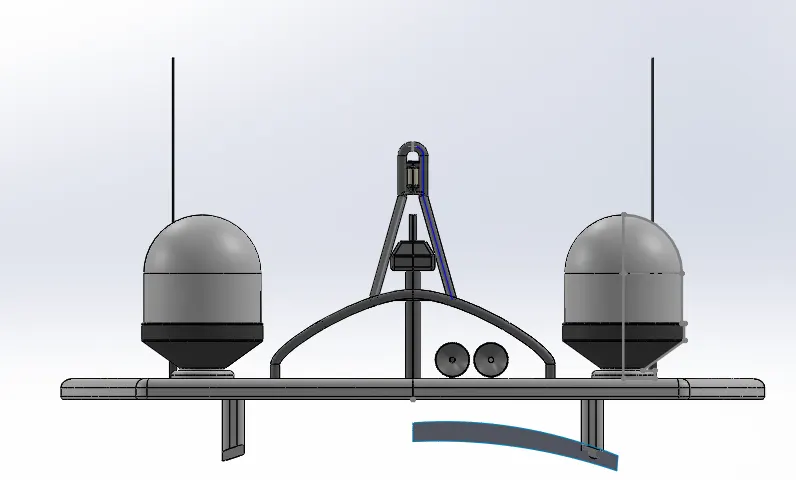

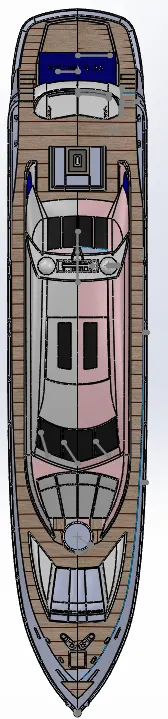

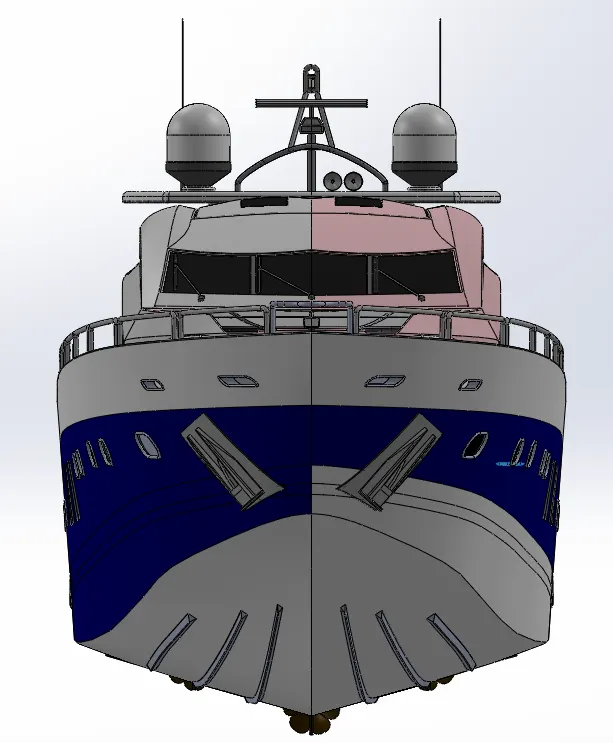

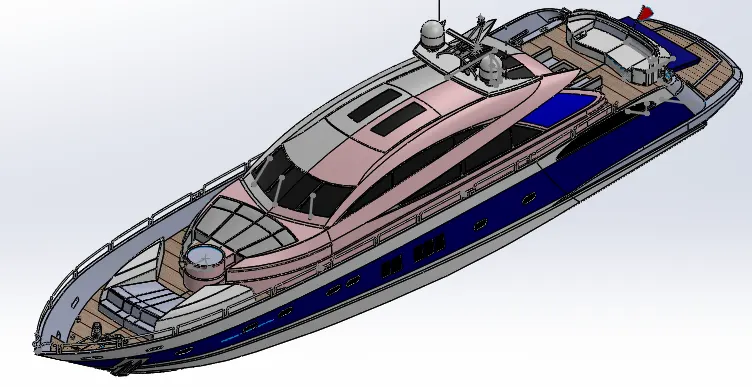

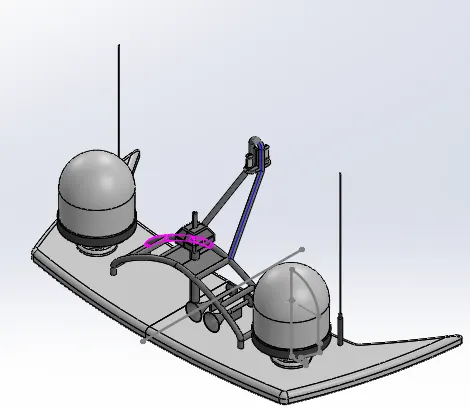

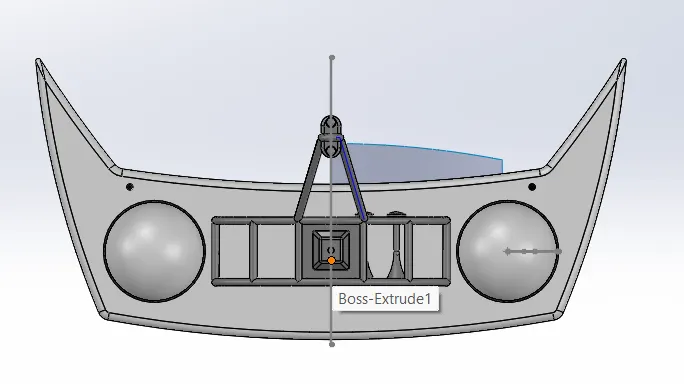

Radar Mast & Final Assembly of Yacht

1)ultimate solid works course.

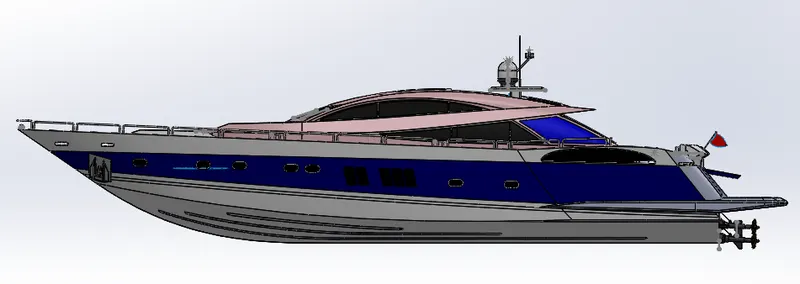

modlinf and assembly of the yatch.

2)The main objective is to learn the commands which we have to do it on our own,

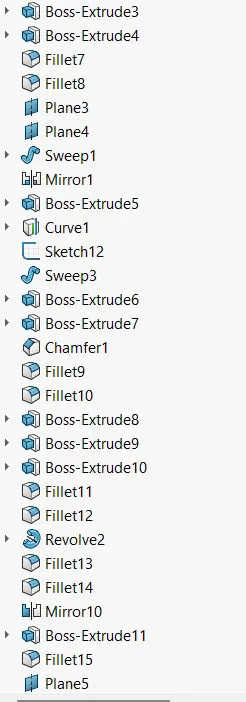

3)tool like mirror used to copy the bodied by selecting the reference planes.

Fillet option used to give sa smooth edge finish and chamfer is to give a dimensional edge for the model'

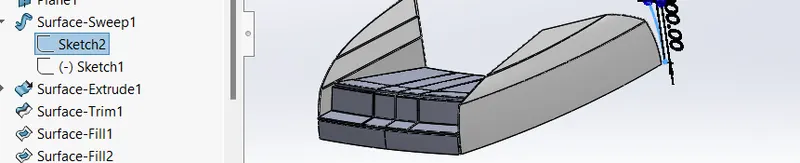

surface extrude is a tool which extrude the model on the basis of the outer body of the model and loft is to cover the opened surface by using the edges.

Surface extend is to extend the surface by giving dimension.

surface trin is to trim the surface by using stim tool
