Radar Mast & Final Assembly of Yacht

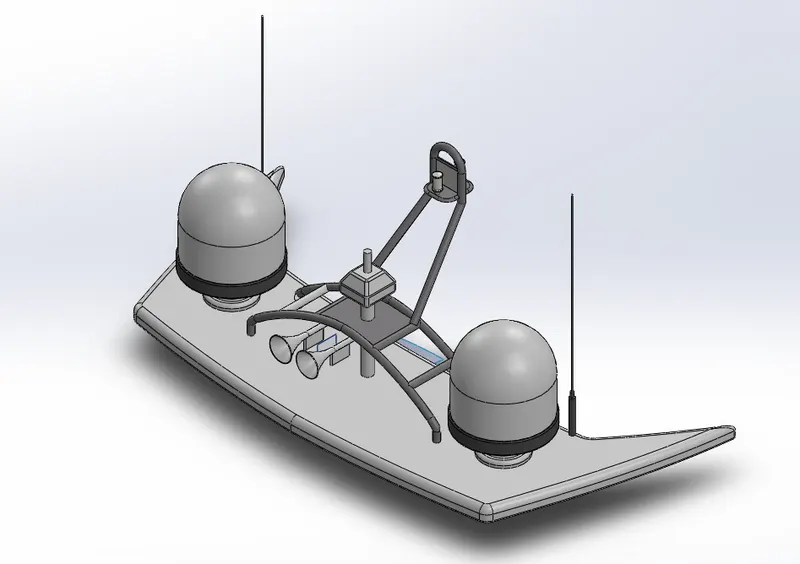

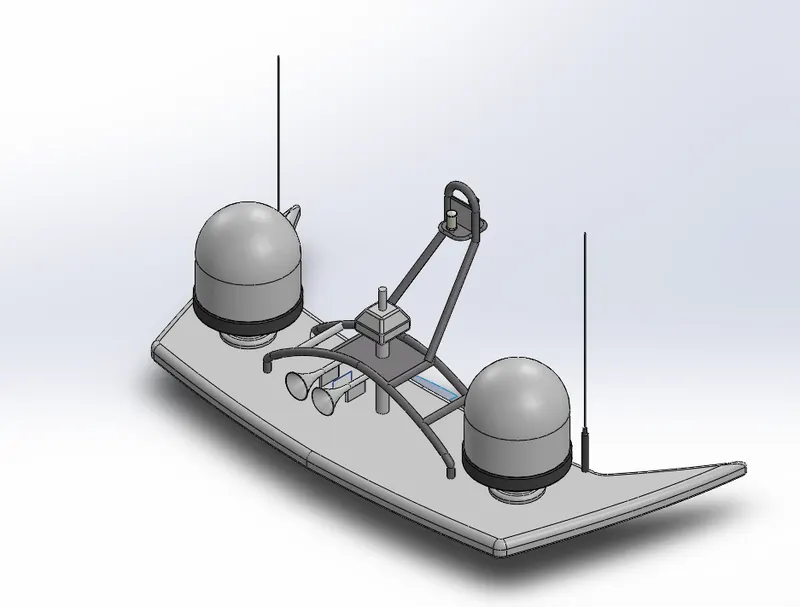

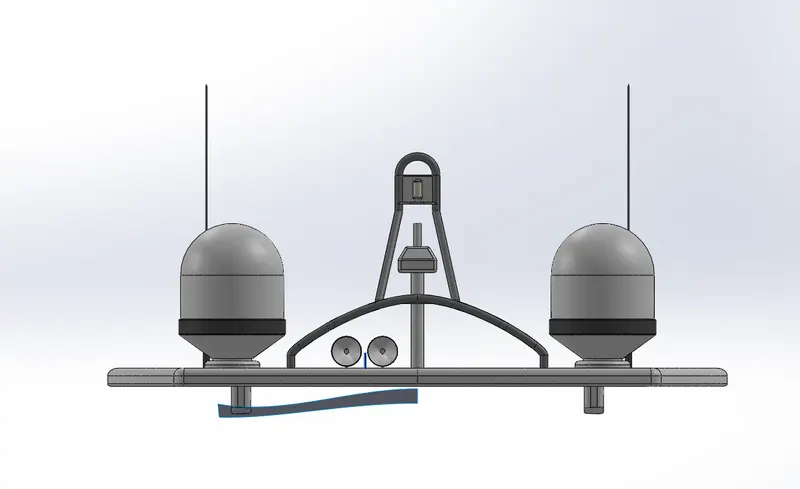

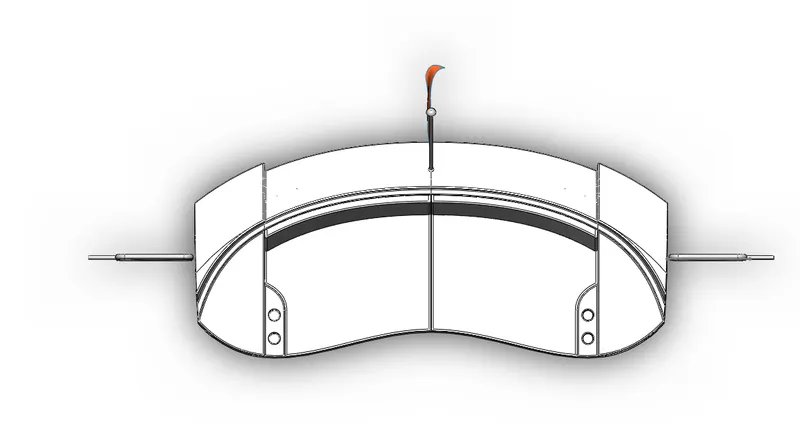

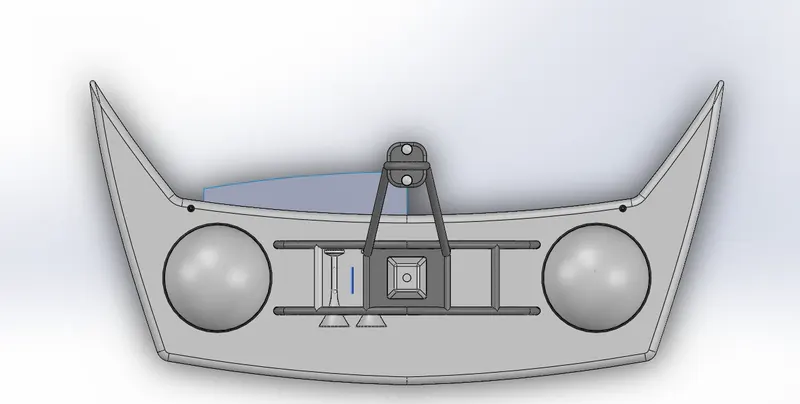

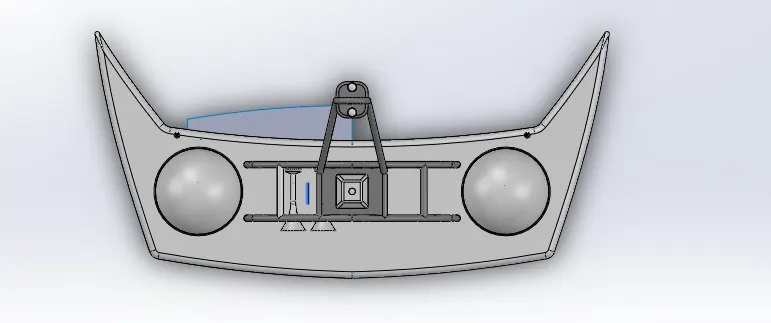

Views of Radarmast....

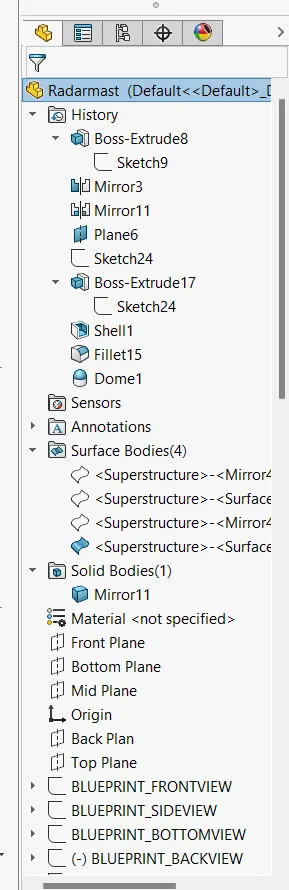

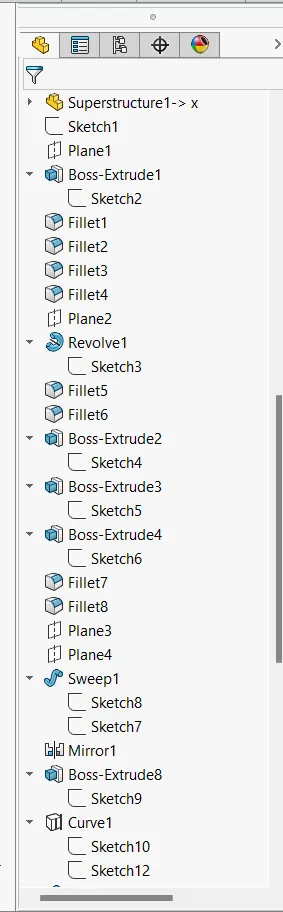

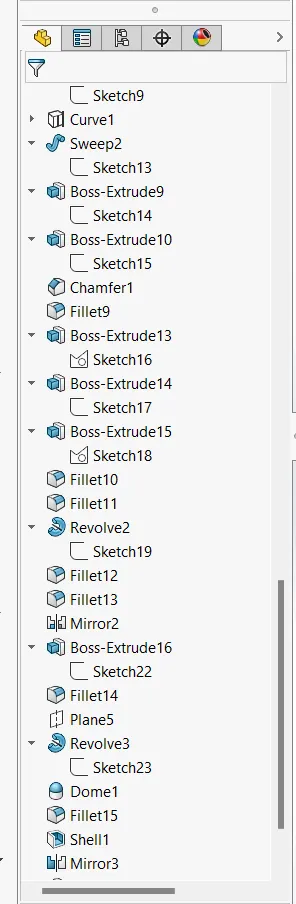

Feature tree of Radarmast...

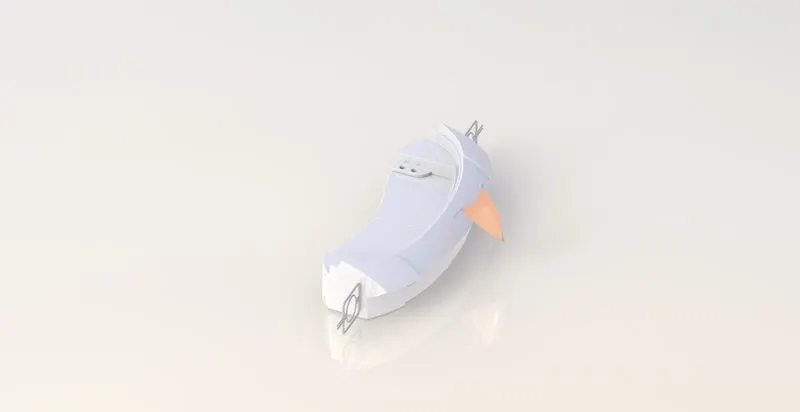

Camera view..

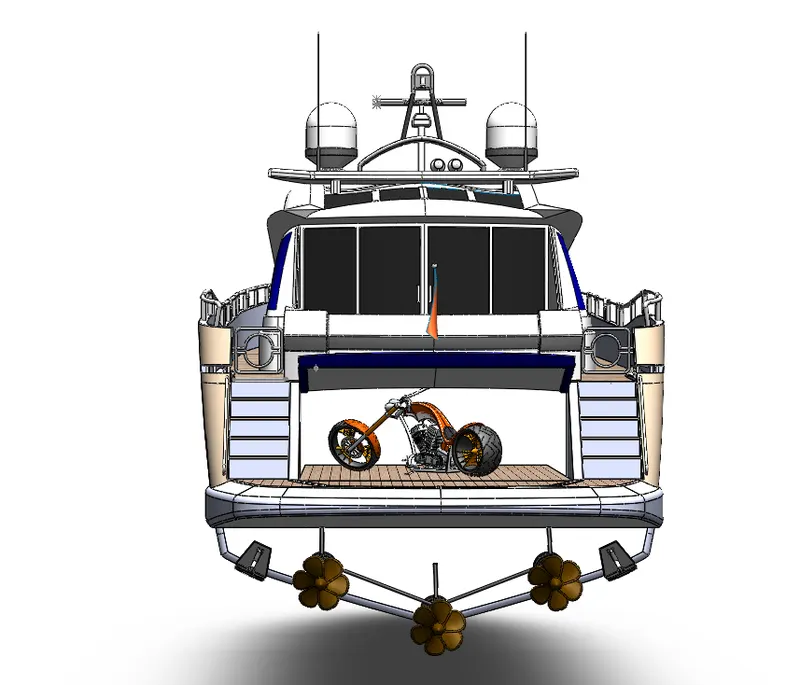

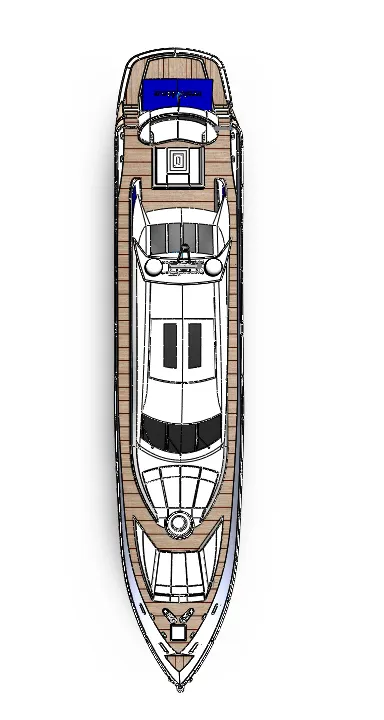

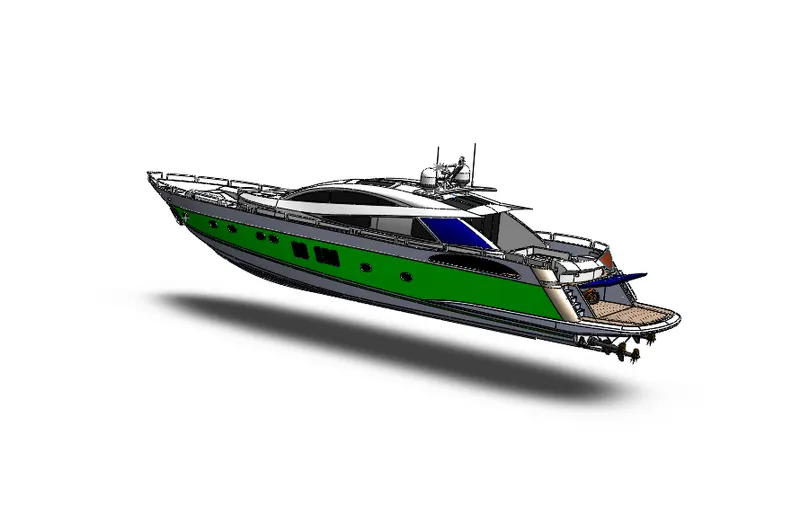

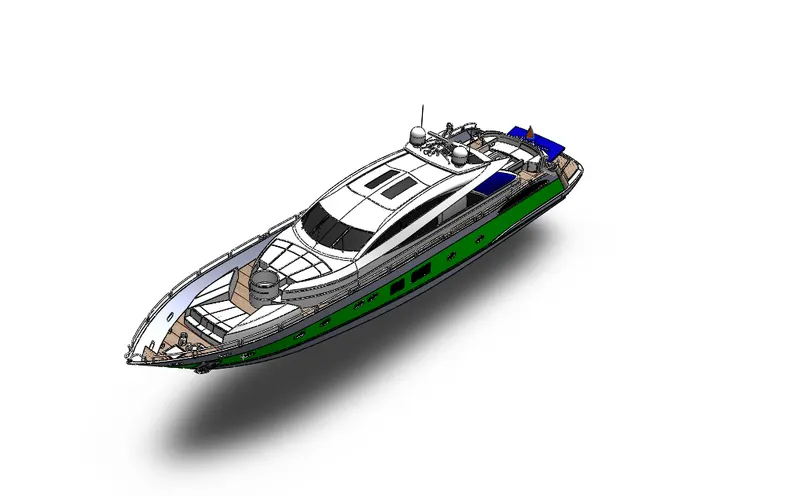

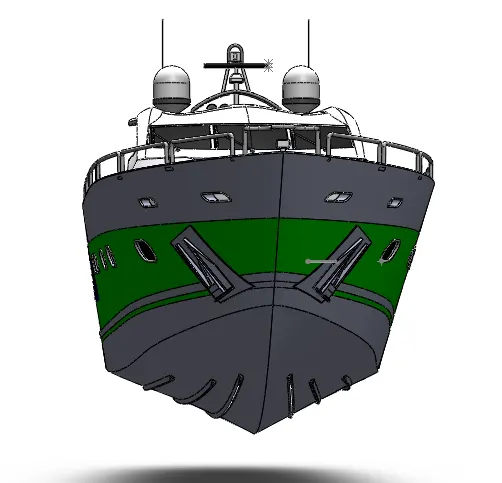

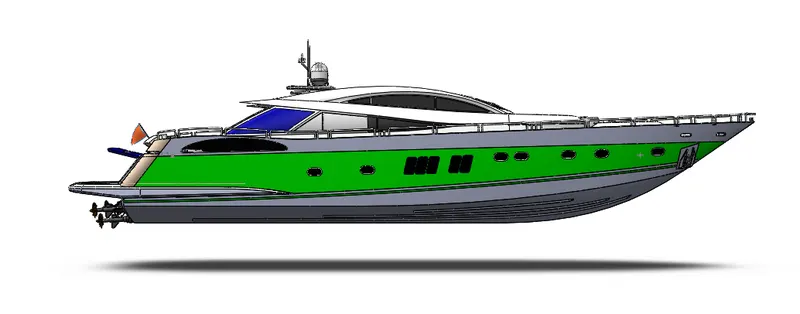

ALL VIEWS FOR ASSEMBLY...

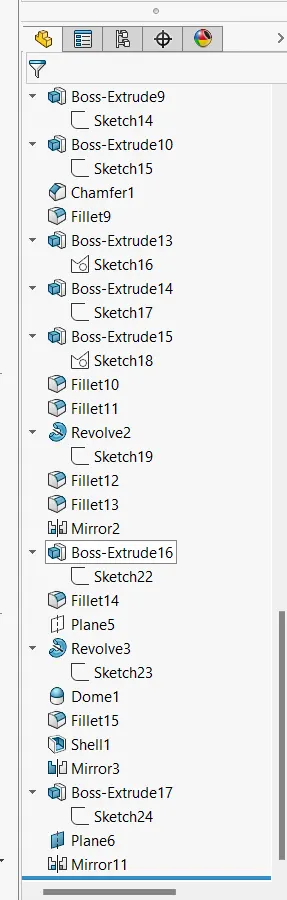

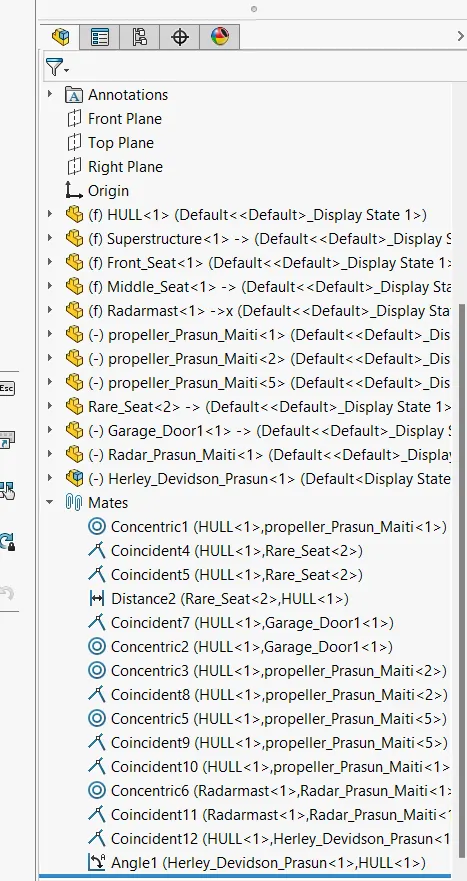

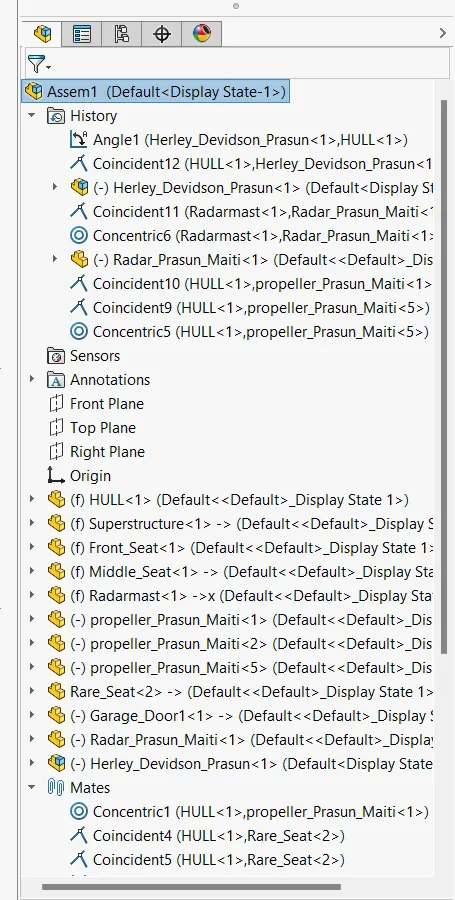

ALL FEATURE TREE, MATES.....
REPORT-
- TITLE-Modelling and Rendering of luxury yacht by using Solidworks
- OBJECTIVE-
- To design Yacht parts individually with proper dimensions and with the help of solidworks tools.
- After modeling the parts assemble then and make the full yacht.
- After doing the assembly render the yacht with photoview 360.
- INTRODUCTION-
In this project I modeled the yacht parts with proper dimension with the help of part modelling workbench but most I have used is the advanced tools from the surface modelling. I modeled the parts individually and after modeled those I assembled them with proper mate relations. The yacht hase nine parts which were designed.
The following are the parts-- Hull
- Superstructure
- Propeller
- Front_Seat
- Middle_Seat
- Rare_Seat
- Radar
- Radarmast
- Garage_door
- PART DESCRIPTION-
- HULL-
- A hull is the watertight body of a ship, boat, or flying boat. The hull may open at the top, or it may be fully or partially covered with a deck. Atop the deck may be a deckhouse and other superstructures, such as a funnel, derrick, or mast.
- Tools Used-
- Surface loft
- Surface Trim
- Surface Extrude
- Surface Knit
- Surface Fill
- Boss-Extrude
- Revolve
- Cut-Extrude
- Fillet
- Chamfer
- Reference plan
- Sweep
- Dome
- Helix/Spiral
- Project Curve
- Split line
- Split
- LPattern
- Mirror
- Delete Face
- Description-
- Surface Loft-Surface lot is use to creat a hollow pipe type of model with the help of two or more profile in different panes.
- Surface trim-It is used to trim a surface with any profile or other surface Which intersects the urface.
- Surface extrude-It is used to creat a surface from a profile/sketch but its only creat a surface.
- Surface Knit-It is used to join two or more than two surfaces in a one surface.
- Surface fill-It is used to fill or to creat a surface with a closed boundary.
- Boss-Exturde-It is used to creat a solid body from a profile bye extruding the profile.
- Revolve-It is used to creat a solid by revoluting a profile reference to an axis.
- Cut-Extrude-It is used to remove material from a body by extruding a profile.
- Fillet-This feature is used to give a smooth continuty to edge.
- Chamfer-This feature is used to give an angular finish to an edge.
- Reference plan-It is used to creat a new palne.
- Sweep-Sweep is used to creat asolid using a profile and a path.
- Dome-This feature is used to give a smooth continuty to flat surface/plan.
- Helix/Spiral-This feature is used to create a helix curve.
- Project curve-This is used to creat a 3D curve using two 2D sketch/curve.
- Split line-This feature is used to split a face using a line.
- Split-It is used to split a solid into two parts.
- Lpattern-It is used to pattern a feature or a body in an axis(X, Y, Z).
- Mirror-This feature is used to mirro same feature or body ref, to a plane or face.
- Delete Face-This feature is used to delete a face from a surface model.
- A hull is the watertight body of a ship, boat, or flying boat. The hull may open at the top, or it may be fully or partially covered with a deck. Atop the deck may be a deckhouse and other superstructures, such as a funnel, derrick, or mast.
- SUPERSTRUCTURE-
- Superstructure is what consists of cabines, pool, life boats, etc. and rests on the HULL or on the main deck. On water craft, the superstructure consists of the parts of the ship or a boat, including sailboats, fishing boats, passenger ships, and submarines, that project above her main deck. This does not usually include its masts or any armament turrets.
Superstructure must have a precise and smooth curvature during the design for avoading any bad geometry.
- Used Tool-
- Surface_extrude
- Ref-Plane
- Surface sweep
- Surface knit
- Fillet
- Ruled surface
- Surface trim
- Surface Loft
- Project curve
- Surface fill
- Surface extend
- Surface offset
- Boss-Extrue
- Cut-Extrude
- Fillet
- Chamfer
- Dome
- Thicken
- Split line
- Mirror
- Description-
- Surface sweep-It is used to creat hollow surface model by usinf a profule and a path.
- Ruled surface-It is used to extrude as a surface from an edge of a surface in any direction in any angle at a definite distance.
- Surface extend-It is used to extend a surface tangentially for the same surface.
- Surface offset-It is used to offset a surface at an definite distance in an definite direction.
- Thicken-This feature is used to conver a suface into solid by thickening at a definite thickness.
- Superstructure is what consists of cabines, pool, life boats, etc. and rests on the HULL or on the main deck. On water craft, the superstructure consists of the parts of the ship or a boat, including sailboats, fishing boats, passenger ships, and submarines, that project above her main deck. This does not usually include its masts or any armament turrets.
- FRONT_SEAT-
- Front_Seat is design to be in the the front side of the yacht to see the front side beauty of the sea. The front seat was design from the ref of the HULL surface.
- Tool Used-
- Surface sweep
- Surface Extrude
- Surface teim
- Surface fill
- Surface loft
- Surface knit
- Chamfer
- Revolve
- Cut-Extrude
- Fillet
- mirror
- Dome
- Front_Seat is design to be in the the front side of the yacht to see the front side beauty of the sea. The front seat was design from the ref of the HULL surface.

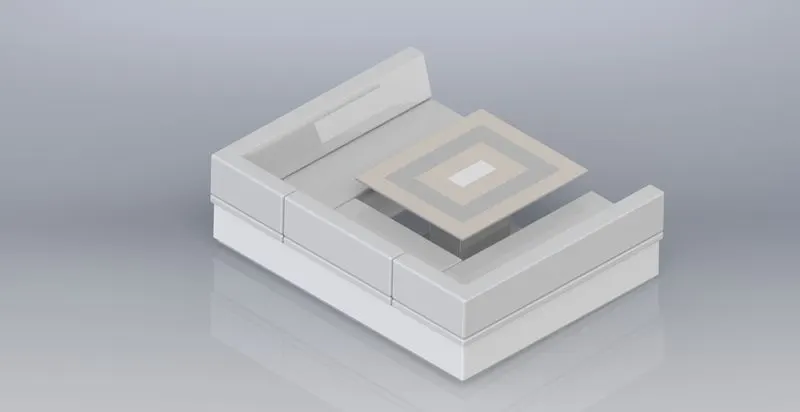

- MIDDLE SEAT-
- Middle seat is design to be in the middle of Front_Seat and the Rare_Seat with a table. This is design in a 'U' shape with a centre table. It is placed next to the superstructure back door but before the rare seat.
The whole seat is design with the part design.
- Tool Used-
- Boss-Exturde
- Cut-Extrude
- Ref. Plane
- Chamfer
- Fillet
- Mirror
- Middle seat is design to be in the middle of Front_Seat and the Rare_Seat with a table. This is design in a 'U' shape with a centre table. It is placed next to the superstructure back door but before the rare seat.
- RARE_SEAT-
- Rare seat is designed for the rare seating over to the garage and next to middle seat.
It is designed using the ref. surface of HULL.
- Tool Used-
- Suface sweep
- Surface trim
- Surface offset
- Ruled Surface
- Surface knit
- Ref. plane
- Surface extrude
- Surface extend
- Surface loft
- Boss-Extrude
- Cut-Extrude
- Chamfer
- Fillet
- Mirror
- Rare seat is designed for the rare seating over to the garage and next to middle seat.

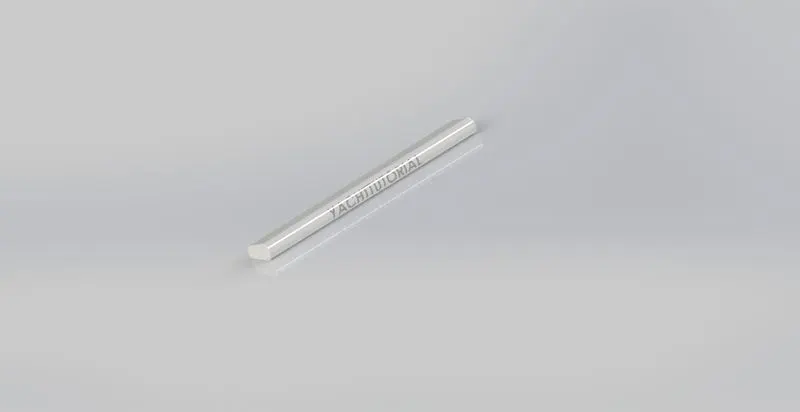

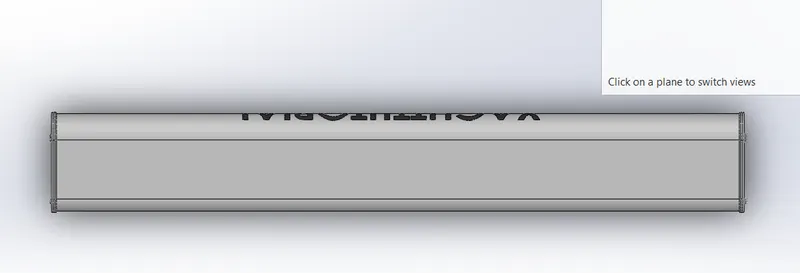

- RADAR-
- A radar device acts as a major navigation aid for boaters. It helps in detecting boats, birds, landmasses, and weather systems - even if the visibility is less than usual.
- Tool Used-
- Boss-Extrude
- Cut-Extrude
- Fillet
- Sketch pattern
- Mirror
- Split Line
- Description-
- Sketch pattern-This feature is used to pattern a sketch in a direction.
- A radar device acts as a major navigation aid for boaters. It helps in detecting boats, birds, landmasses, and weather systems - even if the visibility is less than usual.

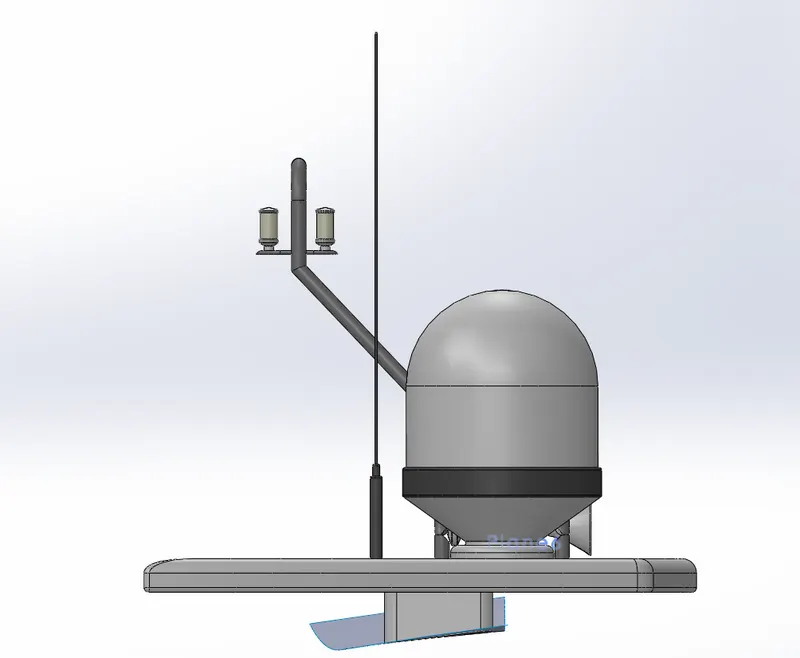

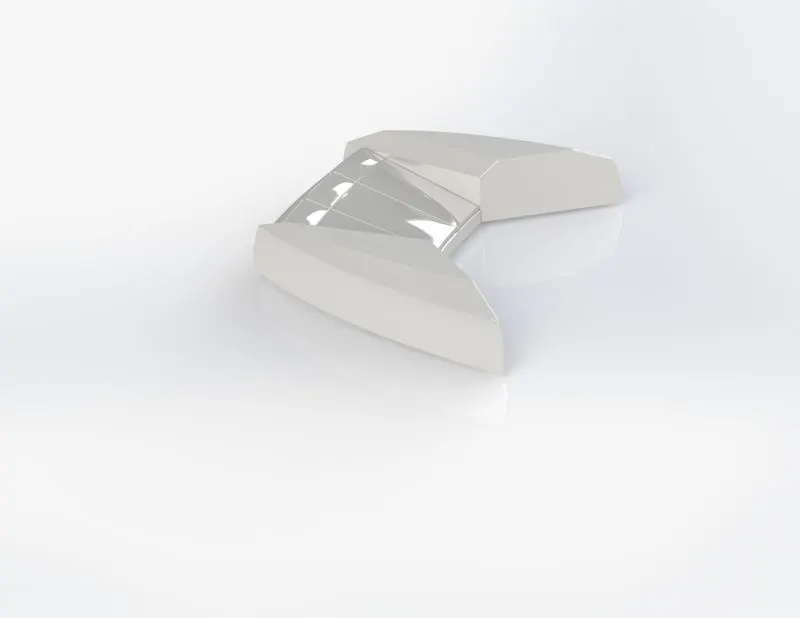

- RADARMAST-
- Radarmast is used to hold the radar, antena, lights and satelight dome, horn etc.. This is designed using a surface ref. of the superstructure.
- Tool Used-
- Boss-exturde
- Revolve
- Sweep
- Fillet
- Mirror
- Dome
- Shell
- Description-
- Shell-Shell is used to creat a hollow part from a solid model. It is also used to remove a surface and creat a definite thickness to a solid model.
- Radarmast is used to hold the radar, antena, lights and satelight dome, horn etc.. This is designed using a surface ref. of the superstructure.

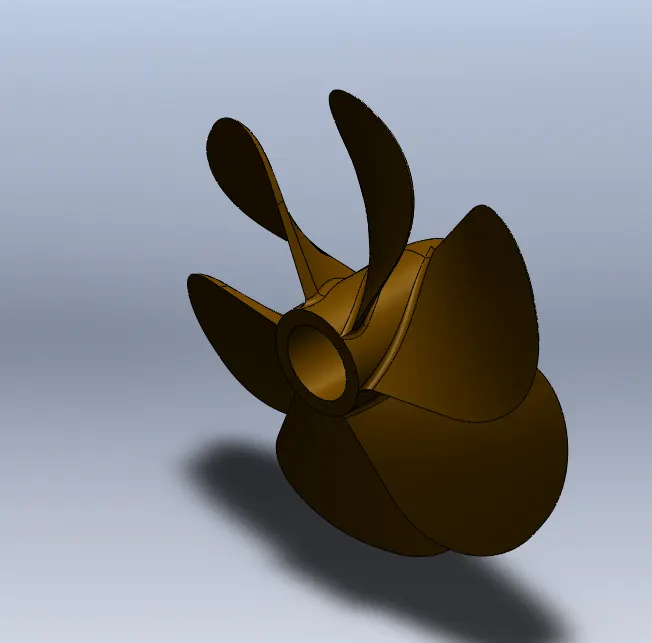

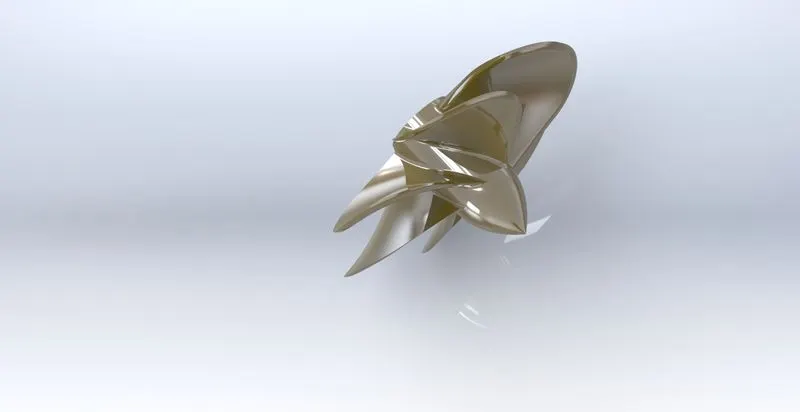

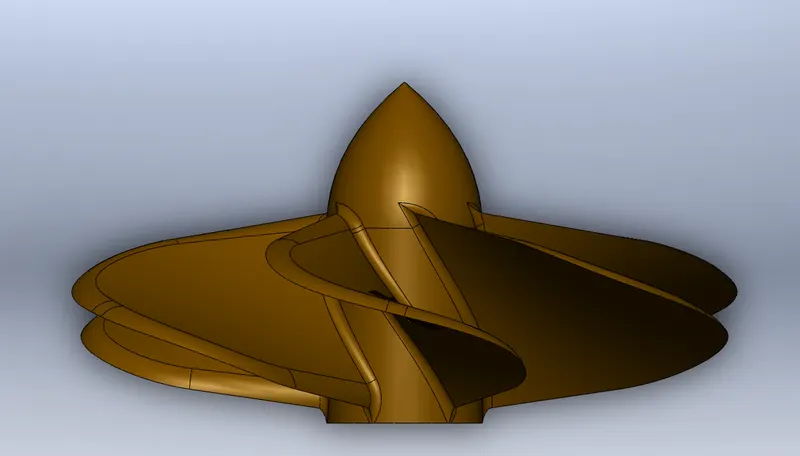

- PROPELLER-
- Propeller is used to transmit rotational energy to a thrust. A propeller is a rotating fan-like structure that is used to propel the ship by using the power generated and transmitted by the main engine of the ship.
- Tool Used-
- Revolve
- Ref. Plane
- loft
- Cut-Extrude
- Fillet
- Circular pattern
- Description-
- Circular pattern-This feature is used to pattern a feature or body in a circular way with a definite angle and a definite direction.
- Propeller is used to transmit rotational energy to a thrust. A propeller is a rotating fan-like structure that is used to propel the ship by using the power generated and transmitted by the main engine of the ship.
- HULL-
- ASSEMBLY-
- Assembly workbench is used to assemble the many parts respect to each other.
(File-New-Assembly-Insert_component-Mate)
In the above that is the process how to get assembled of parts.- Insert Component-
This command is used to browse for the existing parts and inser them to the assembly workbench and after that the mates are happening.

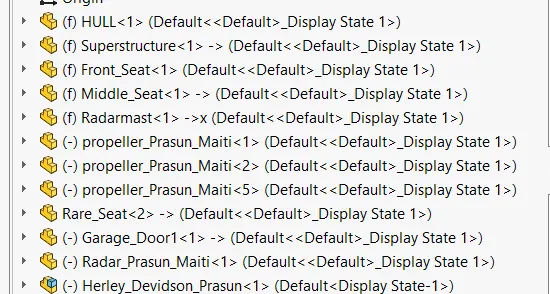

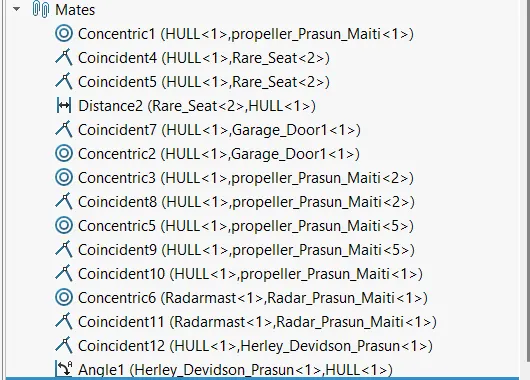

These are the parts which I inserted for the assembly... - Mates-
Mates are the geometric relation (like concentric, colinear, parallel, coincident etc.) which are applied respectively properly with the parts to each others.
These are the mate wich I applied for the Yacht assembly....
- Insert Component-
- Assembly workbench is used to assemble the many parts respect to each other.
- Rendering-
Rendering is used to give a photo realistic view to a model. In solidwork photo360 is used for the rendering.
(Solidworks add_in-photoview360-Render tools)
In The above that is the way how to get rendering tool workbench.

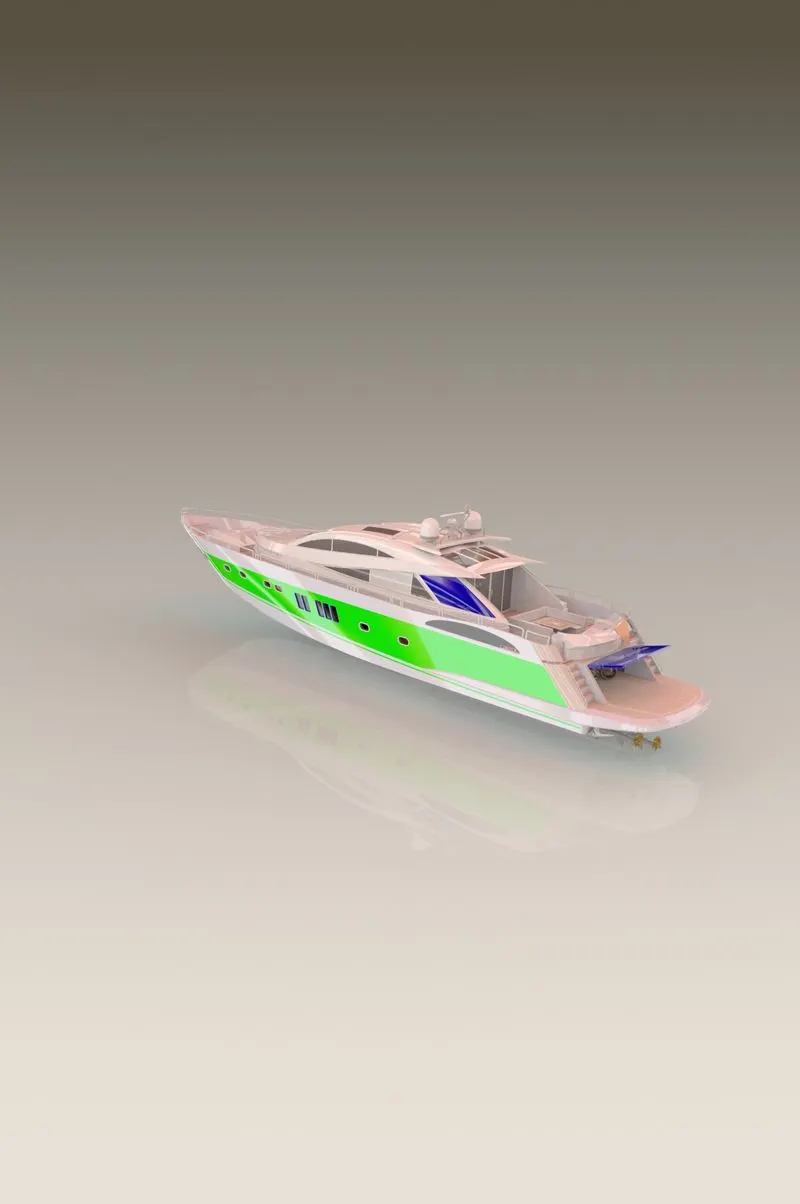

After applying proper decals and proper scene for the background and the cameras, lights final render will be done. I created the renders for the yacht.
These are the followings-

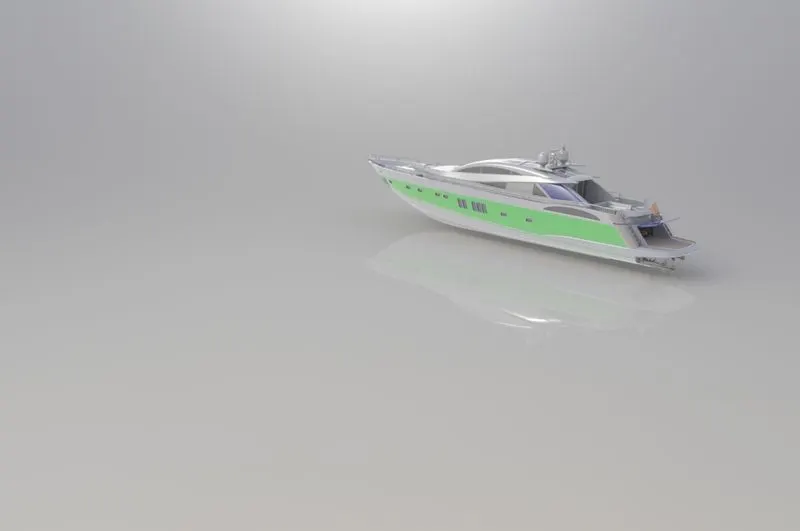

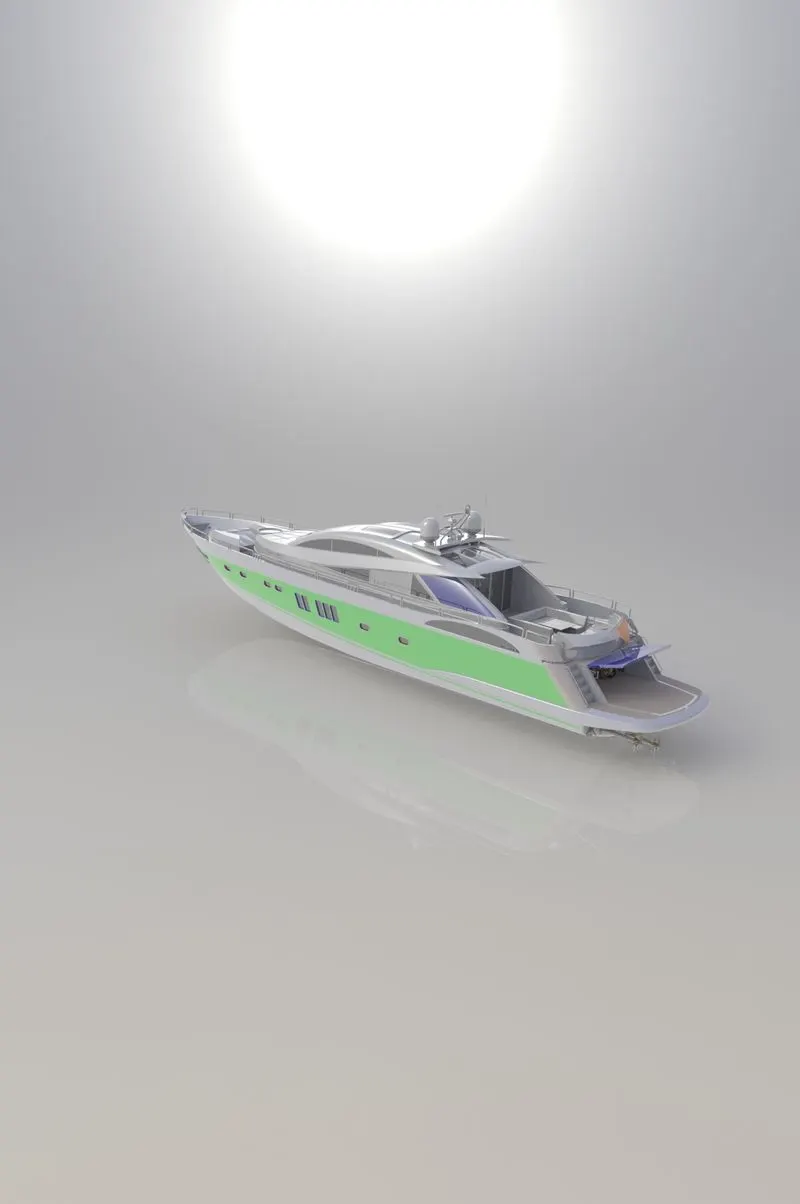

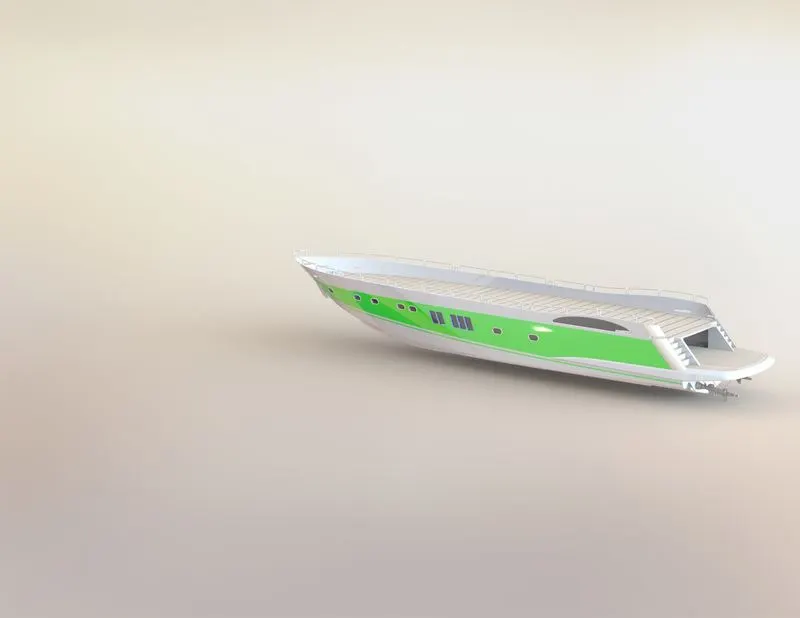

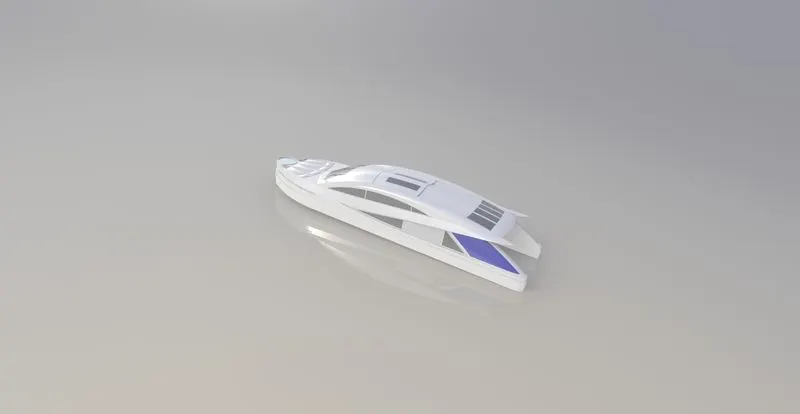

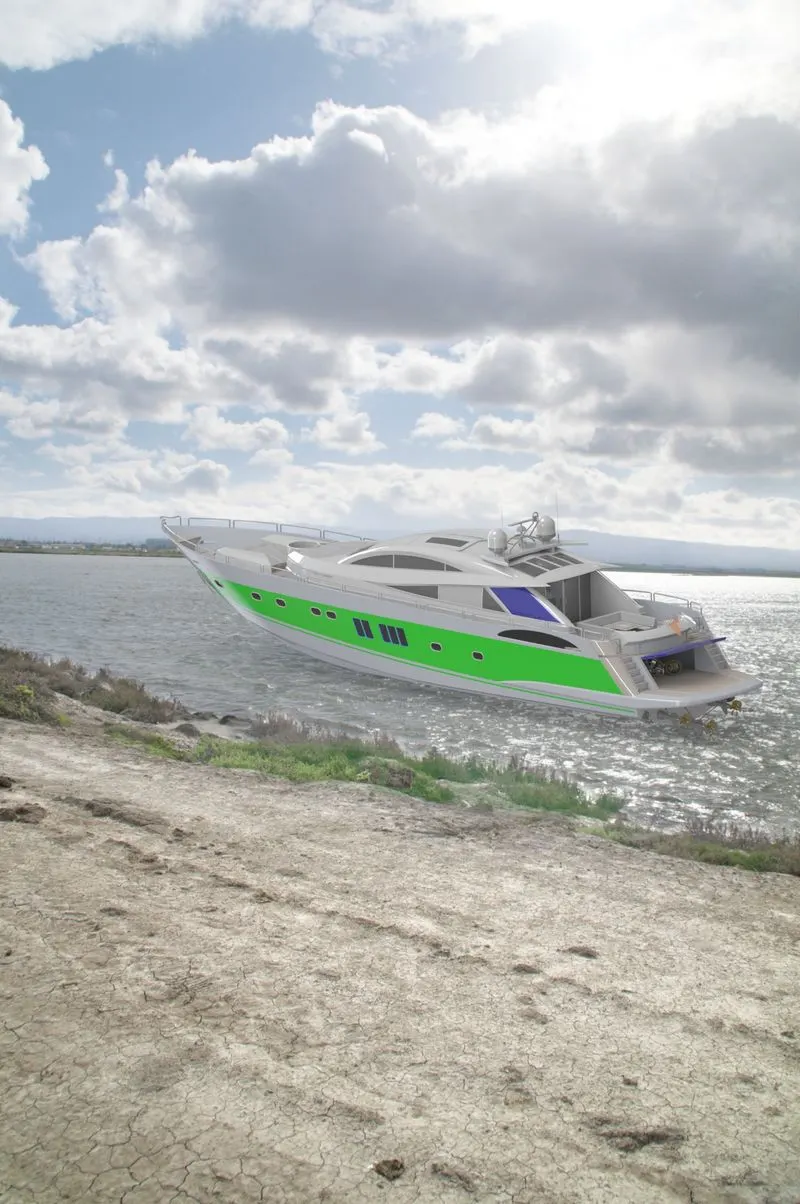

These are the camera view Renders....

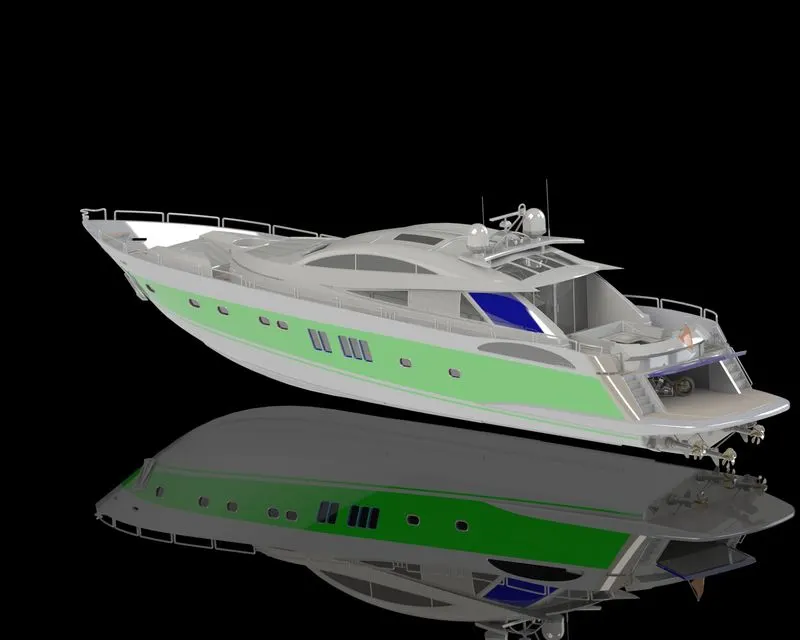

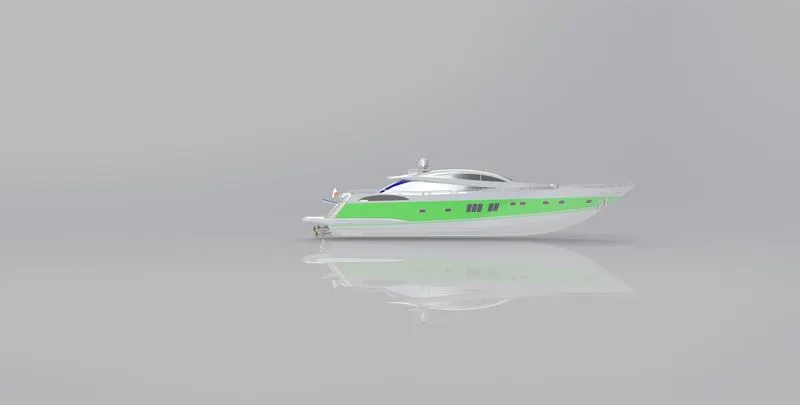

LHS Render..... - CONCLUSION-
- Parts are designed with proper dimension(as given in E-book).
- Assembleing of parts are smoothly done.
- The rendering also done.
- For better rendering or for more realistic view solidworks visualization shoud be used.
