Radar Mast & Final Assembly of Yacht

Objective : To design a yacht (all parts and assembly attached in rar file)

Parts modelled and tools learned during the process :

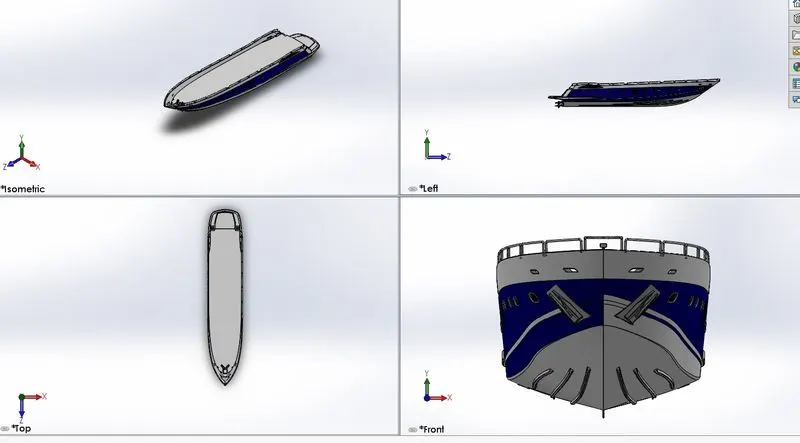

I) Hull

projected curve, 3D sketch, surface extrude, surface loft, surface knit, convert entities, sweep, helix/spiral

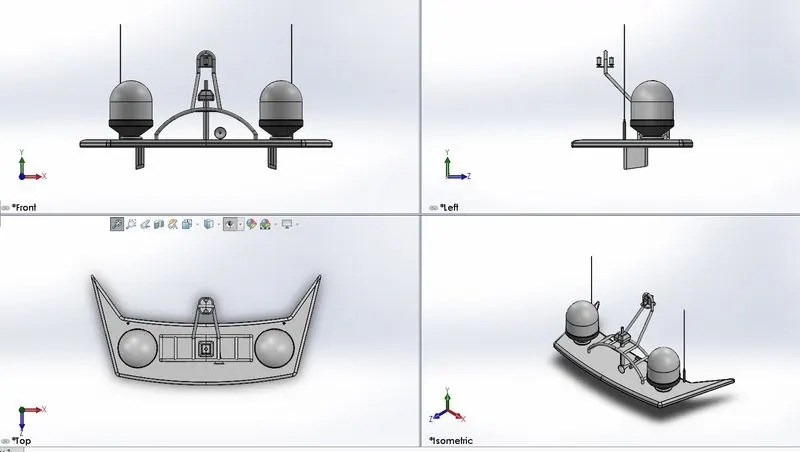

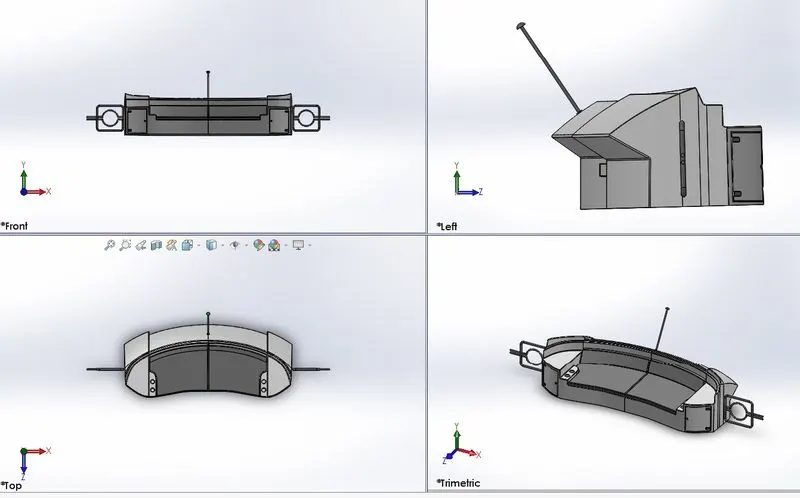

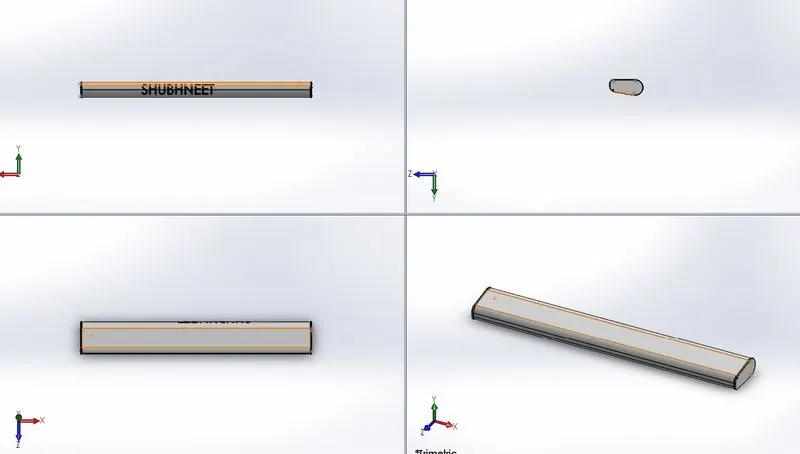

II) Radar and Radar Mast

Revolve, shell

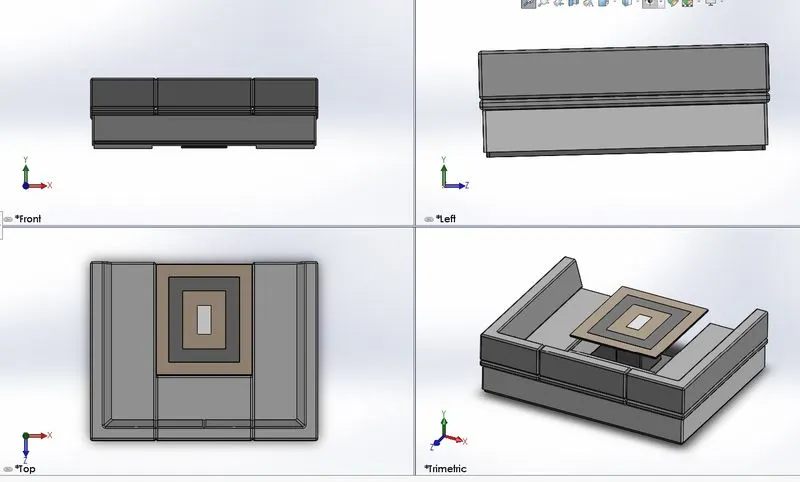

III) front, middle and rear seats

Dome

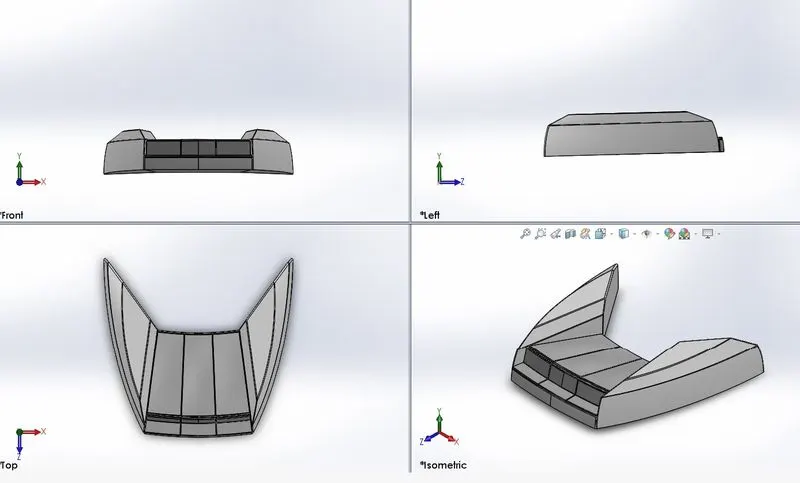

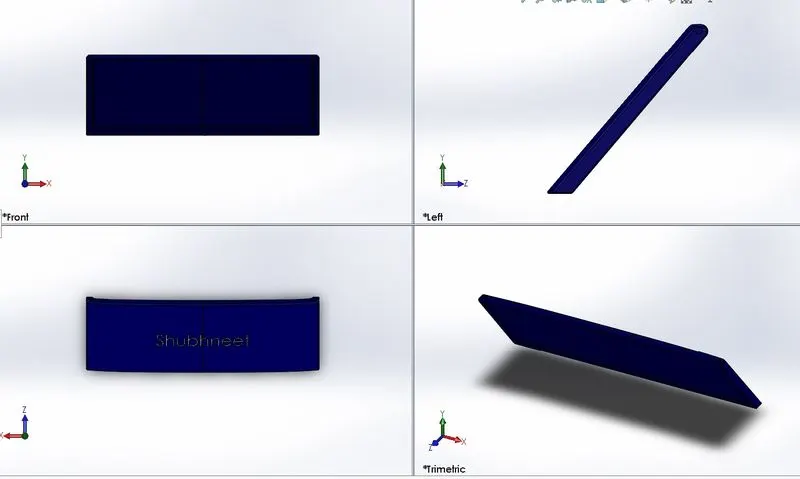

IV) Garage door

simple extrude

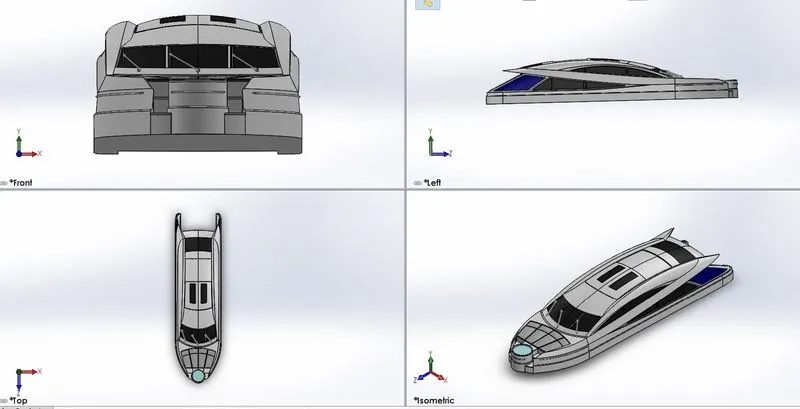

V) Superstructure

Ruled surface

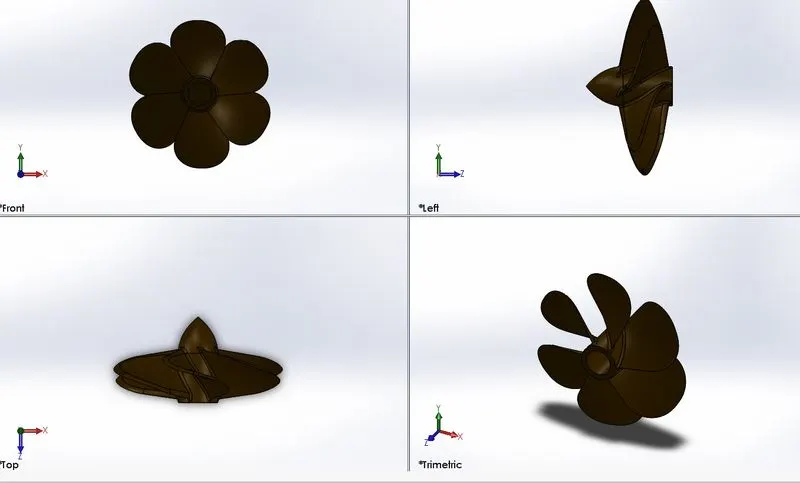

VI) Propeller

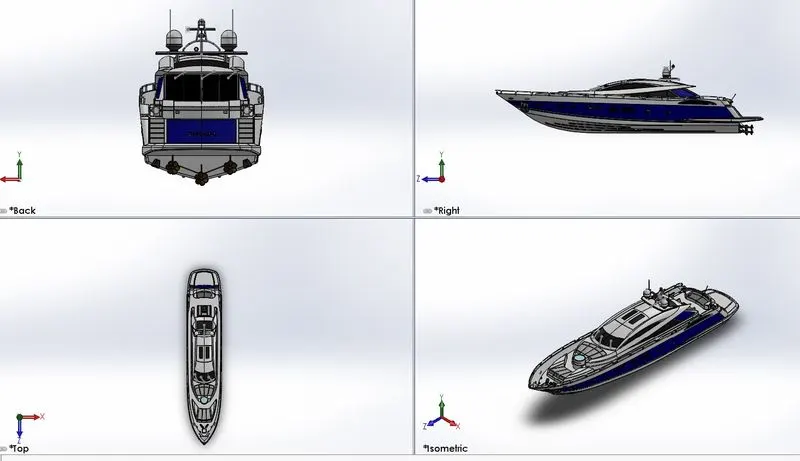

Assembly :

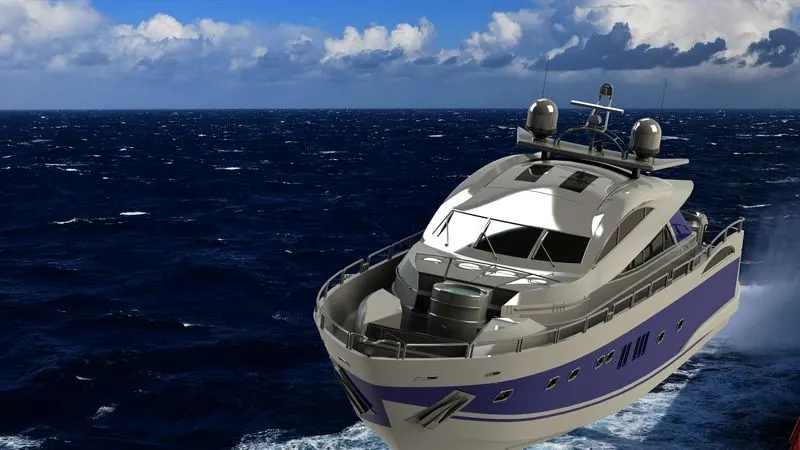

Render :
