Project - Data Handling and Interpolation

In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated data and store them in a text file.

Key Highlights:

• Graphical solutions are more visual and appealing
• Interpolation of data
• Read excel file
• Write to text file

Deliverables:

• Find missing data and save it in text
• Interpolate the data set
• Save your program and attach the same.
• Save txt file and upload in attachment

clear;

clc;

% interpolation of voltage and currentdata

% reading excel file data

D =readmatrix('VI.xlsx');

v=D(:,1); % vpltage data seperating

i=D(:,2); % current data seperating

xq=-17,3:0.1:0.9; % given interpolation range

yq1=interp1(v,i,xq); % linear interpolation

yq2=interp1(v,i,xq,'spline'); % spline interpolation

% liner interpolation plotting

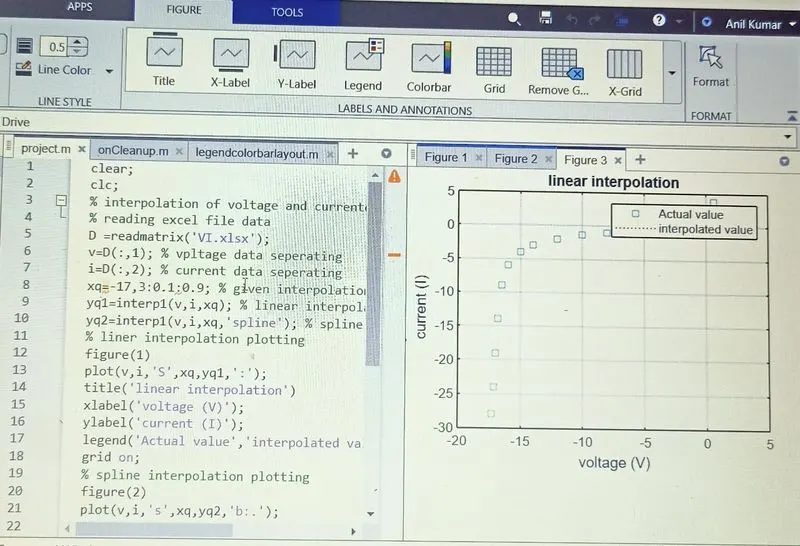

figure(1)

plot(v,i,'S',xq,yq1,':');

title('linear interpolation')

xlabel('voltage (V)');

ylabel('current (I)');

legend('Actual value','interpolated value','location','northeast');

grid on;

% spline interpolation plotting

figure(2)

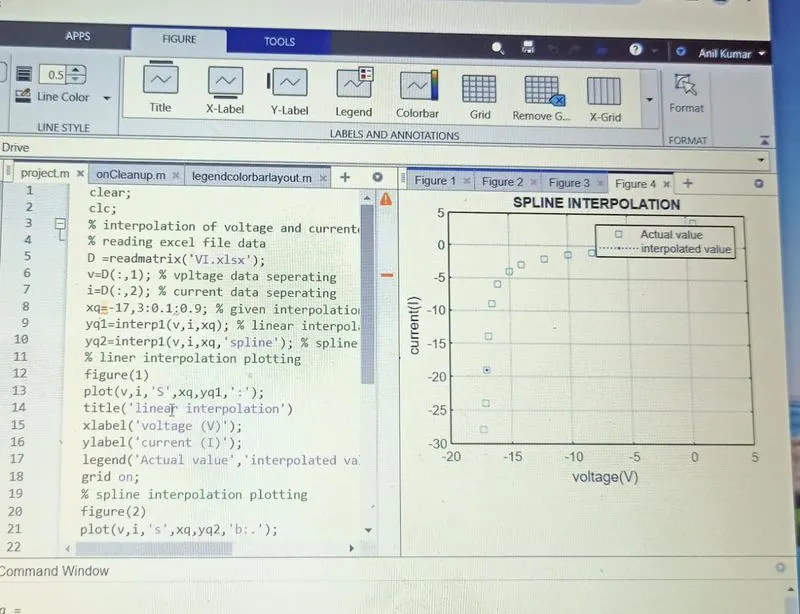

plot(v,i,'s',xq,yq2,'b:.');

title('SPLINE INTERPOLATION');

xlabel('voltage(V)');

ylabel('current(I)');

legend('Actual value','interpolated value','location','northeast');

grid on;

% saving the interpolation data into text file

% opening text file

vol_cu=fopen('VI._output.txt','w');

fprintf(vol_cu,'voltage current\n');

%writing voltage & current valve

fprintf(vol_cu,'%4.3f %5.3f\n',xq,yq2);

% saving linear interpolation graph

savefig(1,'vilinear.fig');

%saving spline interpolation graph

savefig(2,'vispline.fig');

fclose(vol_cu);
