Project

The output power of the motor is considered as to be 10 kW and permanent magnet synchronous motor was choosen.

opening the ANSYS Electronic desktop we can create the motorsize by default saved motors in the Toolbar above provide and choosed the assm folder inside the RmExprt folder for the permanent magnet synchronous motor, assembly-1 was choosed.

rated speed was considered to be 1500 rpm , voltage of 220v with rated output of 10000W and operating temp. at the 75cel. operation is motor load type constant.

Eddies current was not known so the default value was assumed by the software.

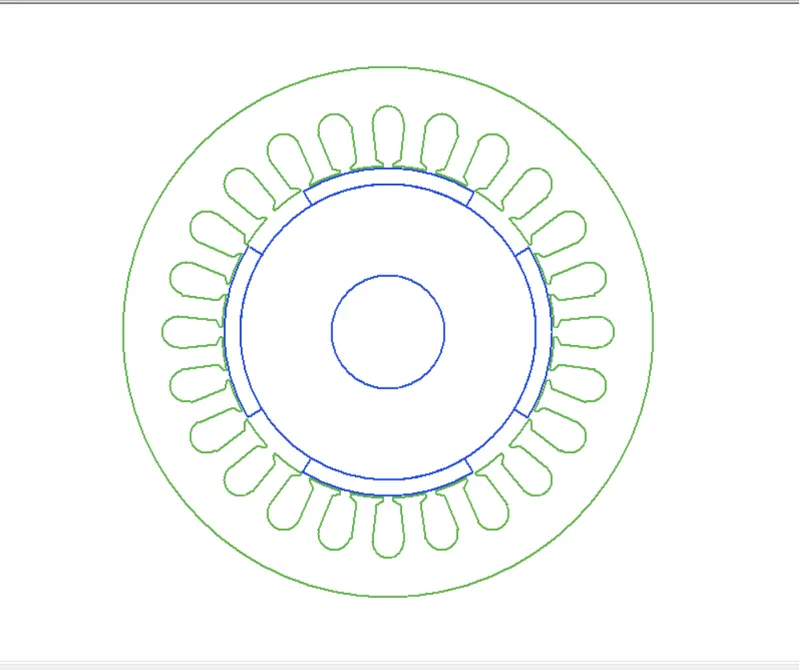

ASSM motor design-

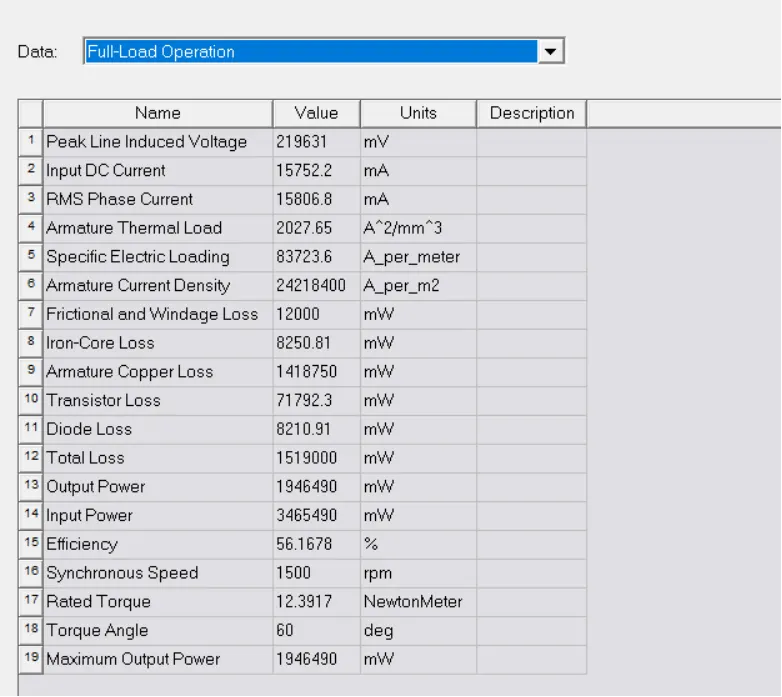

Full load data

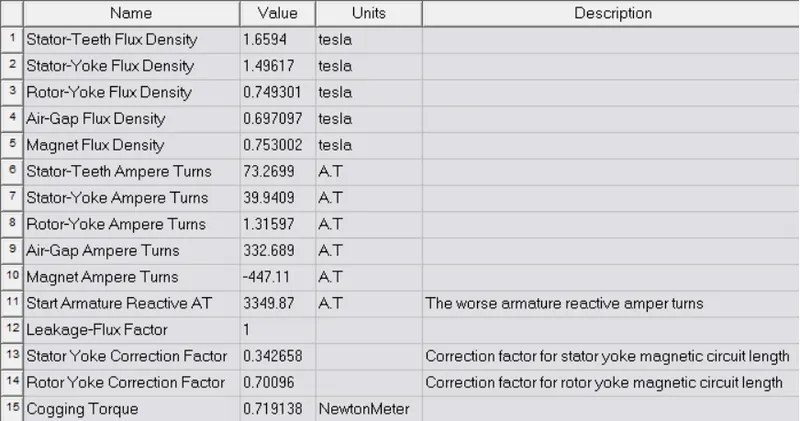

No load data

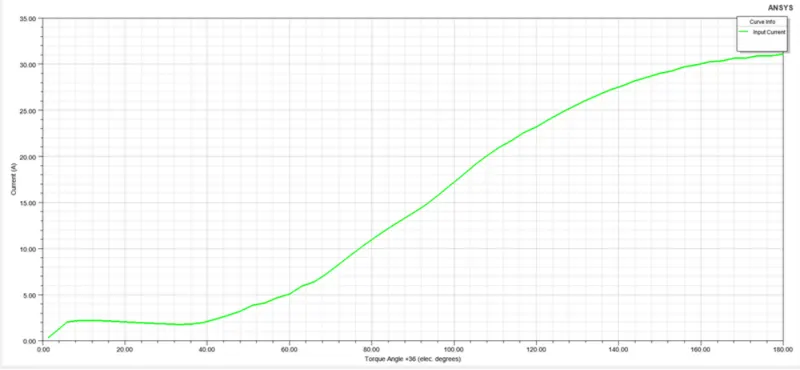

torque angle vs current

as we can see in this that the cuurent and toque are directly proportional to each other.

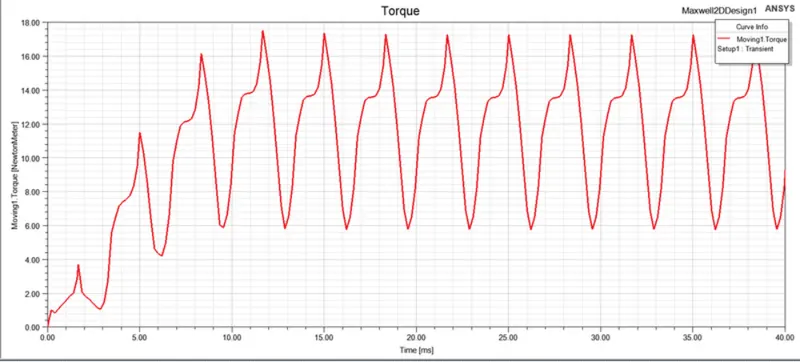

Toque plot

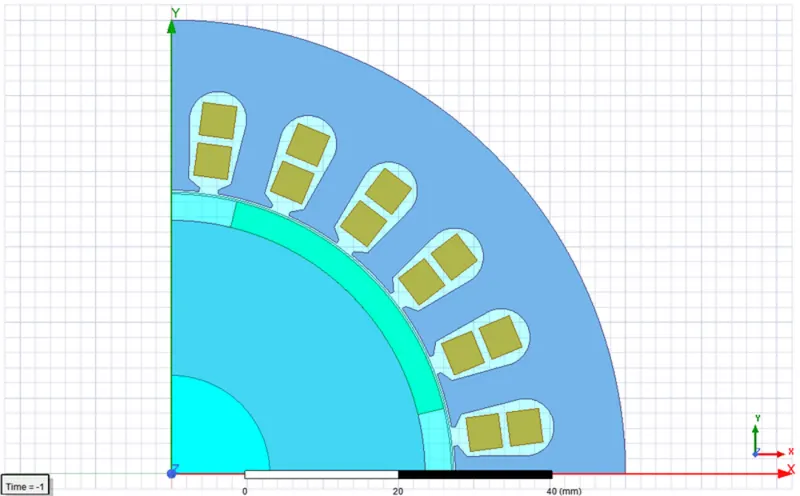

MAXWELL 2d

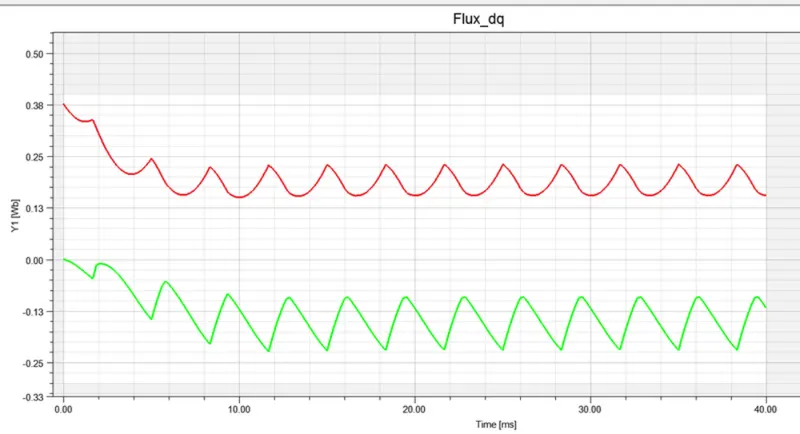

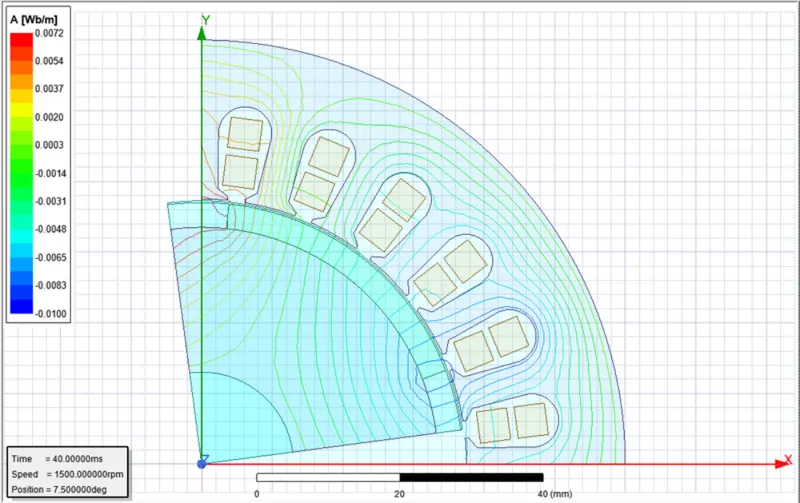

FLUX plot and Flux lines

so a positive value of current there for rotor will move in the anticlockwise direction as shown in he figure the red line is positive and rotor moved in that direction. and those red value wil going to decresed later on so the bue line are increased which cause the repulsion.

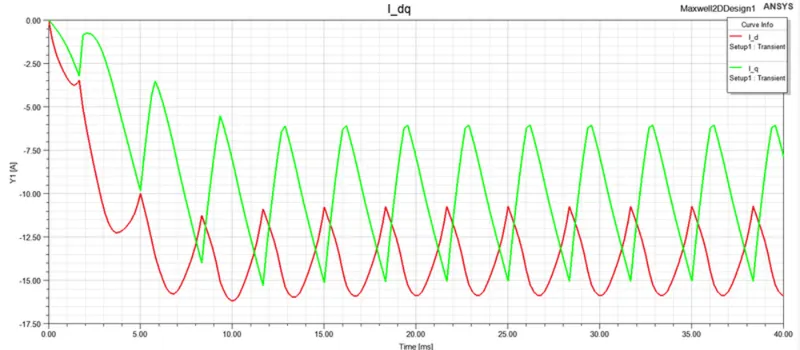

current

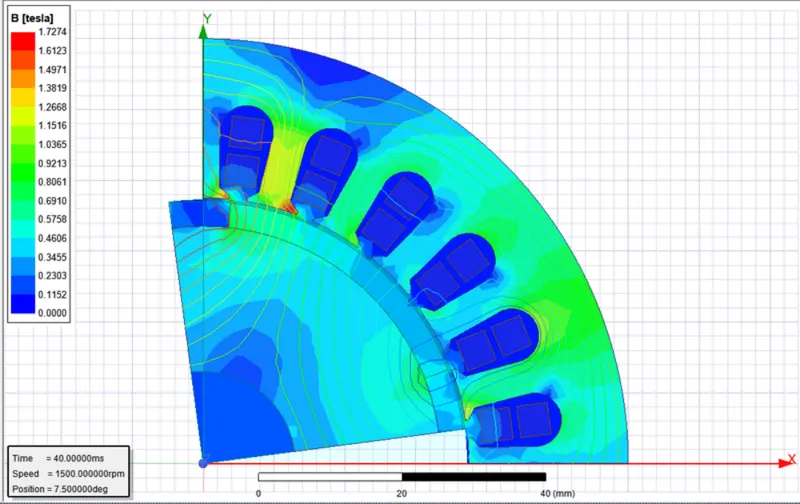

Magnetic Flux fields

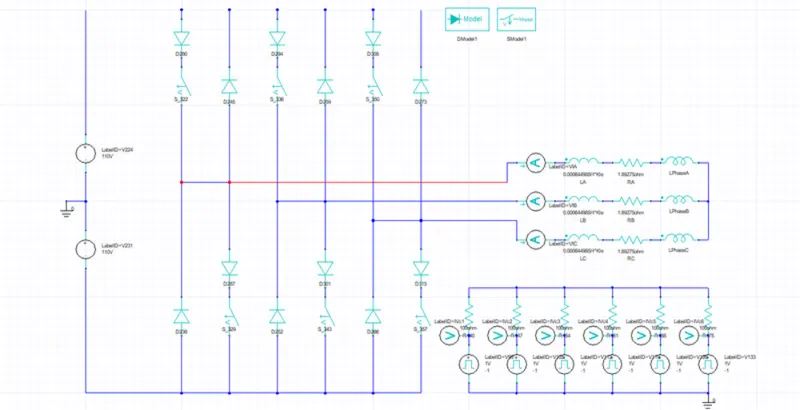

connections will look like

Conclusion

- MOTOR POWER ESTIMATION was completed.

- analysis of motor sizing

- multiphysics activity and different applicationdemads different optimization.
