Project

1. Battery Pack Capacity = 150 Kw

Battery Pack Voltage = 120V

Battery Pack current = 150000W/120 = 1250 Ah

Cell Voltage = 3.6V

Cell Current = 3500 mAh -> 3.5Ah

No. of cells in Series = 120/3.6 = 33.33 -> 34 Cells in series

No. of cells in Parallel = 1250/3.5 = 357.14 -> 358 cells in Parallel

So the Battery Pack Configuration will be 34S358P

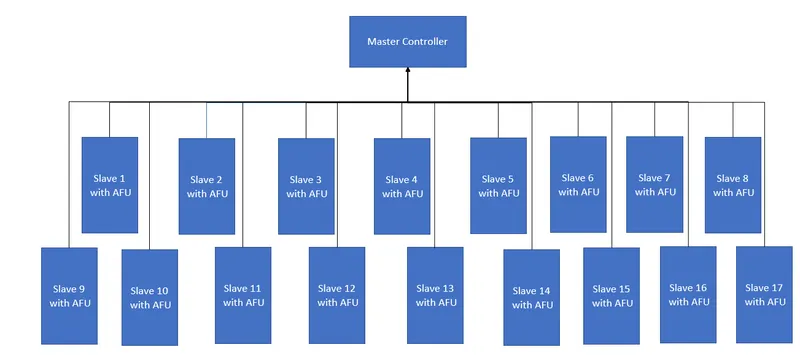

We will be using Master Slave Topology for this Battery Pack.

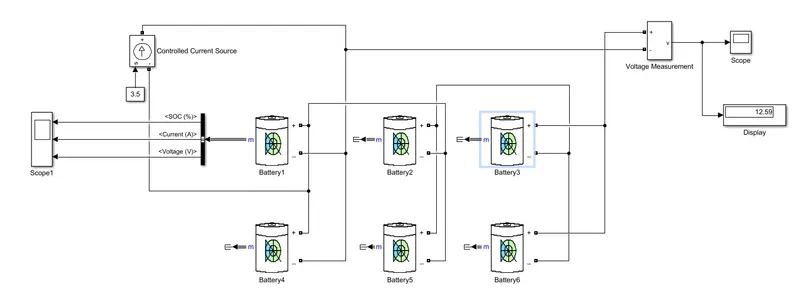

2. Battery Pack Configuration for 3S2P:

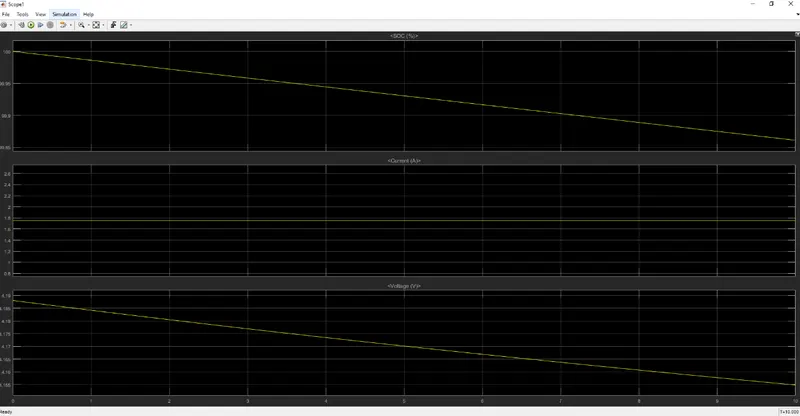

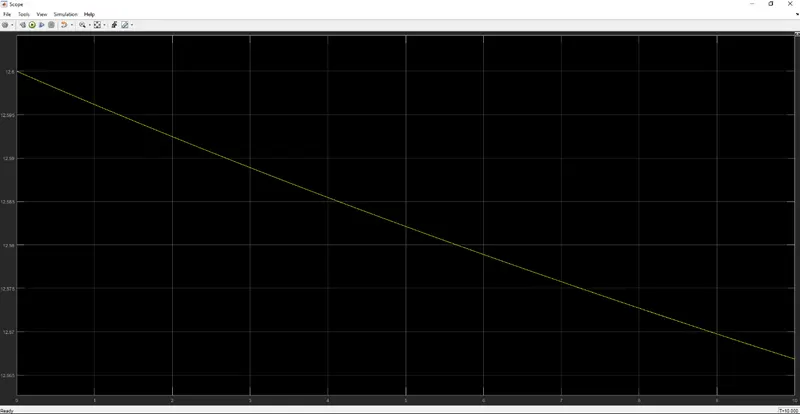

Results :
