1)

a) Vo = 34.88 V, Ripple Voltage = 0.156%, Formula used to calculate ripple voltage C = (1-D) / (8*L*fs^2(deltaVo/vo))

b) Imax = 2.850 Amps, Imin = 0.6396 Amps, IRMS = 2.015 Amps

c) Imax -> diode = 2.978 Amps

d) Imax -> Switch = 3.458 Amps

e) PI Controller has been added and Vo is gets stabilized from 34.88 Volts to 34.99 Volts

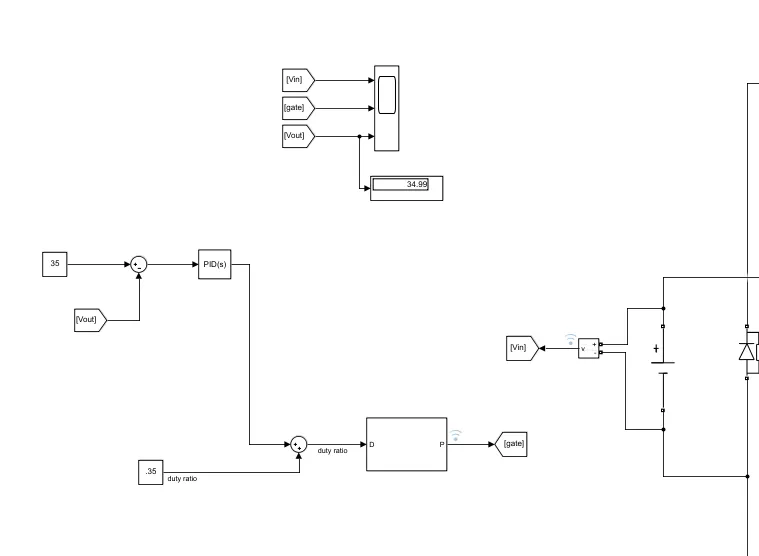

fig - PI Controller

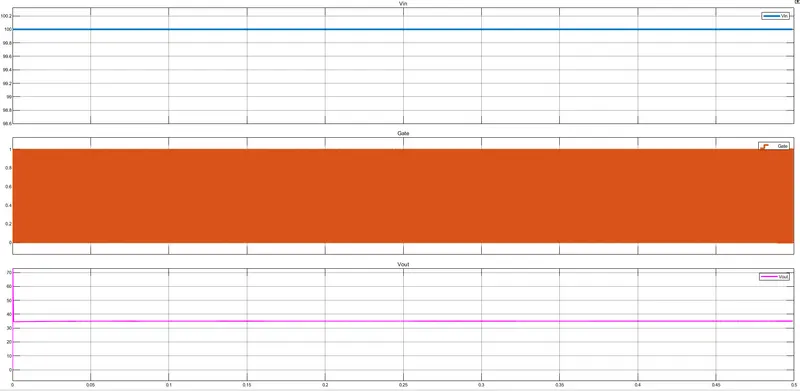

fig - Vin vs Vout

2)

a) Voltage & Current

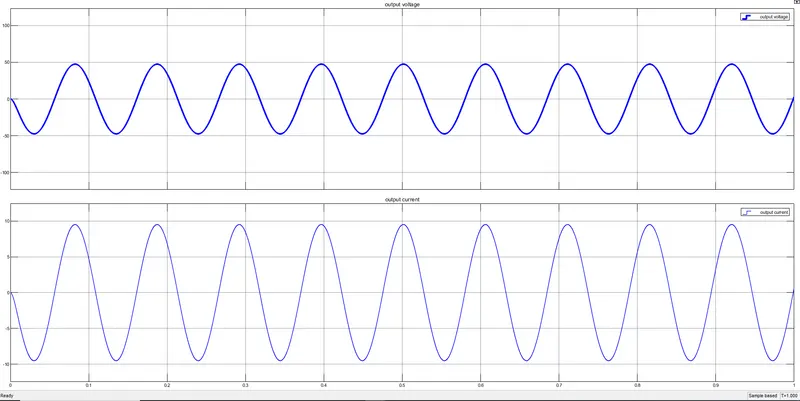

fig - Output Voltage & Current

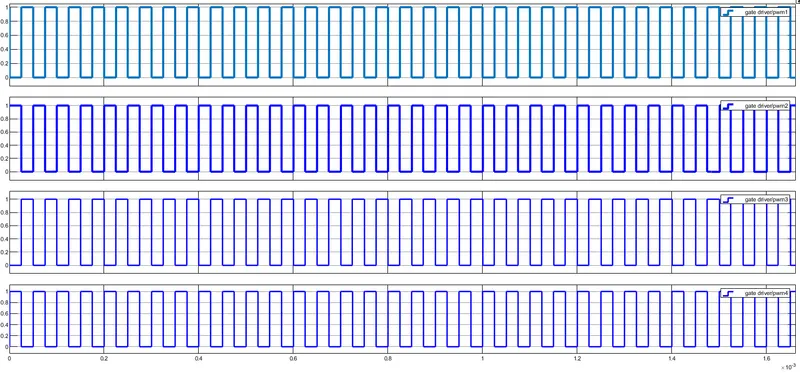

fig - PWM for all 4 Gates
