Project 3

Aim-Using Ansys SIwave perform electrothermal analysis.

Objective - PExprt &PEmag

twin builder and simplorer

SIwave and Icepacks

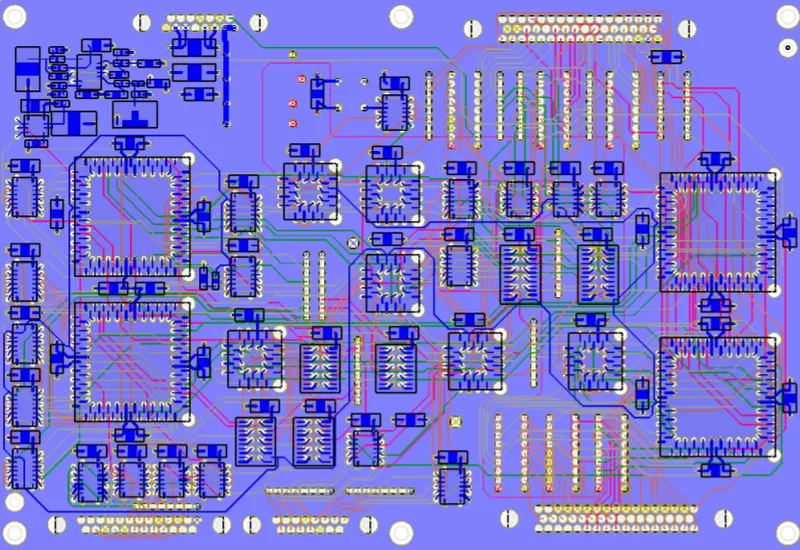

The board design example is intended to show how to import , simulate, and
analyze a 4-layer board structure using SIwave.

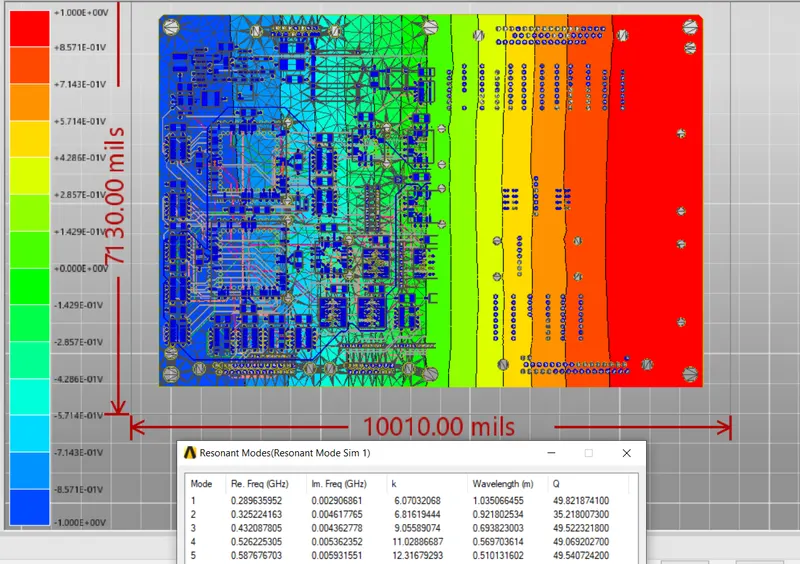

computation of resonent from l2 to l7 was created and the resonance diagram is generated.

as the computation is done, we can view the various voltage plots for each mode by highlighting the modes in the bottom section of the Resonant Mode.

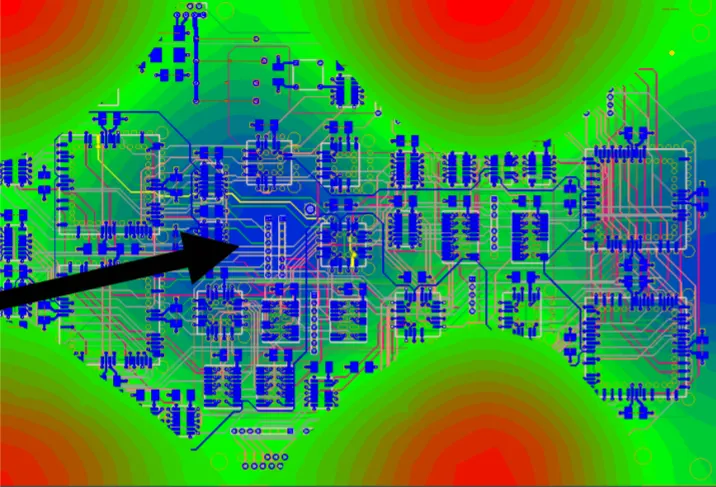

When scrolling through the various 10 resonant mode plots, you will notice that in Mode 9, there is quite a bit of voltage swing in a few places on the board. We are going to focus in a net named P_TLM_ERR that seems to cross into this resonance.

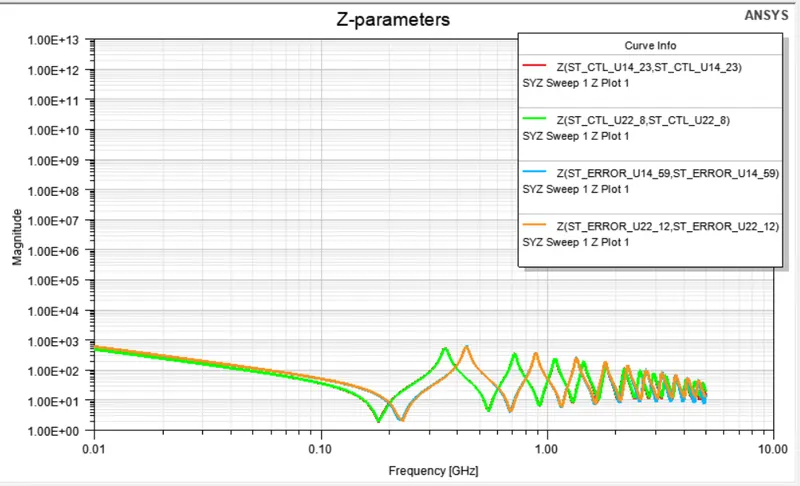

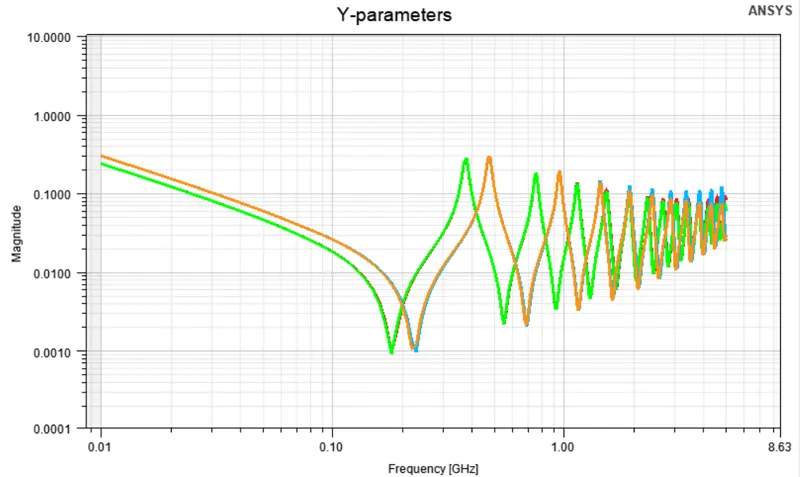

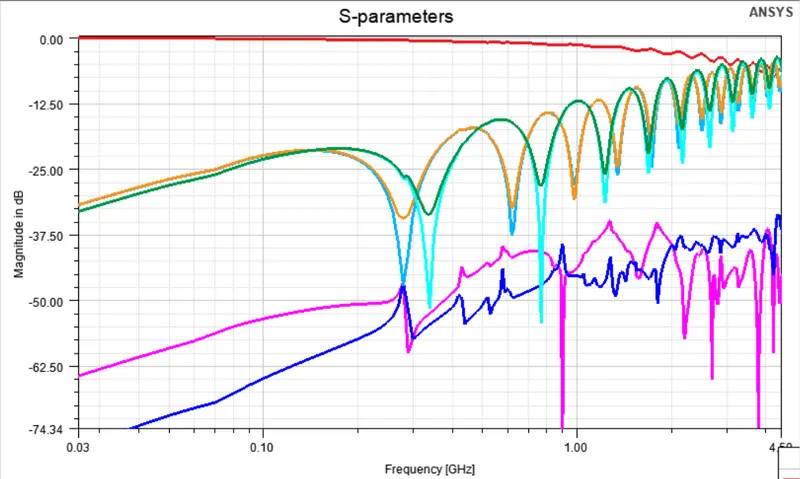

S, Y, Z Parameters

as the default settings for DCIR was not working so nets were choosen manually.

Conclusion -

learned abou PExprt &PEmag

how to twin builder and simplorer

how SIwave and Icepacks can be done.

reults- the incomplete DCIR
