Project 2 - V&V SW Analysis II

1.Perform Static Code Review Analysis for“C:\**\LDRA_workarea\Examples\C_Testbed_examples\Testrain\Testrain.c” Generate Code review report and upload them.

STEP1:

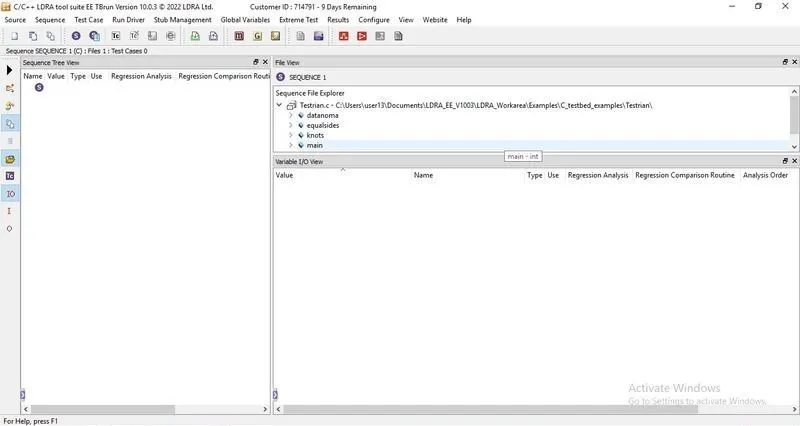

SELECTING THE FILE TESTTRAIN.C TO TEST IT

STEP2:

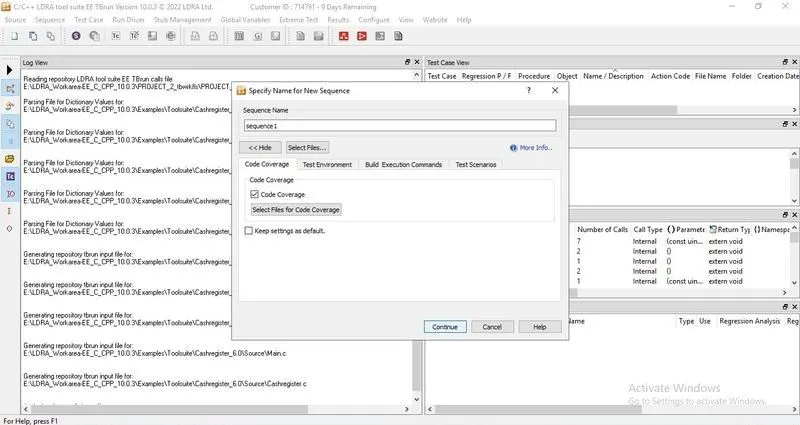

sequence->new->give name AS SEQUENCE 1 & select code coverage-> continue.

STEP3:

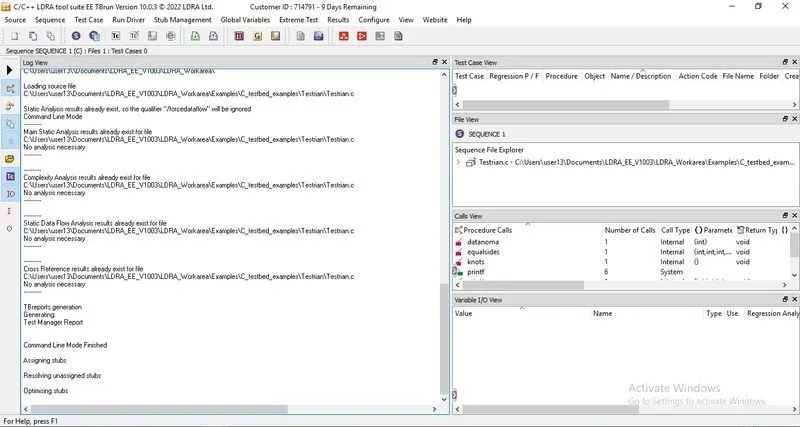

RUN STATIC ANALYSIS

STEP4:

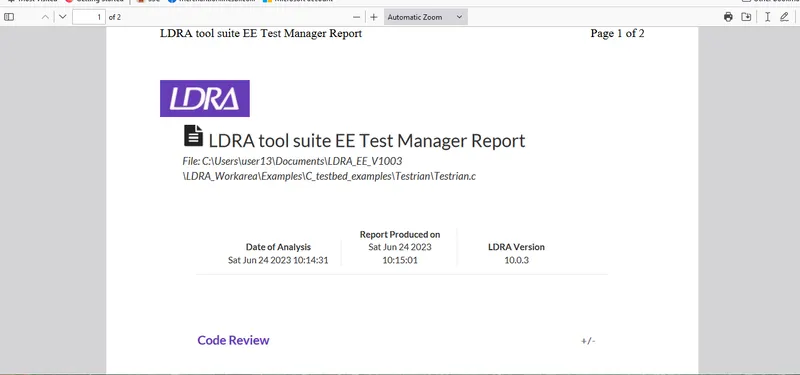

SHOW THE RESULTS

2.Perform Integration testing by including all the .C files available in the folder location C:\**\LDRA_workarea\Examples\Toolsuite\Cashregister_6.0\ **

A)Create the test cases manually as well as automatically using TBExtreme and upload the reports. B)store the test cases as .tcf file. Upload the location image where the .tcf file is stored.

STEP 1:

SELECTING THE .C FILES IN CASHREGISTER_6.0 LOAD THEM IN LDRA TBRUN SETTING THE SEQUENCE NAME AS SEQUENCE1

STEP 2:

SELECTING THE FILE FOR TESTCASES AND STORE THE TESTCASES

STEP 3:

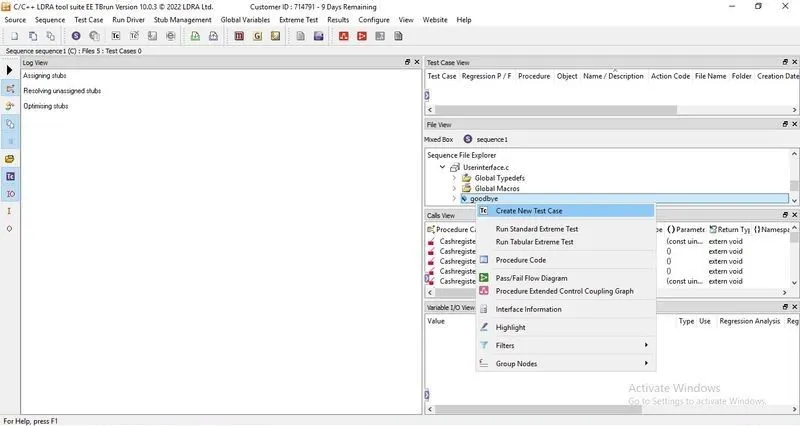

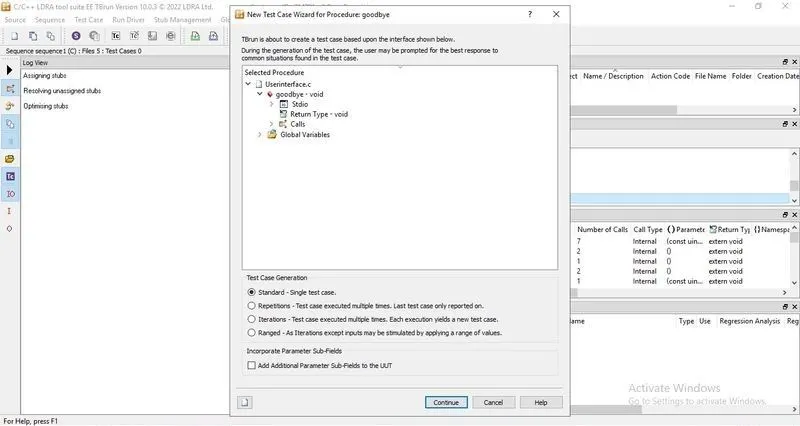

SETTING UP SINGLE TESTCASES

STEP 4:

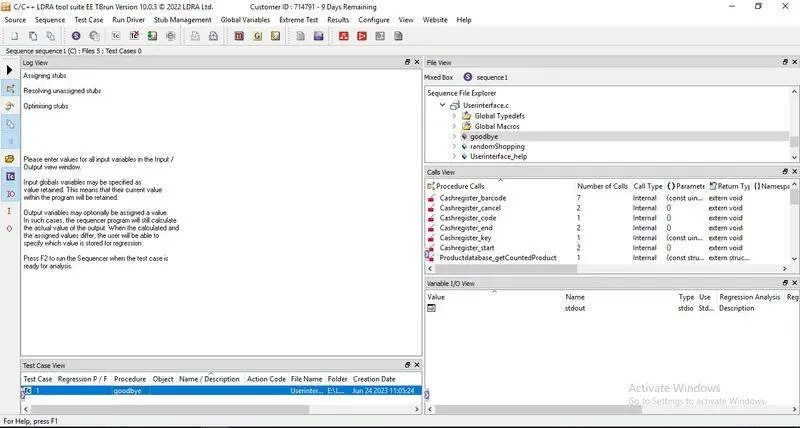

LOADING THE TESTCASES

STEP 5:

SETUP THE OUTPUT VALUES

STEP 6:

STEP 7:

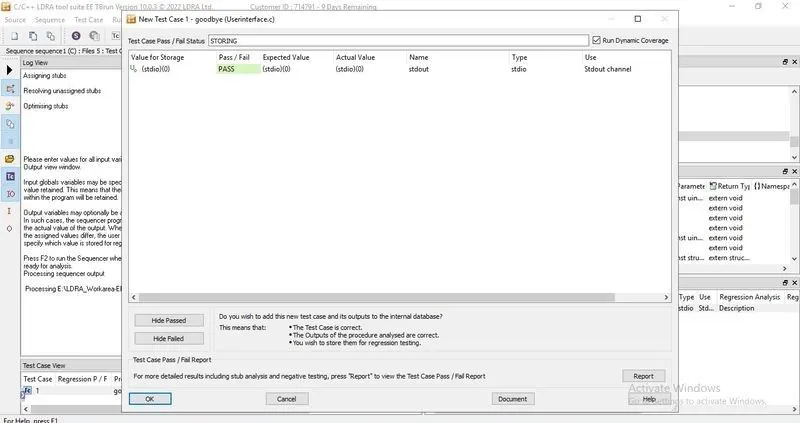

VALIDATING THE TESTCASES

STEP 8:

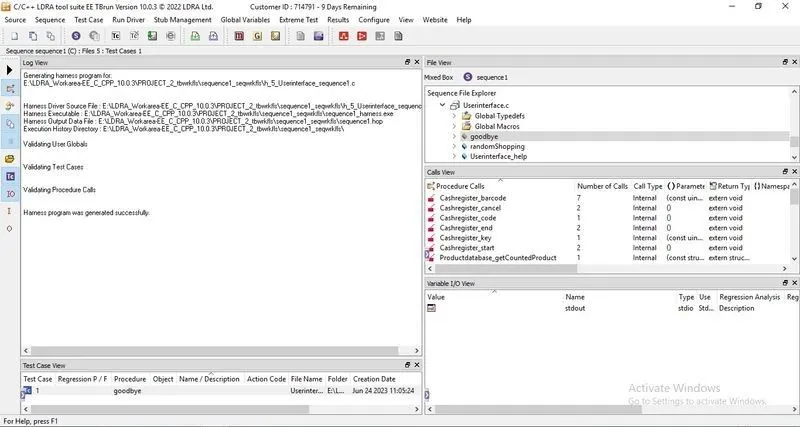

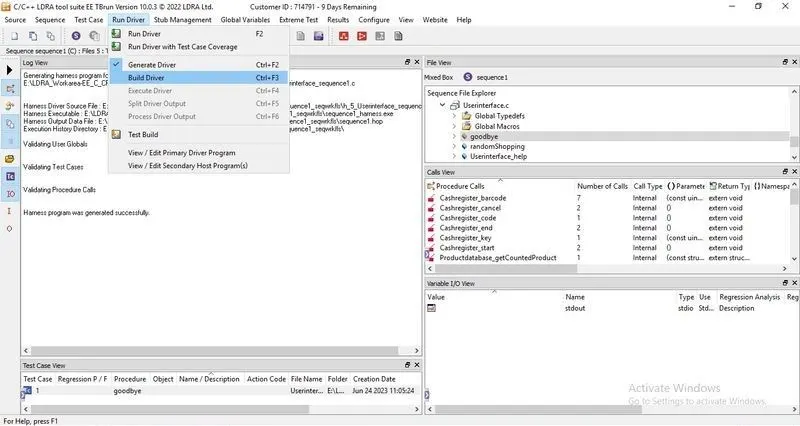

RUN DRIVER-> GENERATE DRIVER->BUILD DRIVER

STEP 9:

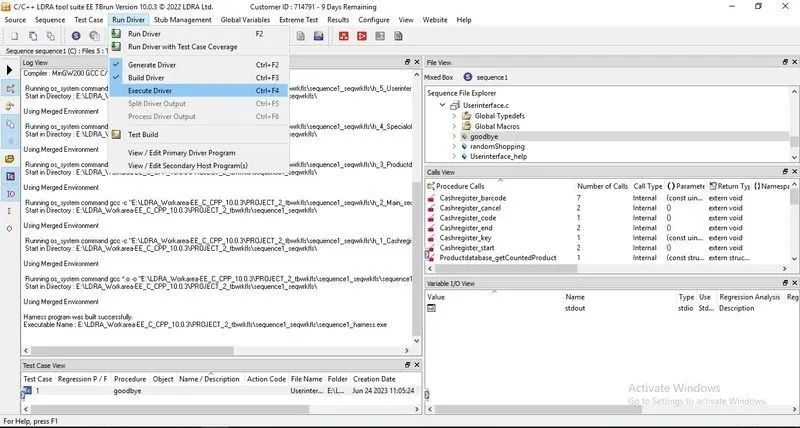

RUN DRIVER-> GENERATE DRIVER->BUILD DRIVER->EXECUTE DRIVER

STEP 10:

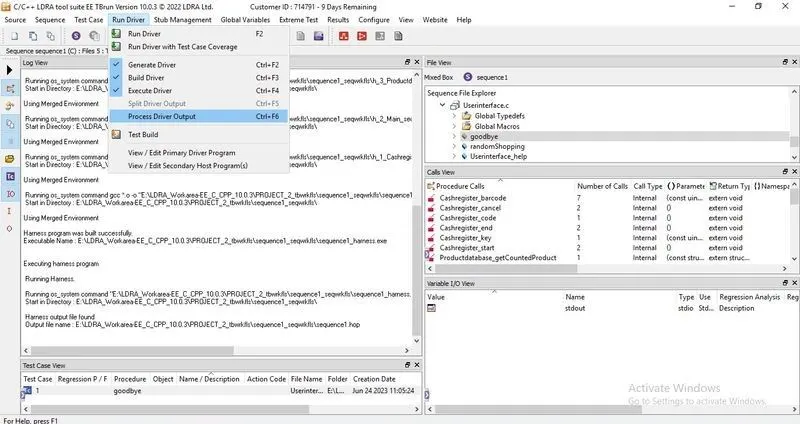

RUN DRIVER-> GENERATE DRIVER->BUILD DRIVER->EXECUTE DRIVER->PROCESS DRIVER OUTPUT

STEP 11:

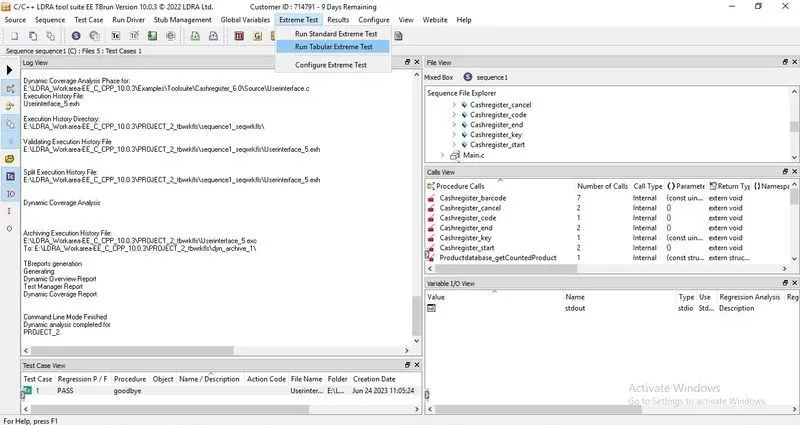

RUN TABULAR EXTREME TEST

STEP 12:

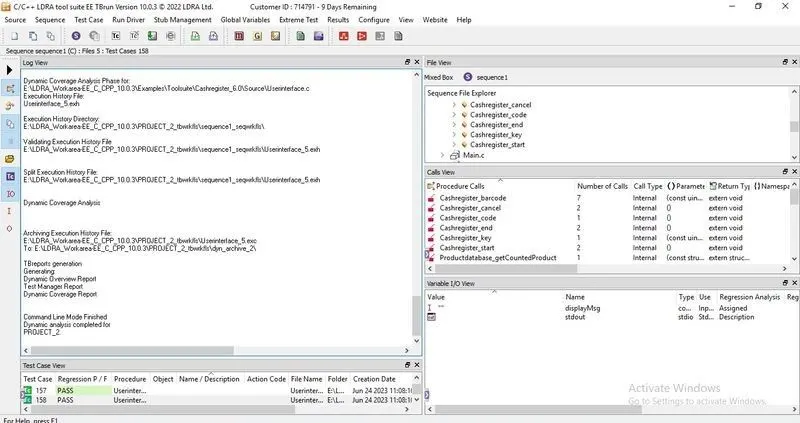

COMPLETION OF TEST

STEP 13:

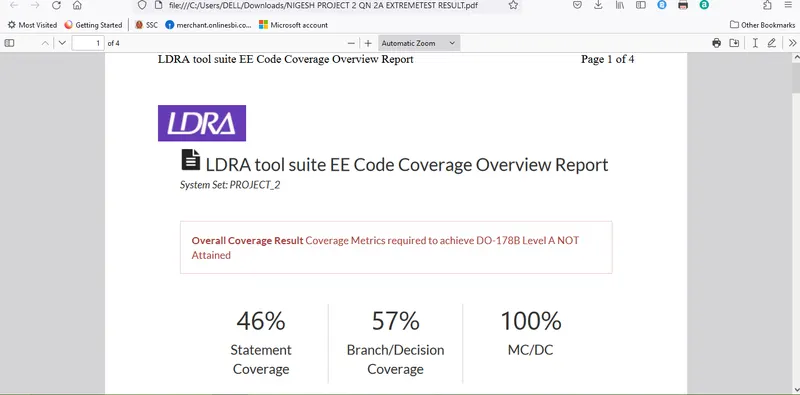

RESULTS
