Project 2 - V&V SW Analysis II

Live batch(preethi mam)

1.Perform Static Code Review Analysis for “C:\**\LDRA_workarea\Examples\C_Testbed_examples\Testrain\Testrain.c” Generate Code review report and upload them.

1.Open LDRA tool-->Click on Source--->Click on Single file

2.Select the Ggrocer.c or any .c file--->You can see the uploaded Ggrocer.c file in File view window

3.Go to sequence----> new-->give an name --->click on code coverage check box

4.Go to source-->Run static analysis

5.Go to result-->Test Manager report

2.Perform Integration testing by including all the .C files available in the folder location C:\**\LDRA_workarea\Examples\Toolsuite\Cashregister_6.0\ **

A)Create the test cases manually as well as automatically using TBExtreme and upload the reports.

1. Open LDRA tool
2. Click on Source
3. Click on Multiple file
4. One window pop up
5. Give any name → click on create → click on system→add→LDRA_workarea\Examples\Toolsuite\Cashregister_6.0\ src** → select all .c files in cashregister.c folder →ok
6. Test bed analysis window opens → click NO
7. Create sequence
8. Keep it in black box mode
9. Sourceàrun static analysis
10. Now Go to configure on menu bar → Analysis configure option
11. Static option → window opens
12. Now click on Find/create button example TBrun_example/example → jus click on .dat file → select
13. Go to Macro → Now click on Find/create button/example/TBrun_example/example→ jus click on select
14. Now click on Apply → OK

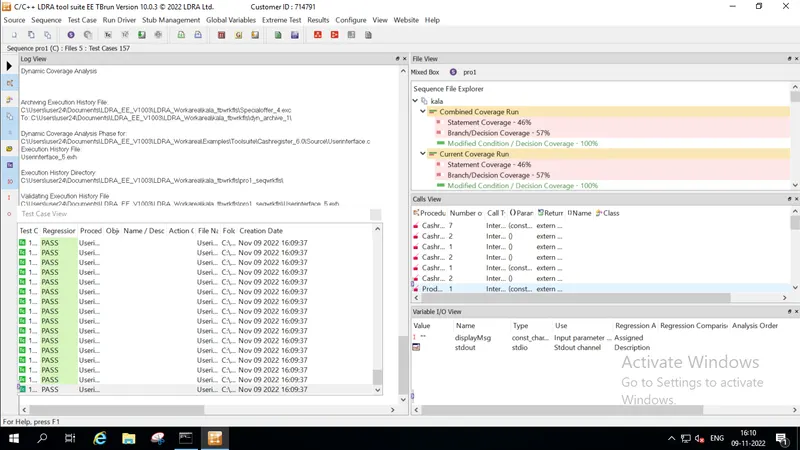

15. Go to extreme test → run tabular extreme test →all test cases will be created automatically
16. Result → take the report

B)store the test cases as .tcf file. Upload the location image where the .tcf file is stored.

• After performing automation test on cashregister.c
• go to source
• click on Save as or set to TCF
• ok
• Select path to store .tcf file
