Project 2 - V&V SW Analysis II

1. Perform Static Code Review Analysis for “C:\**\LDRA_workarea\Examples\C_Testbed_examples\Testrain\Testrain.c” Generate Code review report and upload them.

STEPS TO GENERATE CODE REVIEW REPORT:

First Open the LDRA Tool

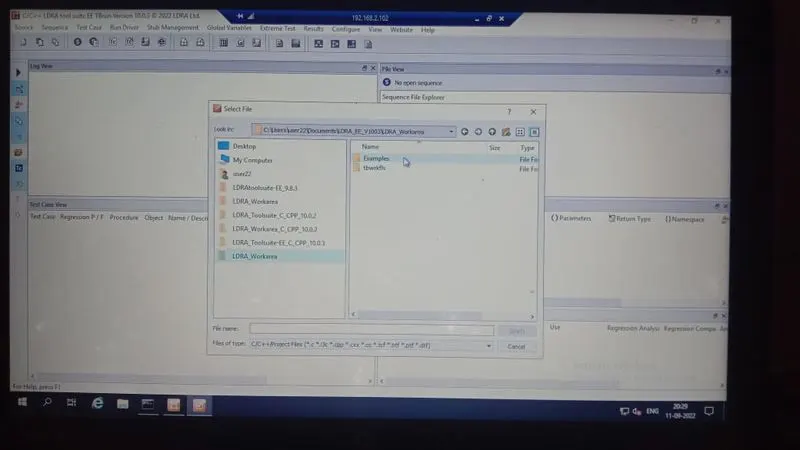

Go to LRDA_Workarea \Examples\C_Testbed_examples\Testrain\Testrain.c”

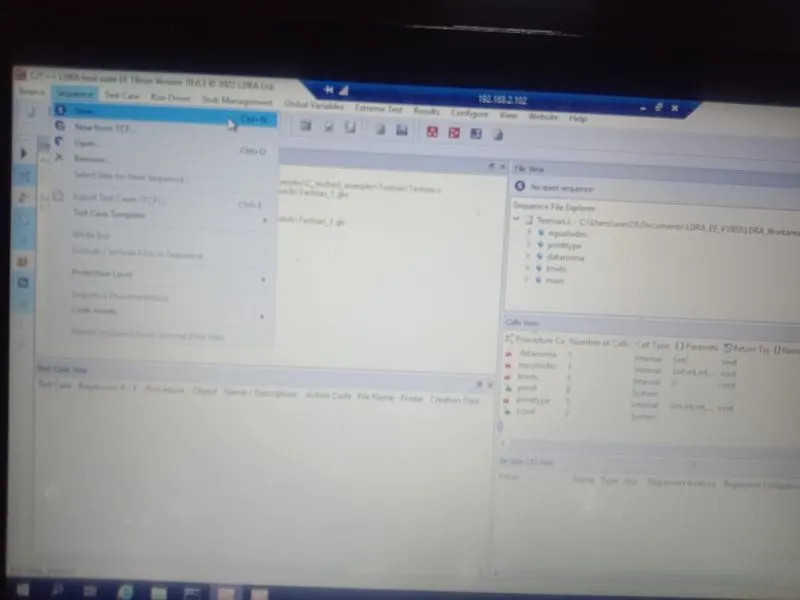

Go to Sequence ==> Click New

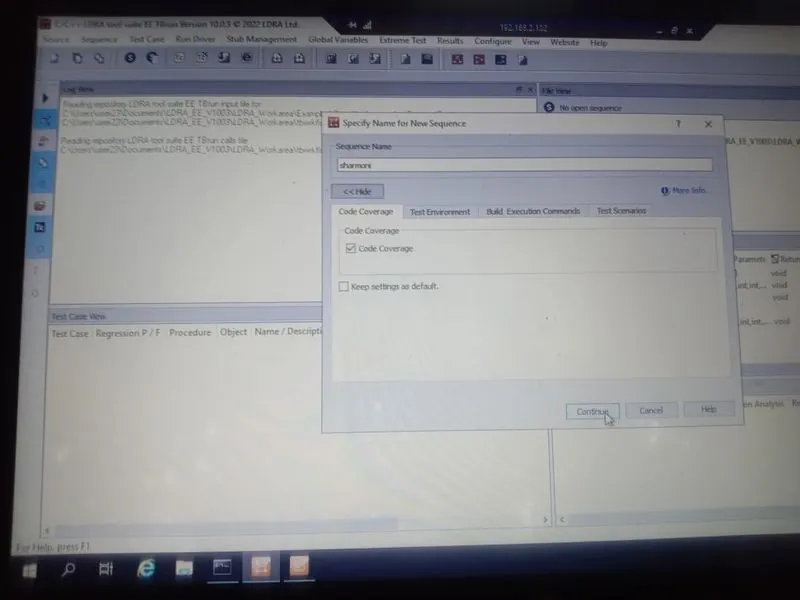

Enter a Sequence Name ==> Click Code Coverage ==> Click Continue

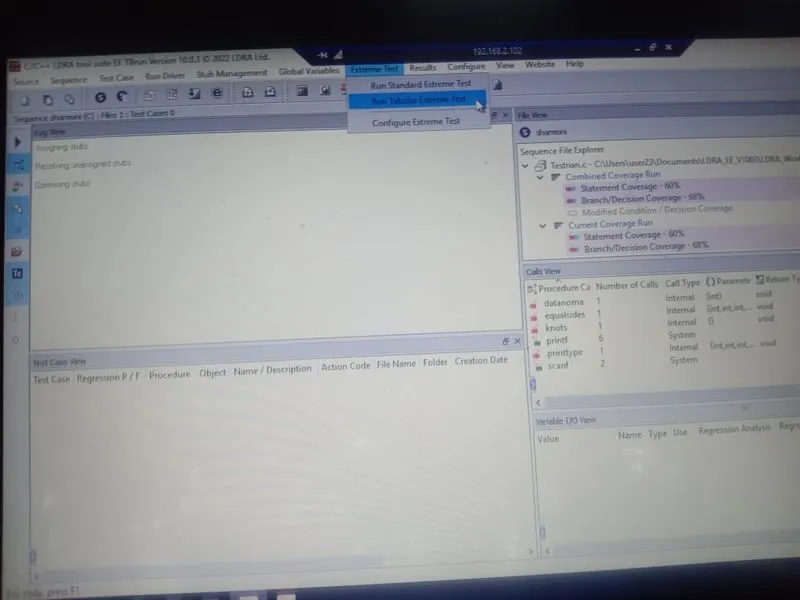

Go to Extereme Test ==> Click Run Tabular Extreme Test.

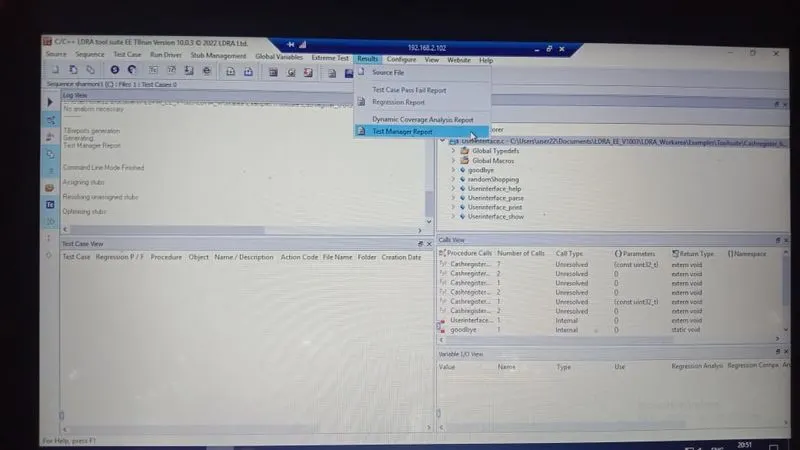

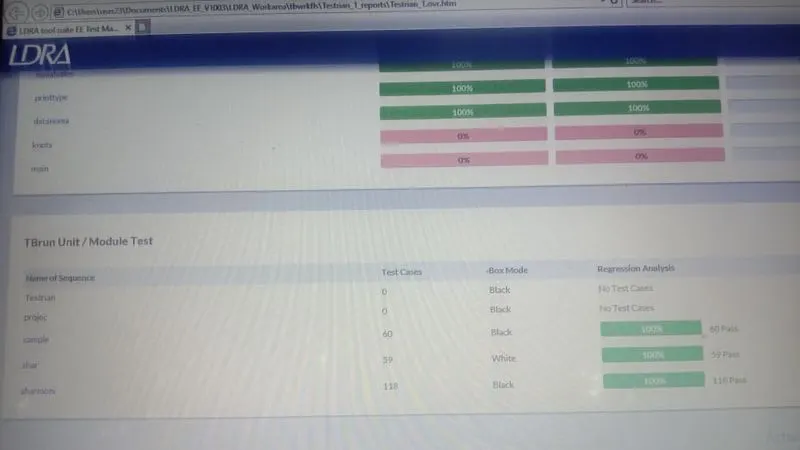

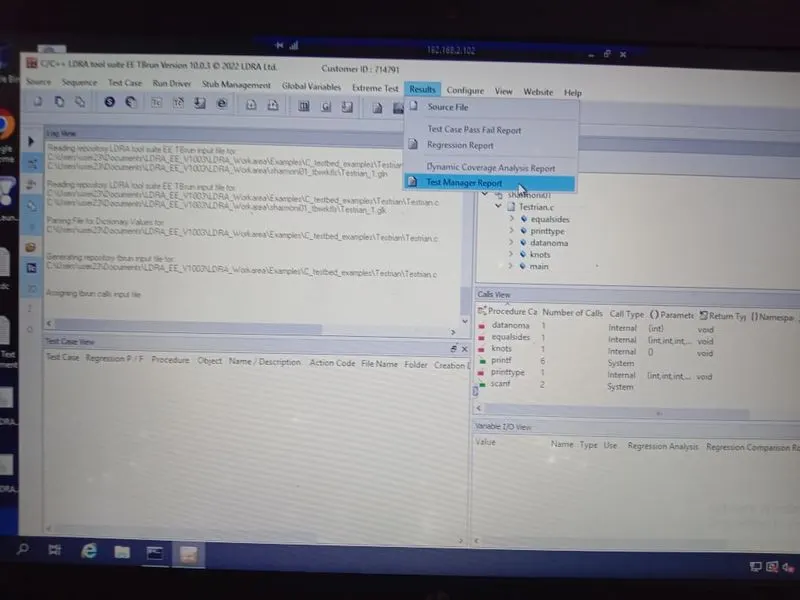

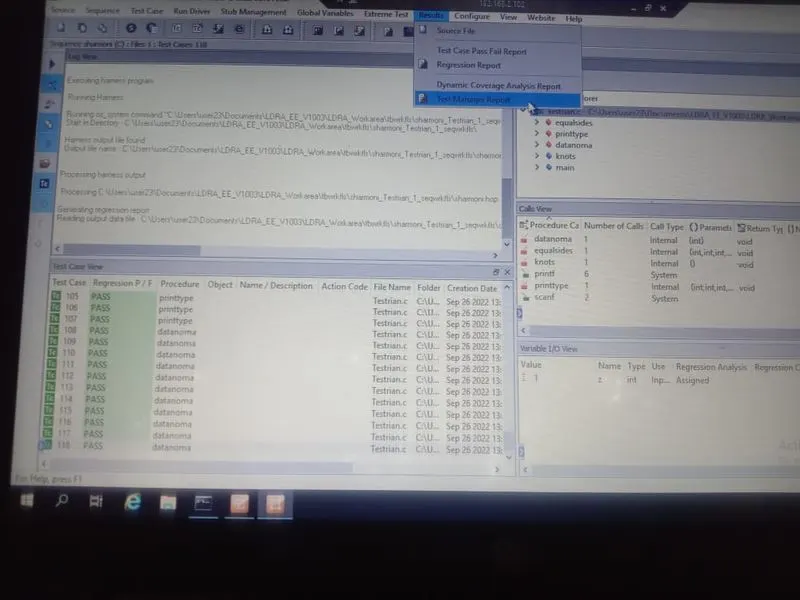

Go to Results ==> Click Test Manager Report

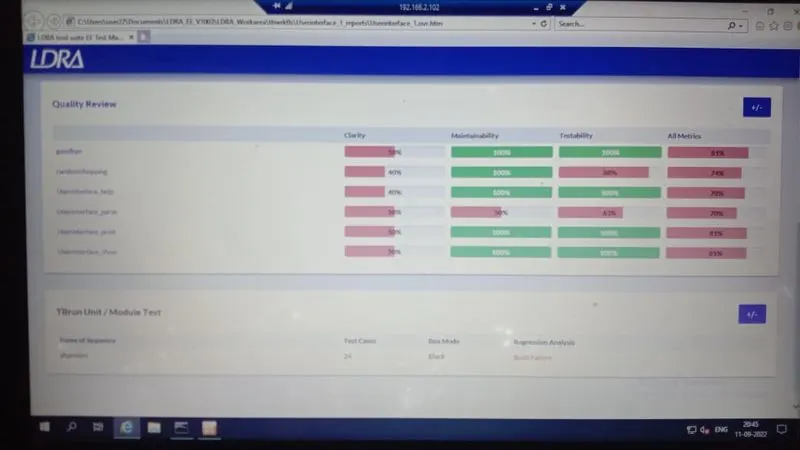

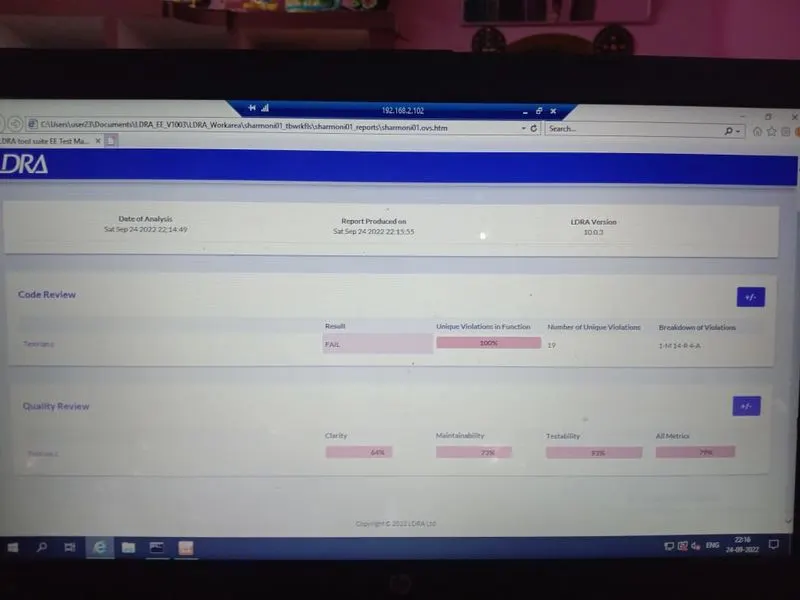

Code Review Report is Generated Using LDRA tool suite

2. Perform Integration testing by including all the .C files available in the folder location C:\**\LDRA_workarea\Examples\Toolsuite\Cashregister_6.0\ ** A)Create the test cases manually as well as automatically using TBExtreme and upload the reports. B)store the test cases as .tcf file. Upload the location image where the .tcf file is stored.

C:\**\LDRA_workarea\Examples\Toolsuite\Cashregister_6.0\ **

A)Create the test cases manually as well as automatically using TBExtreme and upload the reports.

AUTOMATIC TESTING:

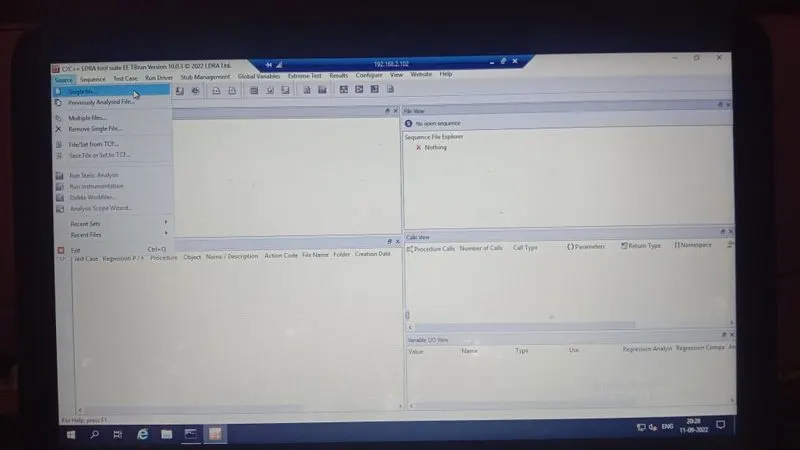

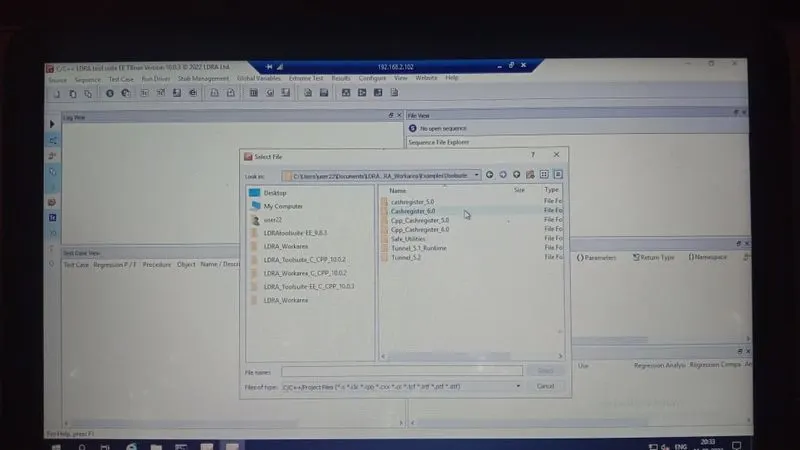

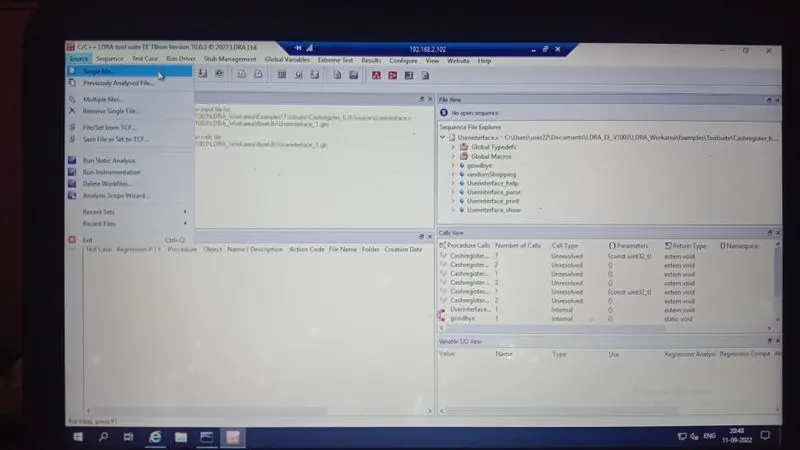

1. Go to Source => Click Single File

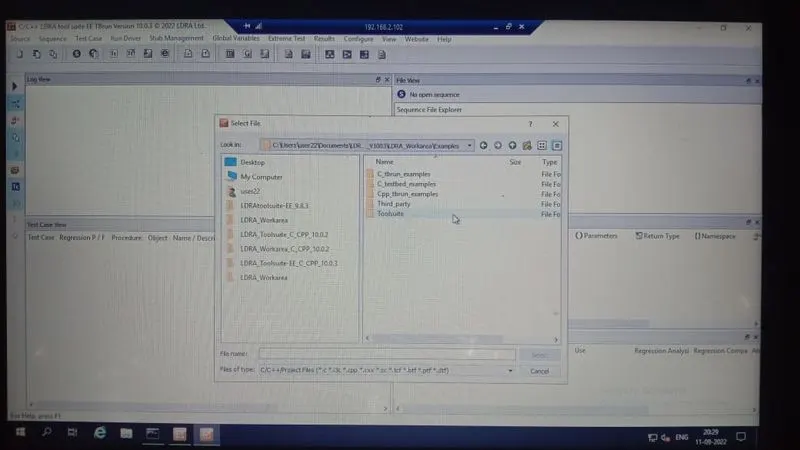

2. Click Examples

3. Click ToolSuite

4. Click Source

5. Click Userinterface

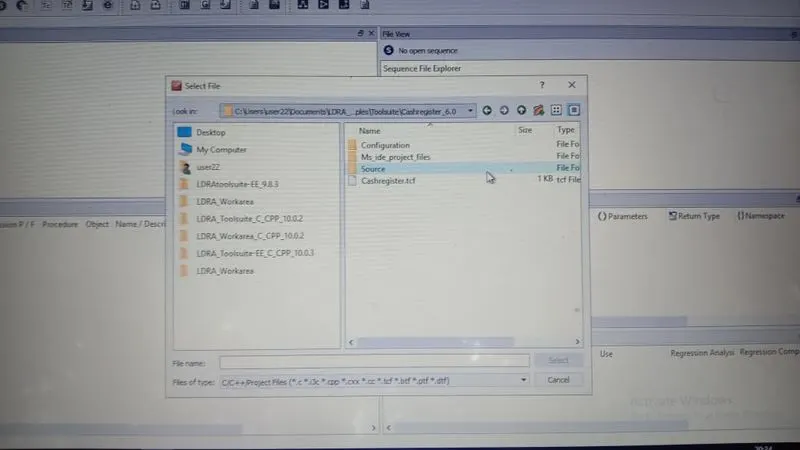

6. Click Cashregister_6.0

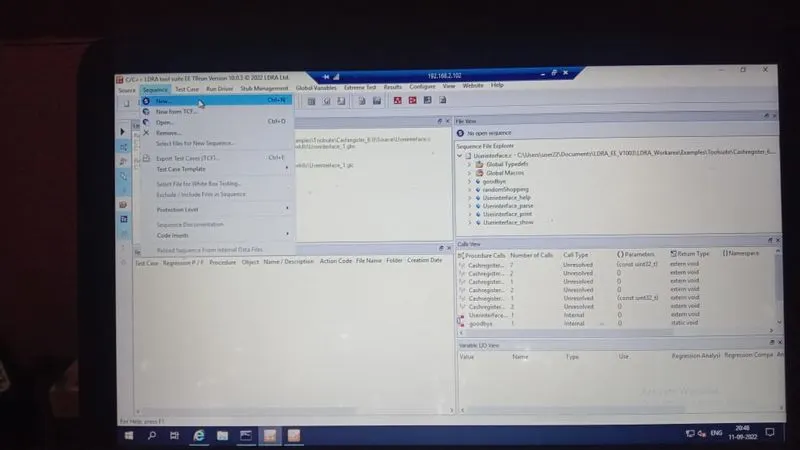

7. Go to Sequence=> Click New

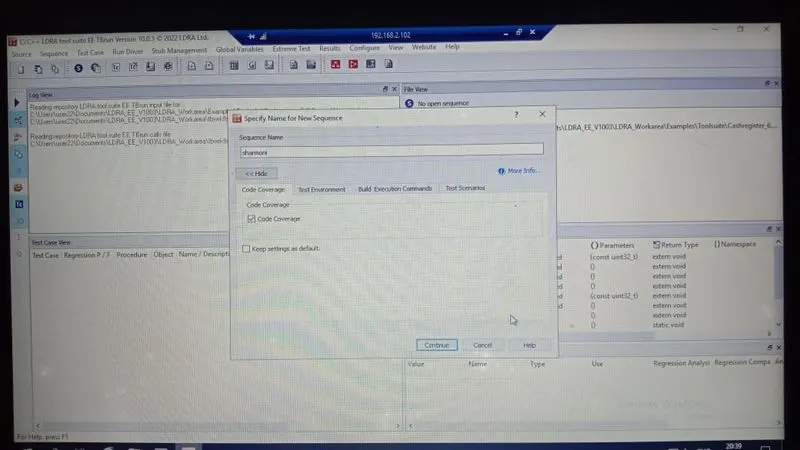

8. Enter a Sequence Name => Click Code Coverage => Continue

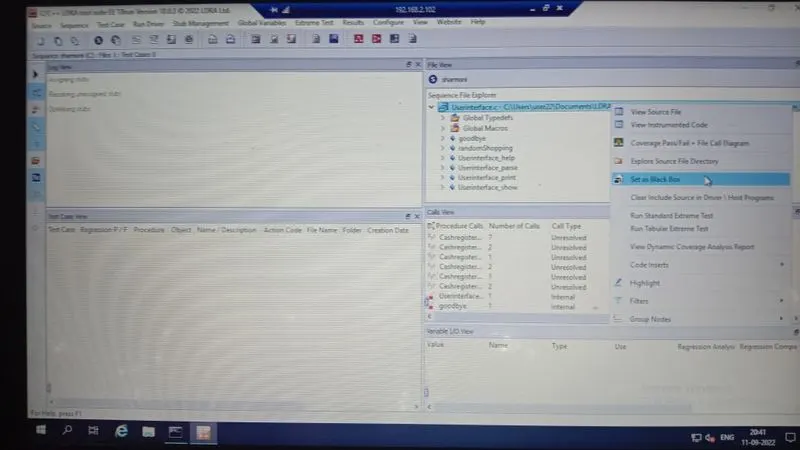

9. In File View=> Right Click a File => Set as Black Box

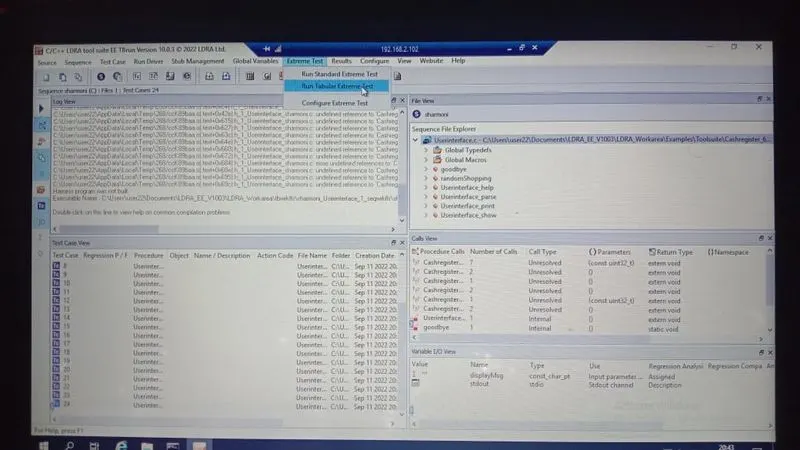

10. Go to Extereme Test => Click Run Tabular Extereme Text

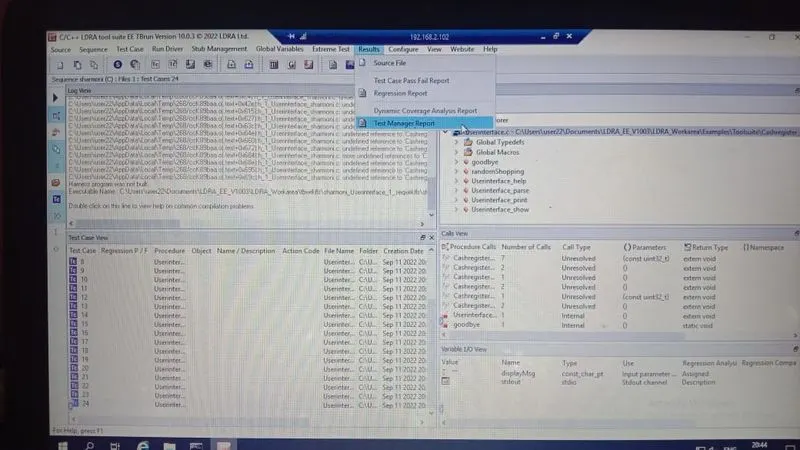

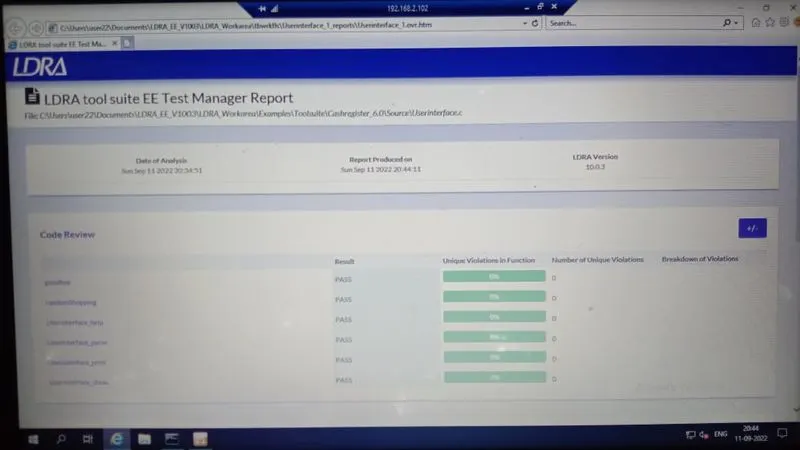

11. Go to Result => Click Test Manager Report

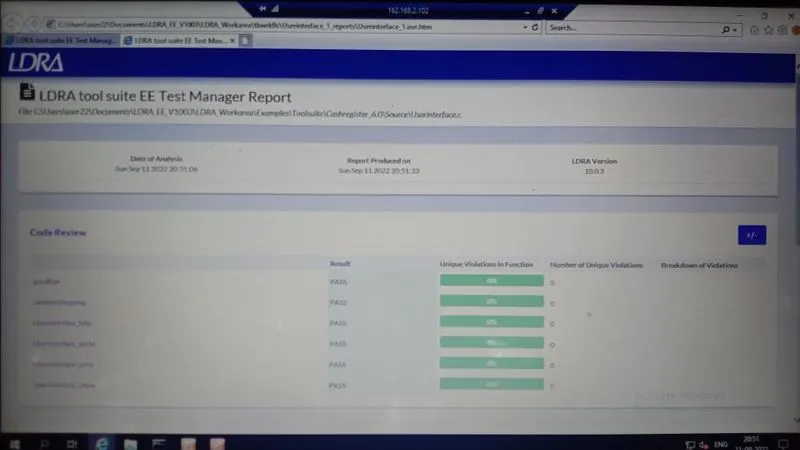

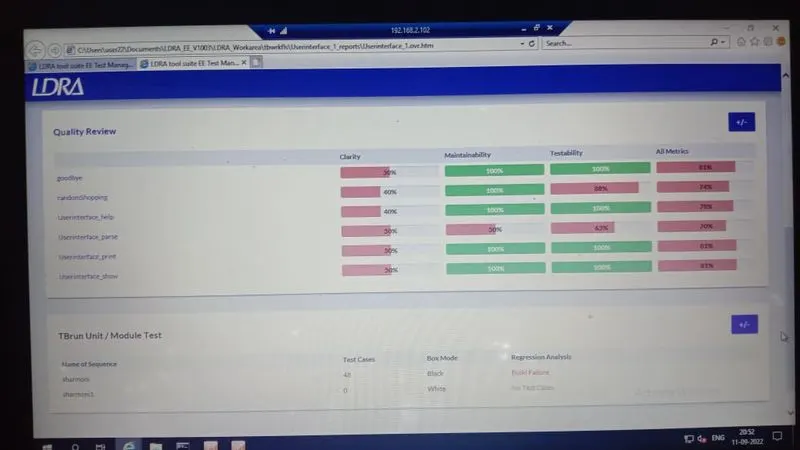

12. Test Manager Report is Generated

MANUAL WHITE BOX TESTING:

1. Go to Source => Single File

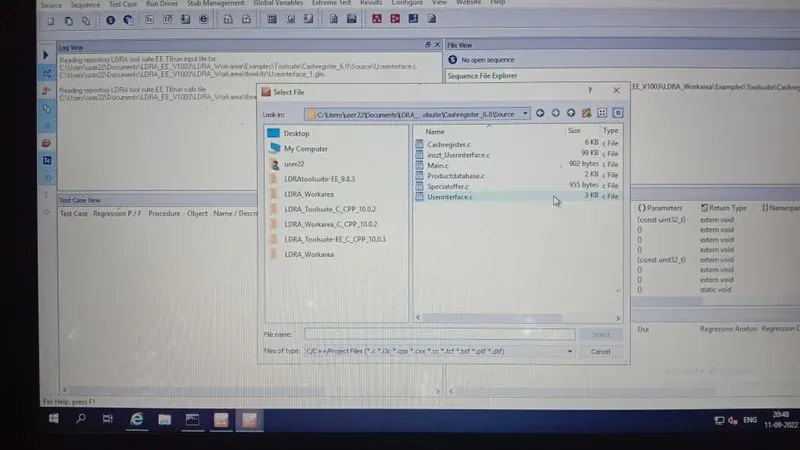

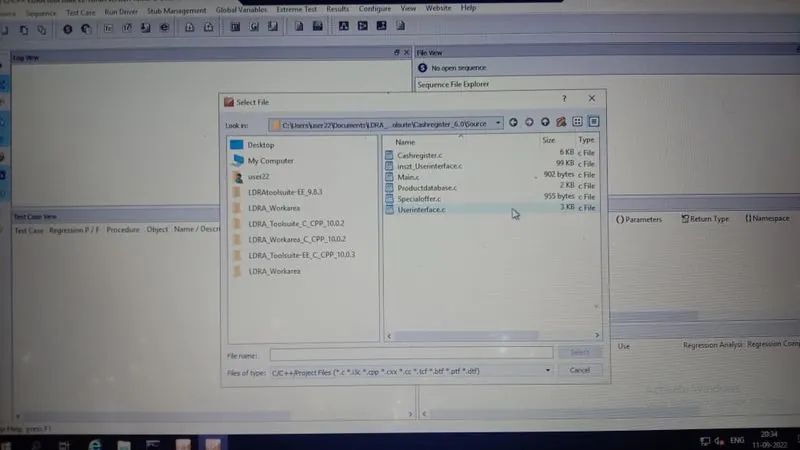

2. Select Userinterface .c File

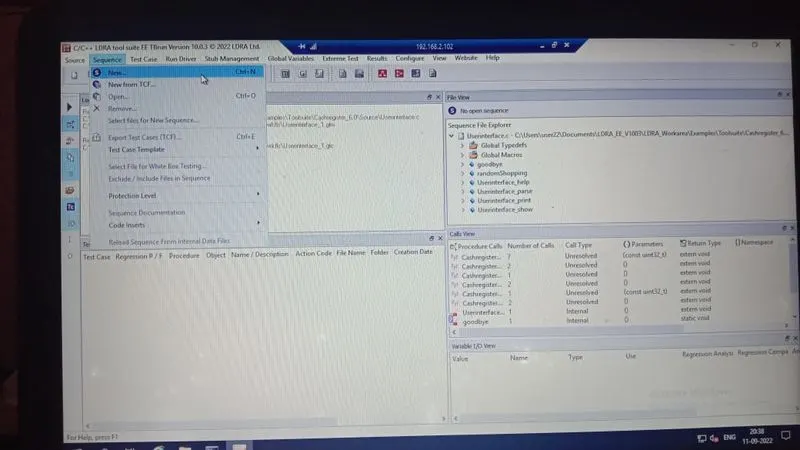

3. Go to Sequence => Click New

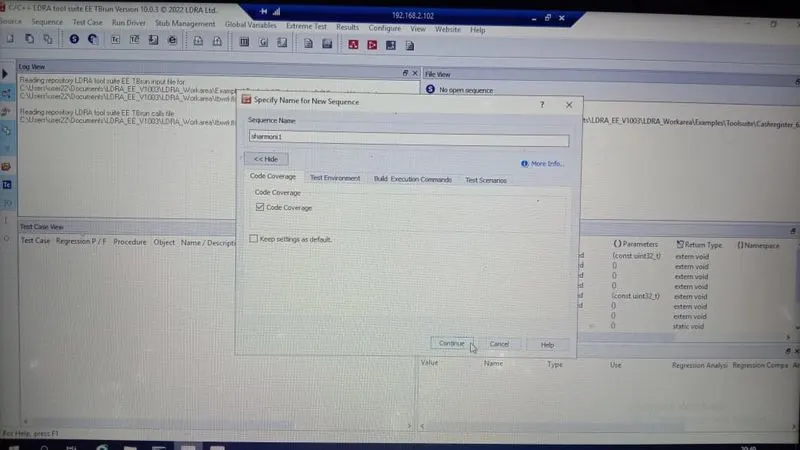

4. Enter Sequence Name => Click Code Coverage => Continue

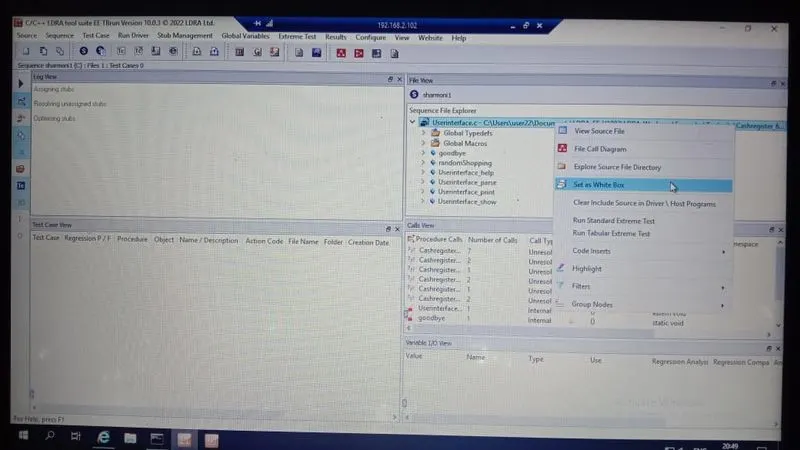

5. In File View and Right Click then Set As White Box Testing

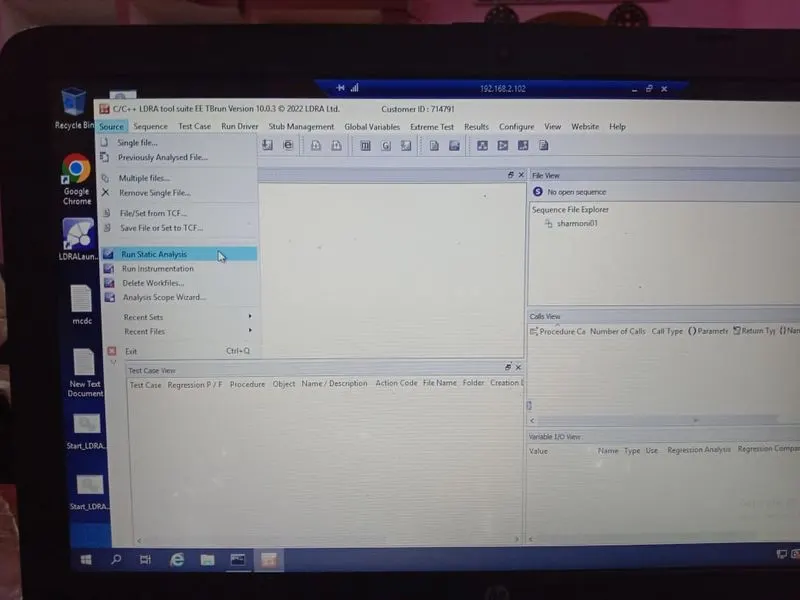

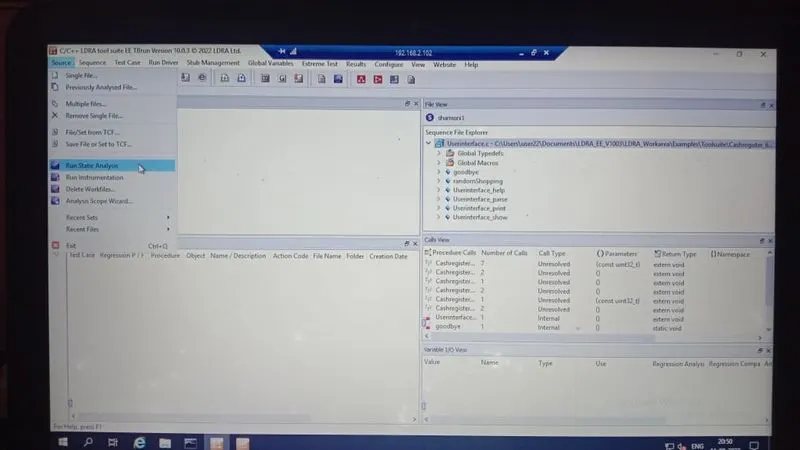

6. Go To Source => Run Static Analysis

7. Go to Results => Click Test Manager Report

8. White Box Test Report is Generated

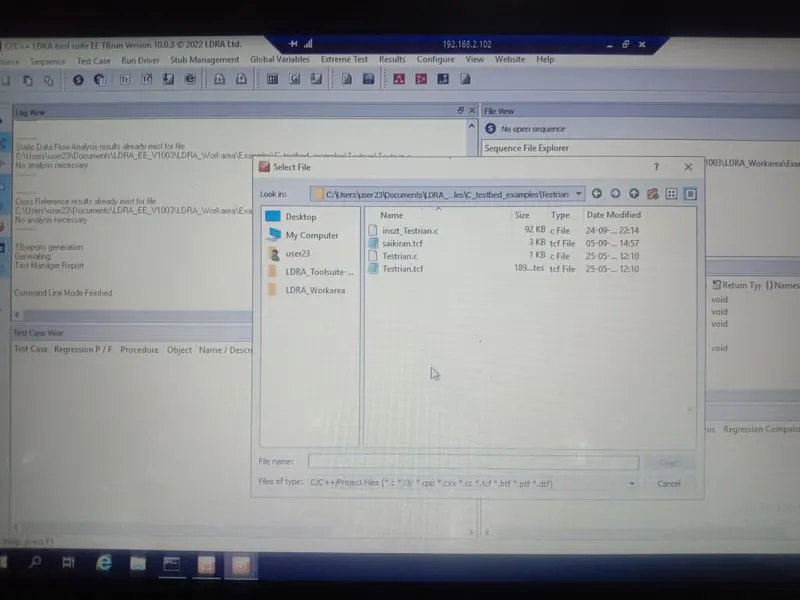

B)store the test cases as .tcf file. Upload the location image where the .tcf file is stored.

STEPS TO FOLLOW TO STORE THE TEST CASES AS .tcf file

1. Tbrun

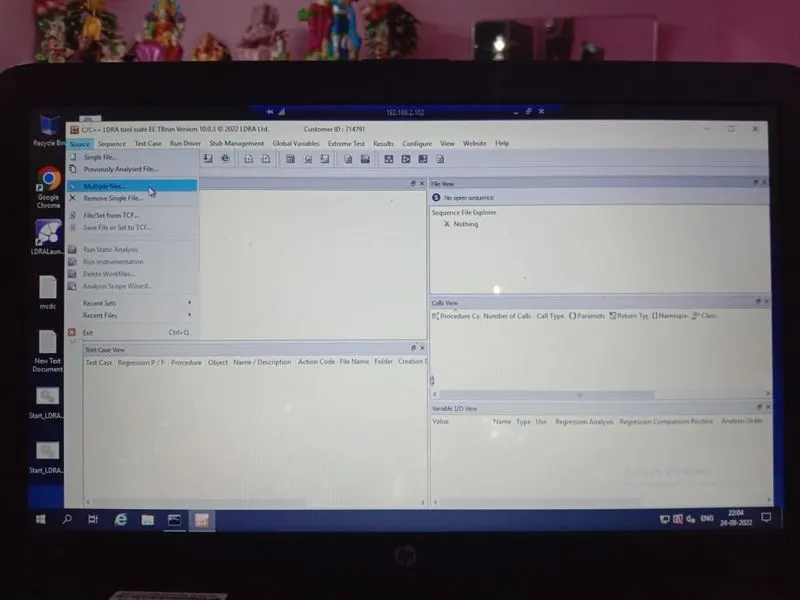

2. Source..multiple files
3. create…demo(name)

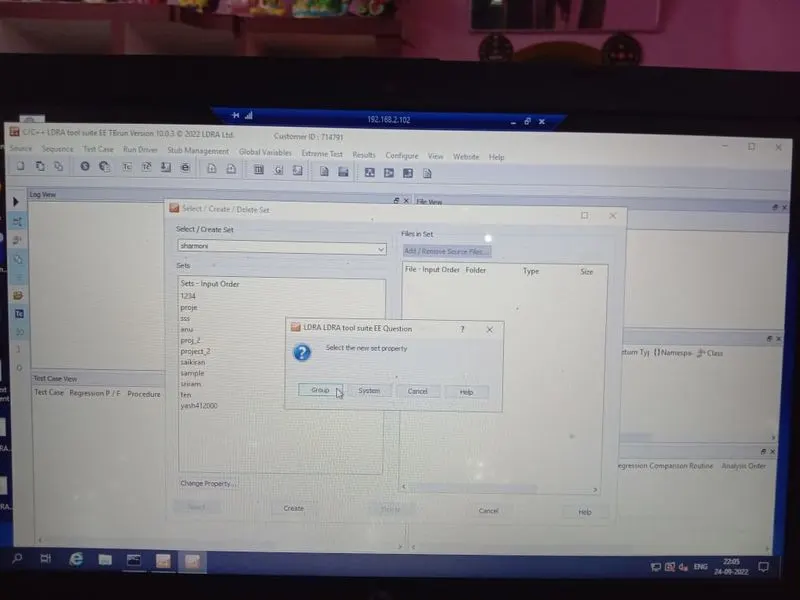

4. Group..independent
5. System..dependencies in files(preferred)

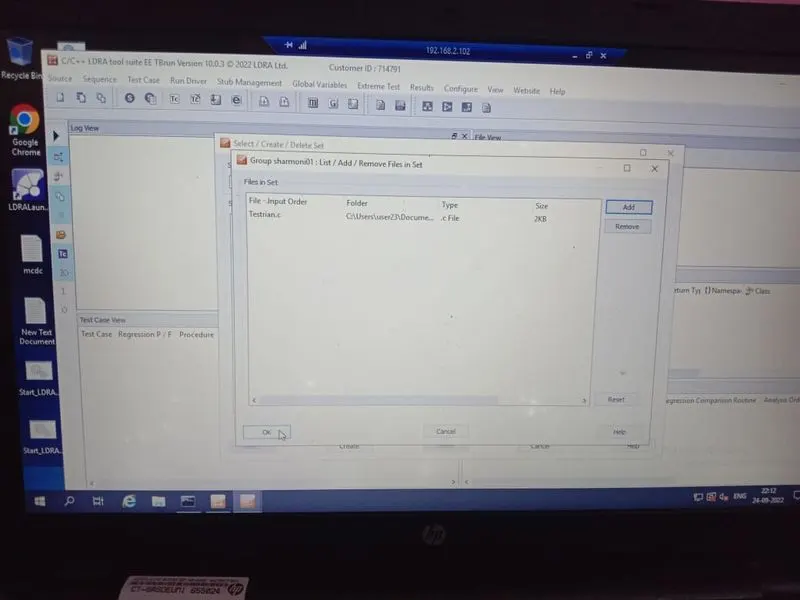

6. Choose the .c file

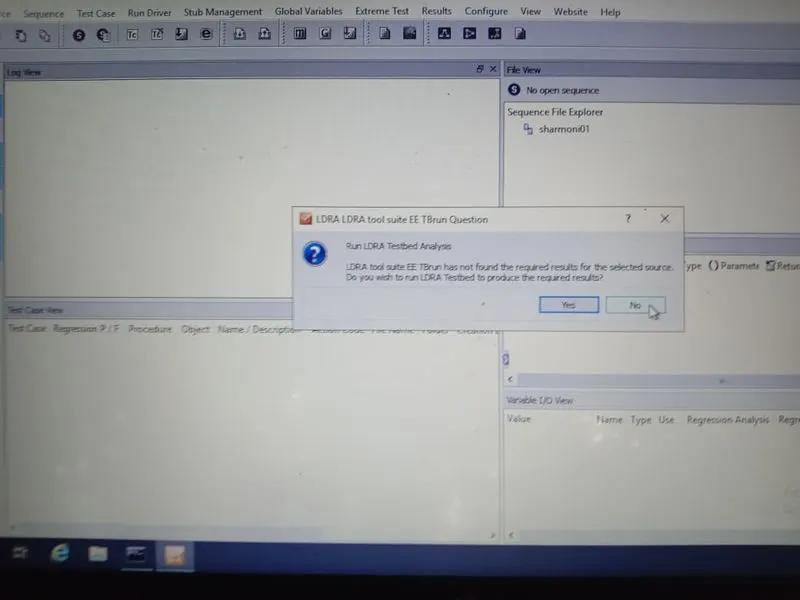

7. Ldra test bed..no
8. Configure..ldra test configuration..static options..path of grocers.c file
9. Static analysis
10. Report
