Project 2 Thermal modeling of battery pack

Lithium ion battery model

Simulink model

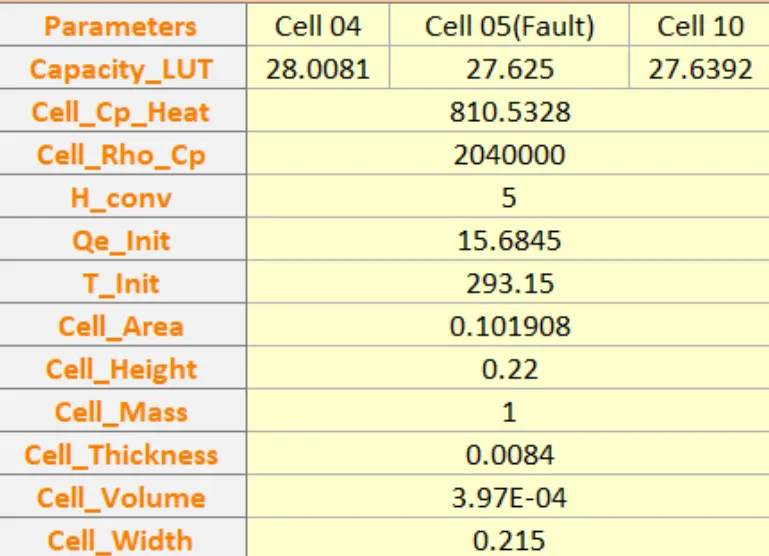

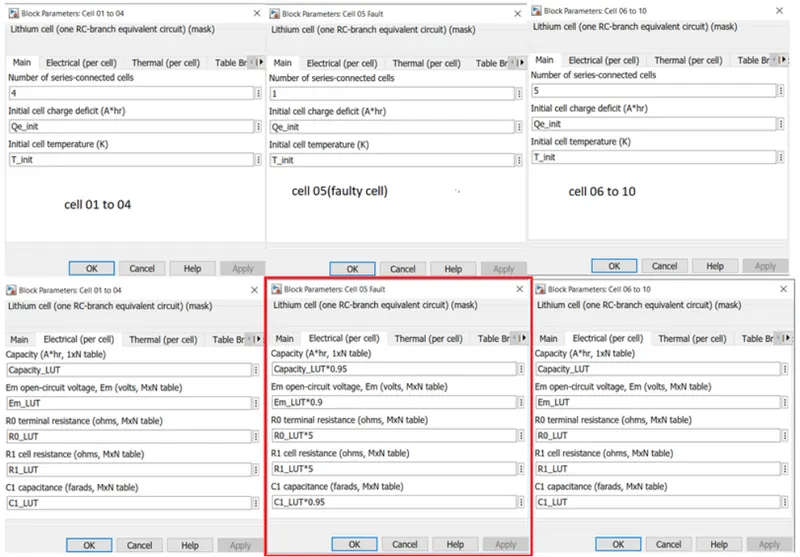

Cell 01 to 04 sub system

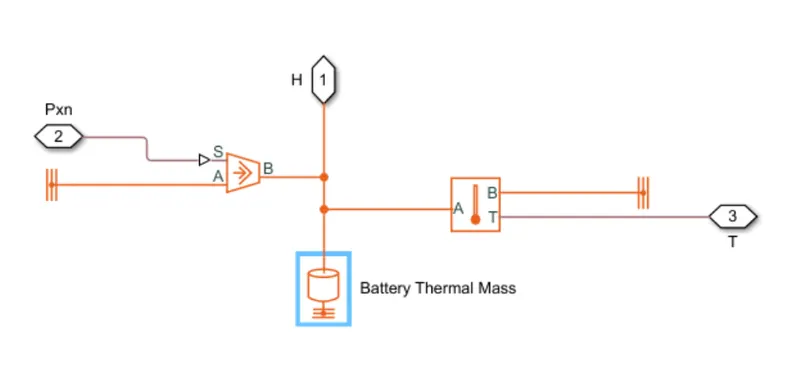

Thermal model

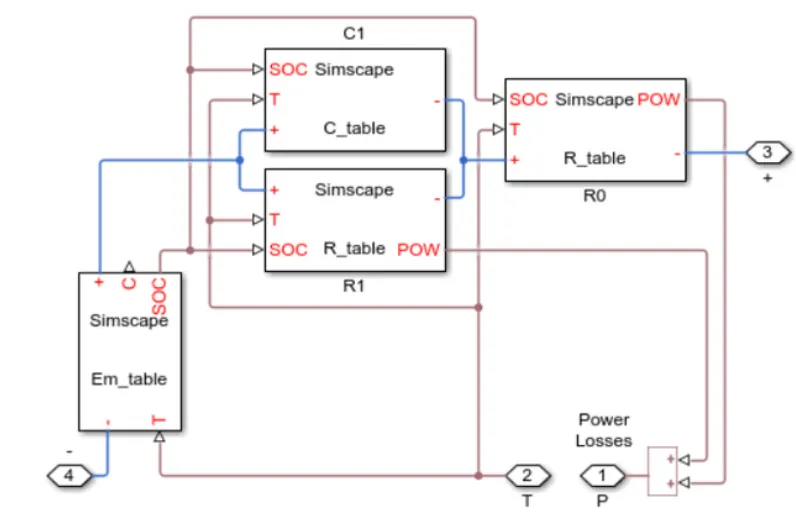

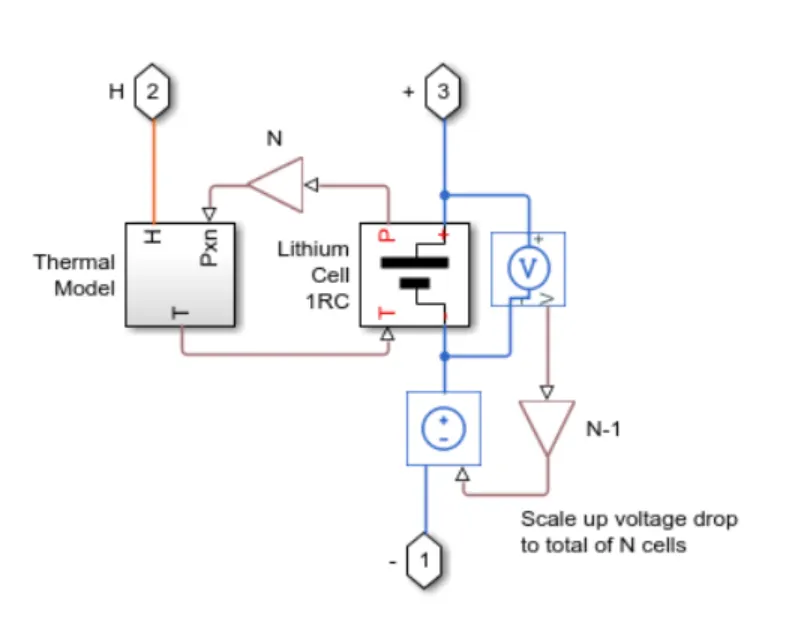

Lithium Cell 1RC Subsystem

Battery configuration

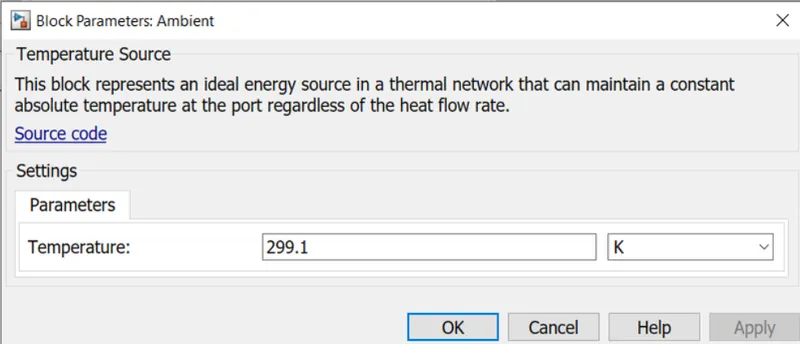

Temperature source

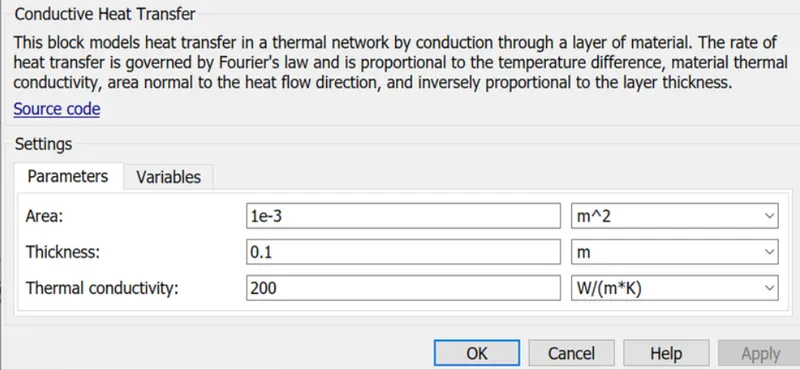

Conductive heat transfer

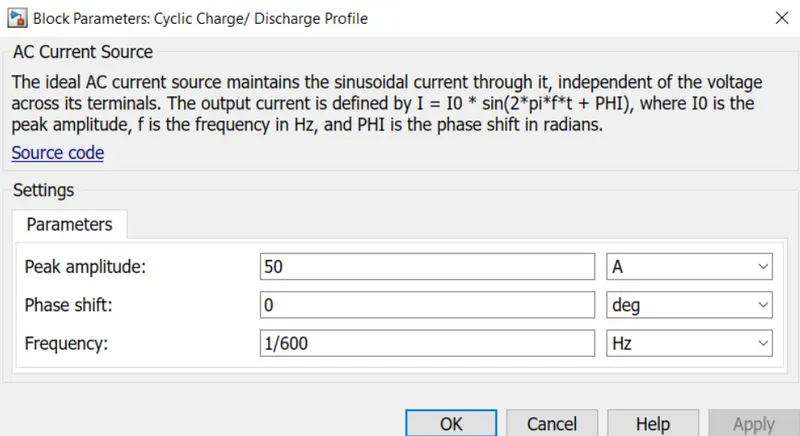

AC Current source

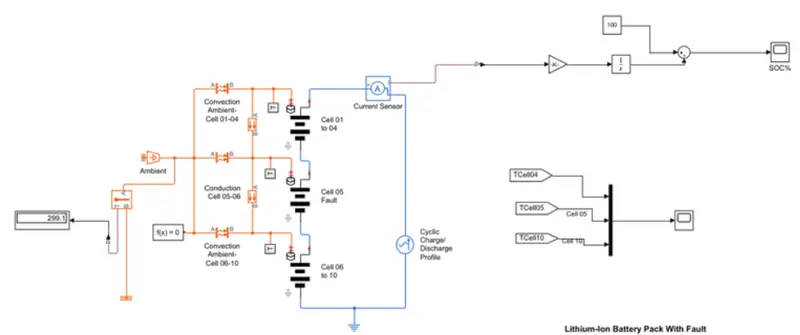

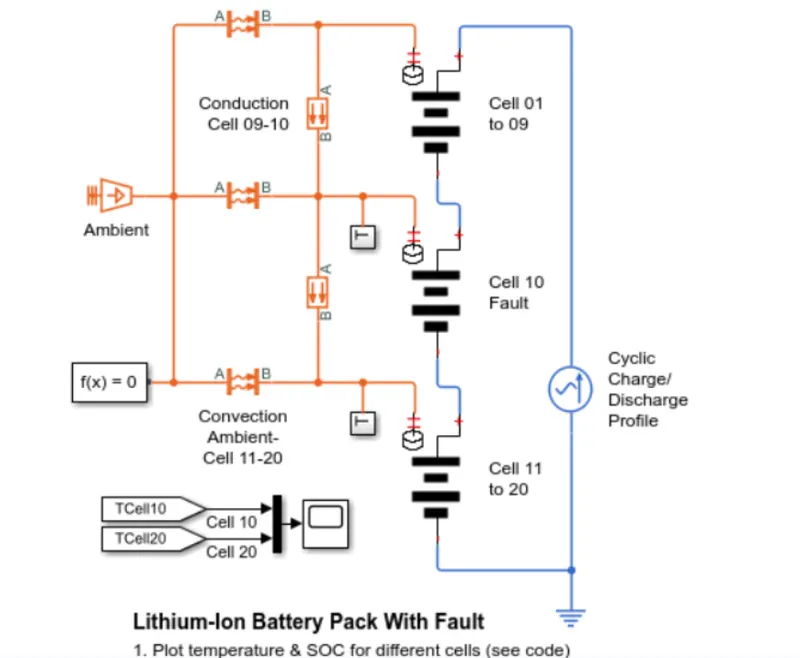

Battery pack configuration

Results:

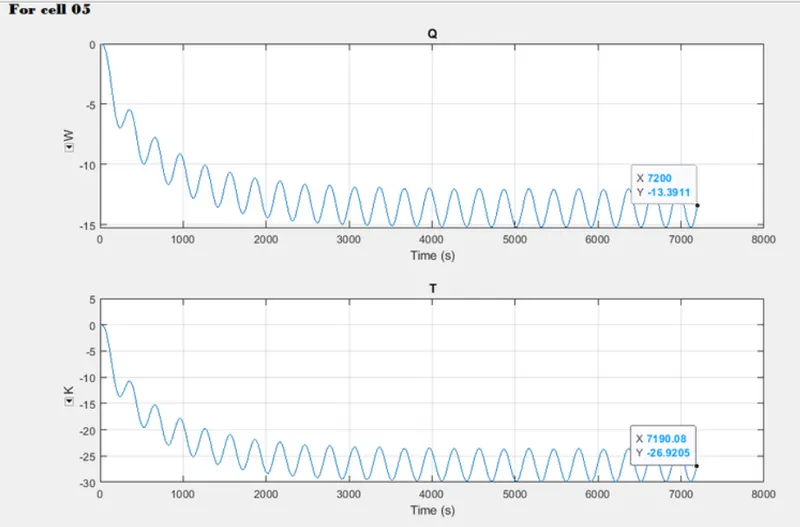

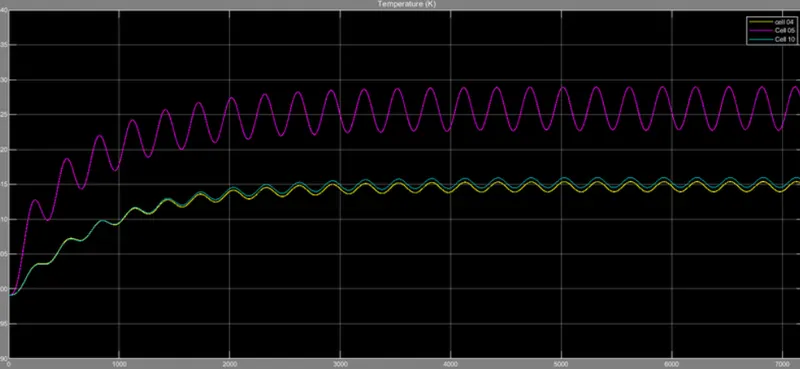

cell temp

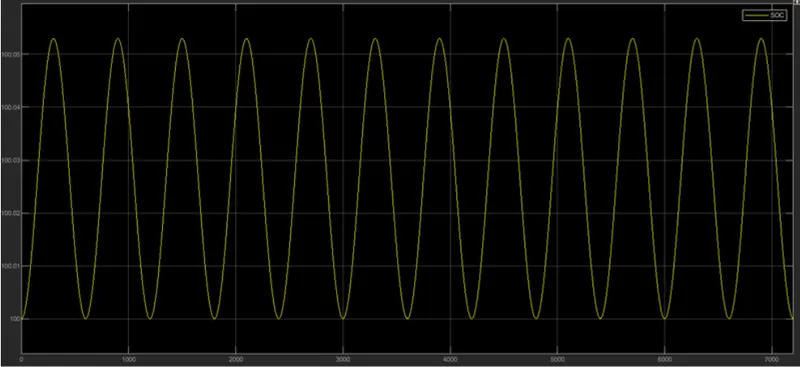

SOC

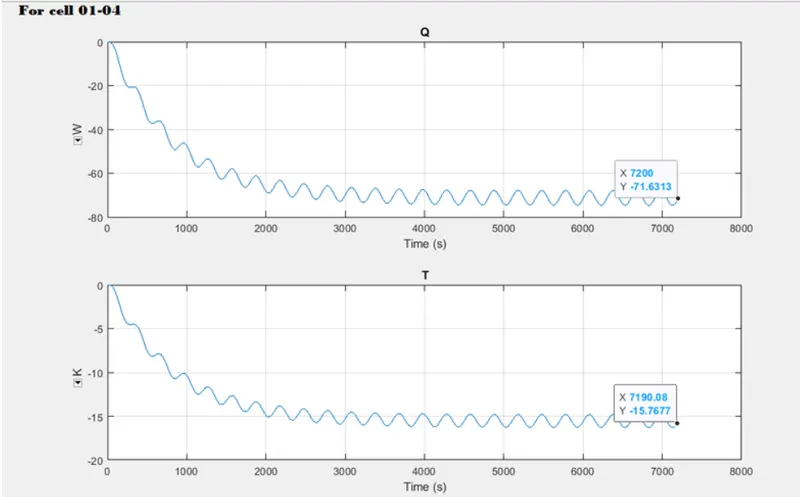

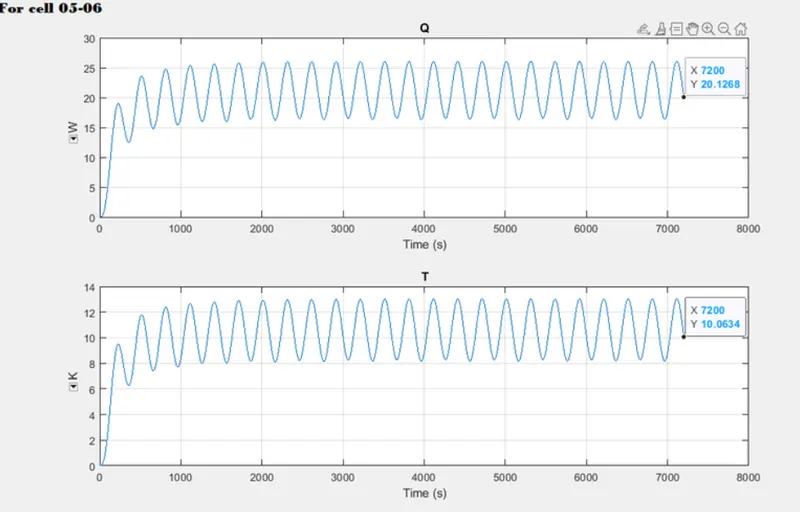

Conduction

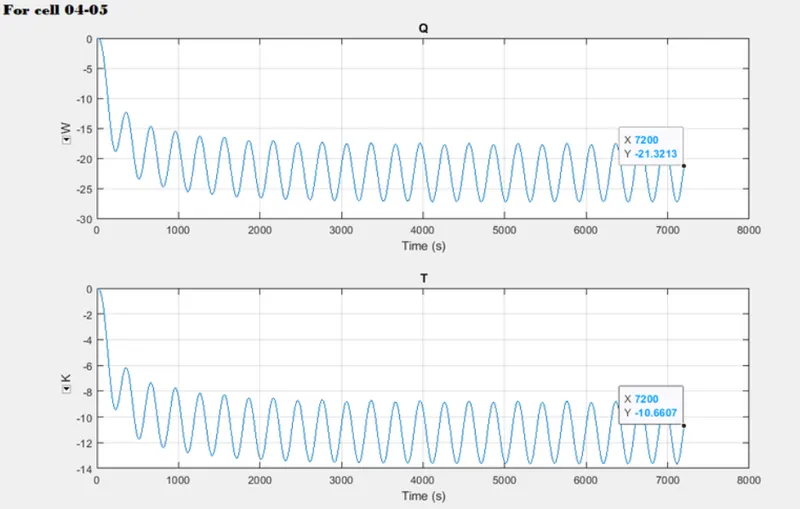

Convection
