Project 2 Thermal modeling of battery pack

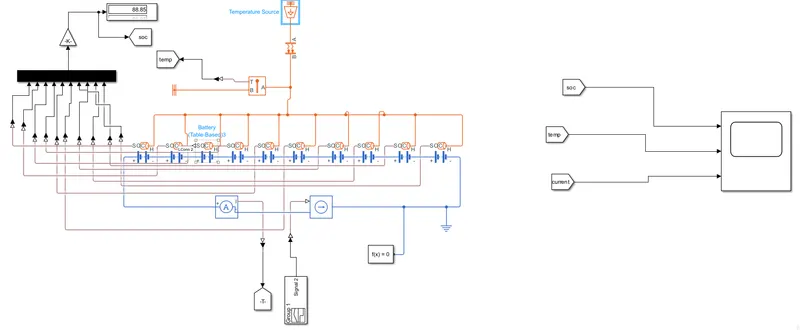

MATHEMATICAL MODELING OF 10 CELL SERIES LITHIUM ION BATTERY WITH THERMAL EFFECTS:

Here we use 10 table based battery,enabaling thermal port and soc port also.we have taken--

1.Thermal sensor,

2.Thermal source,

3.Thermal reference,

3.convective heat sensors,

4.10 table based battery,

5.controlled current source,

6.current sensors,

7.signal builder,

8.goto and from tag

9.Electrical reference,solver configaration

10.scope

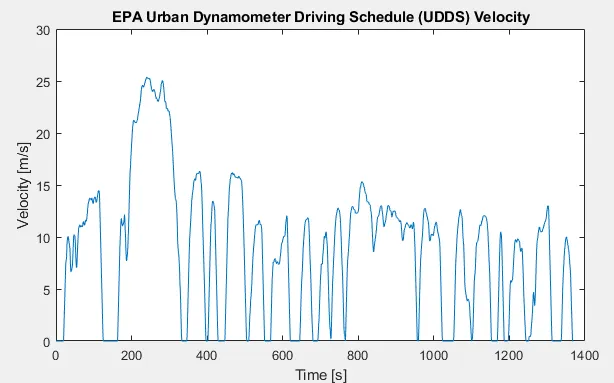

SIGNAL BUILDER:

SCOPE RESULTS AT DIFFERENT TEMPERATURE:

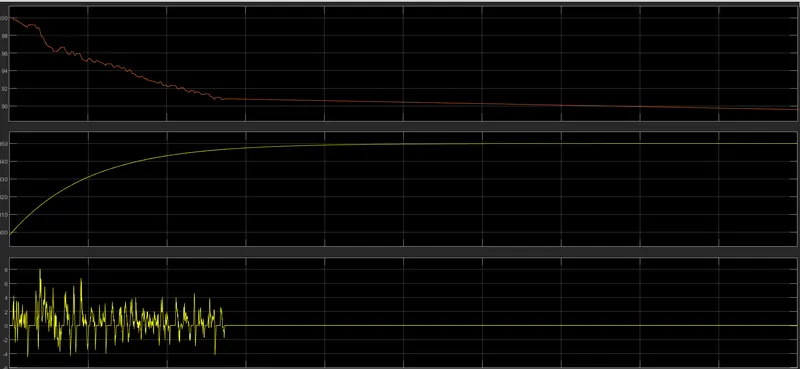

AT 300 K,0.0001 M^2 AREA OF CONTACT.

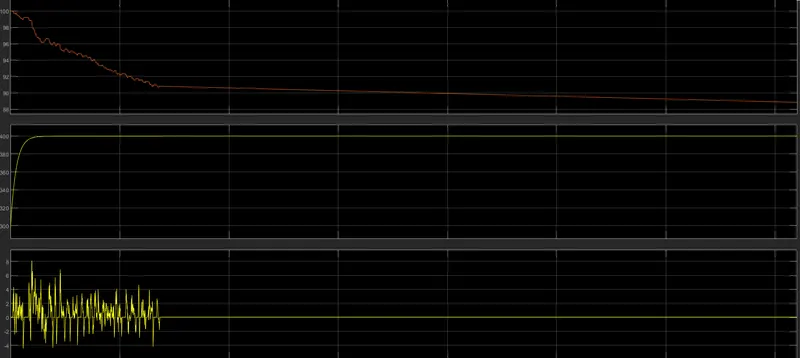

AT 350 K,0.1 M^2 AREA OF CONTACT.

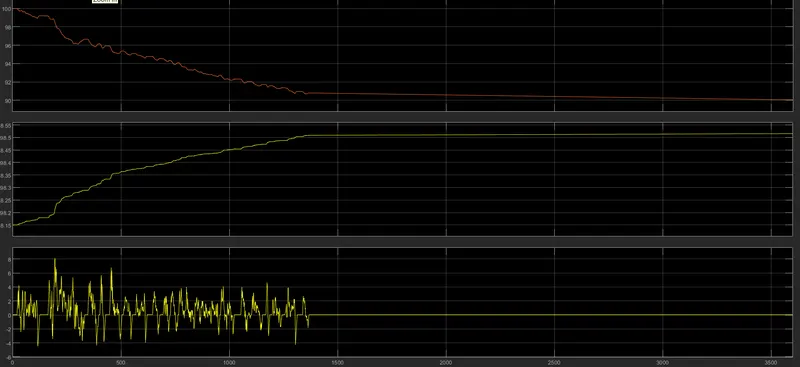

AT 400 K,1 M^2 AREA OF CONTACT.

Here we can see the soc become lower when the temperature got increse.It is about 90.06 in 1st condition,2nd condition 89.54,3rd condition 88.54.

so, the batteries are dependent on temperature .
