Project 2 Thermal modeling of battery pack

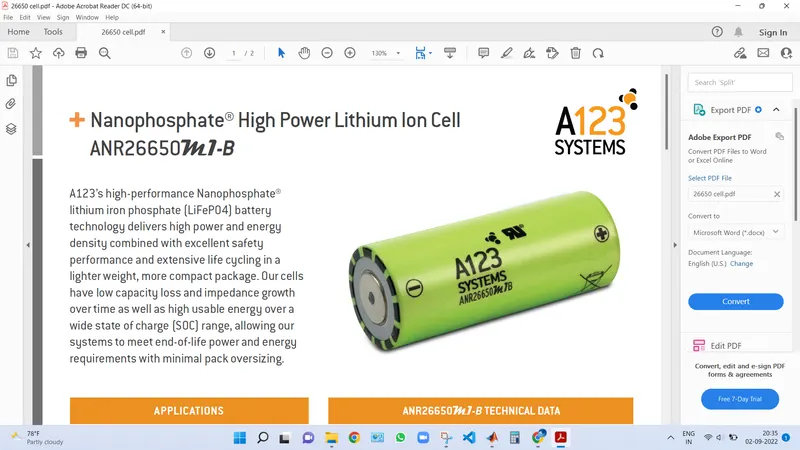

The battery pack should consist of Cell: ANR26650M1-B .

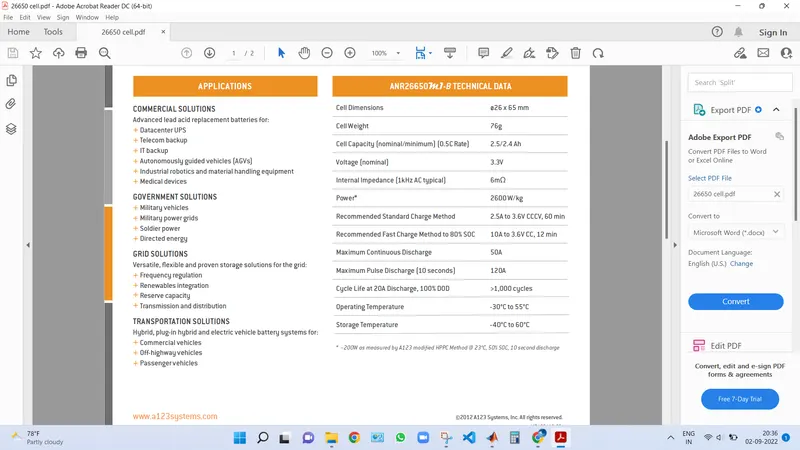

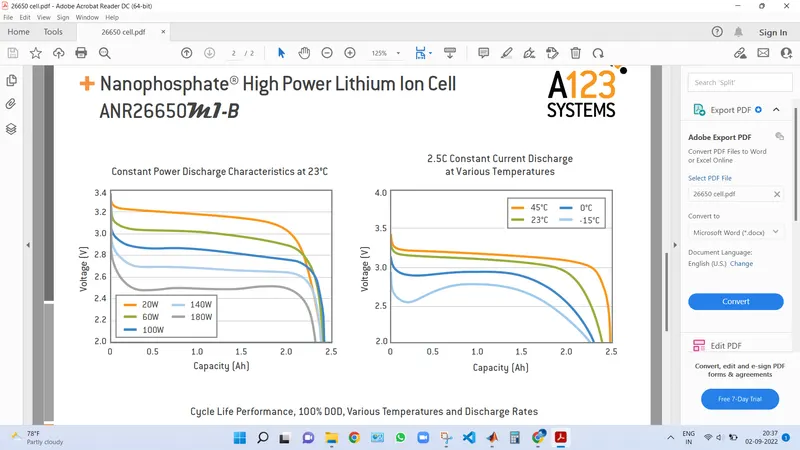

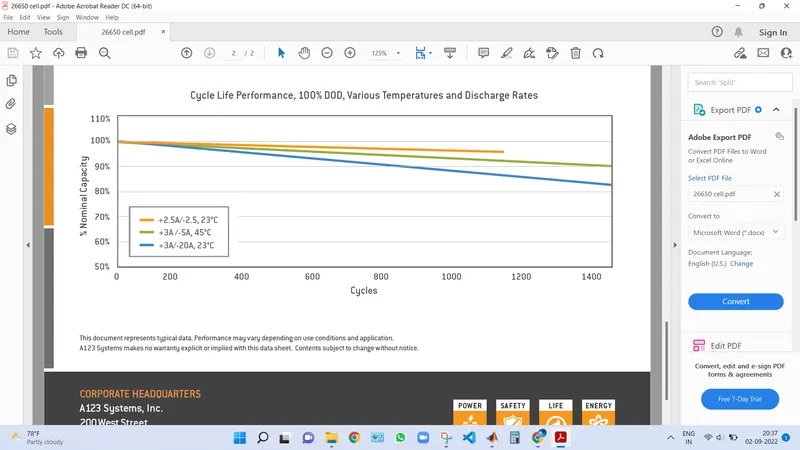

Data sheet of ANR26650M1-B .

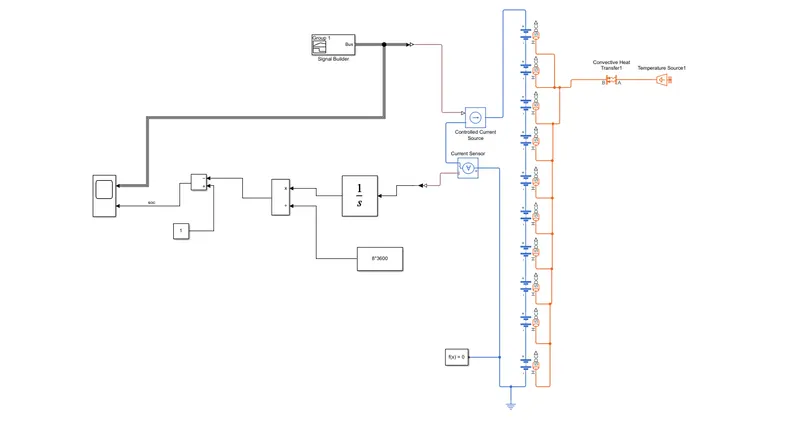

Sinmulink Model:

In this project we are connecting 10 table based cells in series and will see how the variation in temperature affects the cell performance.

for this we need to monitor the variation of SOC of each cell with the variation in temperature.

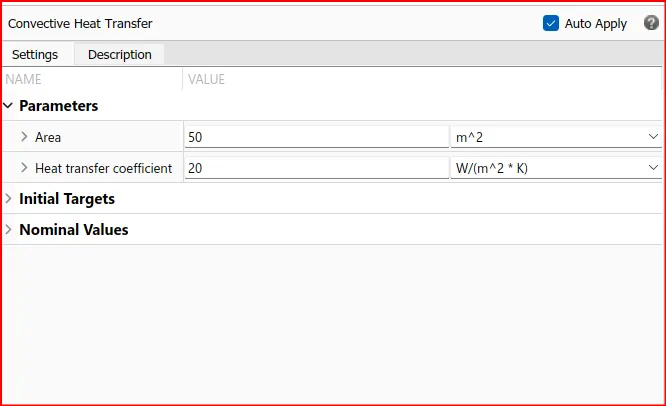

Convective heat transfer coefficients:

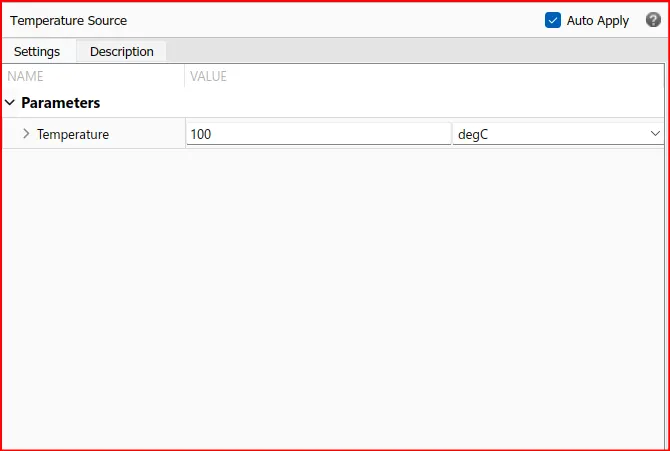

Temperature:

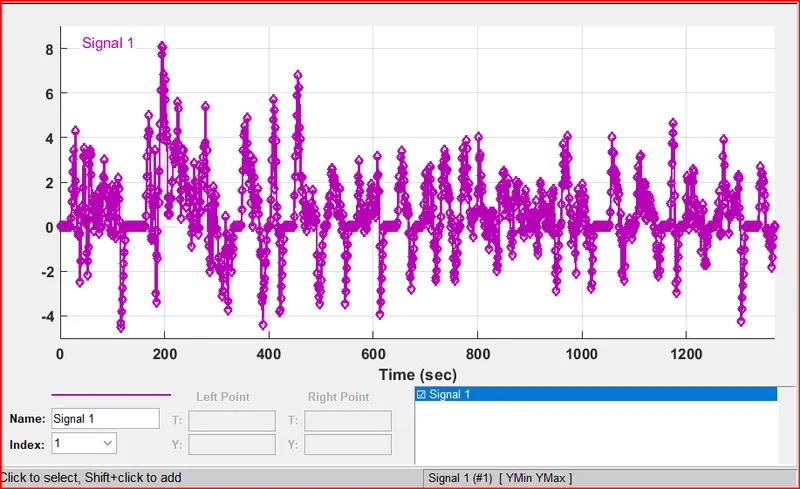

Signal input to controlled current source:

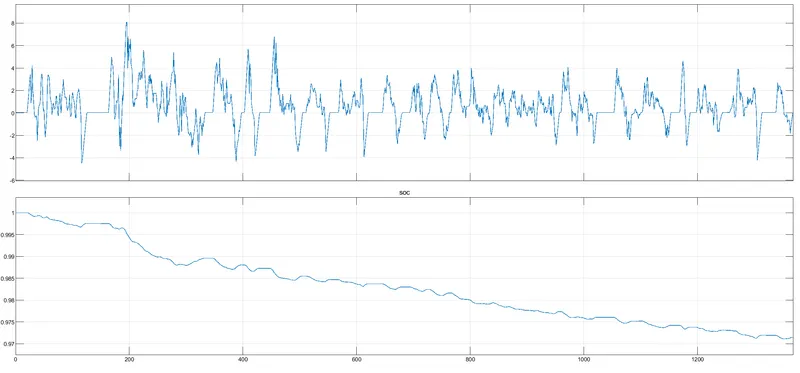

Scope Output:

As from the graph we can see that the soc drops from 100 to 97 in 1390 secs.
