Project - 2 - Meshing on the suspension Assembly

Aim :-

Mesh the given rear suspension accordingly with 2D & Volume meshing as per the given quality criteria. Connections to be deployed for the model. Replicate the model symetrically after all the meshing and connections.

Steps Followed :-

• Geometry Clean-up.
• Mid surface extraction & 2D meshing.
• Volume Meshing.
• Bolt & Seam weld Connection.
• Symetrical Replication.

Quality Criteria :-

Surface Meshing of Tyre and Rim (Element type: Tria) :

S.No	Quality Criteria	Value
1	Target/Average length	6.5
2	Minimum Length	5
3	Maximum Length	10
4	Skewness	45

Surface Meshing of Non Uniform thickness components other than Tyre and Rim (Element type: Tria) :

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Skewness	45

Volume meshing of all Non Uniform thickness components (Element type: Tetra Elements):

S.No	Quality Criteria	Value
1	Tet-collapse	0.2

Mid surfacing of Uniform thickness part which has thickness less than 5 mm (Element type: Mixed elements) :

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120

Procedure :-

1. Import the given model to ANSA. Clean-up the model and check for geometrical errors.

2. Once the geometry is clean, extract mid surface by Faces->Mid Surface->Skin method for parts which are having uniform thickness and Faces->Middle for non uniform thickness parts.

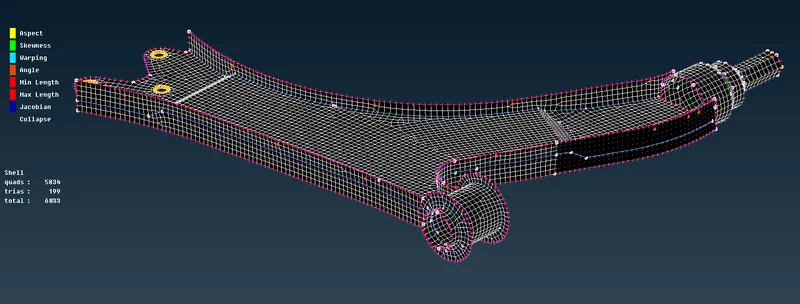

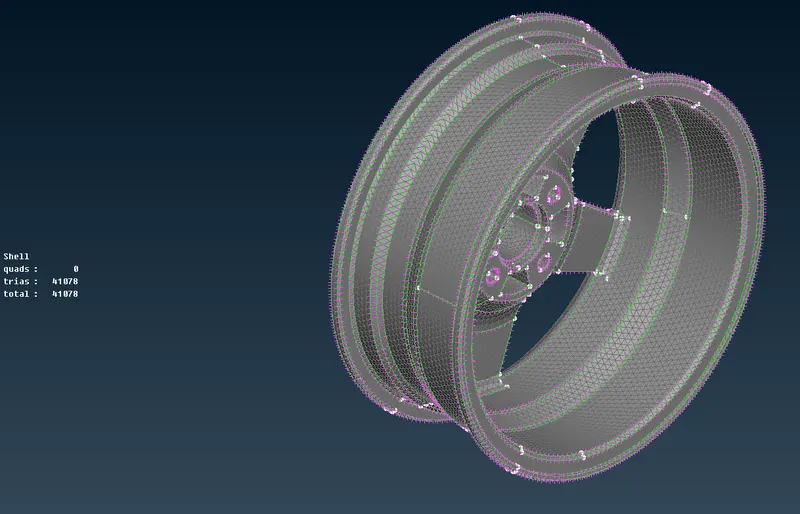

3. Complete the meshing of 2D elements by Mesh Generation->Best in Mesh module, with appropriate quality criteria as shown in Fig 1.

Fig :- 1

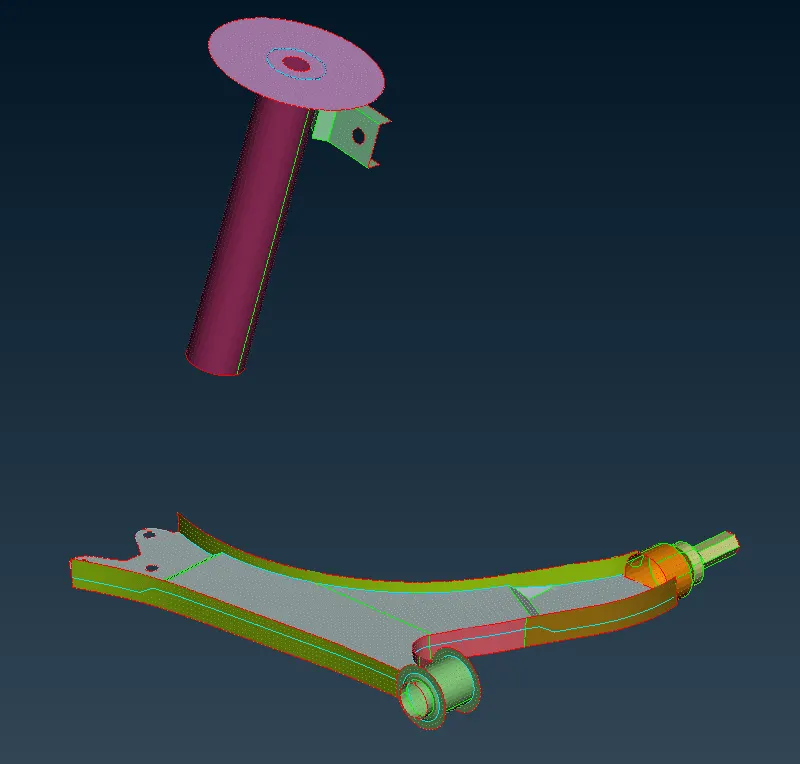

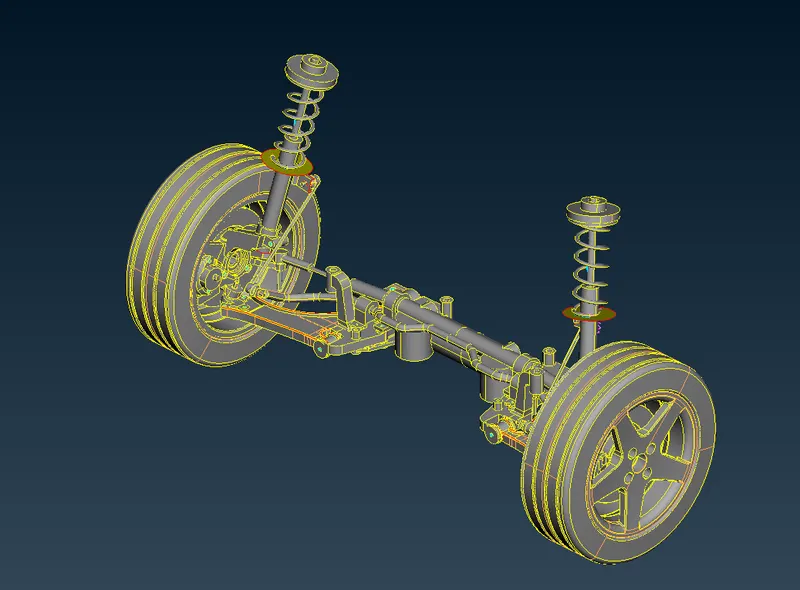

4. Similarly perform 2D meshing for the the parts (Lower Arm & Strut) shown in the Fig 2.

Fig : 2

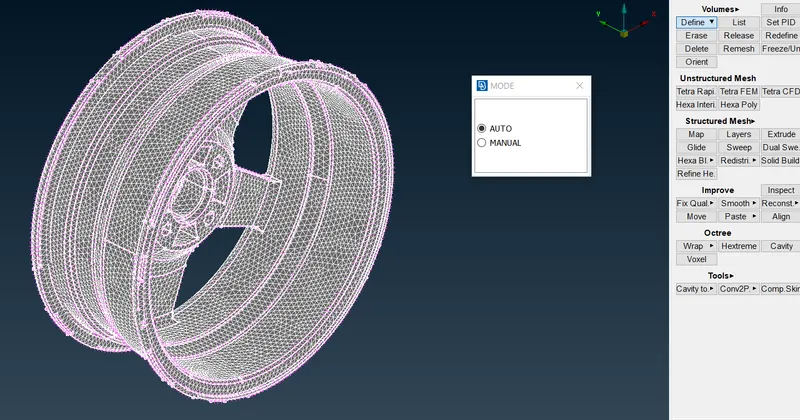

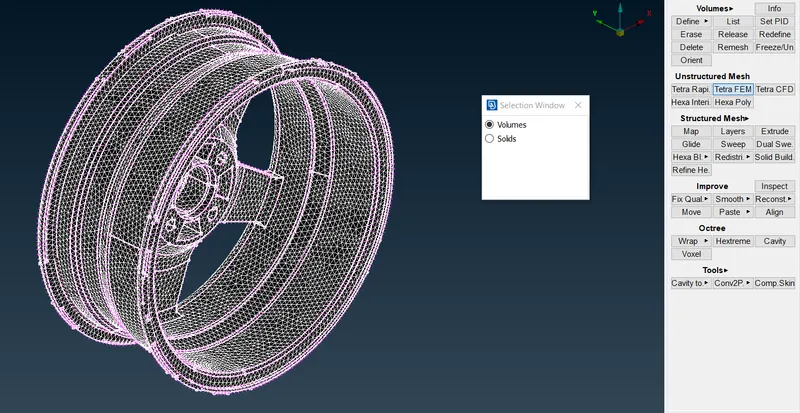

5. After 2D meshing is completed, perform Solid meshing by first having Spot mesh with ortho trias element using Mesh Generation->Spot Mesh and later proceed by using Volume->Define->Manual and select the component/region that covers a particular volume. Select Auto mode so that it detects the closed volume automatically.

Fig : 3.1

Fig : 3.2

Fig : 3.3

Fig : 3.4

Fig : 3.5

Fig : 3.6

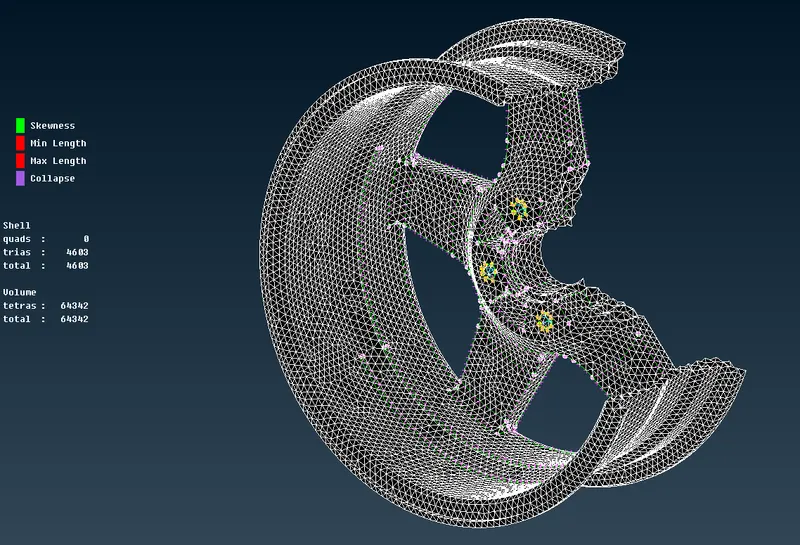

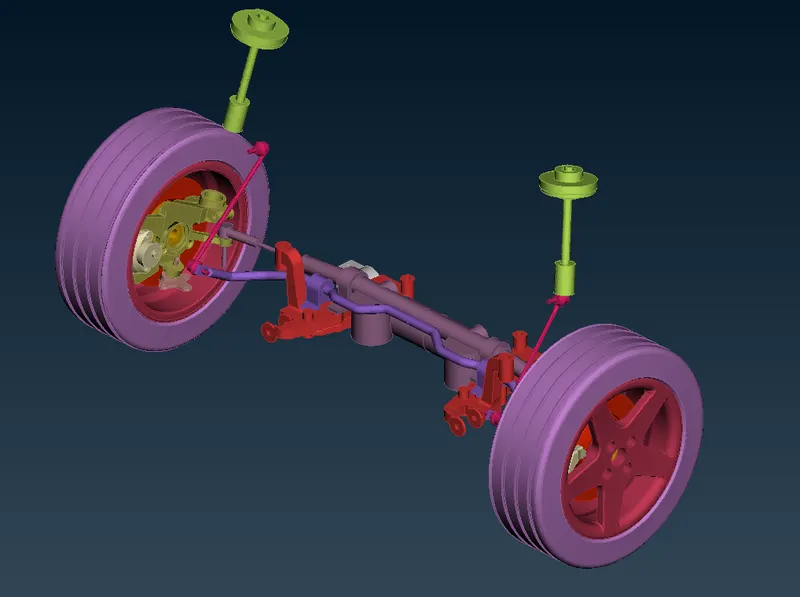

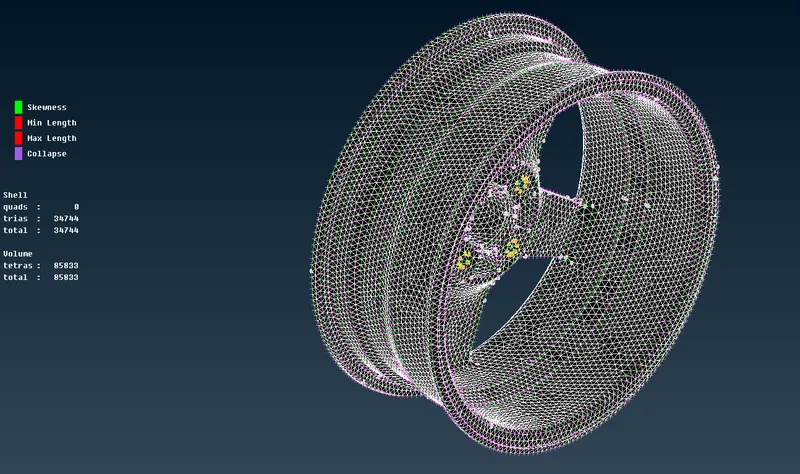

6. Similarly perform Solid meshing for tyre, break disc, tie rod, support brackets, break callipers etc as shown in Fig 4.1

Fig : 4.1

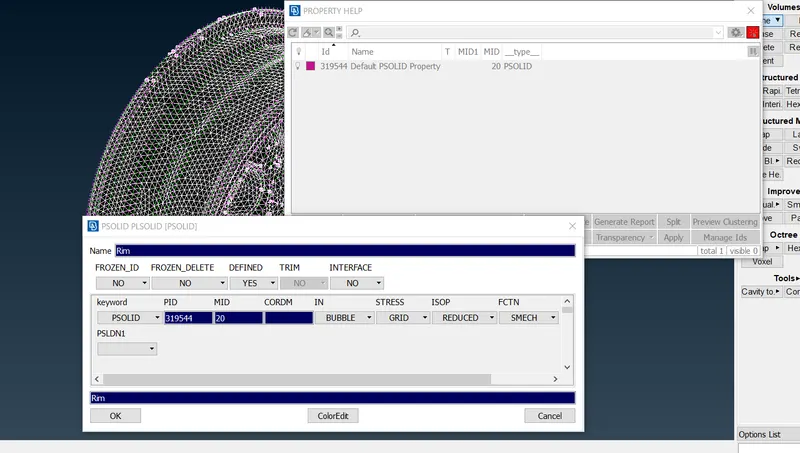

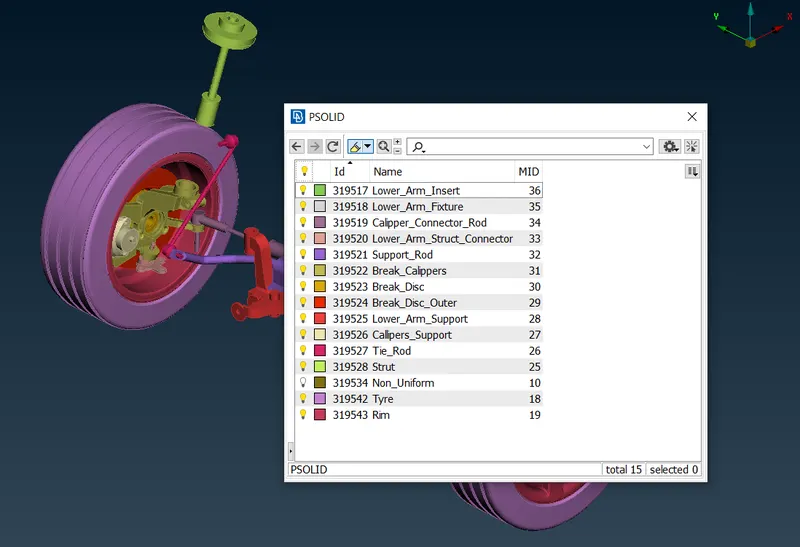

Assign property ID for each solid component as shown in fig 4.2

Fig : 4.2

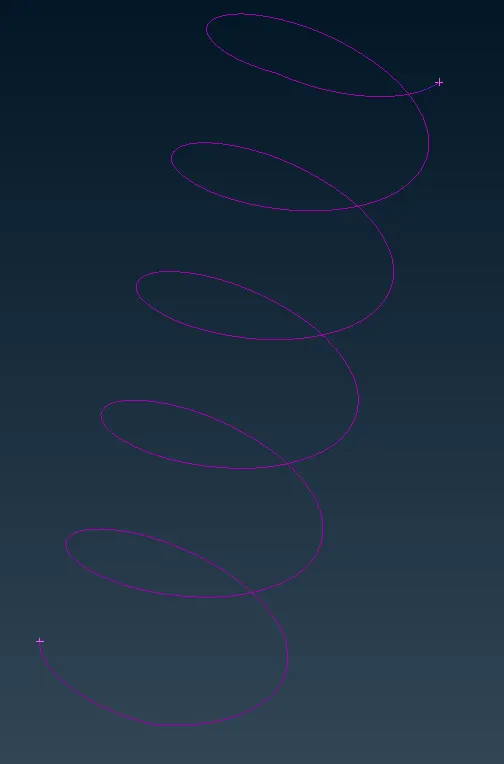

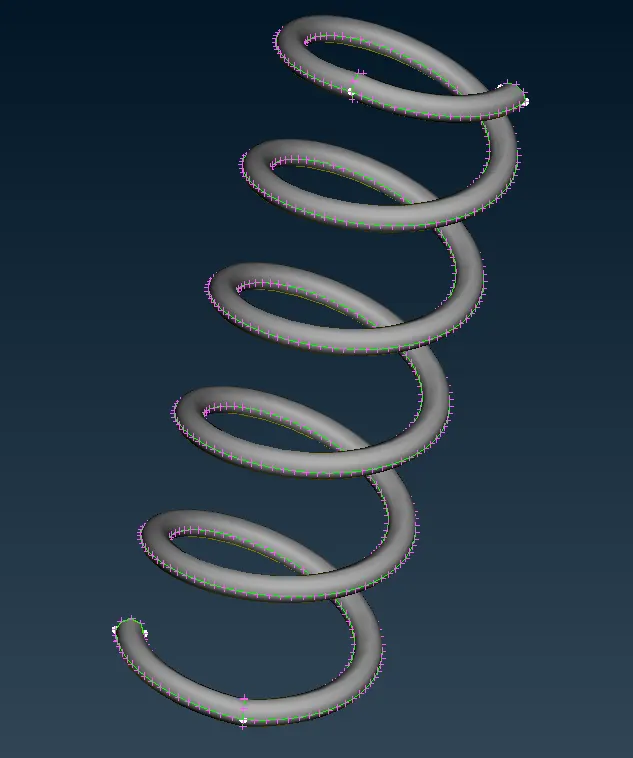

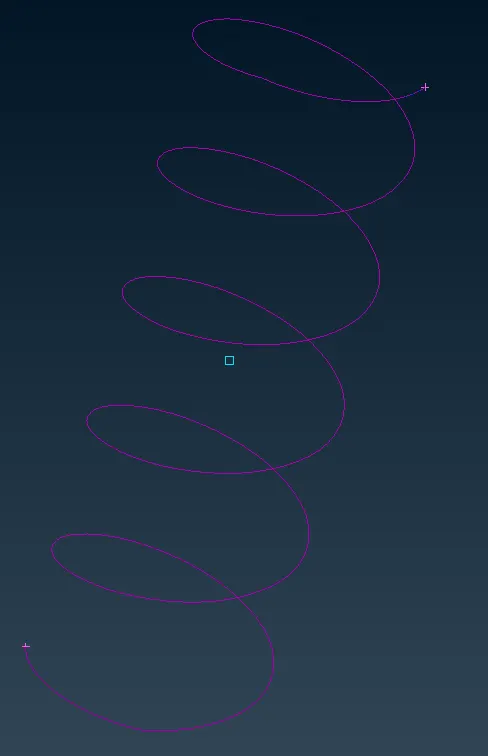

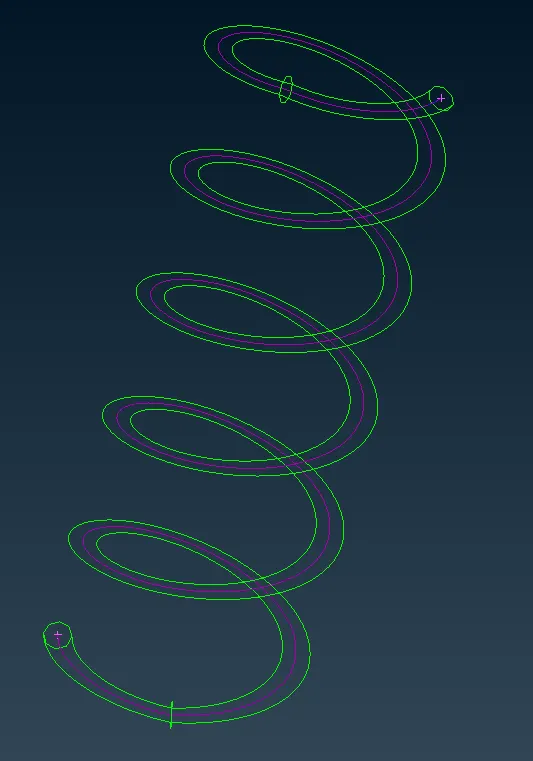

7. 1D meshing is to be performed on Spring. Generate middle curve running through the entire spring using Curves->Middle in Topo Module as shown in Fig 5.2. Convert the curves to a single curve using Curves->Connect->Multi in Topo Module as shown in Fig 5.3

Fig : 5.1 Fig : 5.2

Fig : 5.3

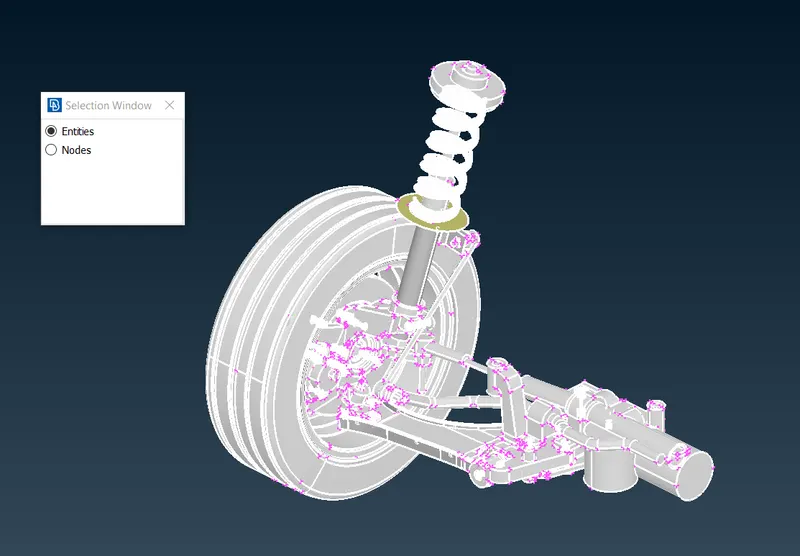

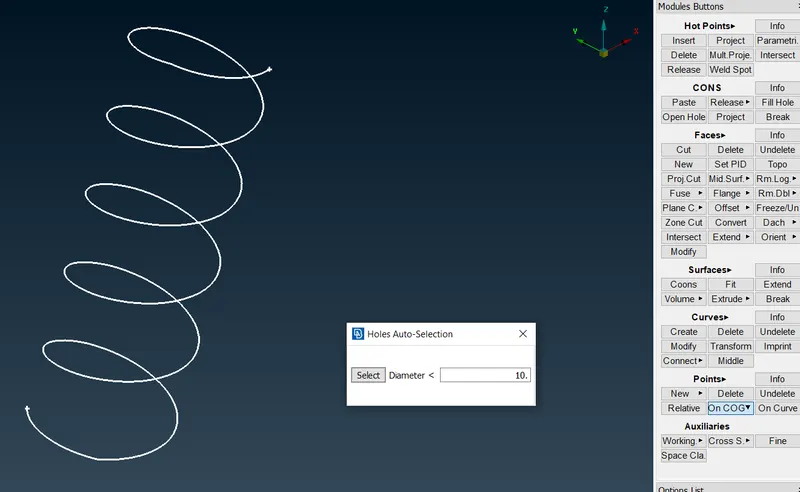

Define (Center of Gravity) COG point using Points->On COG in Topo Module a shown in Fig 5.4 & 5.5

Fig : 5.4 Fig : 5.5

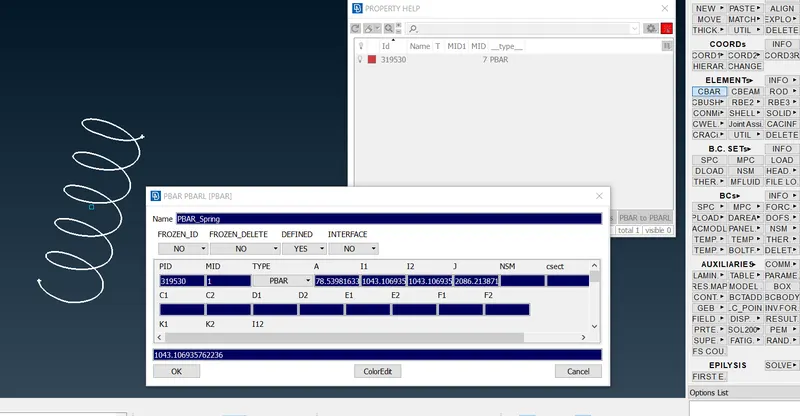

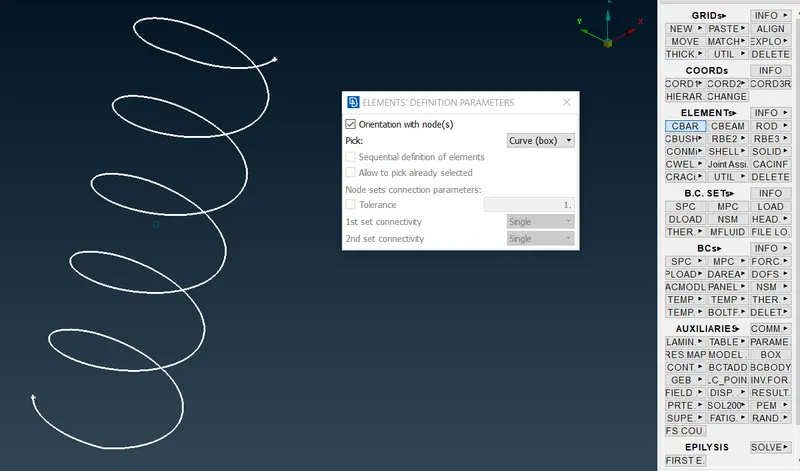

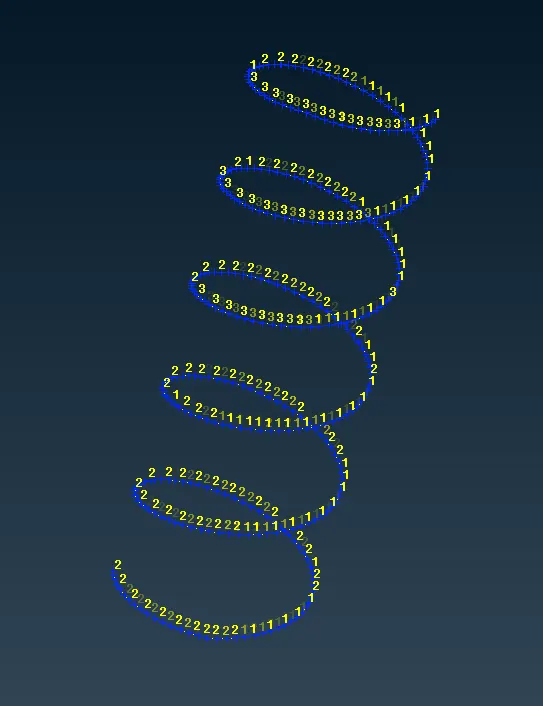

8. Open NASTRAN deck to assign to assign 1D mesh element. Select Elements->CBAR, check "Orientation with nodes" and pick "Curve (box)", select the spring curve and click on middle mouse click.

Fig : 6.1

Fig : 6.2 Fig : 6.3

9. Once all the components are meshed, deploy connections accordingly.

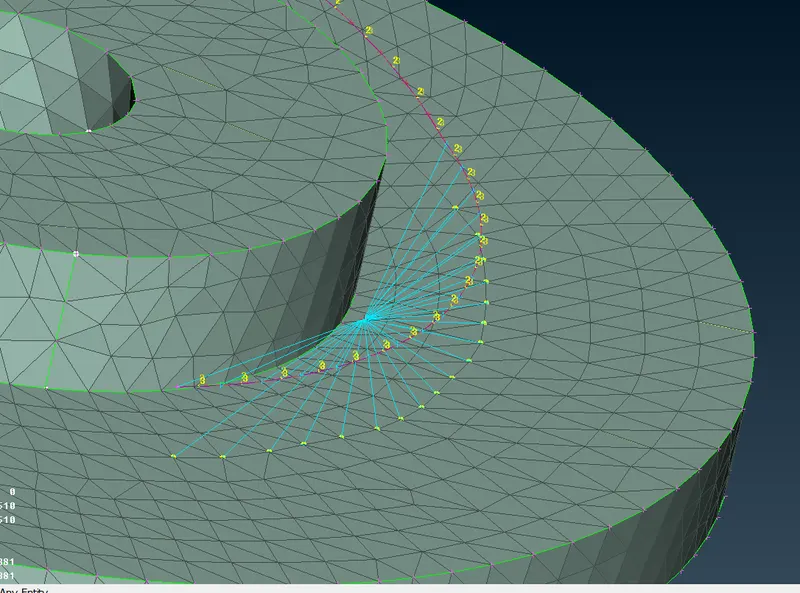

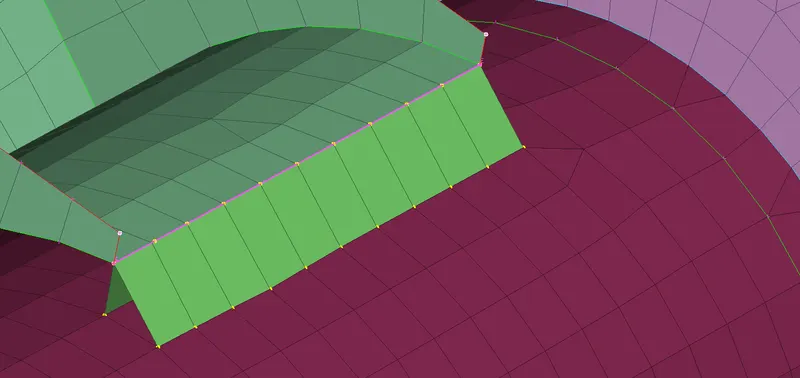

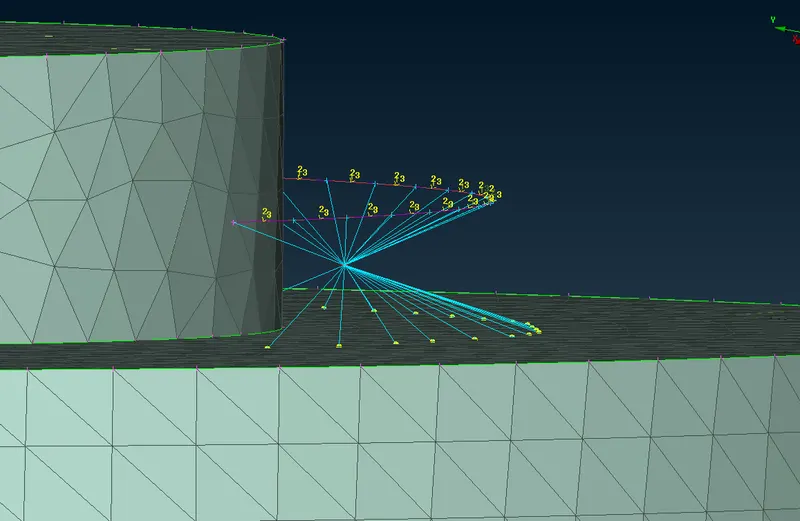

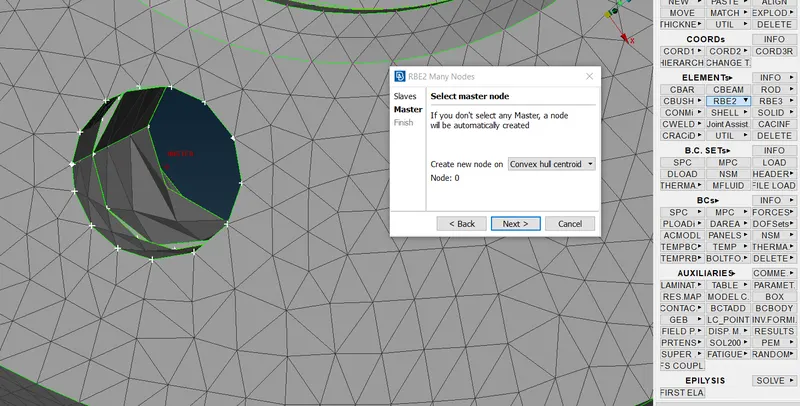

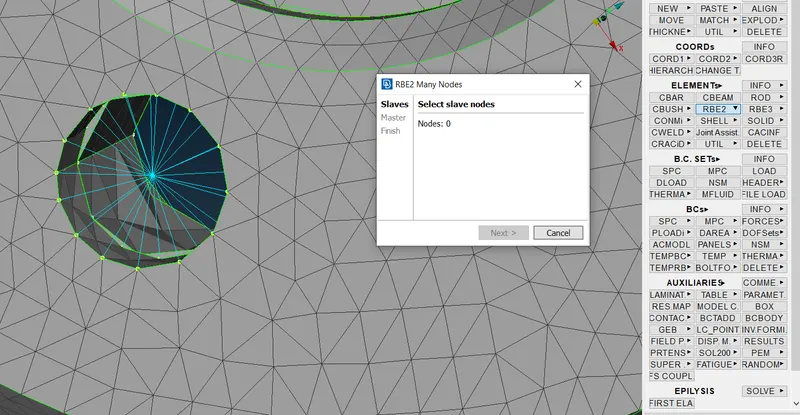

Use RBE2 in NASTRAN deck. Create RBE2 component for each hole separately by Elements->RBE2->Many Nodes as shown in Fig 7.1

Fig : 7.1

Fig : 7.2

Similarly perform RBE2 for all holes and connect the two master nodes using Elements->RBE2->Two Nodes. Repeat the same procedure for all bolt connections.

10. Similarly, using Elements->RBE2->Two Nodes, connect the relative parts like shaft or tie rod lowering in the hole (Fig 8). Similarly perform connection for all such condition.

Fig : 8

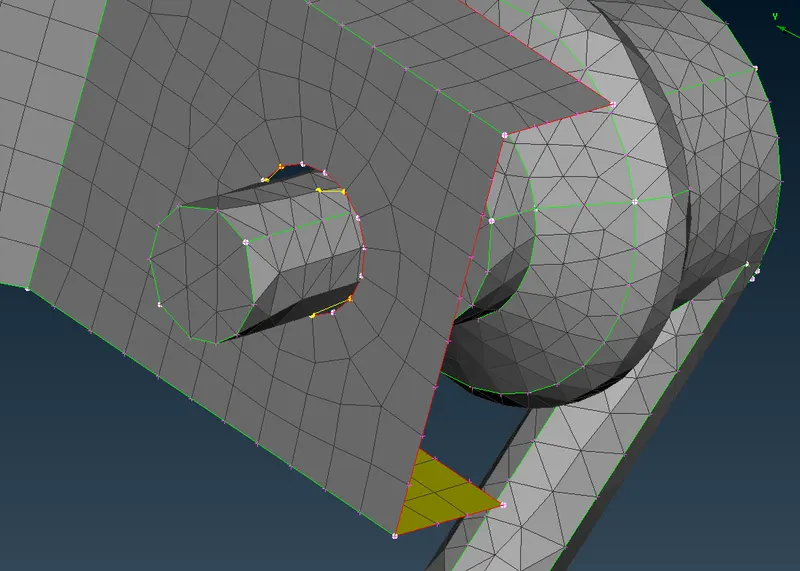

11. Deploy Seam weld connection for the tie rod bracket and the strut as shown in the Fig

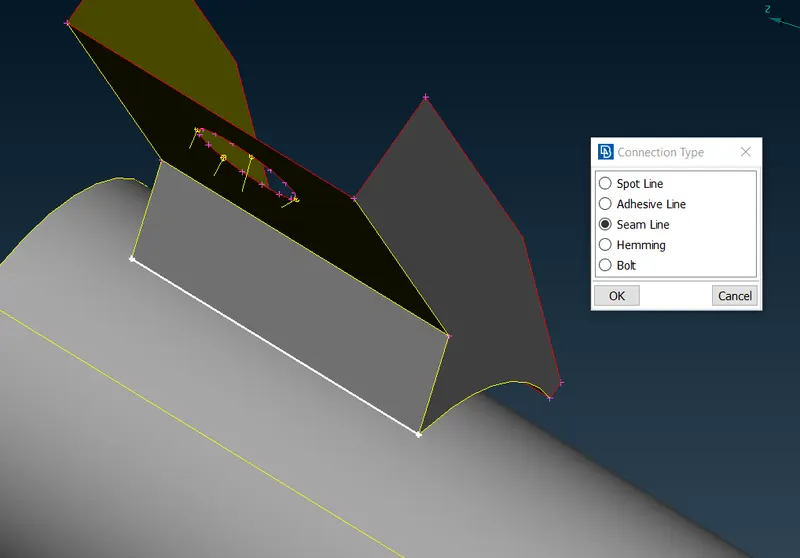

Select Curves->Cons2Curve in topo deck and create a curve along the weld surface. Convert the curve to seam line as shown in Fig 9.1

By using connection manager, select the two components to be welded and consider it as P1 & P2, P2 should be the base sheet on which the weld should be deployed.

Select FE rep type as OVERLAP-SHELL, Search distance = 10 mm, Base sheet = P2, Step length = 4 mm, Width = 4 mm & Root Shells = Double Row.

Fig : 9.1

Fig : 9.2

12. The spring element should be connected to the neighbouring elements using Cluster RBE2. Select Elements->RBE2->Many Nodes in NASTRAN Deck to connect the spring and the neighbour part with single master node.

Fig : 10.1

Fig : 10.2

13. Once the complete meshing and deploying connections, the model it to be symetrically replicated. the steps for replication is as follows;

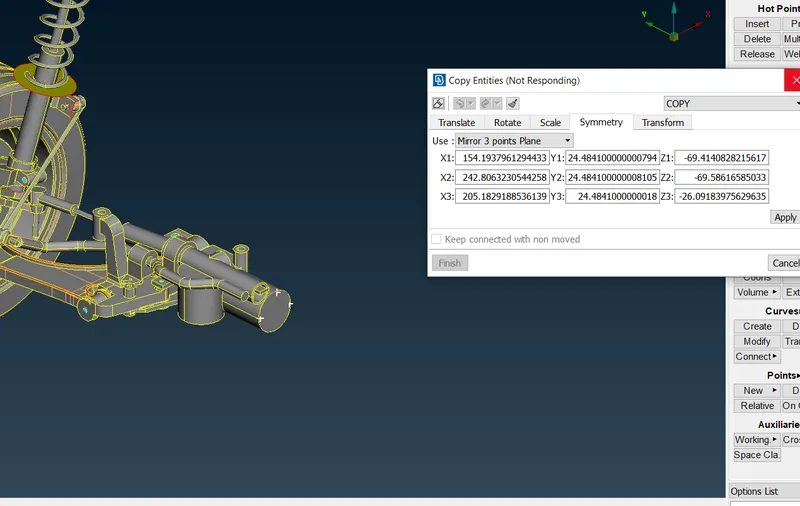

• Go to Transform option in toolbar, select "Copy".
• Select all the elements that is to be replicated as shown in Fig 11.1 and click on middle mouse.
• Select "Mirror 3 points plane" under use option.
• Select the points as shown in Fig 11.2 and apply and Finish.
• Replicated model is as shown in Fig 11.3

Fig : 11.1

Fig : 11.2

Fig : 11.3

learning Outcome :-

• Manage 2D and Solid meshing together with different quality criterias.
• 1D CBAR element for Spring.
• Symetrical replication of components.
• Concept of suspension assembly meshing.

Result :-

The given Suspension assembly is meshed using 2D and tetra mesh with the prescribed quality criteria. Connections are deployed as required. The other half of the assembly is reflected symetrically.
