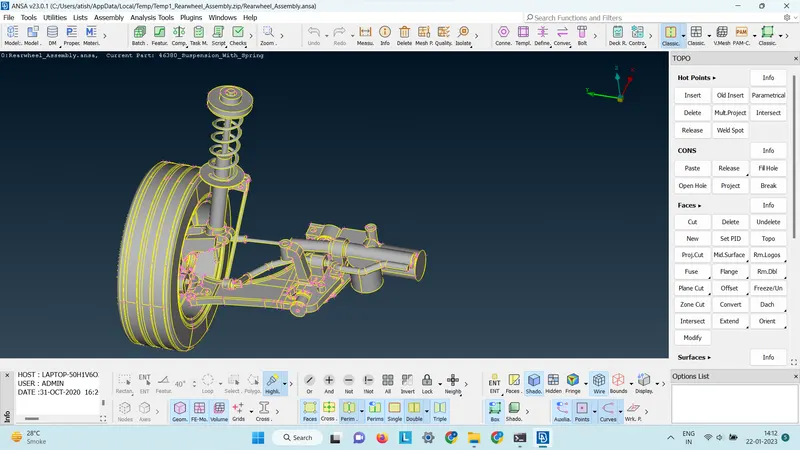

Project - 2 - Meshing on the suspension Assembly

Aim: Meshing on the suspension assembly.

Procedure: 1) topo.

2) perimeter change to 1.

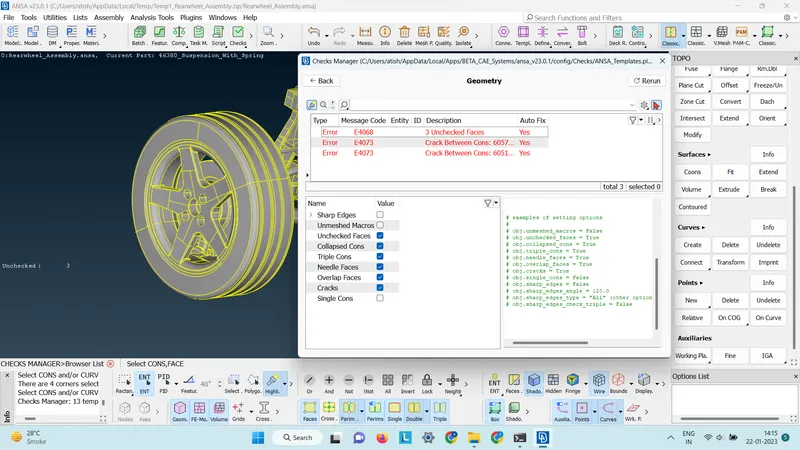

3) geometry check.

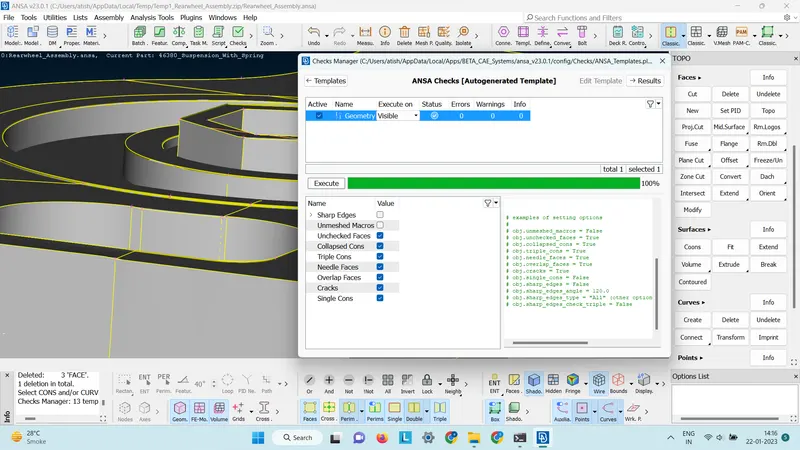

4) geometry clean up.

5) set pid.

6) change perimeter as per the quality criteria.

7) tria 2-D meshing on the thickness more then 5.

8) after that 3-D mesh.

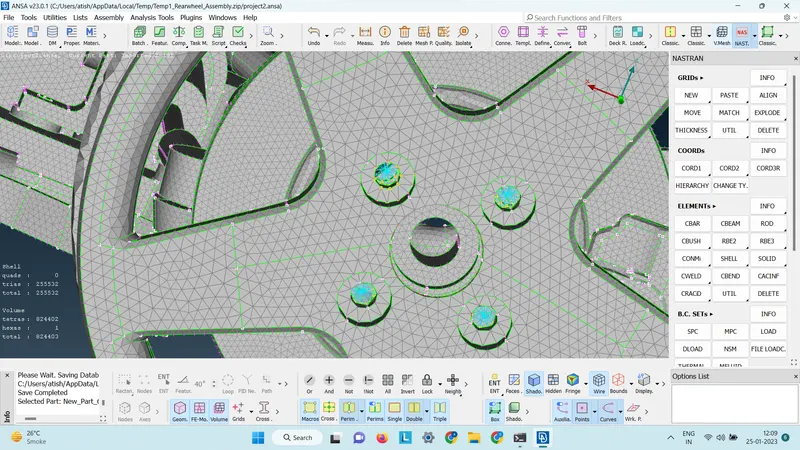

9) quad mesh for thickness less then 5.

10) required connection.

11) giving thickness for 2-D meshing pid.

conclusion: did 3-D meshing and 2-D meshing where it is required.
