Project - 2 - Meshing on the suspension Assembly

Aim:

To make volume meshing and connection for given model.

Procedure:

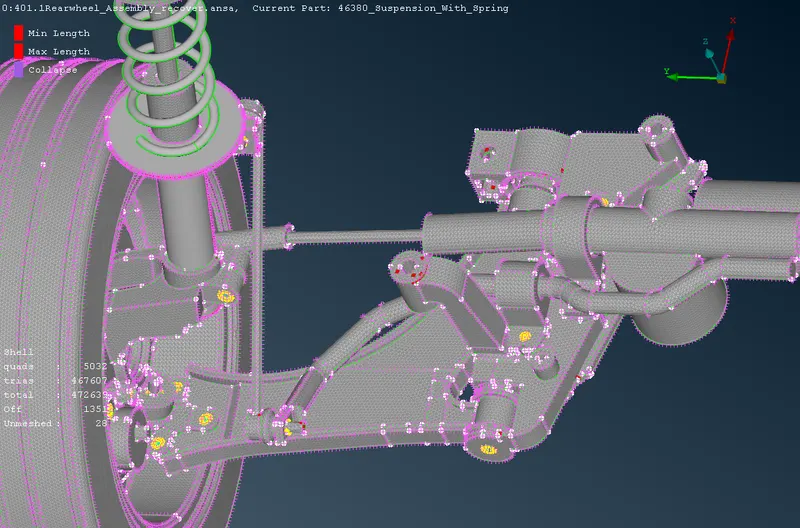

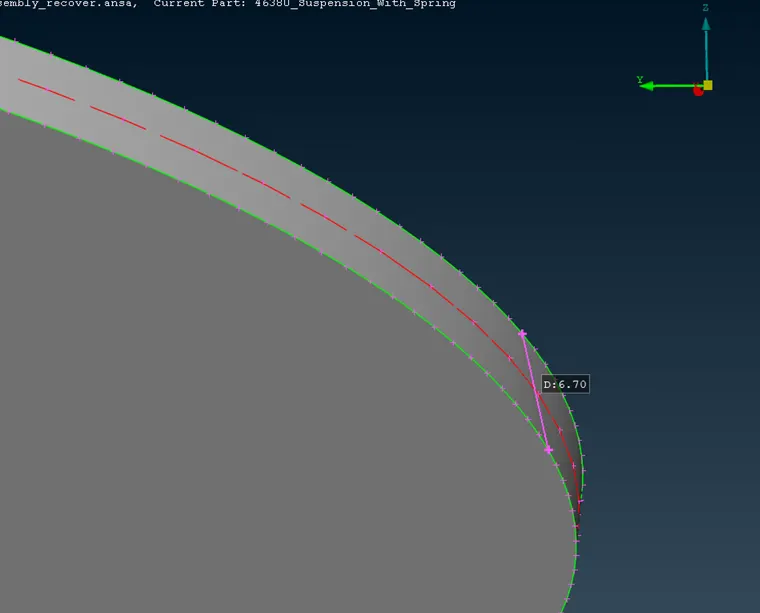

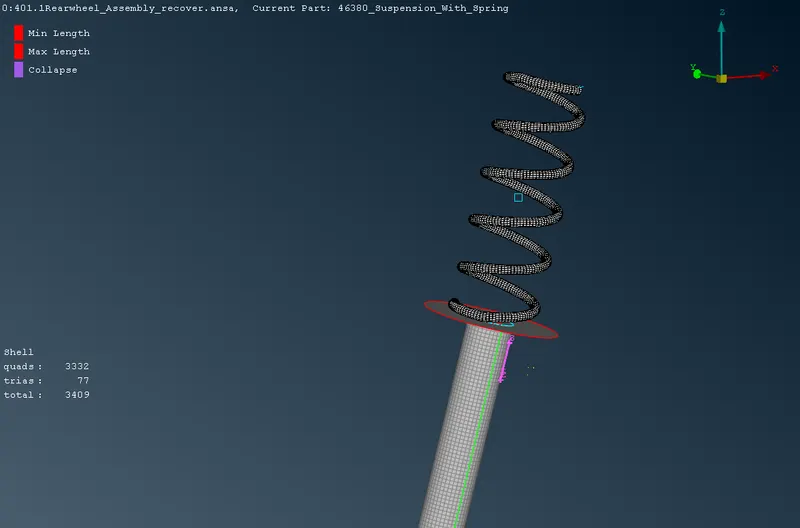

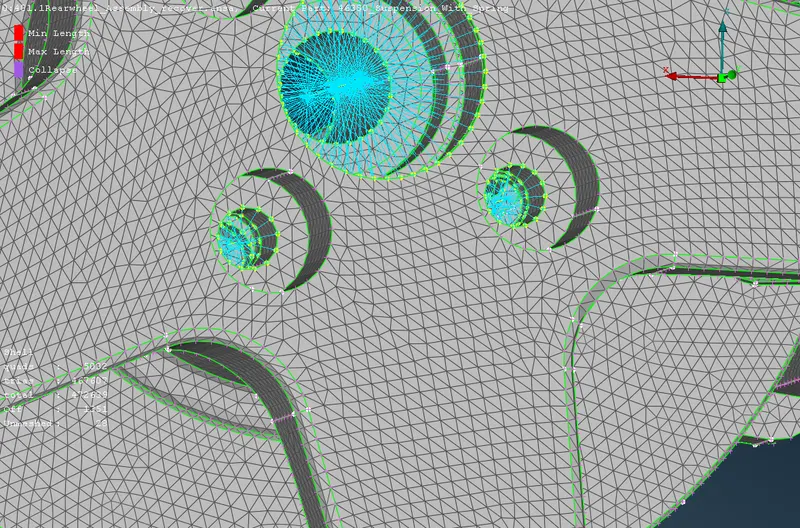

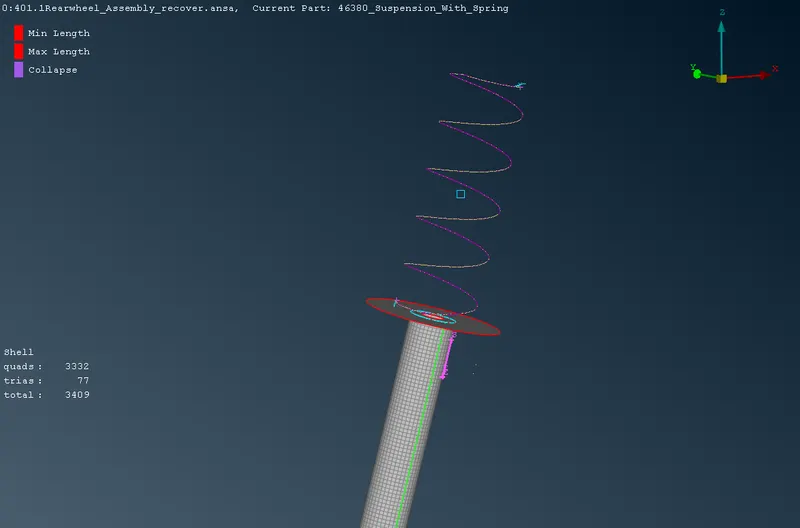

For given model assign separate PID. Then clean geometry clean for all location. Then check dimension for all location. In that dimension check which are location in below 6mm thickness make 2D meshing use skin option method. Other location makes 3D solid mesh as per given quality check. In spring location make 1D element. After that make connection RBE2.

Learning:

How to make connection.
