Project 2 - Measuring distance of an object using ultrasonic sensor (HC-SR04)

Ultrasonic Distance Sensor (HC-SR04):

The HC-SR04 ultrasonic sensor uses SONAR to determine the distance of an object just like the bats do. It offers excellent non-contact range detection with high accuracy and stable readings in an easy-to-use package from 2 cm to 400 cm or 1” to 13 feet.

The HC-SR04 is an affordable and easy to use distance measuring sensor which has a range from 2cm to 400cm (about an inch to 13 feet). The sensor is composed of two ultrasonic transducers. One is transmitter which outputs ultrasonic sound pulses and the other is receiver which listens for reflected waves.

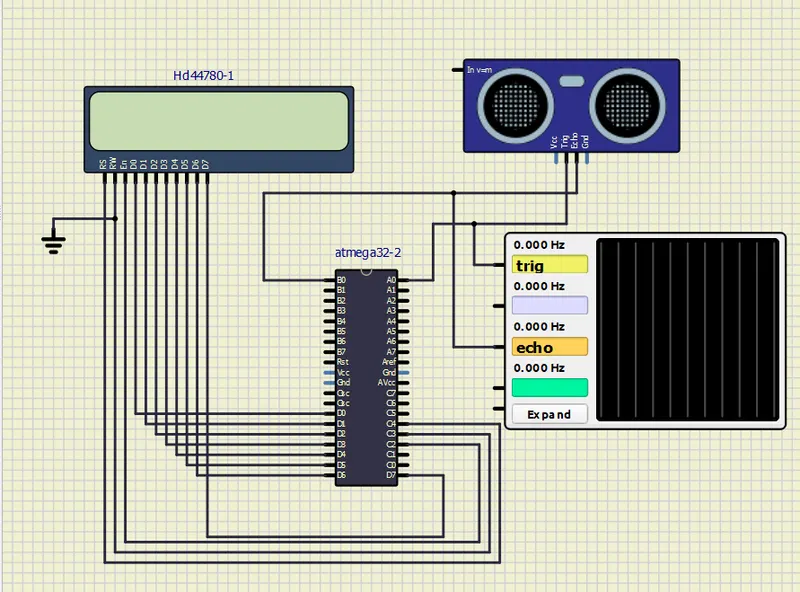

CIRCUIT DIAGRAM:

CODE:

Upload in file.

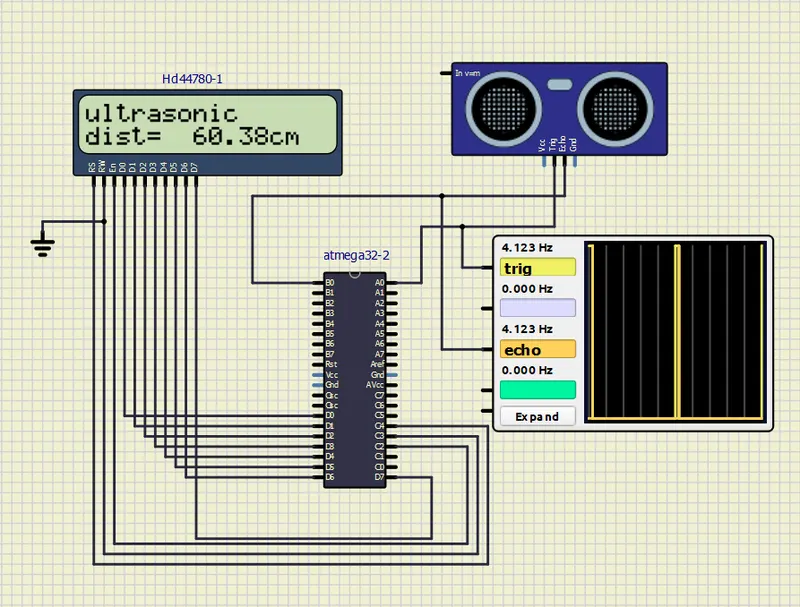

OUTPUT:
