Project 2 - Measuring distance of an object using ultrasonic sensor (HC-SR04)

Aim:

To implement code for “Measuring distance of an object using ultrasonic distance sensor (HC-SR04).

Objective:

• Measuring the distance of an object using Ultrasonic Distance Sensor (HC-SR04)
• Usage of Input Capture Mode

Highlights:

• Measuring the distance travelled by the wave to the object and gets bounced back from the object to sensor.
• Measuring Pulse width using Input Capture Mode

Deliverables:

• The distance travelled by a wave to the object for which we want to measure the distance using Ultrasonic Distance Sensor (HC-SR04).
• Measuring Pulse width using Input Capture Mode of Timer 1

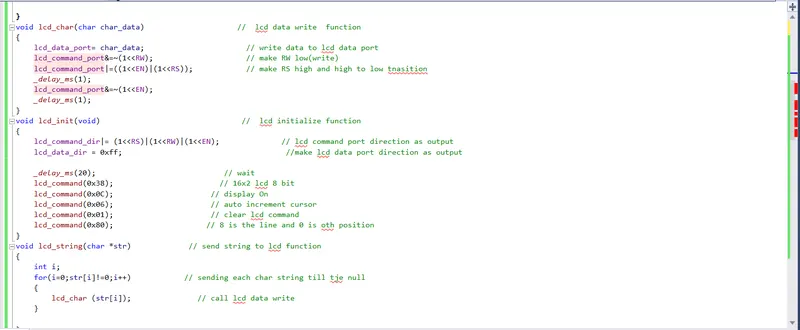

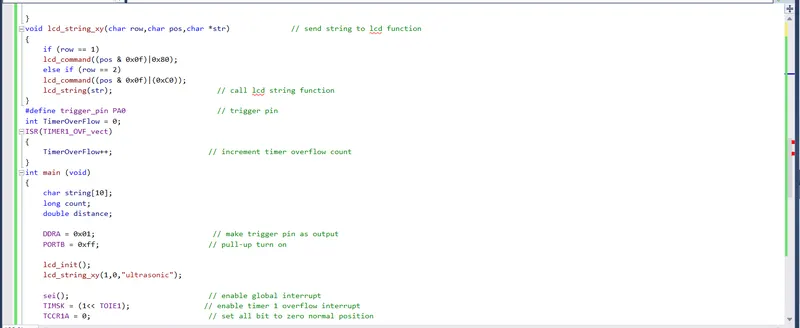

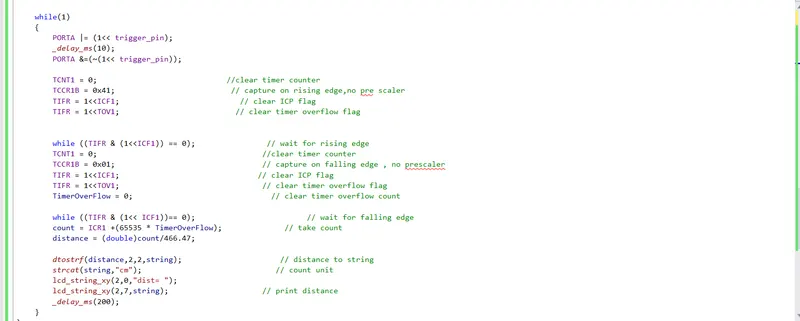

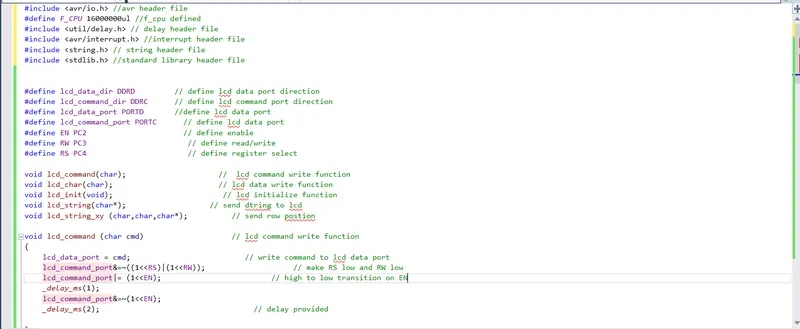

Code:

#include
#define F_CPU 16000000ul
#include
#include
#include
#include


#define lcd_data_dir DDRD
#define lcd_command_dir DDRC
#define lcd_data_port PORTD
#define lcd_command_port PORTC
#define EN PC2
#define RW PC3
#define RS PC4

void lcd_command(char);
void lcd_char(char);
void lcd_init(void);
void lcd_string(char*);
void lcd_string_xy (char,char,char*);

void lcd_command (char cmd)
{
	lcd_data_port = cmd;
	lcd_command_port&=~((1<

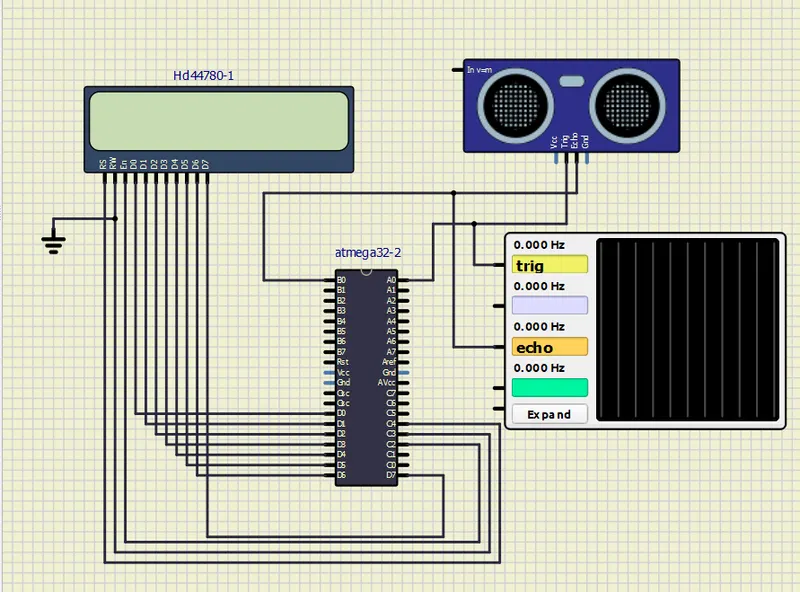

Circuit:


The program is loaded in the Atmega 32 chip.
LCD pins are connected to the Atmega32 as shown above.
Osillocope and ultrasonic sensors are connected to view the output.

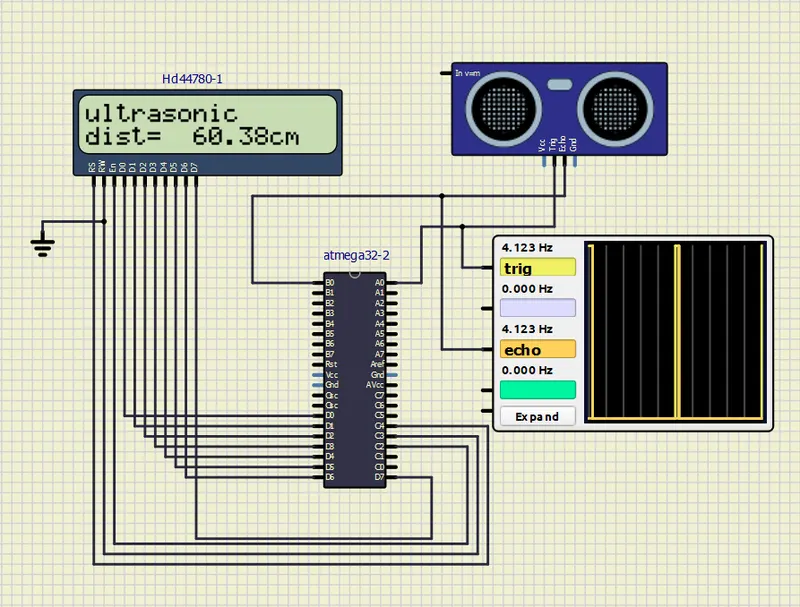

Output:


60.38 cm is the distance of an object obtained.

Result:
Thus the implementation of code for “Measuring distance of an object using ultrasonic distance sensor (HC-SR04) is done.
