Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

overview:

1 - Title.

2 - Subtitle.

3 - Goal.

4 - Key highlights of project.

5 - Deliverables of the project.

6 - Expected outcomes.

Title :

Implement the code for controlling the retraction and extension of Airplane's landing gear.

Subtitle :

In this project, controlling the retraction and extension of Airplane’s landing gear can be implemented using Finite State Machine (FSM). FSM is the most efficient algorithm which is mathematical model of computation.

Goals :

• Controlling the direction of Valve.
• Controlling the retraction and extension of Airplane’s landing gear.

key highlights of the project :

A direction valve is controlled by the software to allow the hydraulic pressure to either raise or lower the landing gear.

Deliverables of this project :

Implementing the control for the retraction and extension of Airplane’s landing gear using the Finite state machine with the knowledge of various states of switch and gear.

Expected outcomes :

The student will be getting the Knowledge of Finite State Machine algorithm which is used to achieve the control over the retraction and extension of Airplane’s landing gear using the switch and gear states of Airplane.

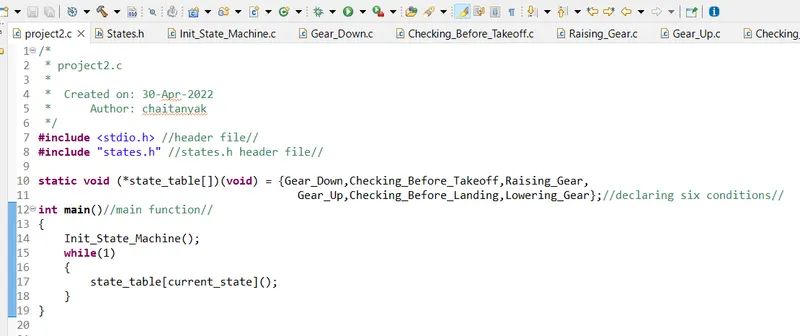

Project2.c

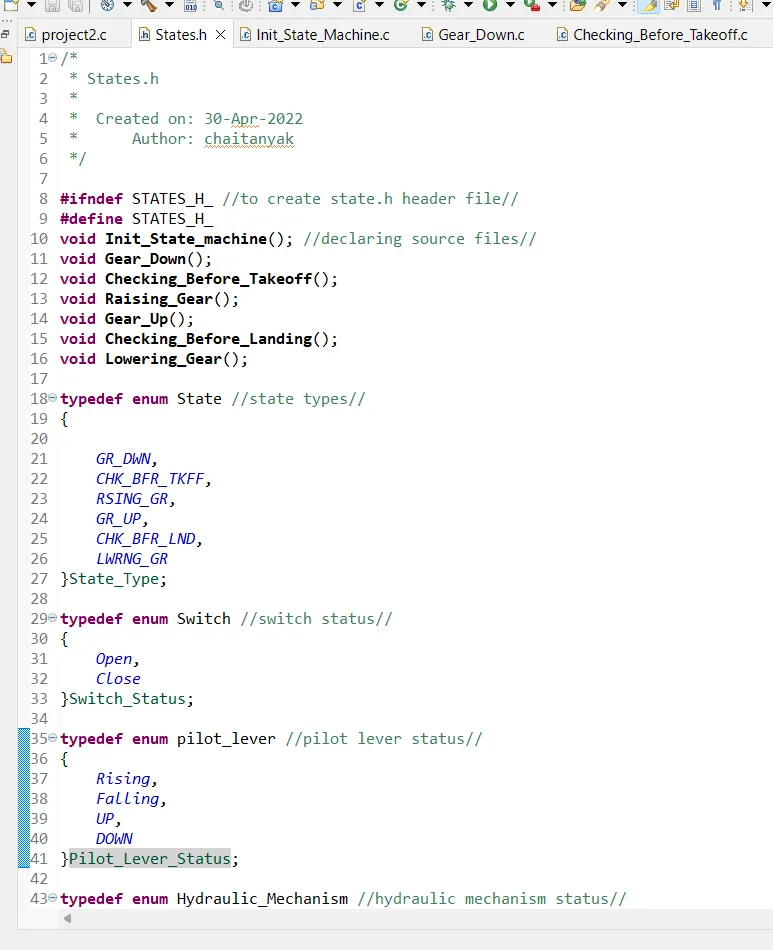

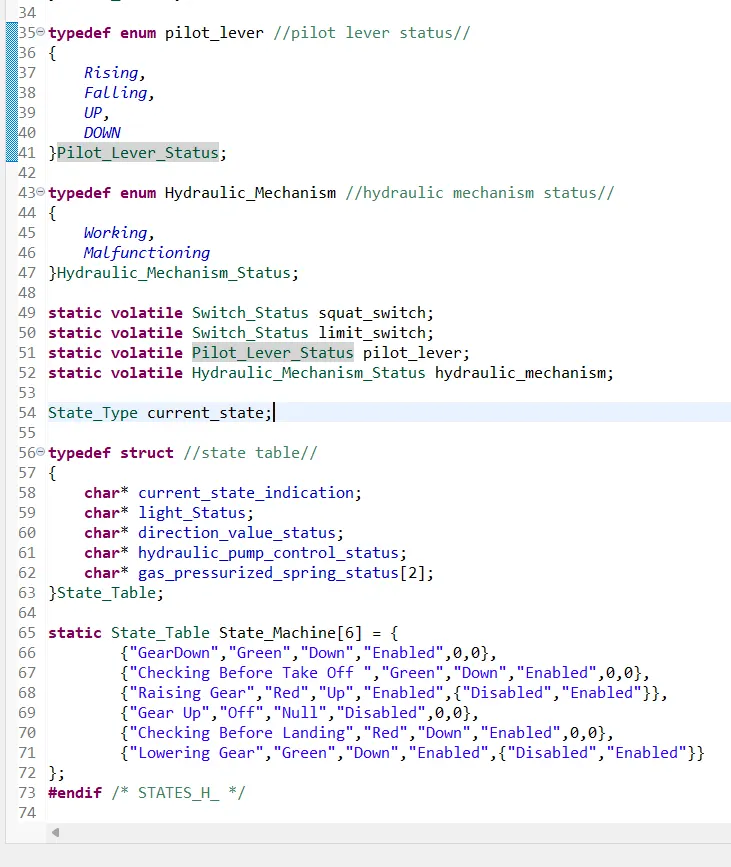

states.h

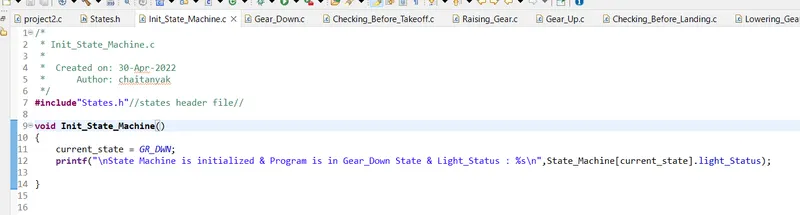

init state machine.c

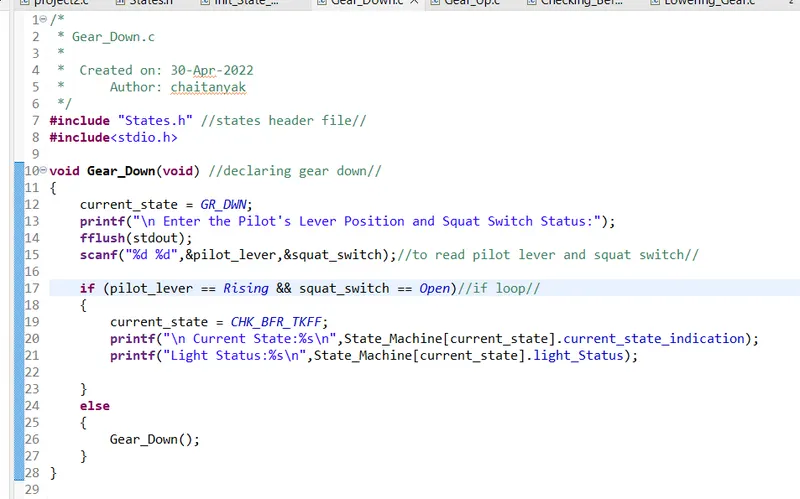

gear down.c

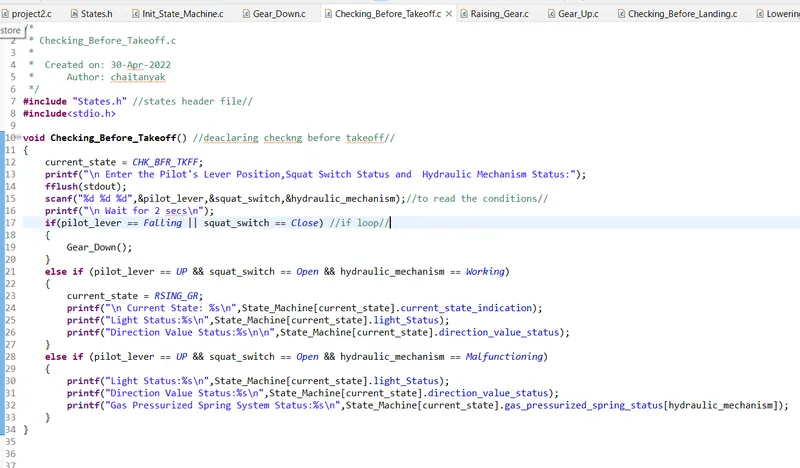

checking before takeoff.c

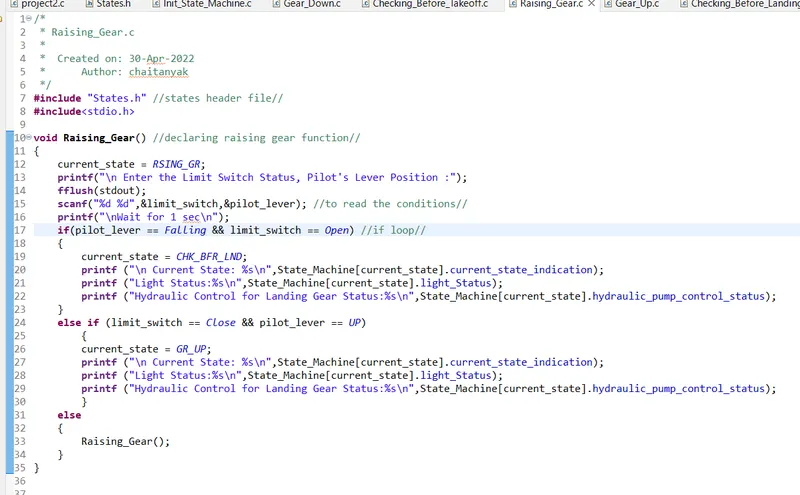

raising gear.c

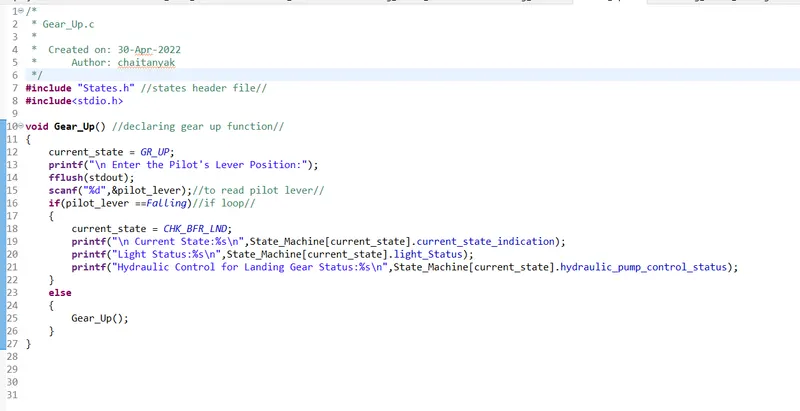

gear up.c

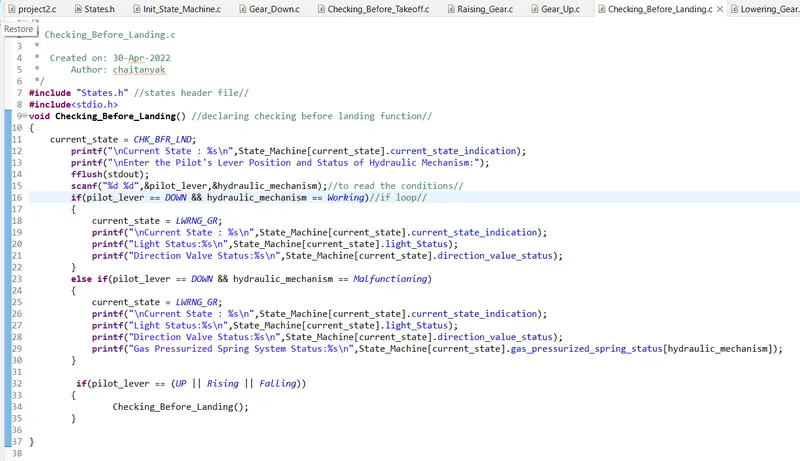

checking before landing.c

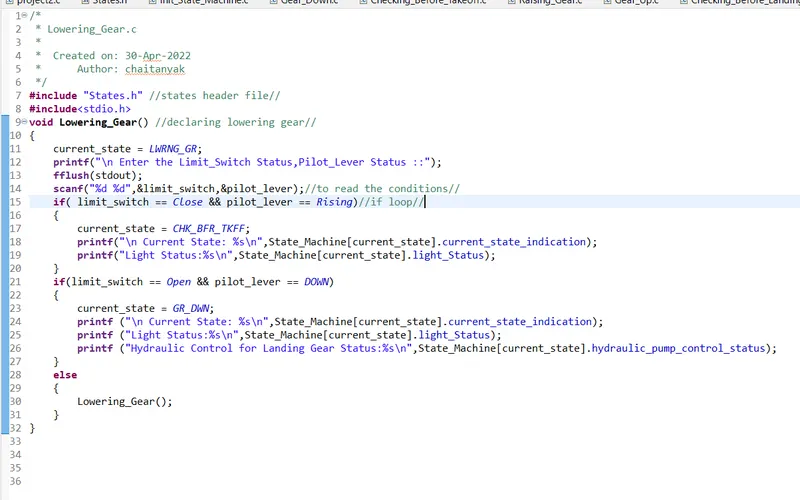

lowering gear.c

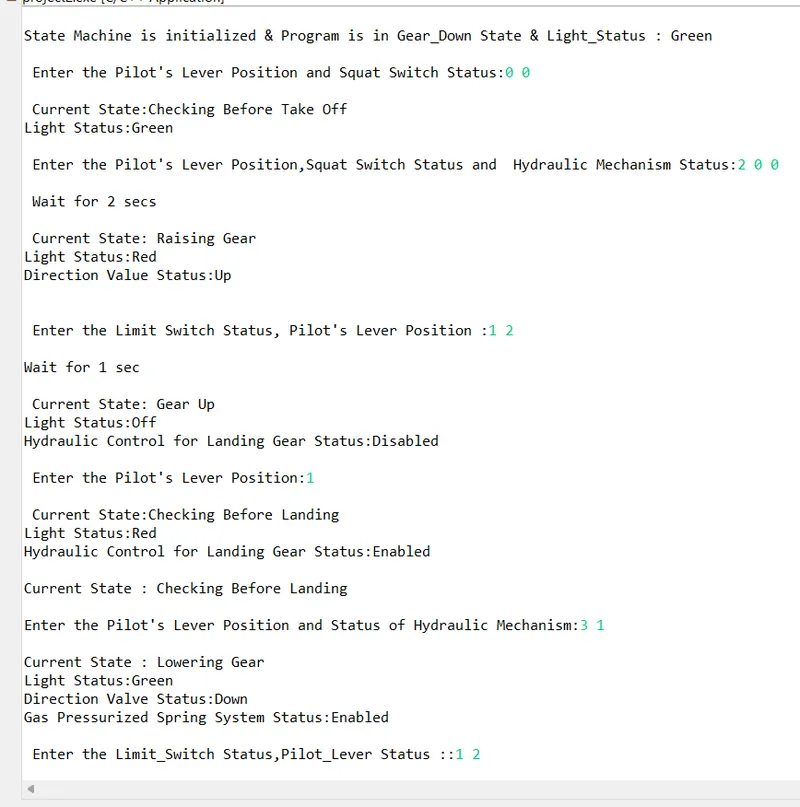

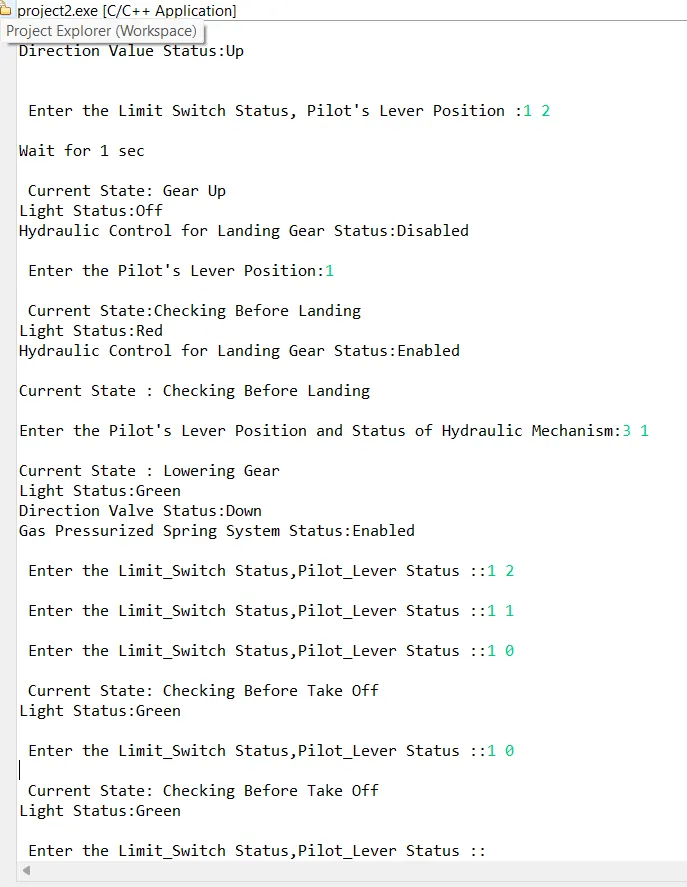

output
