Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

#include
#include

typedef enum State
{
GR_DOWN, //here calling the different state
CHK_BFR_TKOFF,
RISING_GR,
GEAR_UP,
CHK_BFR_LAND,
LOWERING_GR
}State_type;

typedef enum Switch //declares an alternative name as switch
{
Open, //here calling the different switch
Close
}Switch_Status;

typedef enum Pilot_Lever //declares an alternative name as pilot lever
{
Raising, //here calling the different pilot lever
Falling,
UP,
DOWN
}Pilot_Lever_Status;

void Init_State_Machine();
void Gear_Down();
void Checking_Before_Takeoff();
void Raising_Gear();
void Gear_Up();
void Checking_Before_Landing();
void Lowering_Gear();

static volatile Switch_Status Squat_Switch;
static volatile Switch_Status limit_switch;
static volatile Pilot_Lever_Status pilot_lever;
State_type current_state; //current state is the state type

typedef struct //declaration of structure using typedef
{
char* current_state_indication;
char* light_status;
char* direction_valve_status;
}State_Table;

//calling the state_ Table

static State_Table State_Machine[6]={

{"GearDown","Green","Down"},

{"Checking Before Take Off","Green","Down"},

{"Rising Gear","Red","Up"},

{"Gear Up","Off","Null"},

{"Checking Before Landing","Red","Down"},

{"Lowerig Gear","Green","Down"}

};

//using state table the condition controlling the retraction and extension of airoplane's landig gear

static void(*state_table[])(void) = {Gear_Down,Checking_Before_Takeoff,Raising_Gear,Gear_Up,Checking_Before_Landing,Lowering_Gear};

int main()
{
Init_State_Machine(); //declare initial state machine

while(1)
{
state_table[current_state](); // current state is the declare in the state table
}
}

void Init_State_Machine() //initial state machine condition
{
current_state = GR_DOWN; //current state is gear down

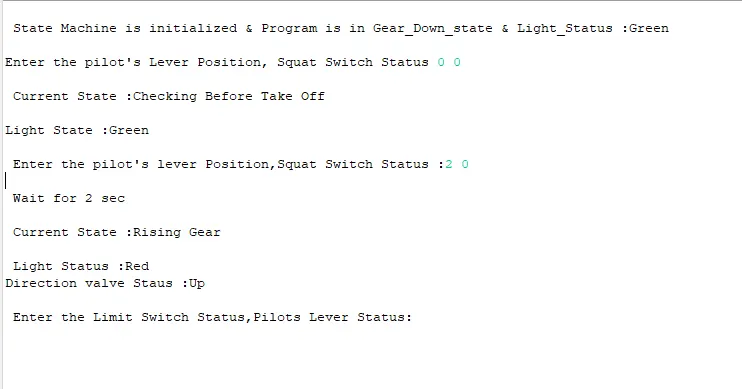

printf("\n State Machine is initialized & Program is in Gear_Down_state & Light_Status :%s\n",State_Machine[current_state].light_status);

}

void Gear_Down(void)
{
current_state = GR_DOWN; //current state is gear down
printf("\nEnter the pilot's Lever Position, Squat Switch Status ");
fflush(stdout);
scanf("%d %d",&pilot_lever, &Squat_Switch); //reads to console pilot lever and squat switch

if(pilot_lever == Raising && Squat_Switch == Open)
{
current_state = CHK_BFR_TKOFF; //current state is check before takeoff
printf("\n Current State :%s\n",State_Machine[current_state].current_state_indication); //print current state
printf("\nLight State :%s\n",State_Machine[current_state].light_status); //print light status
}
else
{
Gear_Down();
}
}

void Checking_Before_Takeoff() //checking before takeoff condition
{
current_state = CHK_BFR_TKOFF; //current state is checking before takeoff
printf("\n Enter the pilot's lever Position,Squat Switch Status :");
fflush(stdout);
scanf("%d %d",&pilot_lever,&Squat_Switch);
printf("\n Wait for 2 sec\n");
if(pilot_lever == Falling || Squat_Switch == Close)
{
Gear_Down();
}
else if(pilot_lever == UP && Squat_Switch == Open)
{
current_state = RISING_GR; //current state is rising gear
printf("\n Current State :%s\n",State_Machine[current_state].current_state_indication); //print current state
printf("\n Light Status :%s\n",State_Machine[current_state].light_status); //print light status
printf("Direction valve Staus :%s\n",State_Machine[current_state].direction_valve_status); //print direction value
}
else
{
Checking_Before_Takeoff();
}
}

void Raising_Gear() // raising gear operation
{
current_state = RISING_GR; // current state is raising gear
printf("\n Enter the Limit Switch Status,Pilots Lever Status:");
fflush(stdout);
scanf("%d %d",&limit_switch,&pilot_lever); //reads to console limit switch ,pilot lever
printf("\n Wait for 1 sec\n");
if(pilot_lever == Falling && limit_switch == Open)
{
current_state=CHK_BFR_LAND; //current state is checking before landing
printf("\n Current State :%s\n",State_Machine[current_state].current_state_indication); //print current state
printf("\n Light State :%s\n",State_Machine[current_state].light_status); //print light status
}
else if(limit_switch == Close && pilot_lever == UP)
{
current_state = GEAR_UP; //current state is gear up
printf("\n Current State :%s\n",State_Machine[current_state].current_state_indication); // print current state
printf("\n Light State :%s\n",State_Machine[current_state].light_status); //print light status
}
else
{
Raising_Gear();
}
}

void Gear_Up()
{
current_state = GEAR_UP; //current state is gear up
printf("\n Enter the Pilot's lever Position :");
fflush(stdout);
scanf("%d",&pilot_lever); //reads to console pilot lever
if(pilot_lever == Falling) //if pilot lever is falling
{
current_state=CHK_BFR_LAND; //current state is checking before landing
printf("\n Current State :%s\n",State_Machine[current_state].current_state_indication); //print current state
printf("\nLight Status :%s\n",State_Machine[current_state].light_status); //print light status
}
else
{
Gear_Up();
}
}

void Checking_Before_Landing()
{
current_state = CHK_BFR_LAND; // current state is checking before landing
printf("\n Enter the Pilot's Lever Position:");
fflush(stdout);
scanf("%d",&pilot_lever);
if(pilot_lever == DOWN )
{
current_state = LOWERING_GR; //current state is lowering gear
printf("\n Current State:%s\n",State_Machine[current_state].current_state_indication); //print current state
printf("\nLight State: %s\n",State_Machine[current_state].light_status); //print light status
printf("Direction Valve Status:%s\n\n",State_Machine[current_state].direction_valve_status);
}
if(pilot_lever == (UP||Raising||Falling)) //if pilot lever is up,raising or falling
{
Checking_Before_Landing();
}
}

void Lowering_Gear()
{
current_state = LOWERING_GR; //current state is lowering gear
printf("\n Enter the limit switch Squat Status.pilot's lever Position :");
fflush(stdout);
scanf("%d %d",&pilot_lever,&limit_switch);
if(limit_switch == Close && pilot_lever == Raising) //if limit switch is close then pilot lever is raising
{
current_state = CHK_BFR_TKOFF;
printf("\n Current State :%s\n",State_Machine[current_state].current_state_indication); //print current state
printf("\n Light Status :%s\n",State_Machine[current_state].light_status); //print light status
}
if(limit_switch == Open && pilot_lever == DOWN)
{
current_state = GR_DOWN; //current state is gear down
printf("\n Current State :%s\n",State_Machine[current_state].current_state_indication); //print current state
printf("\n Light Status :%s\n",State_Machine[current_state].light_status); //print light_status
}
else
{
Lowering_Gear();
}
}
