Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

Overview of the Project: In this project, a Finite State Machine is used to manage the retraction and extension of an airplane's landing gear (FSM). The most efficient algorithm is the FSM, which is a mathematical processing model.

Actually an airplane has 3 gears for landing: Nose gear, Left gear, Right gear.

There is an electrically powered hydraulic pump that applies pressure to the gears to bring it down or pull it up.

There is a limit switch on each leg of the gear. One extra squat switch is installed in the nose gear to assess whether the plane is on the ground or not.

Goals:

Valve's direction can be controlled.

Controlling the retraction and extension of the landing gear on an aeroplane.

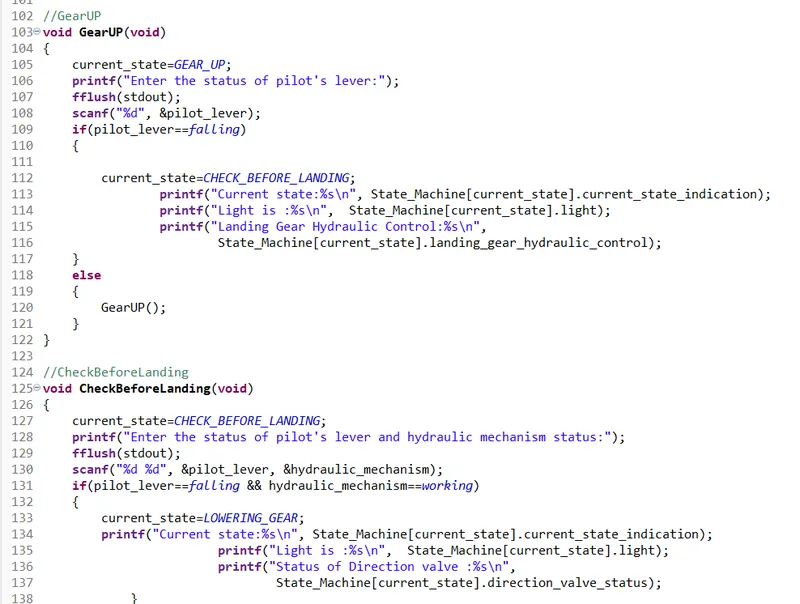

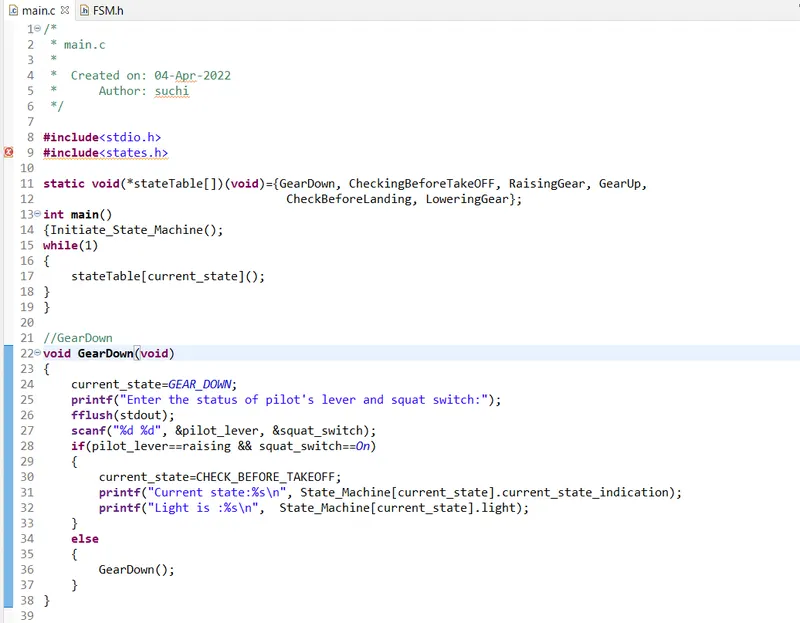

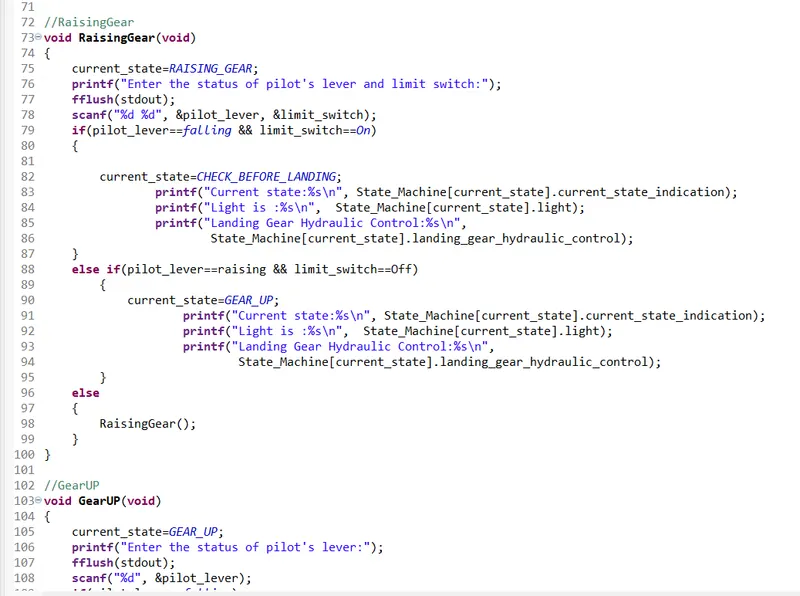

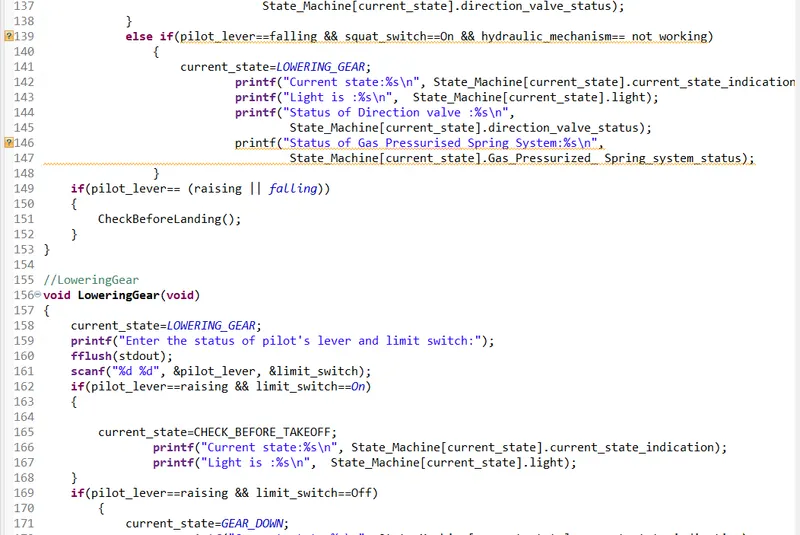

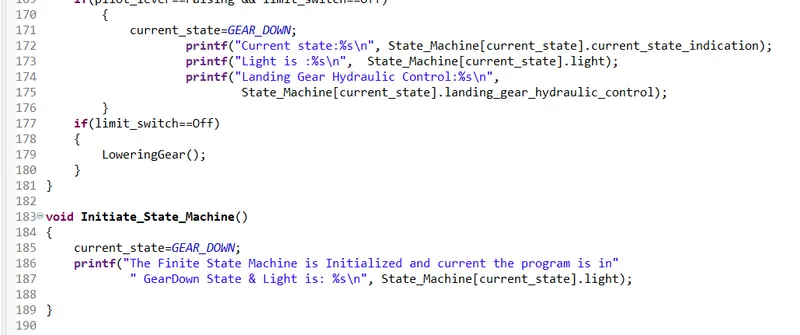

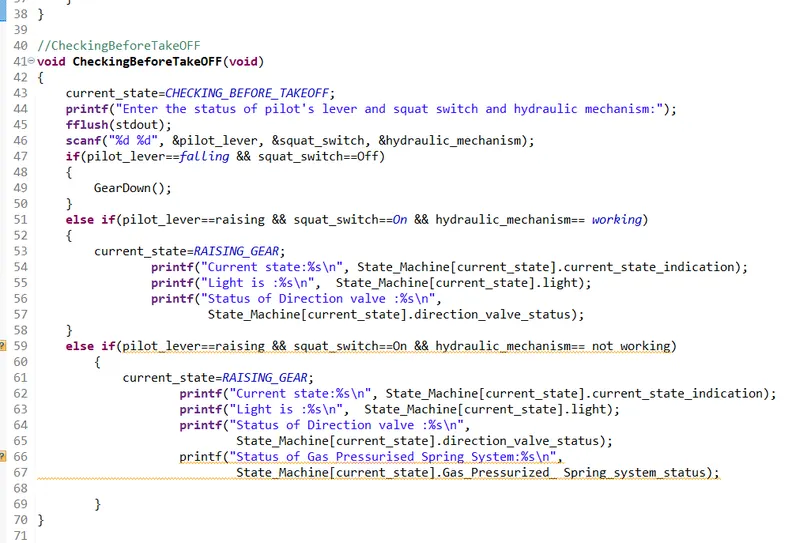

Source File:

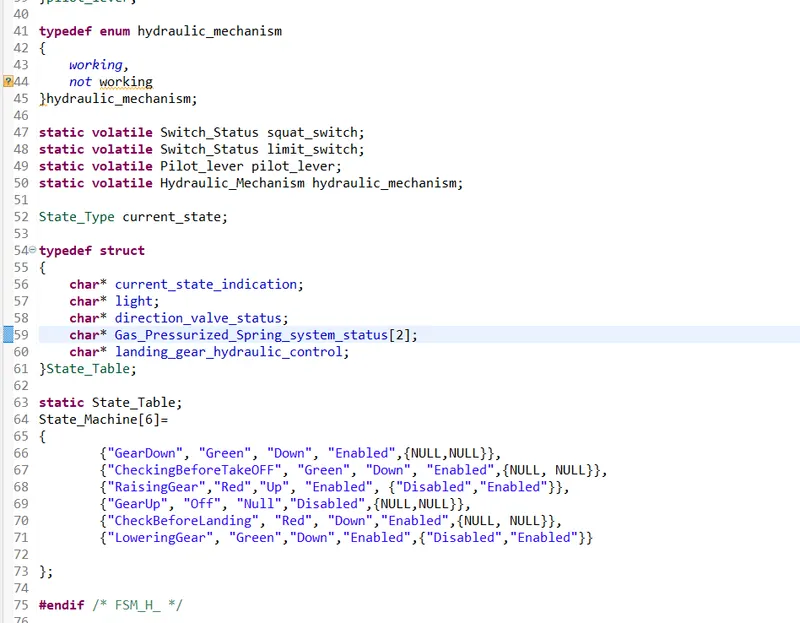

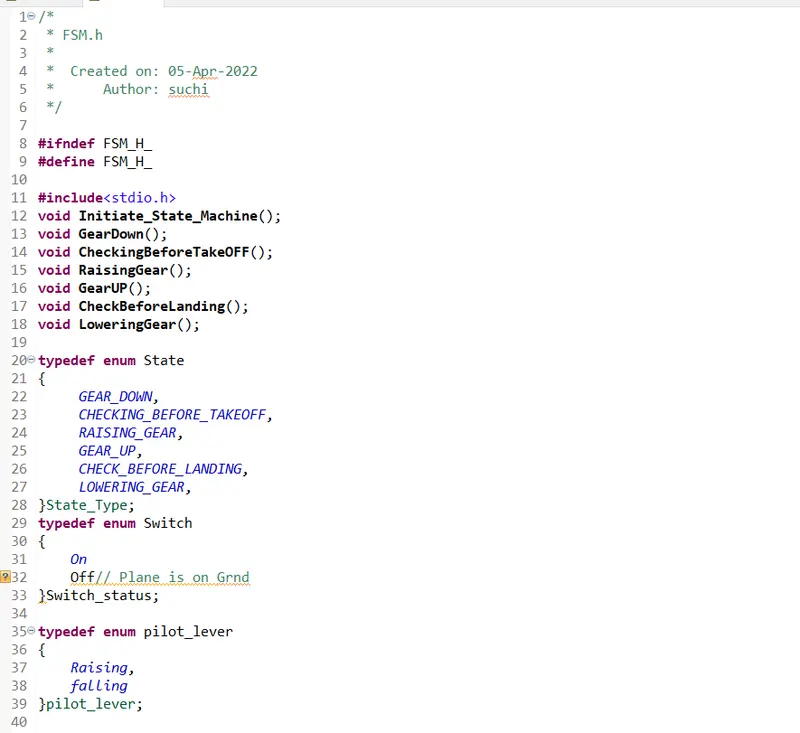

Header File:

Expected outcomes:

The student will learn about the Finite State Machine algorithm, which is used to manage the retraction and extension of an airplane's landing gear by using the plane's switch and gear states.
