Project 2-Highway Assistant-Lane Changing Assistant

Answere :

Aim : Model Development of a Feature of Highway Assistant Lane Changing Using MATLAB And Simulink as per MAB Guidelines. And Producing Model Advisor Report As Well As Generating Code Using AUTOSAR Coder.

Objective :

This model must be developed in MATLAB Simulink per MBD guidelines.

• Code Generation Profile must be Autosar Coder.
• Simulink Data Dictionary must be created for the model & must be linked to the model.
• All the input & output signals must be mapped into the Autosar Editor.
• Model Advisor Report is mandatory & this will be followed by Code Generation.

Highway Assistant – Lane Changing Assistant :

Introduction to the Feature :

The Highway Assistant supports the driver and takes over the longitudinal and lateral guidance of the vehicle in monotonous driving situations on highways. The partially automated function can automatically start, accelerate, brake as well as steer the vehicle to a certain extent. The driver has to permanently supervise the system and be ready to take over the complete control of the vehicle at any time.

Drivers are taught to assess surrounding traffic before changing lanes by checking their rearview and side mirrors and looking over each shoulder. However, even for those who follow this sequence of checks, the vehicle's blind spot – the area alongside and just behind the vehicle – is a constant source of danger and often the cause of serious accidents.
Even vehicles approaching quickly from behind can pose a risk. To make changing lanes safer, this feature has been developed.

Basic Working Principle :

Highway Assistant is a partially automated driving function for a speed range of up to 180 km/h (112 mph) on highways. It combines the radar-based longitudinal guidance of Adaptive Cruise Control (ACC) with the video-based lateral guidance of lane keeping support in one system. Highway Assistant can be supplemented by an automatic lane change initiated and monitored by the driver in a speed range of 60 – 130 km/h (35 – 80 mph).

The lane Change Assistant works by using two mid-range radar sensors that are concealed in the rear bumper – one on the left, one on the right. These two sensors monitor the area alongside and behind the car. Powerful control software collates the sensor information to create a complete picture of all traffic in the area behind the vehicle.Whenever another vehicle approaches at speed from behind or is already present in the blind spot, a signal such as a warning light in the side mirror alerts the driver to the hazard. Should the driver still activate the turn signal with the intention of
changing lanes, the system issues an additional acoustic and/or haptic warning.

Simulink Model Developement :

• Step 1: Requirement Analysis :

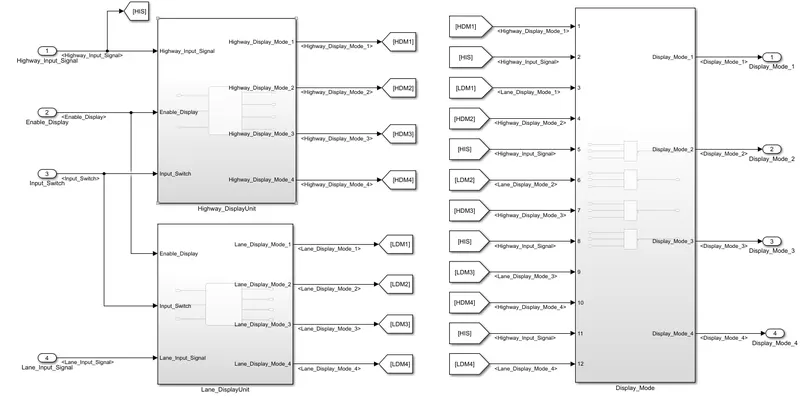

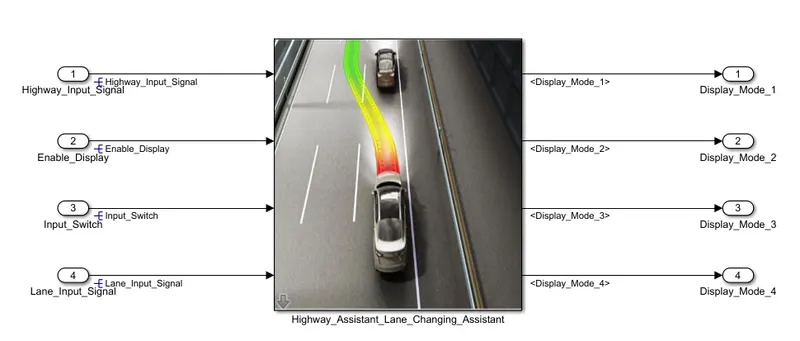

Highway Assistant LaneChanging Assistant Subsystem :

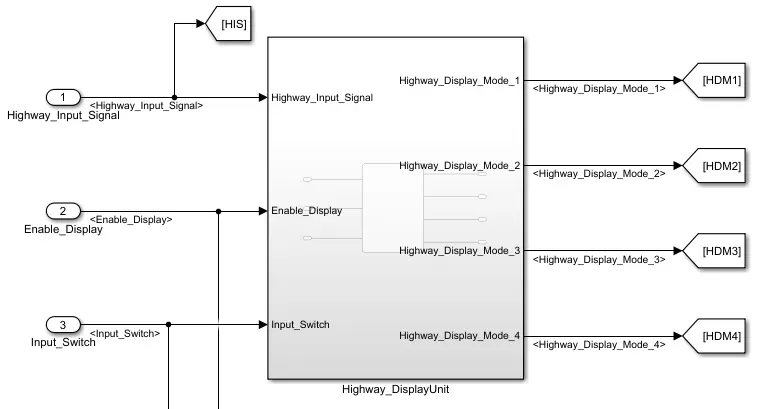

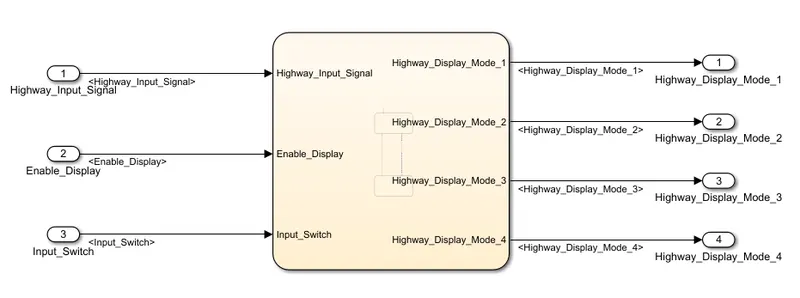

Requirement No 1 [Highway_DisplayUnit] :

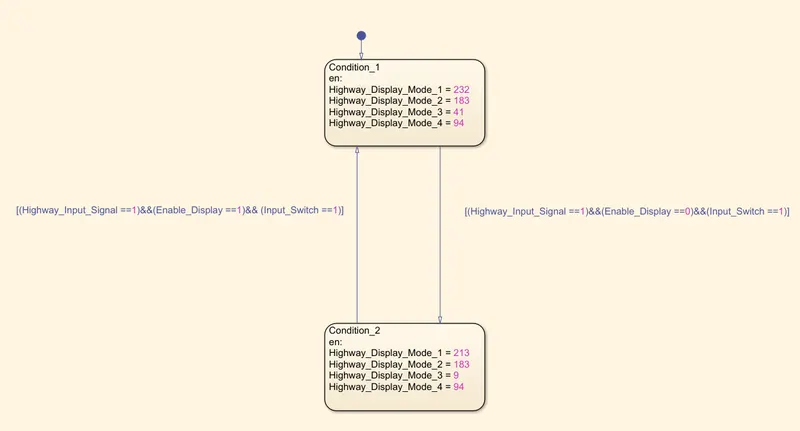

Inputs to this particular subsystem are “Highway_Input_Signal”, “Enable_Display”, “Input_Switch”. These three input signals, when assigned to a particular value will give output signals of specific value. The output signals are “Highway_Display_Mode_1”, “Highway_Display_Mode_2”, “Highway_Display_Mode_3”, “Highway_Display_Mode_4”. The requirement must be implemented in the form of a Stateflow logic.

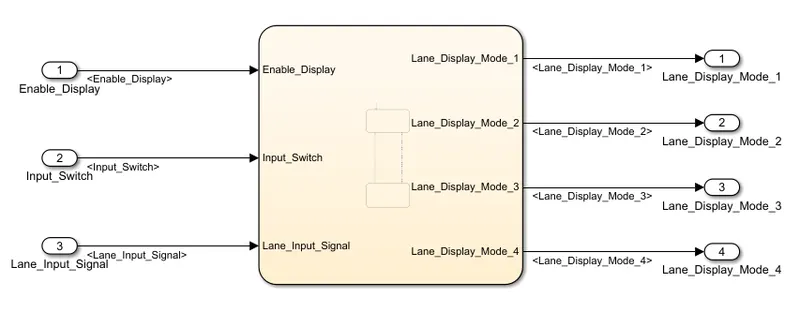

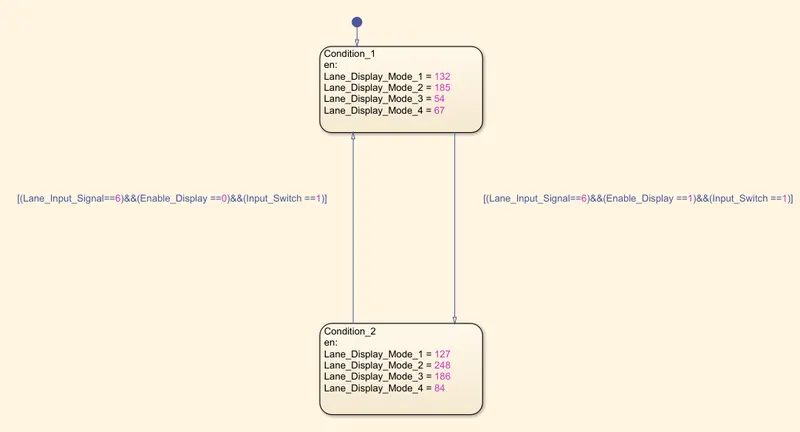

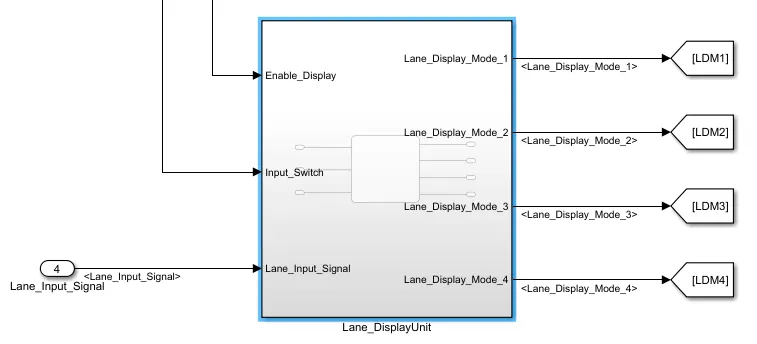

Requirement No 2 [Lane_DisplayUnit] :

Inputs to this particular subsystem are “Enable_Display”, “Input_Switch”, “Lane_Input_Signal”. These three input signals,
when assigned to a particular value will give output signals of specific value. The output signals are “Lane_Display_Mode_1”, “Lane_Display_Mode_2”, “Lane_Display_Mode_3”, “Lane_Display_Mode_4”. The requirement must be implemented in the form of Stateflow logic.

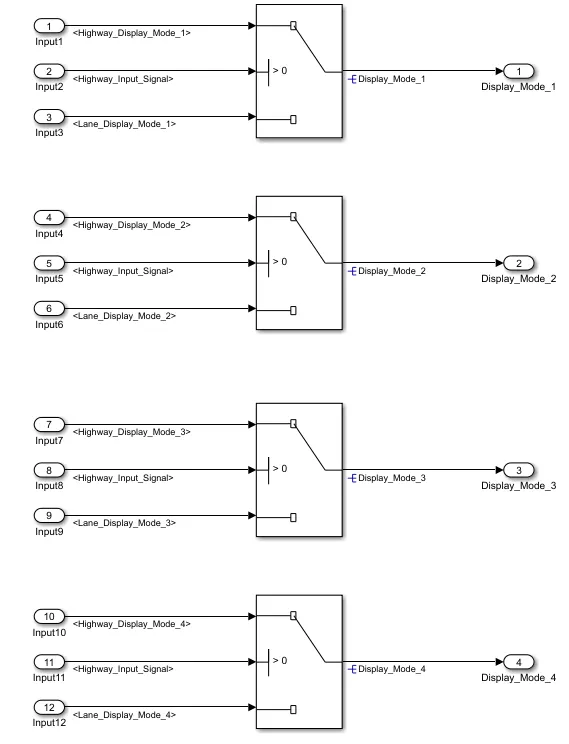

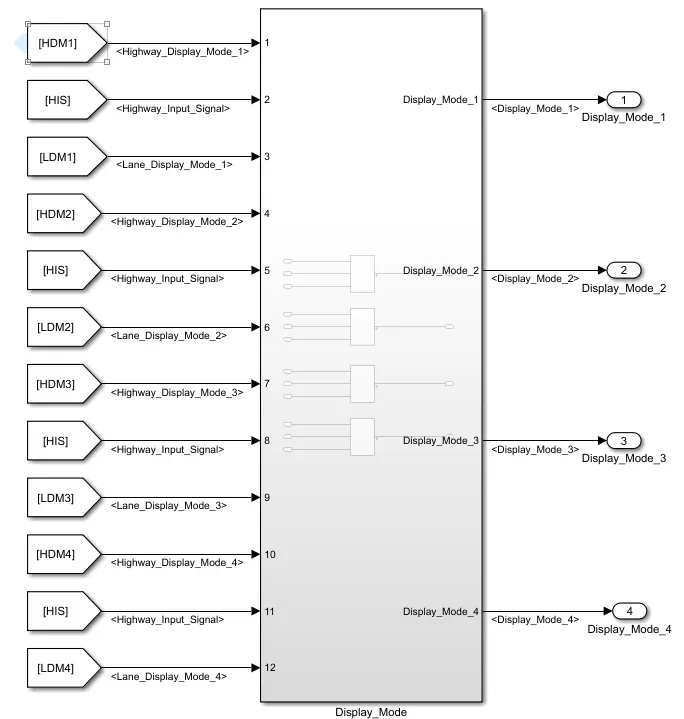

Requirement No 3 :

Signals coming from both subsystems “Highway_Display_Mode_1” & “Lane_Display_Mode_1” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2 input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_1”.

Signals coming from both subsystems “Highway_Display_Mode_2” & “Lane_Display_Mode_2” are given as inputs to a
switch block which will have input signal “Highway_Input_Signal” given as 2 input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_2”.

Signals coming from both subsystems “Highway_Display_Mode_3” & “Lane_Display_Mode_3” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2 input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_3”.

Signals coming from both subsystems “Highway_Display_Mode_4” & “Lane_Display_Mode_4” are given as inputs to a switch block which will have input signal “Highway_Input_Signal” given as 2 input to the switch block. Corresponding output from this particular switch block is output signal “Display_Mode_4”.

• Step 2: Creation of Simulink Data Dictionary file (SLDD) :


1. First you go to model then click to link to data dictionary. then click the new and put the sldd file name and browse the file.after browsing the sldd file go to model worksplace and put the all input and output signal in design data box.

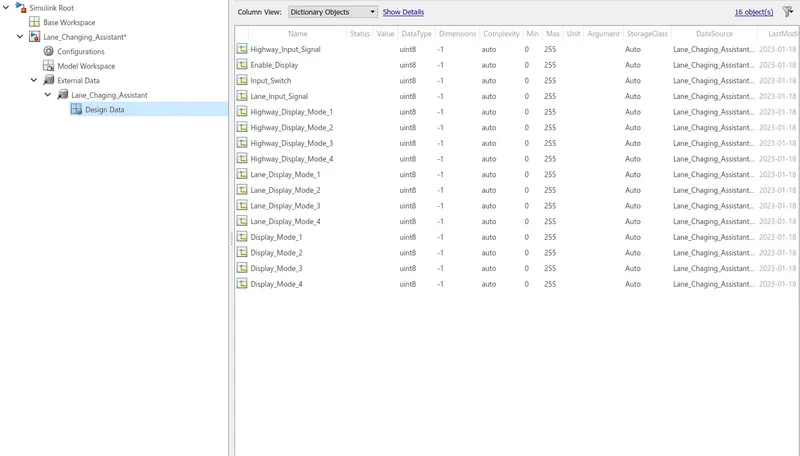

2. A Simulink Data Dictionary (SLDD) file is created that contains input, output signals and calibration parameters used in the model. SLDD file is created by clicking on Modeling, then ‘Model Properties’, then ‘External Data’ and specifying a file name for the Data Dictionary.

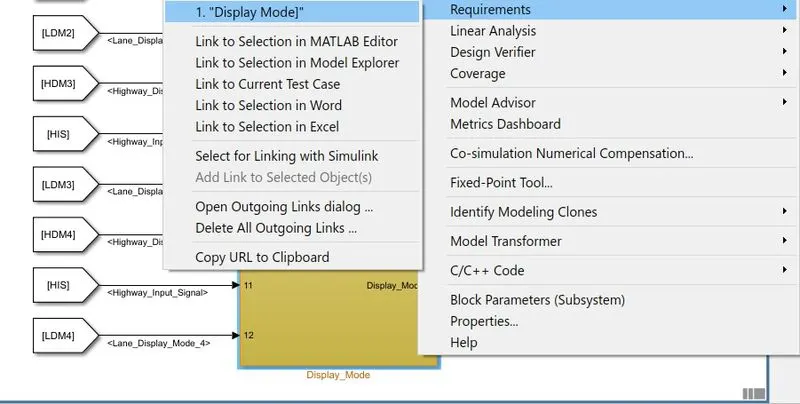

• Step 3 : Requirement Tagging :

The steps involved in tagging a requirement in the Simulink model is to first highlight the requirement statement in the Word document, then right click on the subsystem in the model that has to be tagged, then select ‘Requirements’ and then ‘Link to Selection in Word’.

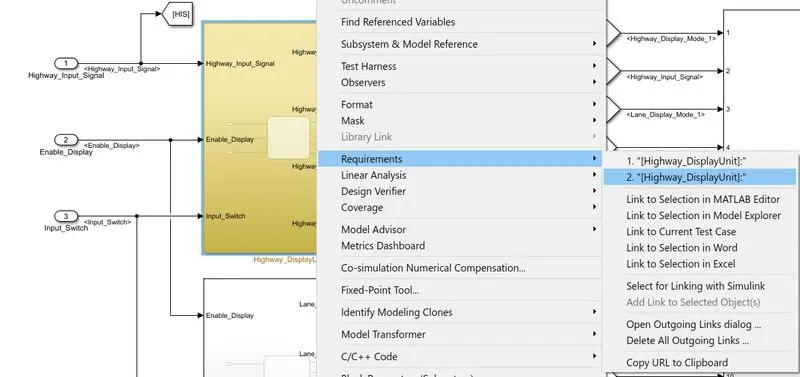

Requirement No 1 :

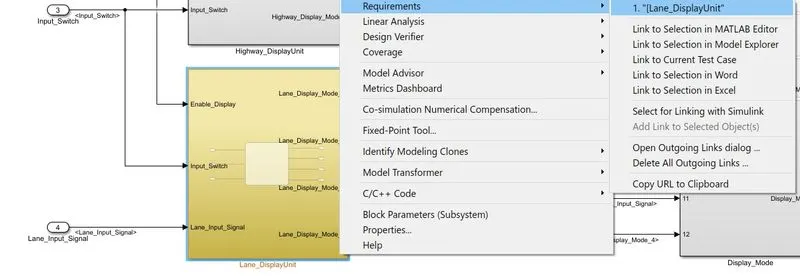

Requirement No 2 :

Requirement No 3 :

• Step 4: Configuration Parameter Update :

Various configuration parameters are updated as per the code generation the solver type should be fixed for code generation.
After clicking on model settings the following window will appears. The window presents the configuration of the parameters in our simulink mode.

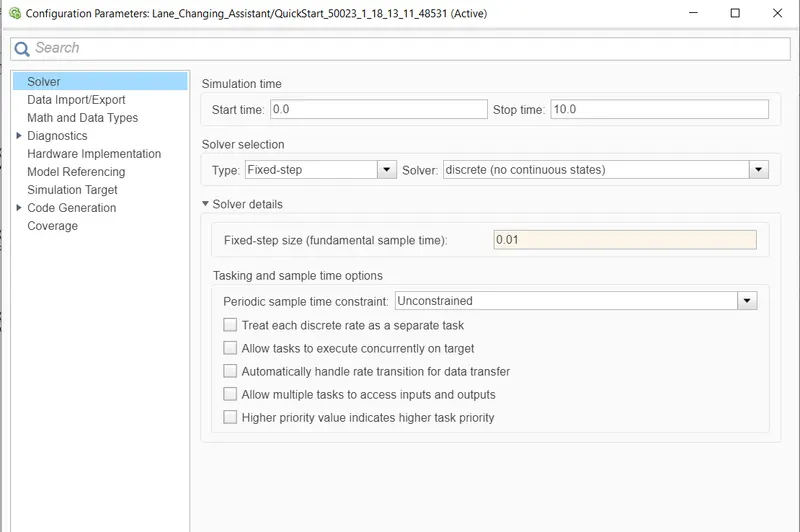

In the configuration window, click on solver to model the solver parameters.

Now change the type to Fixed-step, Solver to discrete (no continuous states) and take sample time as 0.01sec. Then click Ok.

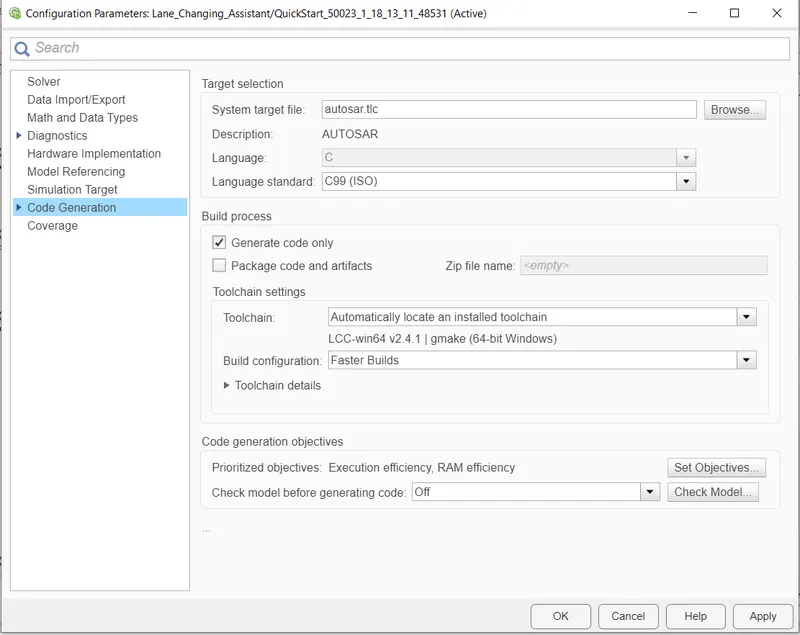

Model Configuration for AUTOSAR Code Generation :

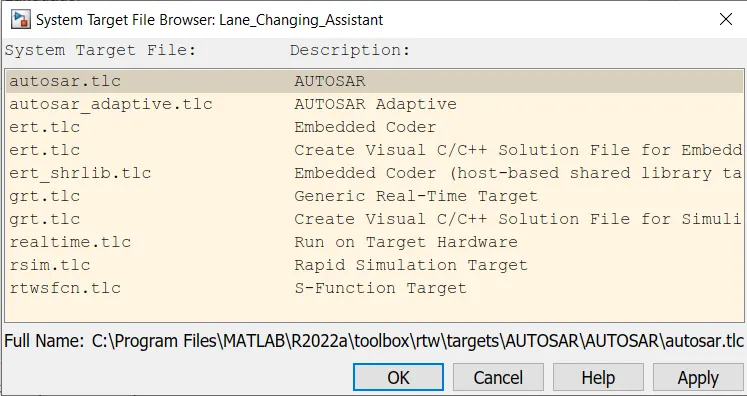

For AUTOSAR code ganeration in system Target file we always chose autosar.tlc,which is autosar component designer coder.Which generates AUTOSAR compile code.

To Map Simulink model elements to AUTOSAR software component elements :

1. Open a model for which AUTOSAR system Target file autosar.tlc is selected.
2. Create or open a Mapped view of the AUTOSAR model.In the model window and Goto App > AUTOSAR Components.


Click the prespective control in the lower-right corner and select code

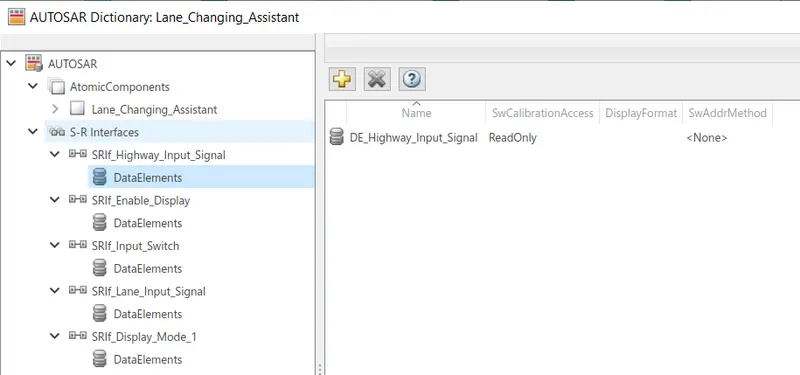

AUTOSAR Dictionary :-

Here we add XML options,server reciever interface,sender ports,reciever ports,and runnable one by one.

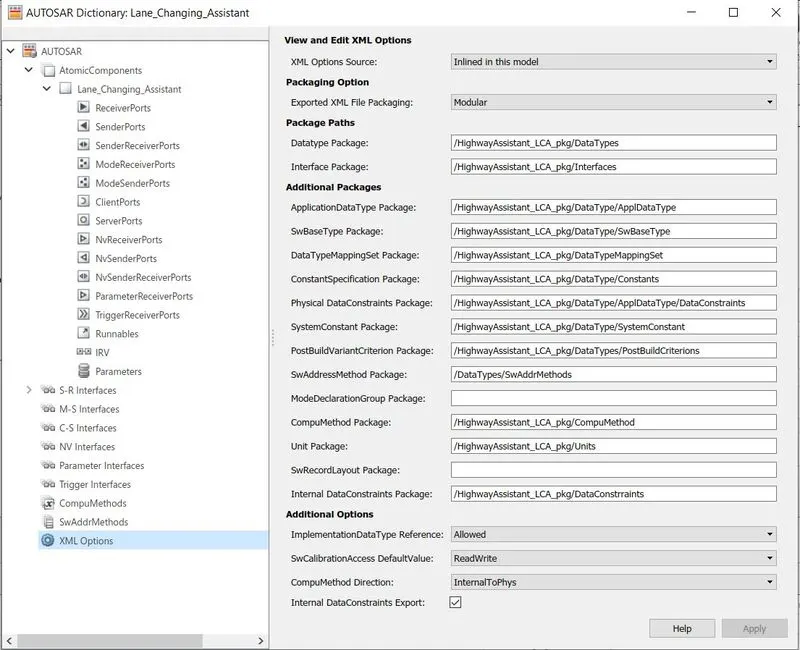

• XML Options :


Here we edit the XML options to create a data file for code gaeneration.

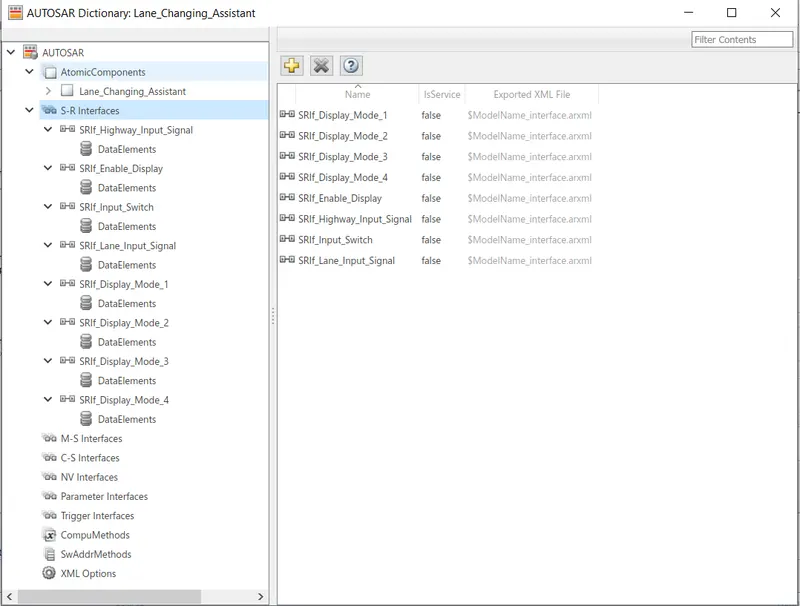

• S-R Interface :


Here before creating 'inports' and 'outports'. The interface were created in order to map the inports and outports,Interfaces were Prefix SIRF_ & there corresponding Data elements were prefix DE_.

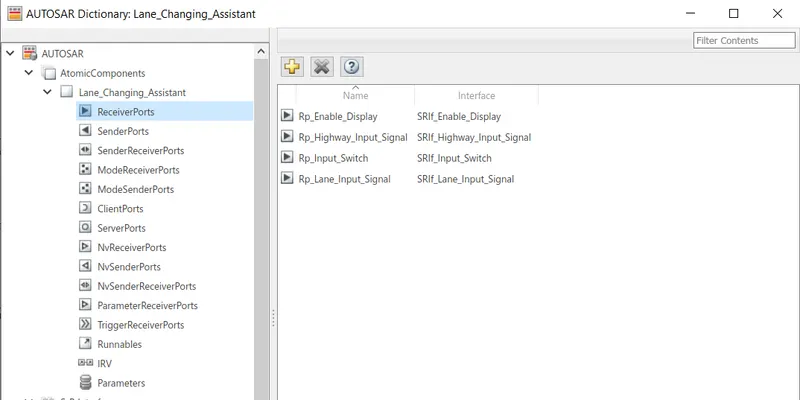

• Reciever Ports :

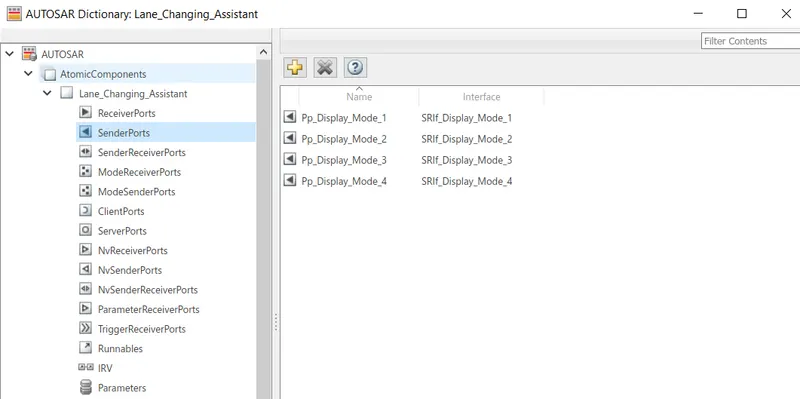

• Sender Ports :

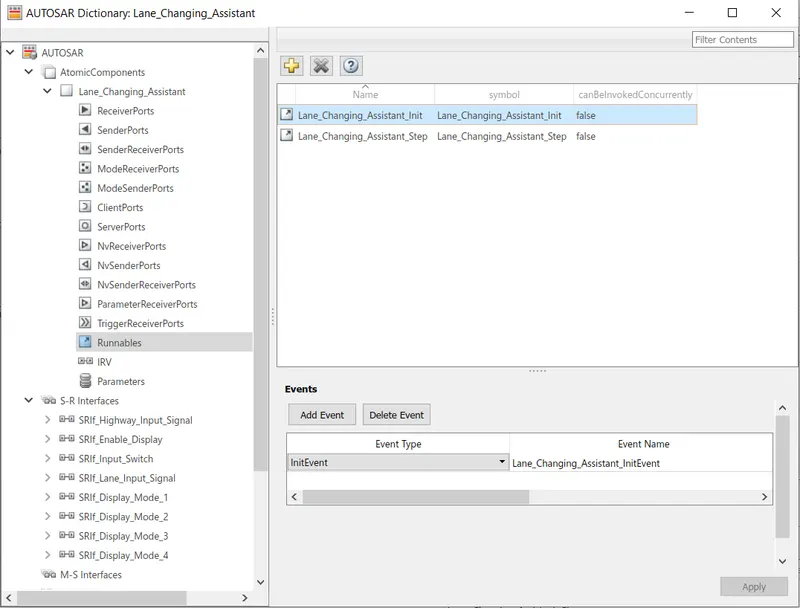

• Runnables :

Here runnables were created,one of the initializing and other for time event,event was also created as init event and TimingEvent.

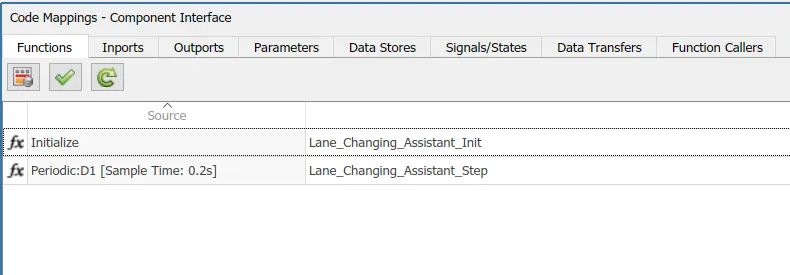

• Port Mapping :


The Code Mapping editor provides incanvas access to AUTOSAR mapping information,with batch editing,element filtering,easy navigation to model elements and AUTOSAR properties,and model element traceability.

Navigate the code Mappings editor tabs to perform these actions:

• Map a Simulink entry-point function to an AUTOSAR runnable.
• Map a Simulink inport or outport to an AUTOSAR reciever or sender port and a sender-reciever data element,with a specific data access mode.
• Map a Simulnk model workspace parameters to an AUTOSAR component parameters.
• Map a Simulink data store to an AUTOSAR variable.
• Map a Simulink block signal or state to an AUTOSAR variable.
• Map a Simulink data transfer line to an AUTOSAR inter-Runnable variable (IRV).
• Map a Simulink function caller to an AUTOSAR client port and a client-server operation.
• Use the Filter contents field (Where available) to selectively display some elements, while omiting others,in the current view.
• After mapping model elements,click the validate button to validate the AUTOSAR component configuration.If errors are reported,address them and retry validation.

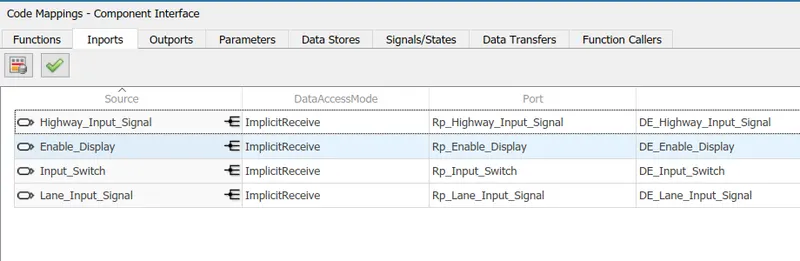

Here mapping of Inports was done with the corresponding data element.

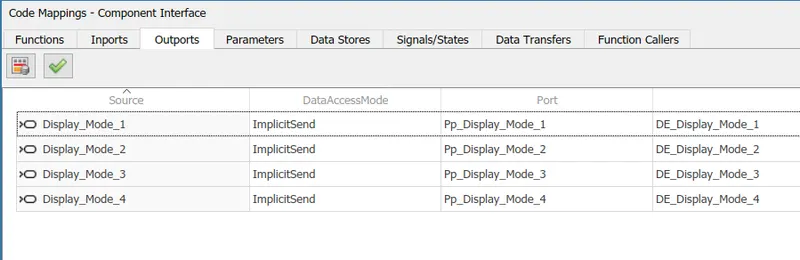

Here mapping of outports was done eith the corresponding data elements.

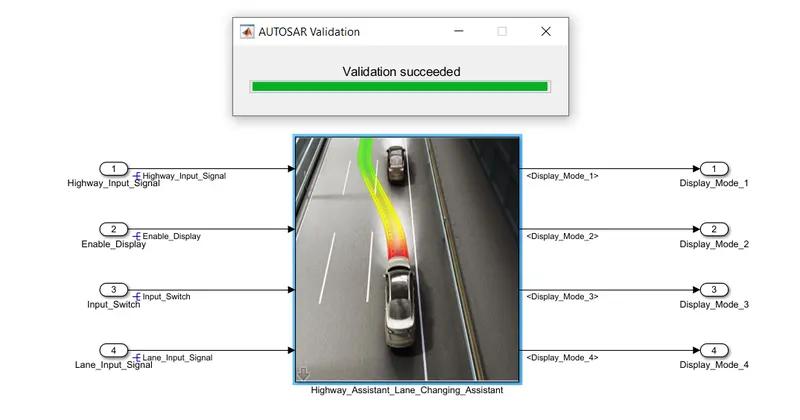

Here we check our mapping to see if there are any bugs. If mapping has bugs,we can solve them immediately.

• Step 5: MAB Guidelines Checking :


A check is performed using ‘Model Advisor’ tool in Simulink to see whether the developed model meets the modeling standards for MAB. First go to model advisor and click on ‘MAB’ then run the programme.

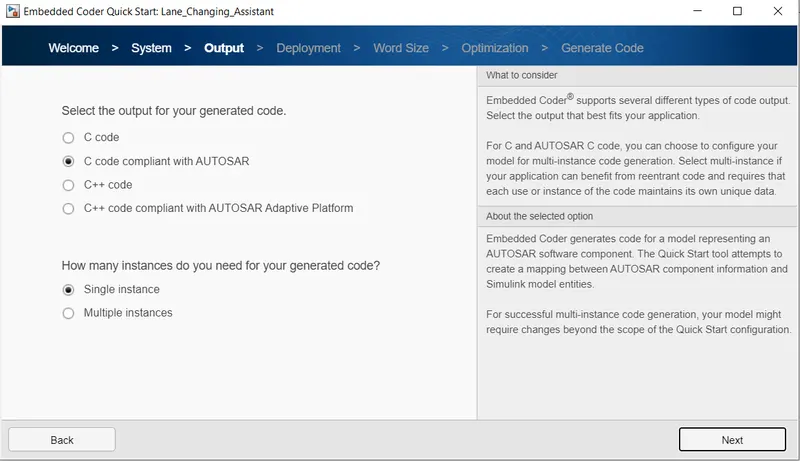

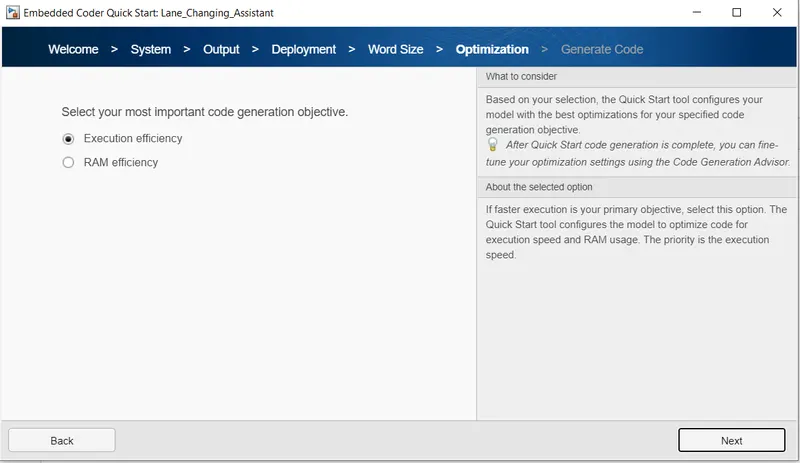

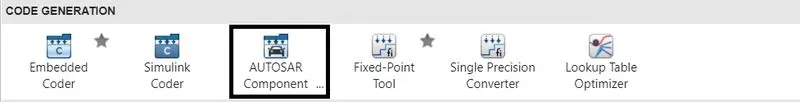

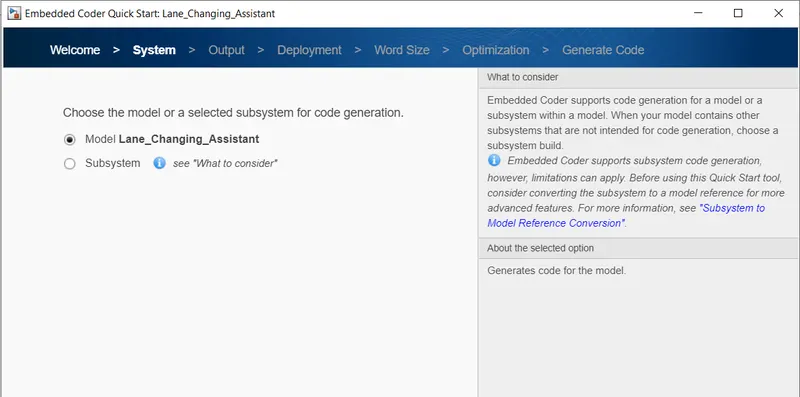

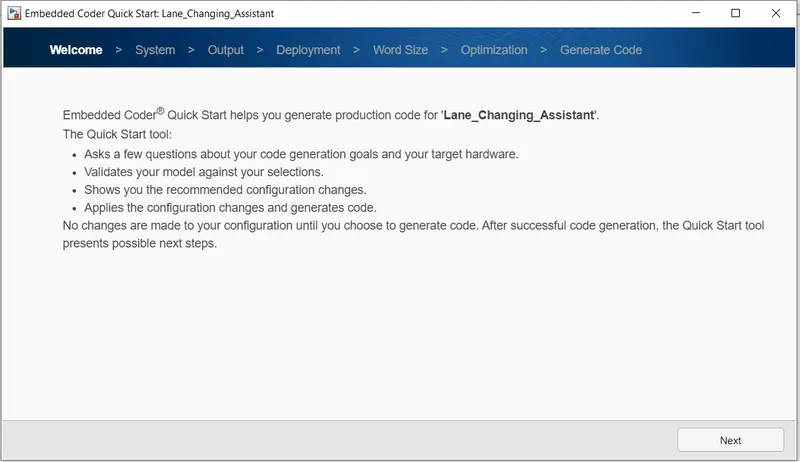

• Step 6: AUTOSAR Quick Start :

If we missed out the configuration properties and also we have to take care of all updating the signal name appropriately for that we aill do AUTOSAR quick start over here so it will list out and show any mistake apart from that this is an automated procedure to convert your model into a generated code to bypass the mannual mapping.

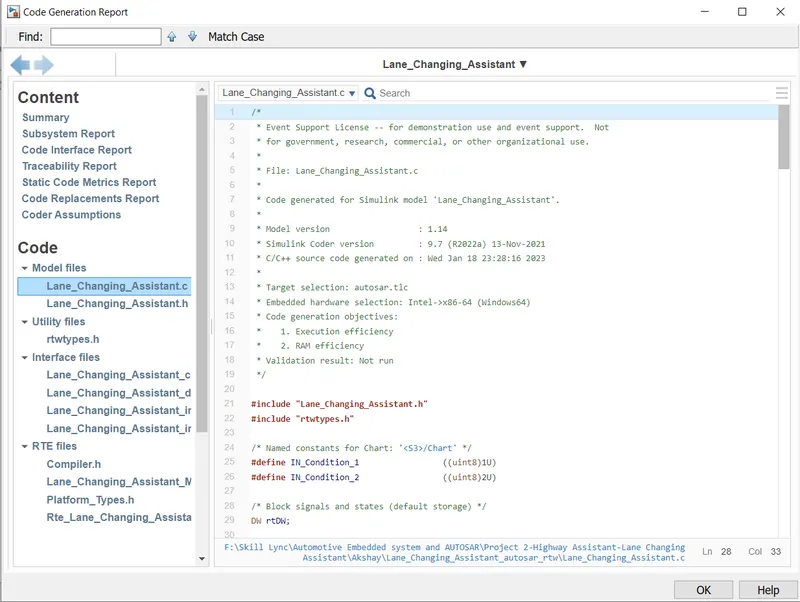

Here we got our AUTOSAR compile code for AUTOSAR software component.

• Generated Code :


/*
 * Event Support License -- for demonstration use and event support.  Not
 * for government, research, commercial, or other organizational use.
 *
 * File: Lane_Changing_Assistant.c
 *
 * Code generated for Simulink model 'Lane_Changing_Assistant'.
 *
 * Model version                  : 1.12
 * Simulink Coder version         : 9.7 (R2022a) 13-Nov-2021
 * C/C++ source code generated on : Wed Jan 18 13:16:25 2023
 *
 * Target selection: autosar.tlc
 * Embedded hardware selection: Intel->x86-64 (Windows64)
 * Code generation objectives:
 *    1. Execution efficiency
 *    2. RAM efficiency
 * Validation result: Not run
 */

#include "Lane_Changing_Assistant.h"
#include "rtwtypes.h"

/* Named constants for Chart: '<S3>/Chart' */
#define IN_Condition_1                 ((uint8)1U)
#define IN_Condition_2                 ((uint8)2U)

/* Block signals and states (default storage) */
DW rtDW;

/* Model step function */
void Lane_Changing_Assistant_Step(void)
{
  sint32 rtb_Highway_Display_Mode_1;
  sint32 rtb_Highway_Display_Mode_3;
  sint32 rtb_Lane_Display_Mode_1;
  sint32 rtb_Lane_Display_Mode_2;
  sint32 rtb_Lane_Display_Mode_3;
  sint32 rtb_Lane_Display_Mode_4;
  sint32 tmp_0;
  uint8 tmp;

  /* Chart: '<S3>/Chart' incorporates:
   *  Inport: '<Root>/Enable_Display'
   *  Inport: '<Root>/Highway_Input_Signal'
   *  Inport: '<Root>/Input_Switch'
   */
  if (rtDW.is_active_c3_Lane_Changing_Assi == 0U) {
    rtDW.is_active_c3_Lane_Changing_Assi = 1U;
    rtDW.is_c3_Lane_Changing_Assistant = IN_Condition_1;
    rtb_Highway_Display_Mode_1 = 232;
    rtb_Highway_Display_Mode_3 = 41;
  } else if (rtDW.is_c3_Lane_Changing_Assistant == IN_Condition_1) {
    rtb_Highway_Display_Mode_1 = 232;
    rtb_Highway_Display_Mode_3 = 41;
    if ((Rte_IRead_Lane_Changing_Assistant_Step_Rp_Highway_Input_Signal_DE_Highway_Input_Signal
         () == 1) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Enable_Display_DE_Enable_Display
         () == 0) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Input_Switch_DE_Input_Switch()
         == 1)) {
      rtDW.is_c3_Lane_Changing_Assistant = IN_Condition_2;
      rtb_Highway_Display_Mode_1 = 213;
      rtb_Highway_Display_Mode_3 = 9;
    }
  } else {
    /* case IN_Condition_2: */
    rtb_Highway_Display_Mode_1 = 213;
    rtb_Highway_Display_Mode_3 = 9;
    if ((Rte_IRead_Lane_Changing_Assistant_Step_Rp_Highway_Input_Signal_DE_Highway_Input_Signal
         () == 1) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Enable_Display_DE_Enable_Display
         () == 1) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Input_Switch_DE_Input_Switch()
         == 1)) {
      rtDW.is_c3_Lane_Changing_Assistant = IN_Condition_1;
      rtb_Highway_Display_Mode_1 = 232;
      rtb_Highway_Display_Mode_3 = 41;
    }
  }

  /* End of Chart: '<S3>/Chart' */

  /* Chart: '<S4>/Chart' incorporates:
   *  Inport: '<Root>/Enable_Display'
   *  Inport: '<Root>/Input_Switch'
   *  Inport: '<Root>/Lane_Input_Signal'
   */
  if (rtDW.is_active_c1_Lane_Changing_Assi == 0U) {
    rtDW.is_active_c1_Lane_Changing_Assi = 1U;
    rtDW.is_c1_Lane_Changing_Assistant = IN_Condition_1;
    rtb_Lane_Display_Mode_1 = 132;
    rtb_Lane_Display_Mode_2 = 185;
    rtb_Lane_Display_Mode_3 = 54;
    rtb_Lane_Display_Mode_4 = 67;
  } else if (rtDW.is_c1_Lane_Changing_Assistant == IN_Condition_1) {
    rtb_Lane_Display_Mode_1 = 132;
    rtb_Lane_Display_Mode_2 = 185;
    rtb_Lane_Display_Mode_3 = 54;
    rtb_Lane_Display_Mode_4 = 67;
    if ((Rte_IRead_Lane_Changing_Assistant_Step_Rp_Lane_Input_Signal_DE_Lane_Input_Signal
         () == 6) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Enable_Display_DE_Enable_Display
         () == 1) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Input_Switch_DE_Input_Switch()
         == 1)) {
      rtDW.is_c1_Lane_Changing_Assistant = IN_Condition_2;
      rtb_Lane_Display_Mode_1 = 127;
      rtb_Lane_Display_Mode_2 = 248;
      rtb_Lane_Display_Mode_3 = 186;
      rtb_Lane_Display_Mode_4 = 84;
    }
  } else {
    /* case IN_Condition_2: */
    rtb_Lane_Display_Mode_1 = 127;
    rtb_Lane_Display_Mode_2 = 248;
    rtb_Lane_Display_Mode_3 = 186;
    rtb_Lane_Display_Mode_4 = 84;
    if ((Rte_IRead_Lane_Changing_Assistant_Step_Rp_Lane_Input_Signal_DE_Lane_Input_Signal
         () == 6) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Enable_Display_DE_Enable_Display
         () == 0) &&
        (Rte_IRead_Lane_Changing_Assistant_Step_Rp_Input_Switch_DE_Input_Switch()
         == 1)) {
      rtDW.is_c1_Lane_Changing_Assistant = IN_Condition_1;
      rtb_Lane_Display_Mode_1 = 132;
      rtb_Lane_Display_Mode_2 = 185;
      rtb_Lane_Display_Mode_3 = 54;
      rtb_Lane_Display_Mode_4 = 67;
    }
  }

  /* End of Chart: '<S4>/Chart' */

  /* Switch: '<S2>/Switch' incorporates:
   *  Inport: '<Root>/Highway_Input_Signal'
   *  Switch: '<S2>/Switch1'
   *  Switch: '<S2>/Switch2'
   *  Switch: '<S2>/Switch3'
   */
  tmp_0 =
    Rte_IRead_Lane_Changing_Assistant_Step_Rp_Highway_Input_Signal_DE_Highway_Input_Signal
    ();
  if (tmp_0 > 0) {
    tmp = (uint8)rtb_Highway_Display_Mode_1;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_1;
  }

  /* End of Switch: '<S2>/Switch' */

  /* Outport: '<Root>/Display_Mode_1' */
  Rte_IWrite_Lane_Changing_Assistant_Step_Pp_Display_Mode_1_DE_Display_Mode_1
    (tmp);

  /* Switch: '<S2>/Switch1' */
  if (tmp_0 > 0) {
    tmp = 183U;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_2;
  }

  /* Outport: '<Root>/Display_Mode_2' */
  Rte_IWrite_Lane_Changing_Assistant_Step_Pp_Display_Mode_2_DE_Display_Mode_2
    (tmp);

  /* Switch: '<S2>/Switch2' */
  if (tmp_0 > 0) {
    tmp = (uint8)rtb_Highway_Display_Mode_3;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_3;
  }

  /* Outport: '<Root>/Display_Mode_3' */
  Rte_IWrite_Lane_Changing_Assistant_Step_Pp_Display_Mode_3_DE_Display_Mode_3
    (tmp);

  /* Switch: '<S2>/Switch3' */
  if (tmp_0 > 0) {
    tmp = 94U;
  } else {
    tmp = (uint8)rtb_Lane_Display_Mode_4;
  }

  /* Outport: '<Root>/Display_Mode_4' */
  Rte_IWrite_Lane_Changing_Assistant_Step_Pp_Display_Mode_4_DE_Display_Mode_4
    (tmp);
}

/* Model initialize function */
void Lane_Changing_Assistant_Init(void)
{
  /* (no initialization code required) */
}

/*
 * File trailer for generated code.
 *
 * [EOF]
 */

Results :

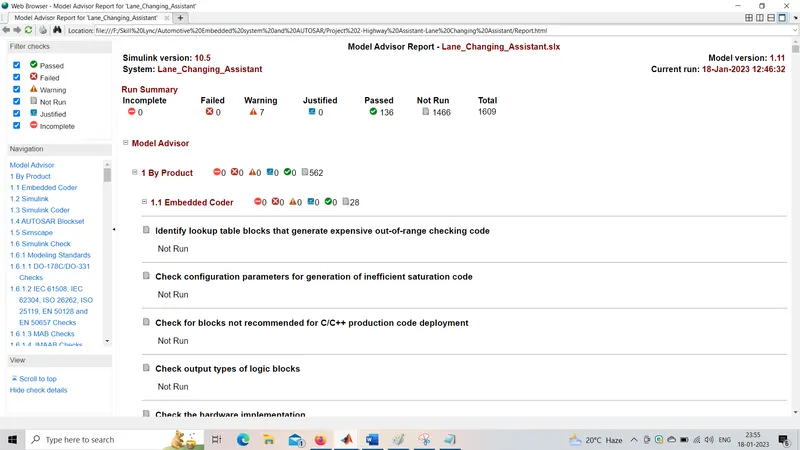

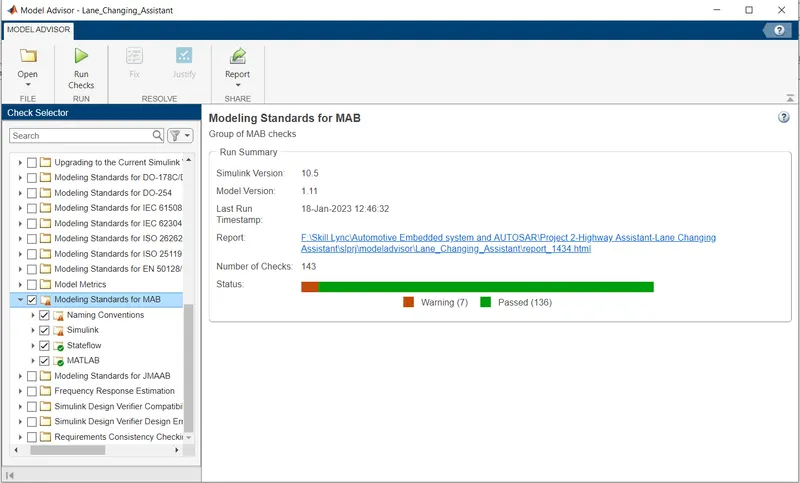

Model Advisor Report :

• Conclusion :

Developed a model of a Feature of Highway Assistant- Lane Changing Assistant As per MAB Guidelines, Produced Model Advisor Report as well as Generated Code Using AUTOSAR Coder.
