Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

Aim

• Design & Analysis of a Hostel building at Guwahati, Assam.
• We have to do the complete design of the struture using SAFE and ETABS software for both Foundation and and super struture design respectively.

Procedure :

Open the Etabs software

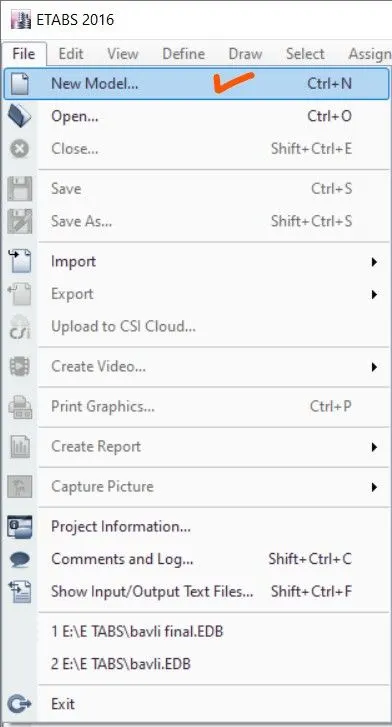

Click on the new model.

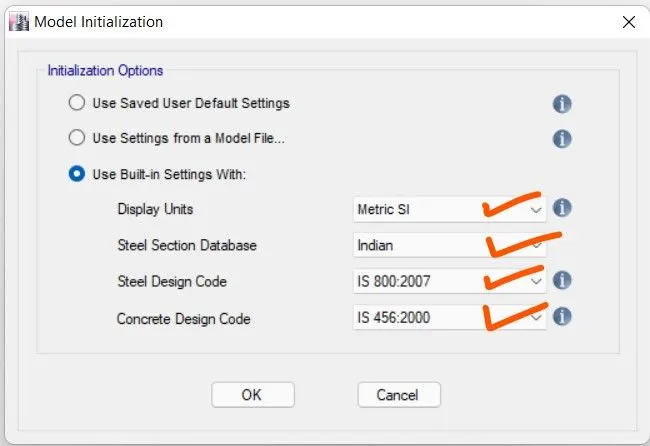

Set the Built up setting as the IS code provision and cilck OK

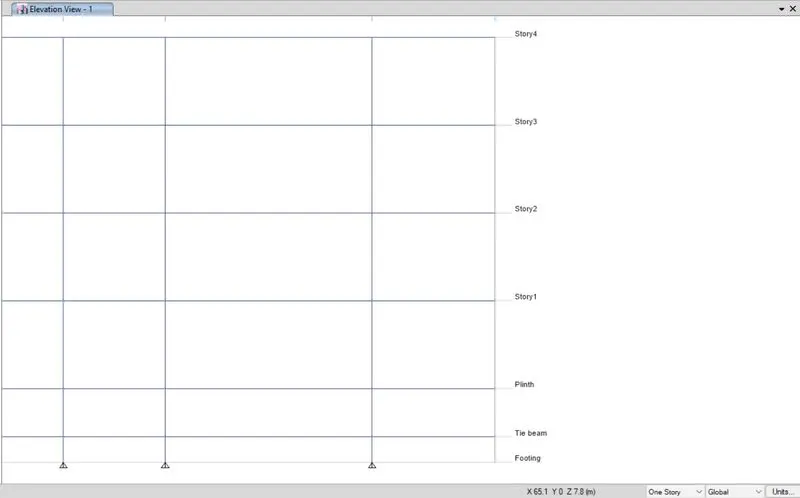

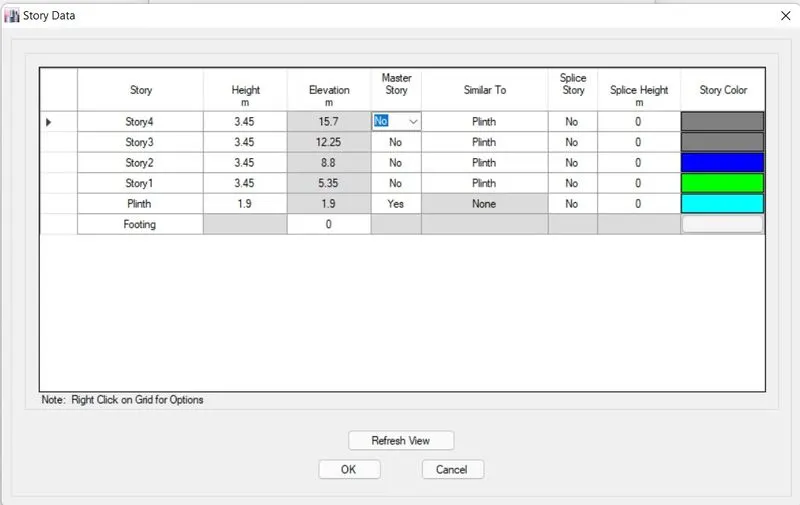

Set the storey setting as per architectre drawing previded in the given attachment and condition given.

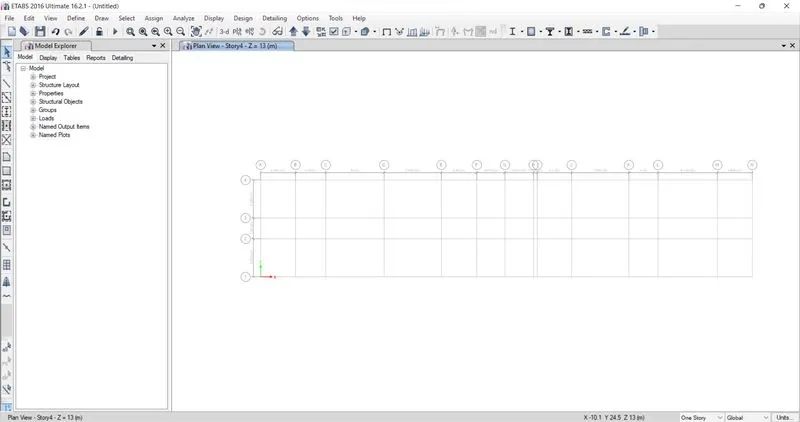

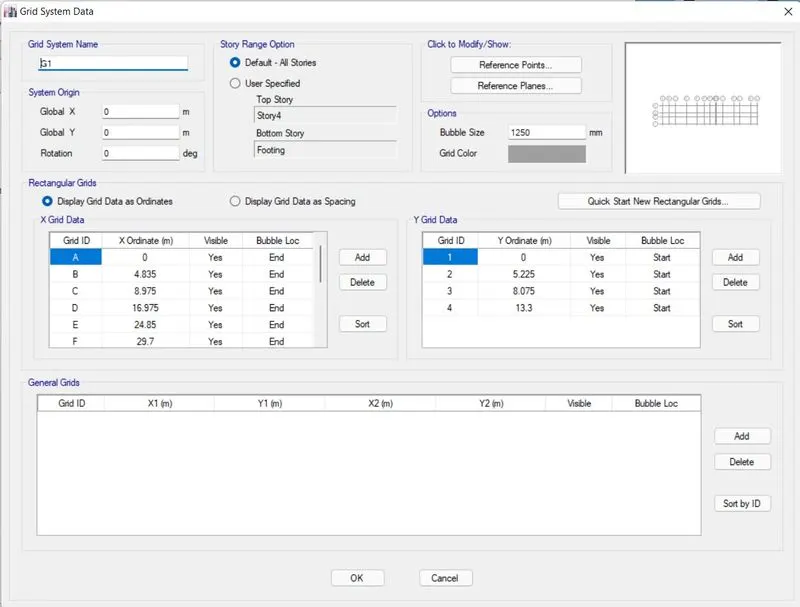

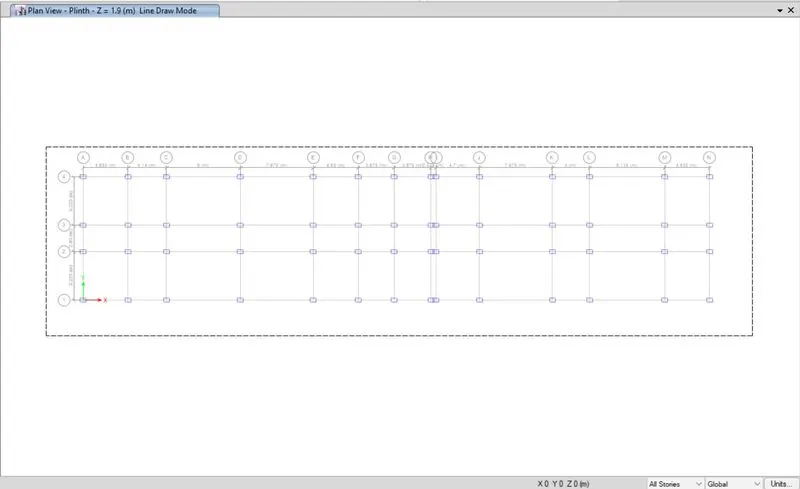

Set the grid setting as per same attachment file and spacing in it.

Final the grid is ready for the modelling pourpose

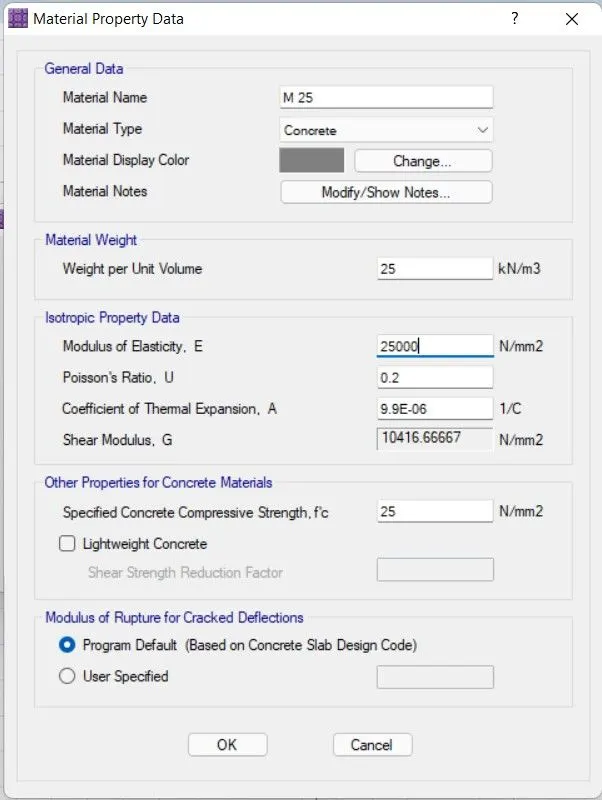

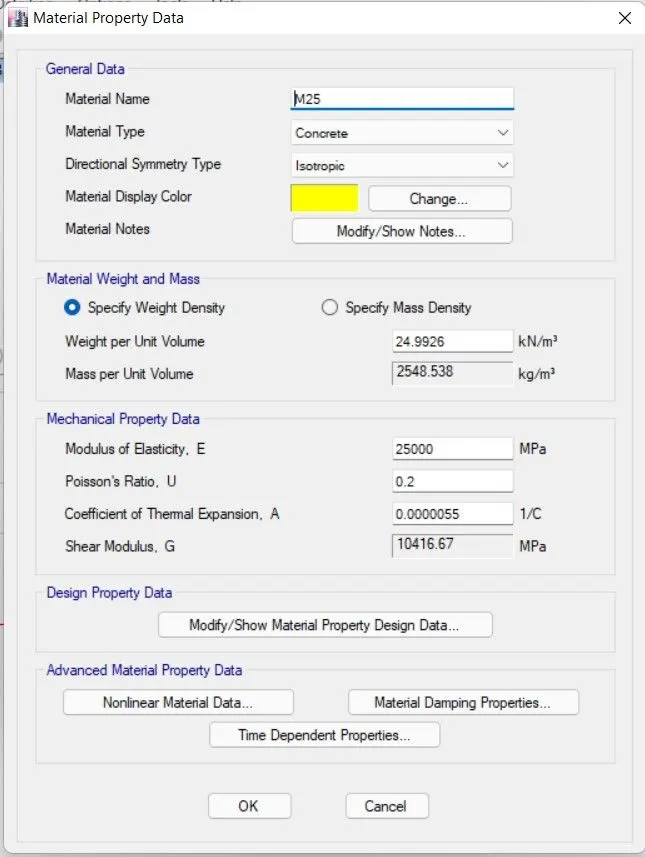

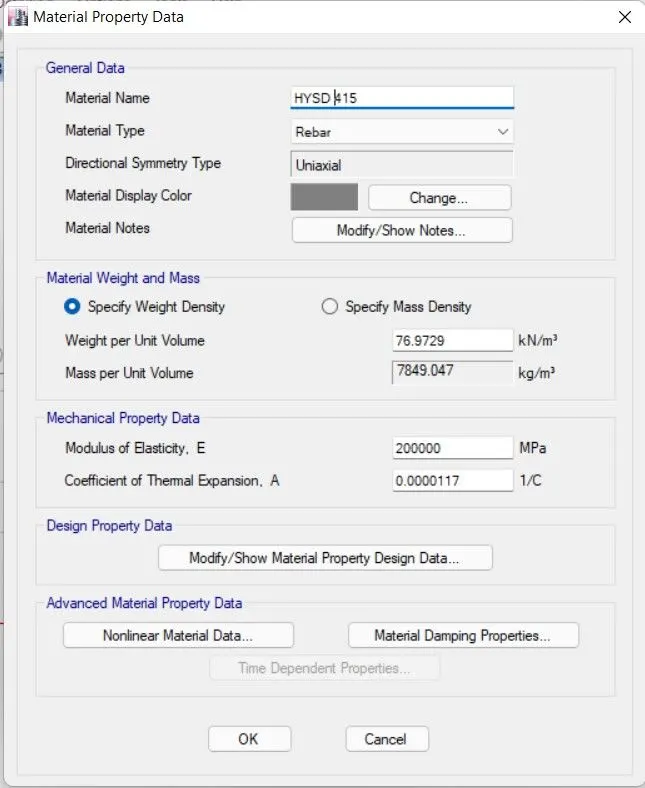

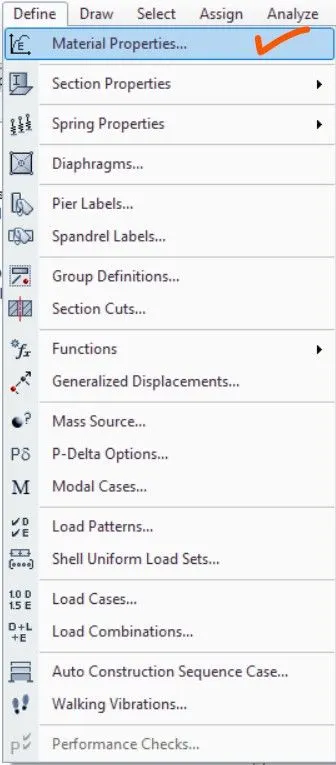

Now staring with the Defining the material of M25 grade concrete & Rebar material as Fe415 and Fe500.

Define the M25 material for the concrete the other valve given is auto generated as per code

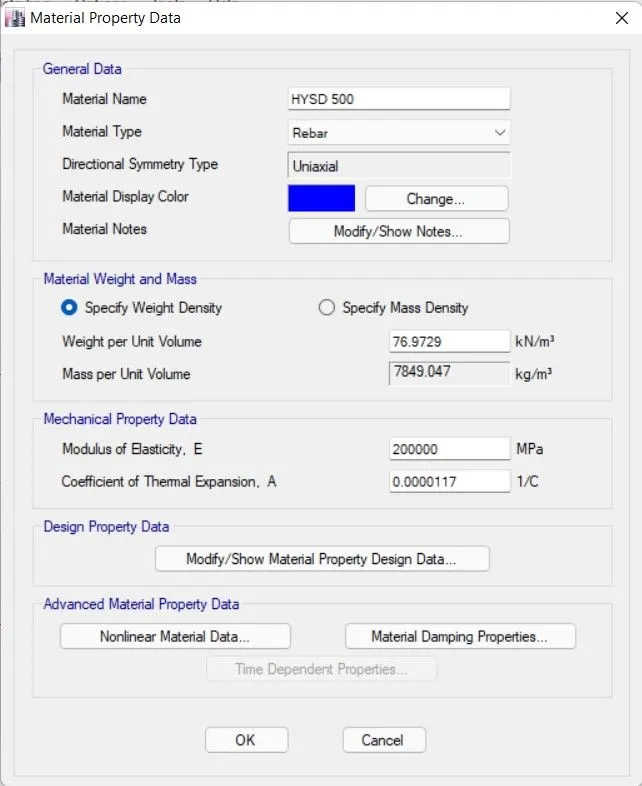

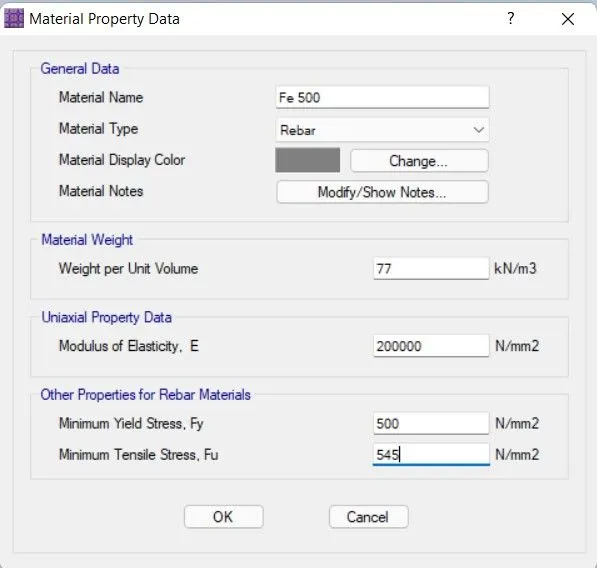

Same for the rebar material

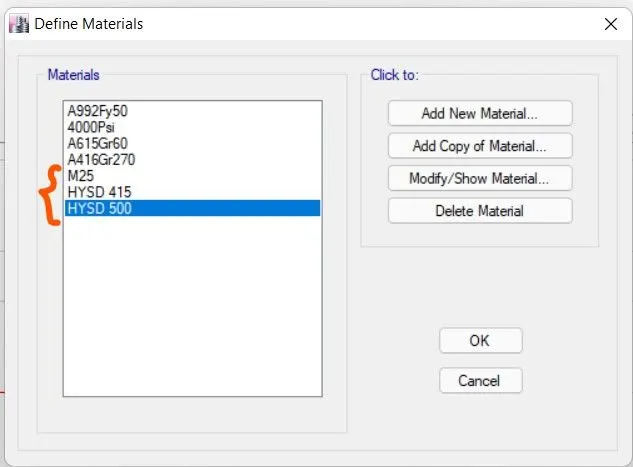

Define all the material needed

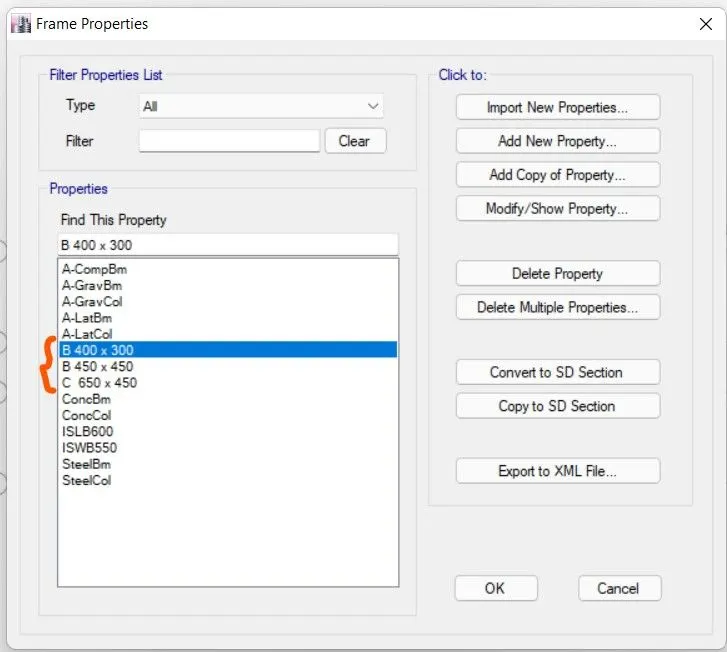

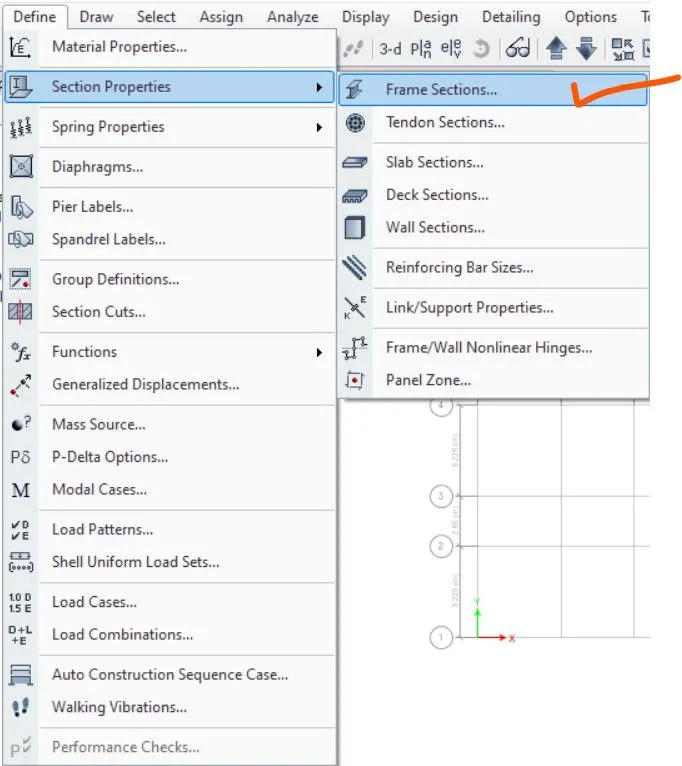

Now started defining the Frame section for column and beam section

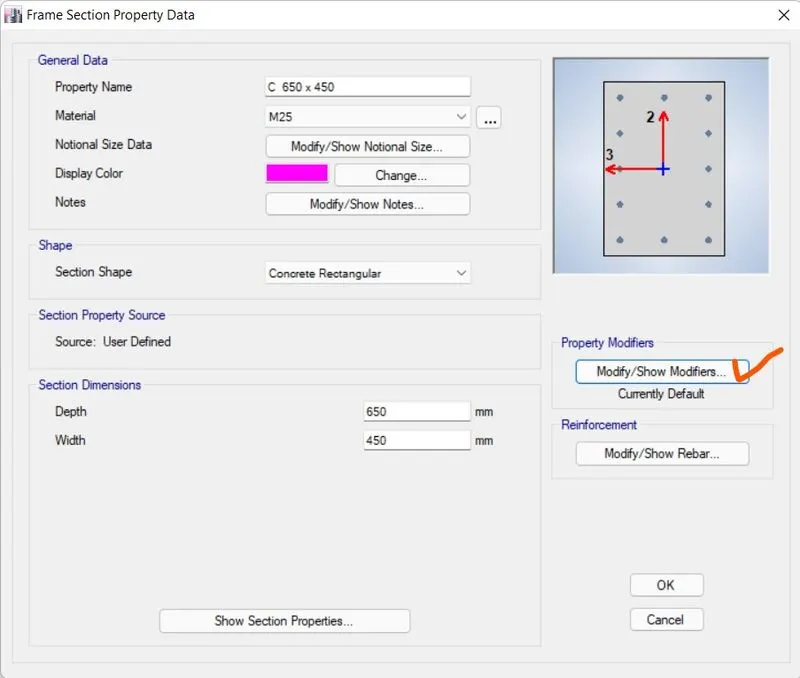

Column of 650x450 mm

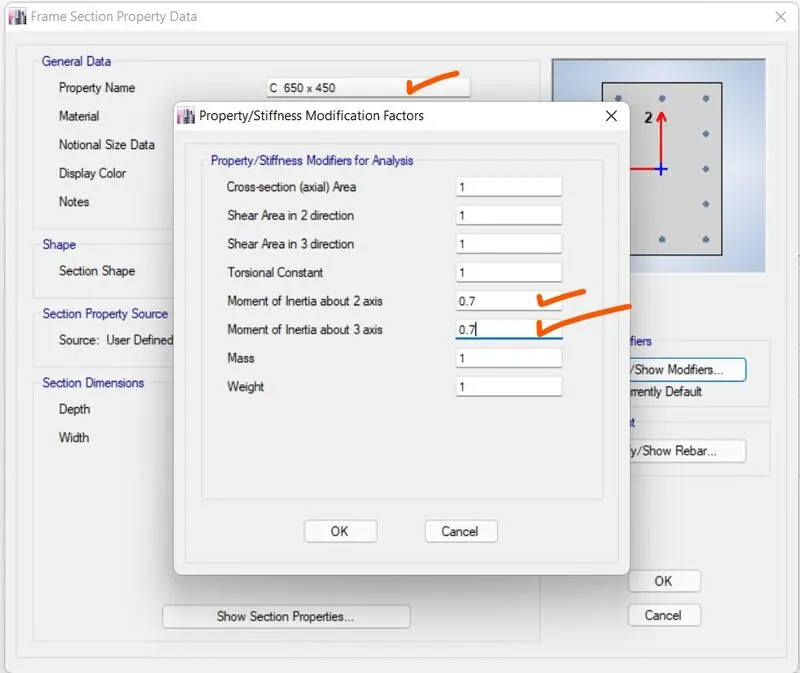

Taken 70% of the gross I for seismic design per IS 13920

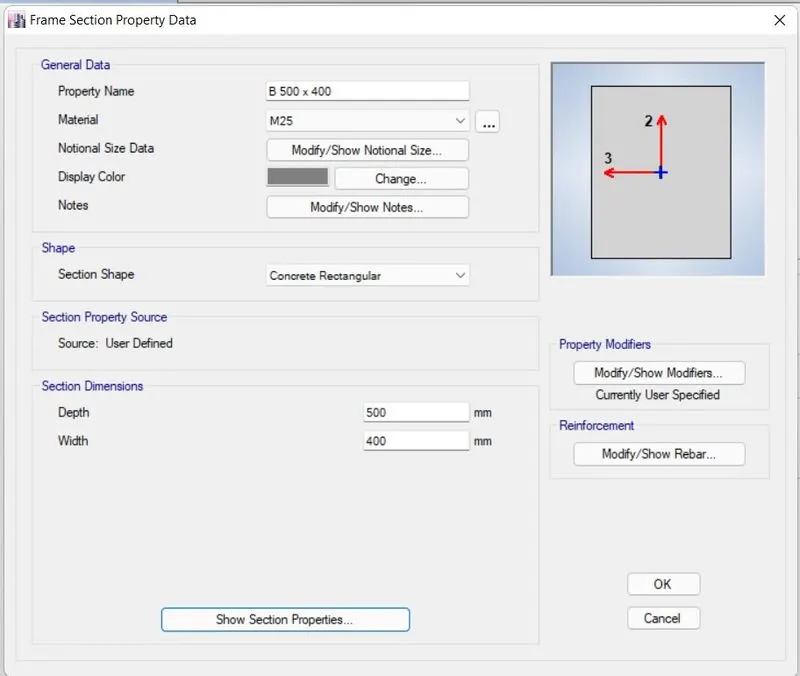

Beam 500x400 mm

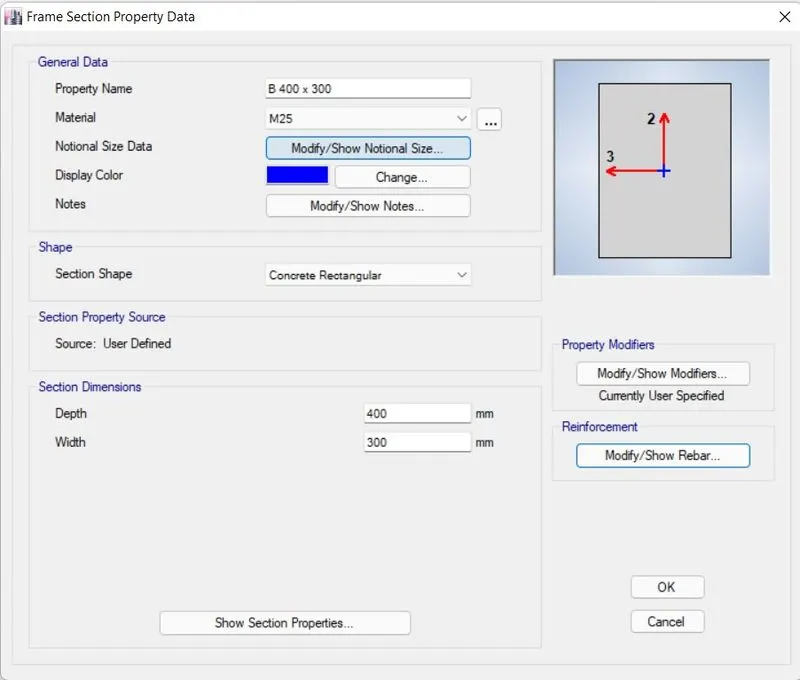

Beam 400x300 mm

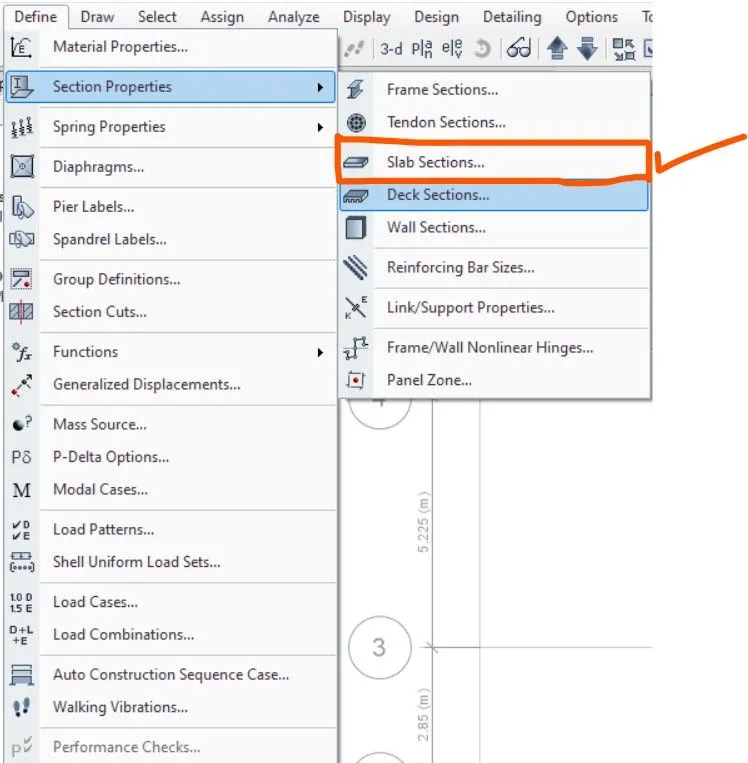

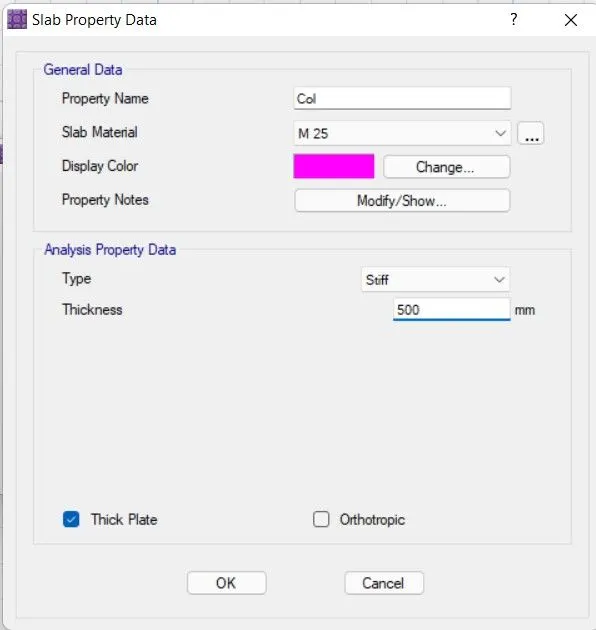

Now defining the slab property for Stairs and the floor diffrently

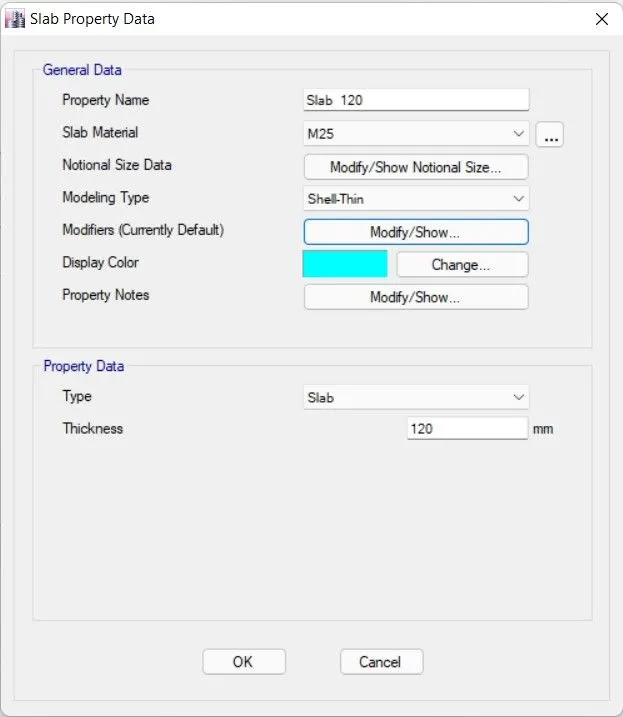

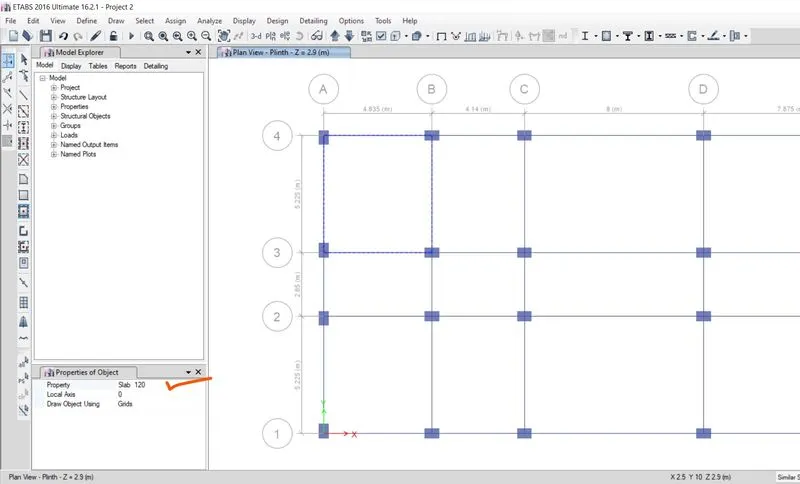

Slab of 120mm

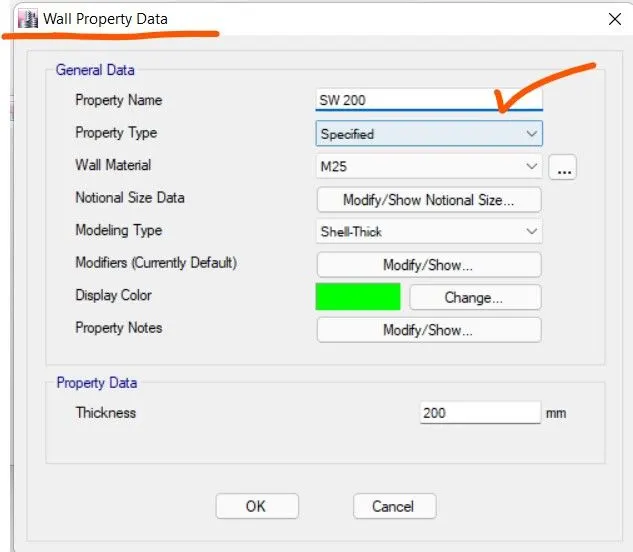

Shear wall of 200mm thickness

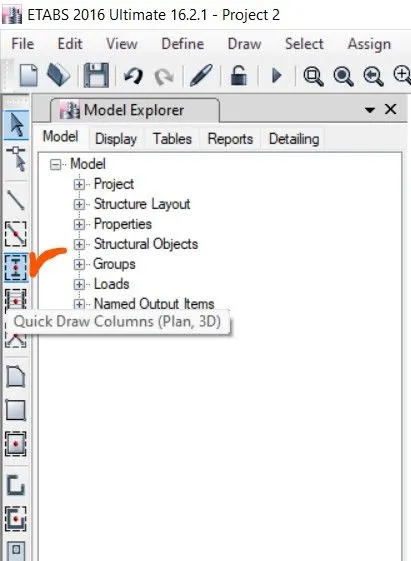

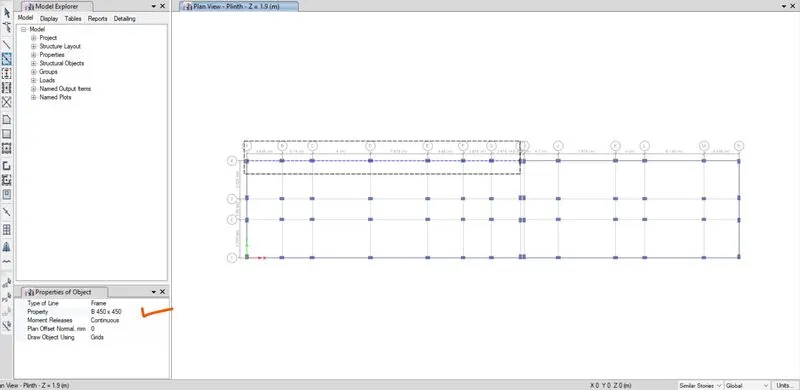

Now start placing the Col. and Beam in the given grid.

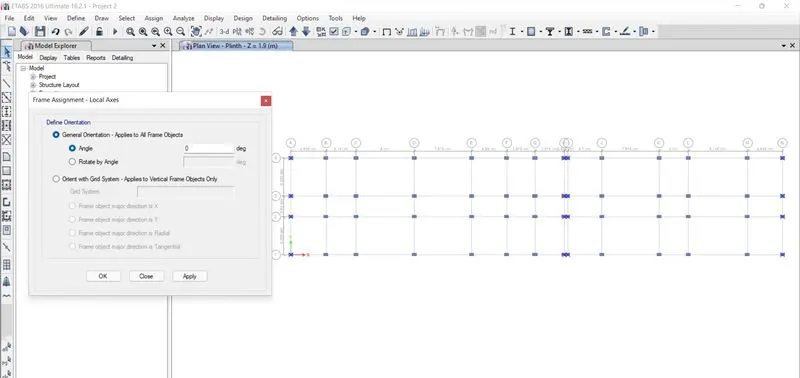

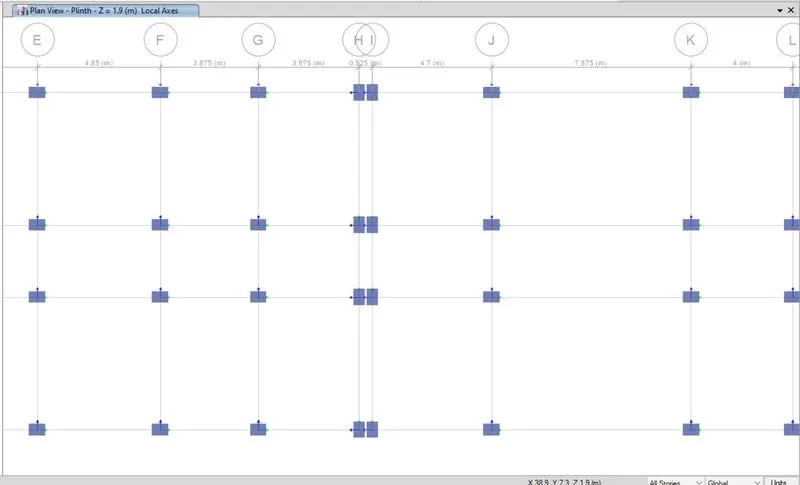

Changing the orientaion of thr col. from the local axis

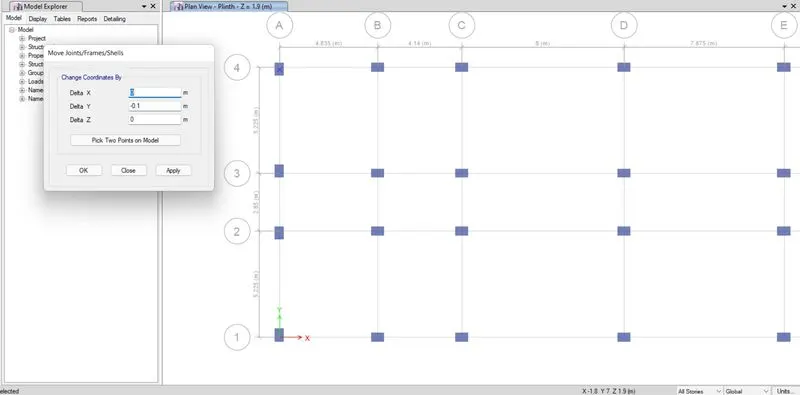

Move the col. slightly off axis so that to fit the wall thickness

Placing the beam

Placing the slab in the similar storey

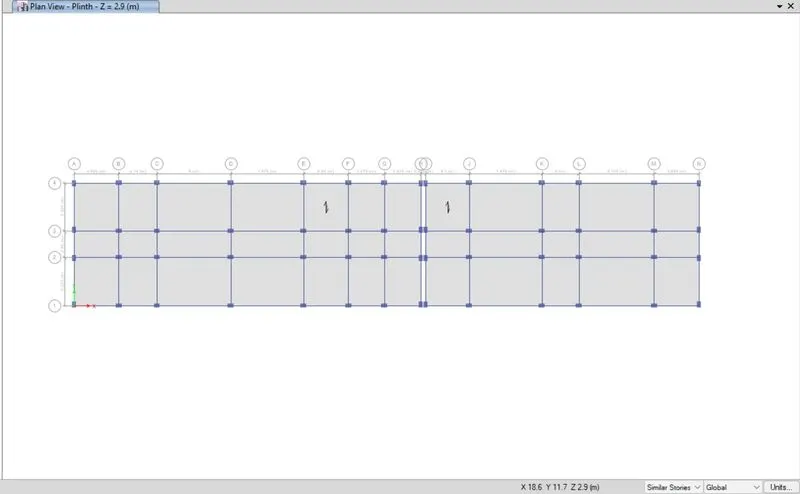

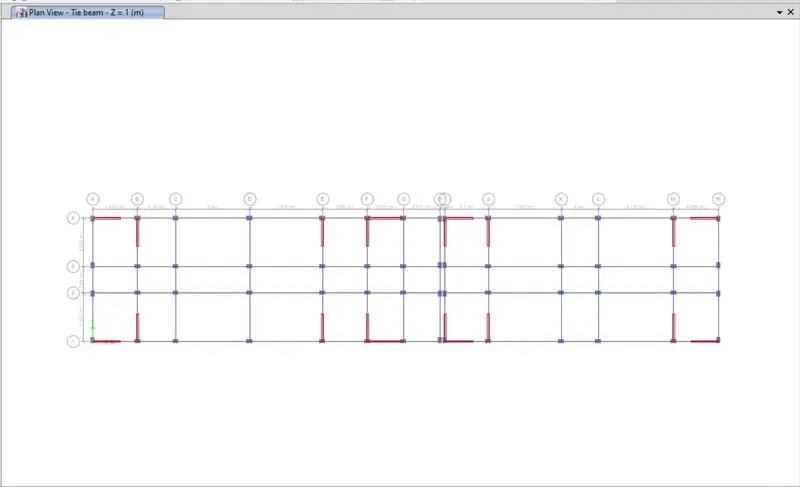

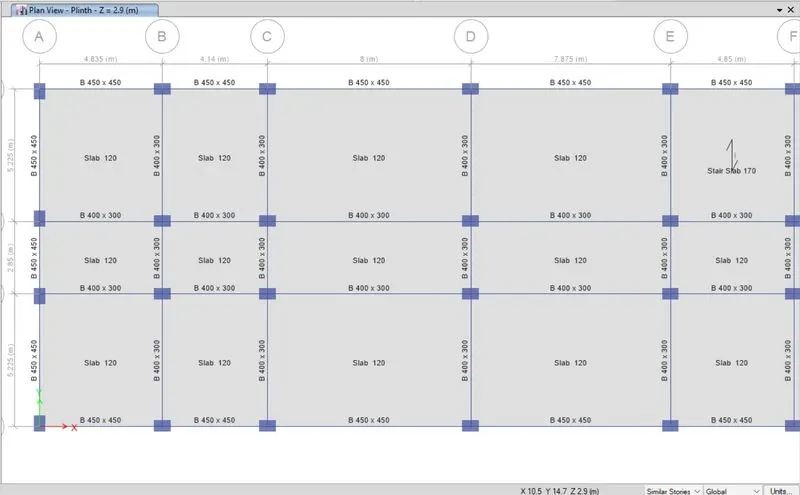

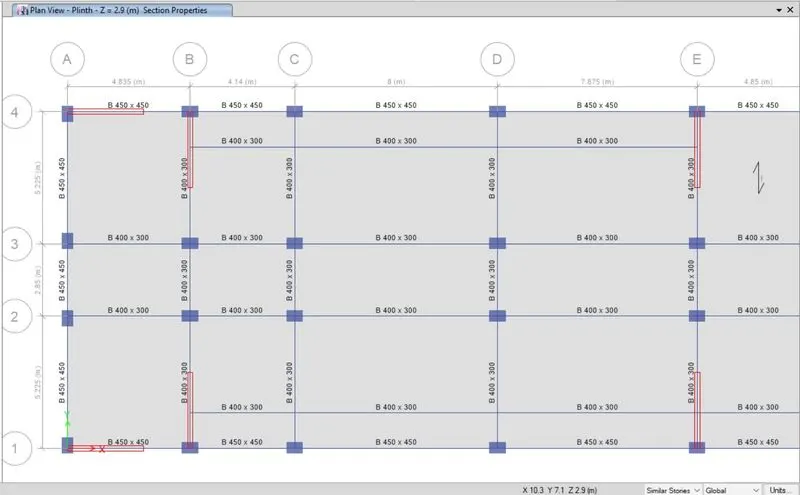

Final plan with lable

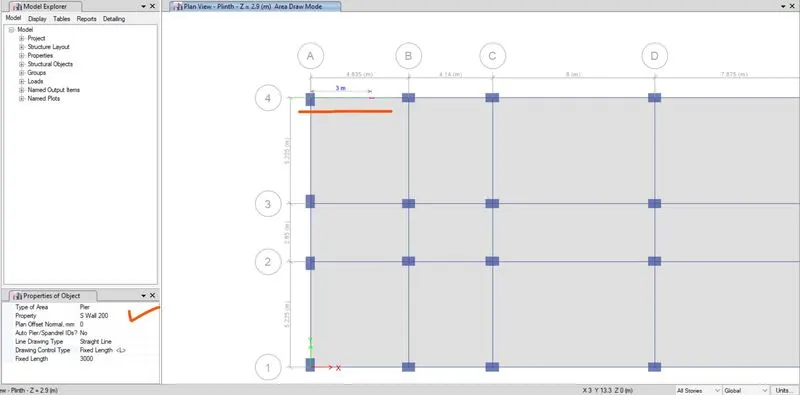

Assign the shear wall in the situable place

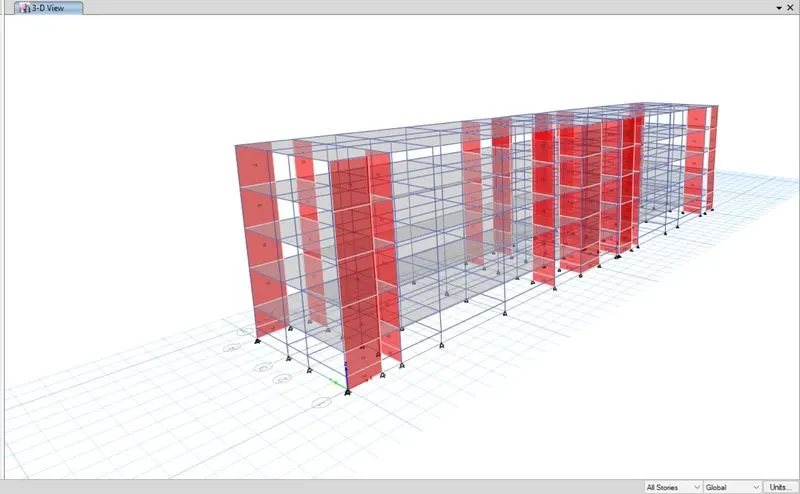

Placement of the Shear wall

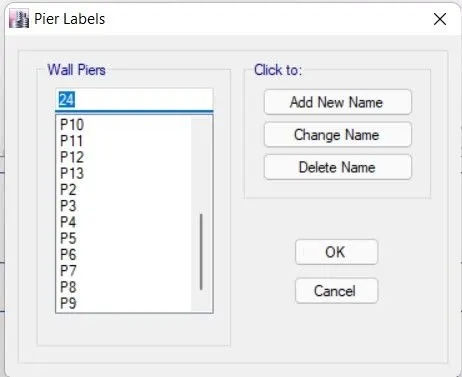

Assign the Shear wall the pier lable as P1 , P2....

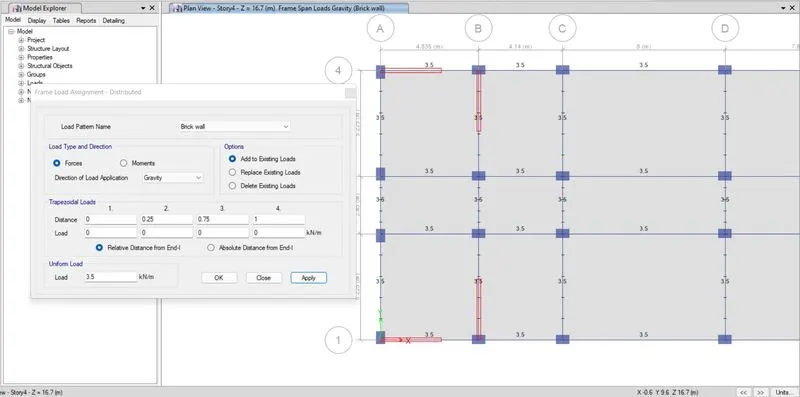

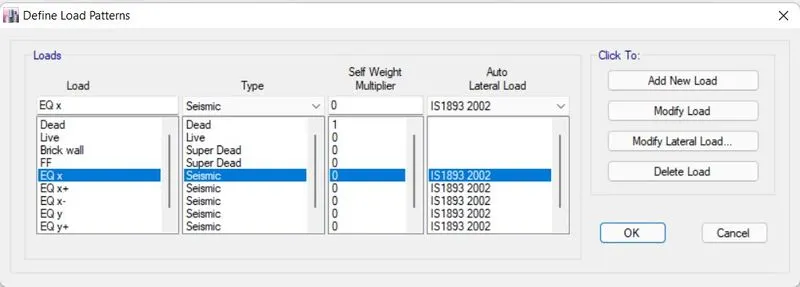

Now the Assign the load pattern for Dead, live EQ x , EQ y . Brick wall load, etc..

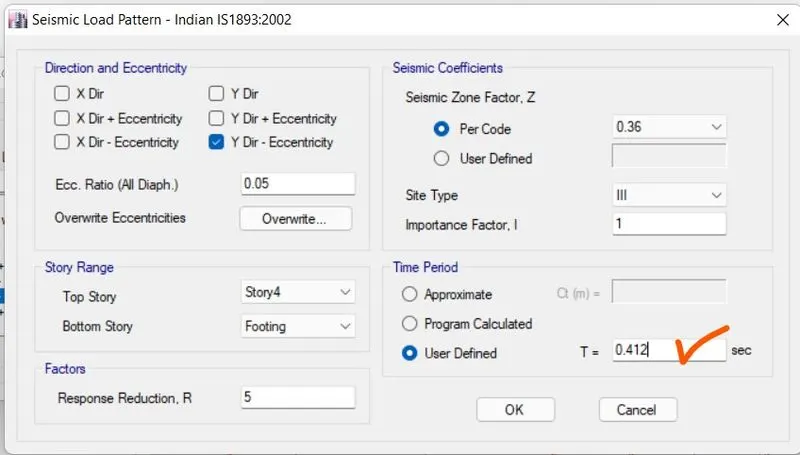

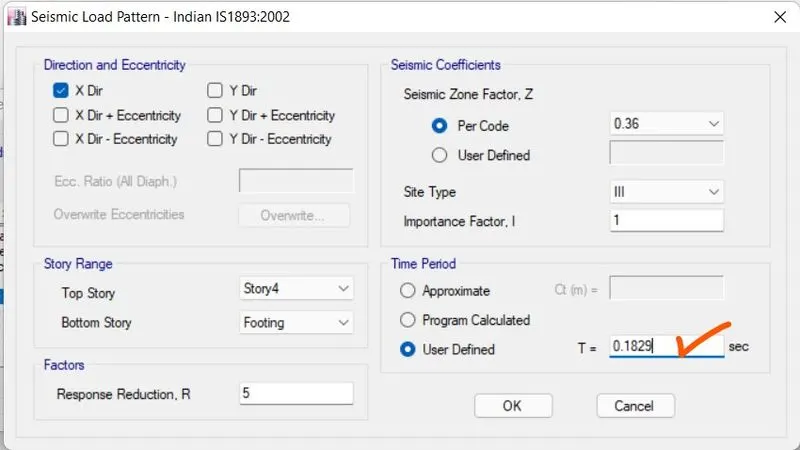

Calculation of the Tme period as per IS code

T = 0.09*H / sqrt (d)

EQ x direction

EQ y direction

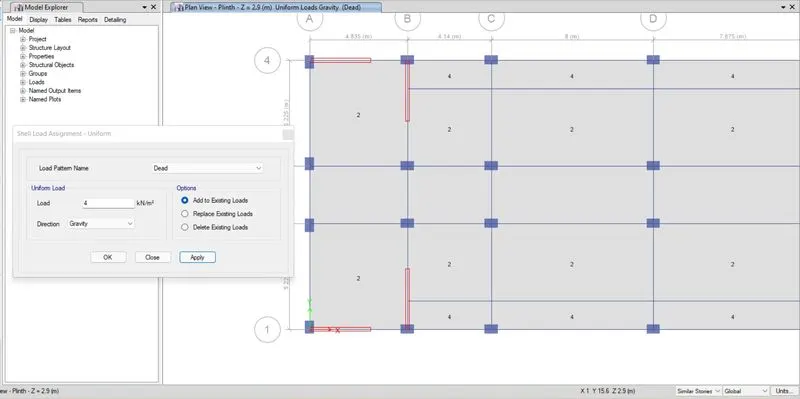

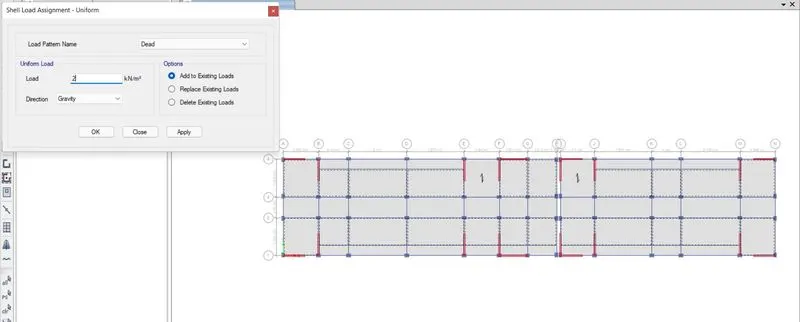

Assign the 2 kn/m2 Rooms and for the Others bed rooms as per IS code

4 kN/m2 for the Balcony

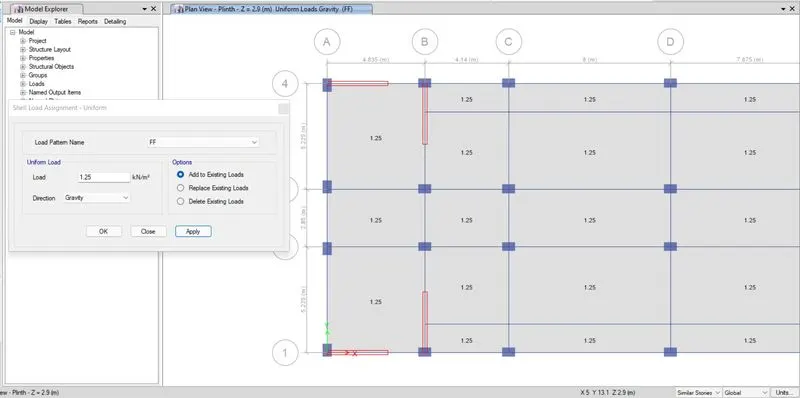

Floor Finishes as 1.25 to 1.5 KN/m2

For AAC blocks its 3.5KN/m2

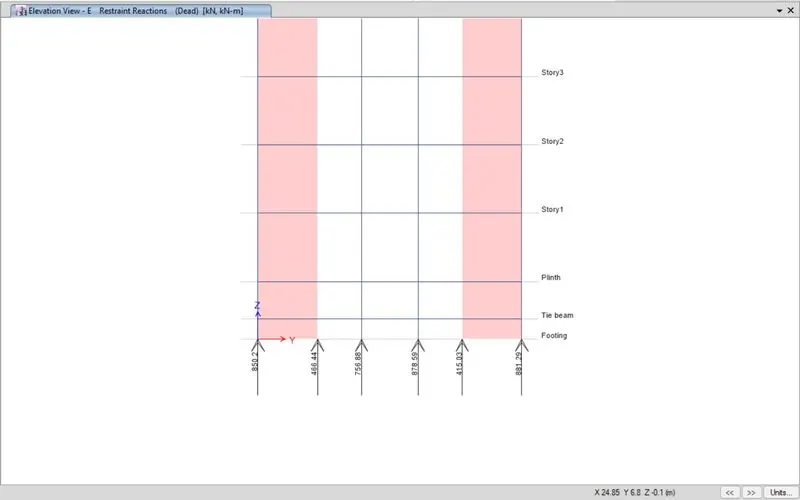

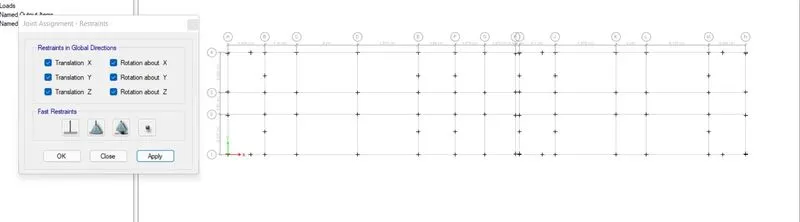

Assigning support at base

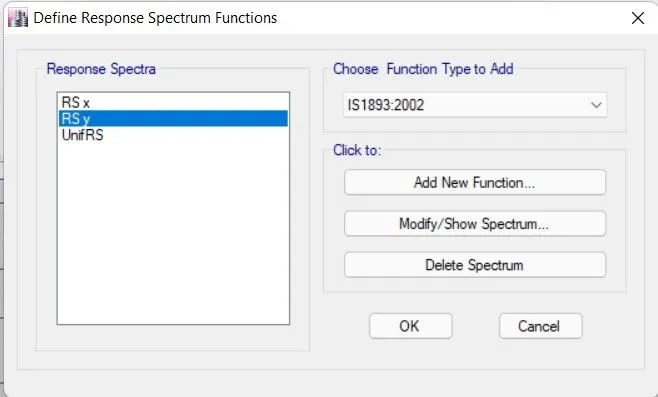

Define the Responce spectrum in X and Y direction

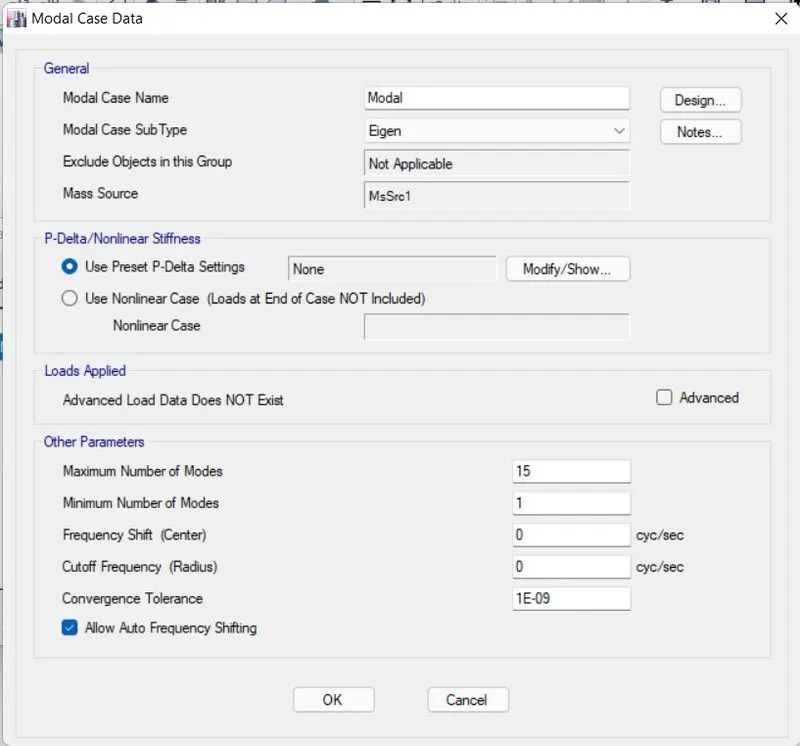

Modal mass

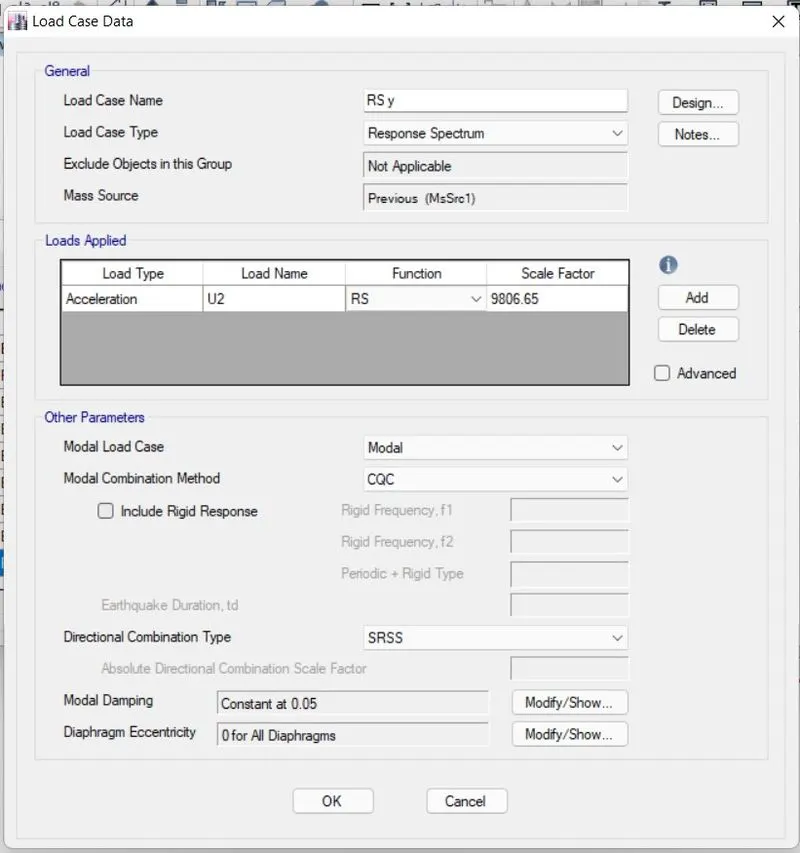

Load case data for RS in X & Y direction

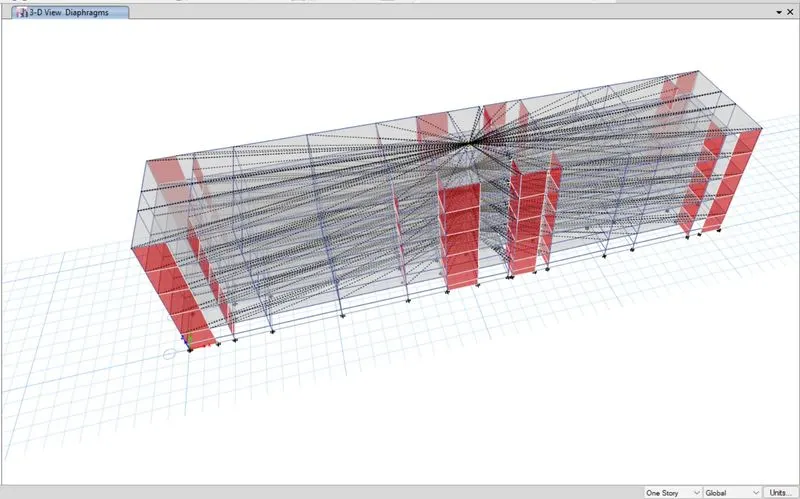

Assign thr Diaphram in all floors as rigid

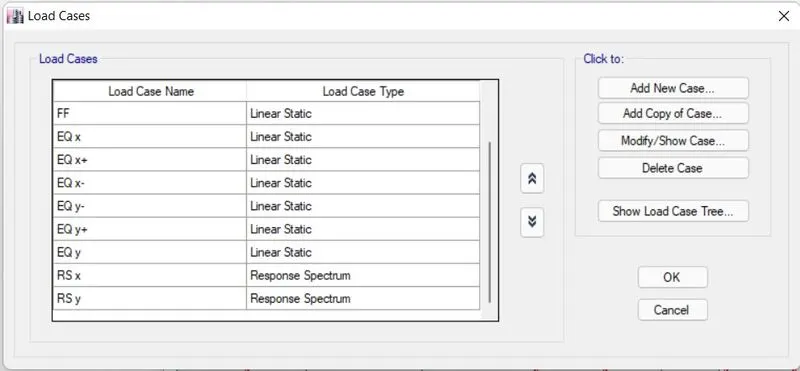

Load casses mention below to be Run during Analysis

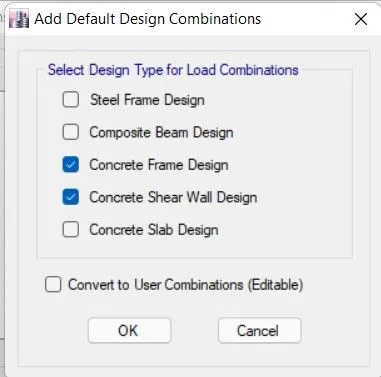

Add the default combination for frame and shear wall design

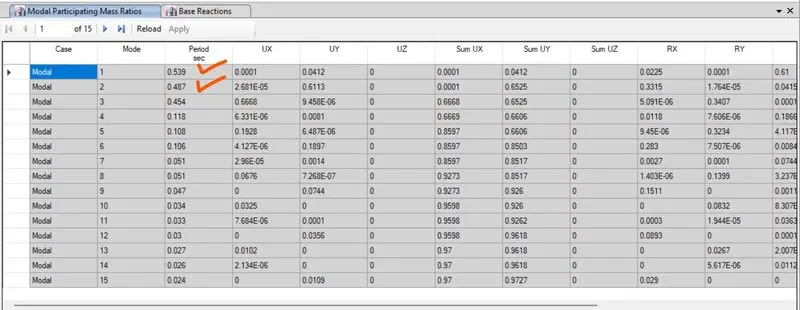

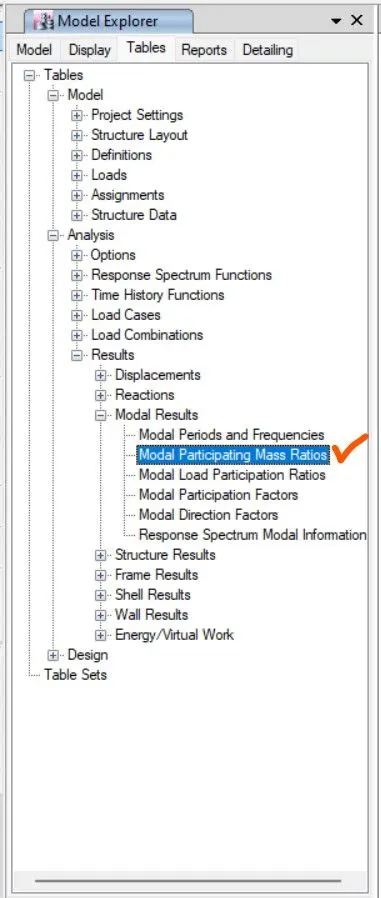

Table for modal mass participation ratio

Diffrence is min. 10% so its OK, per IS code.

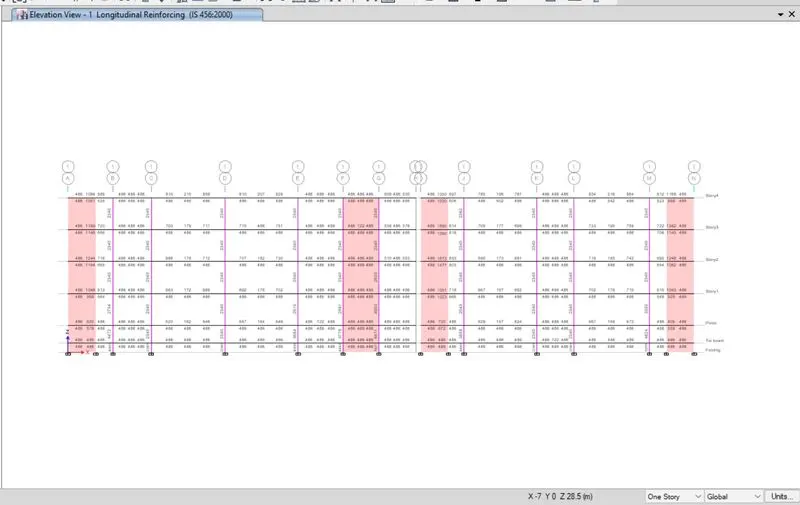

Longitudinal rein, bar value

Adjesting the scale factoe of the RS

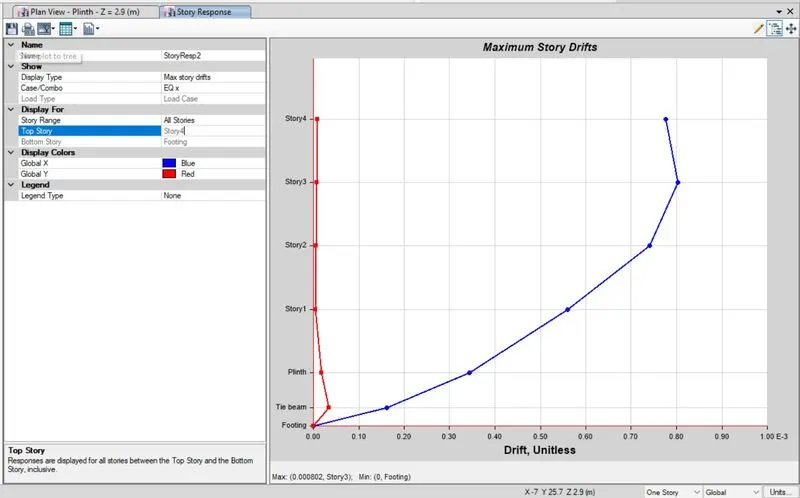

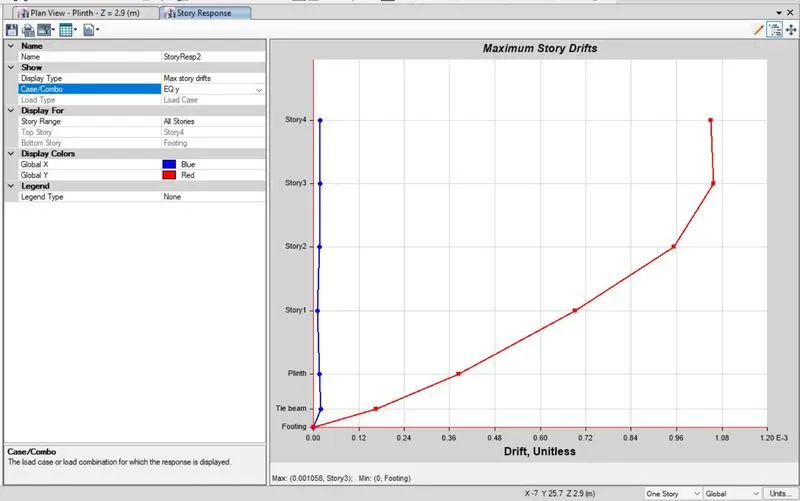

Storey Drift in < 0.004 hence OK Both X & Y direction

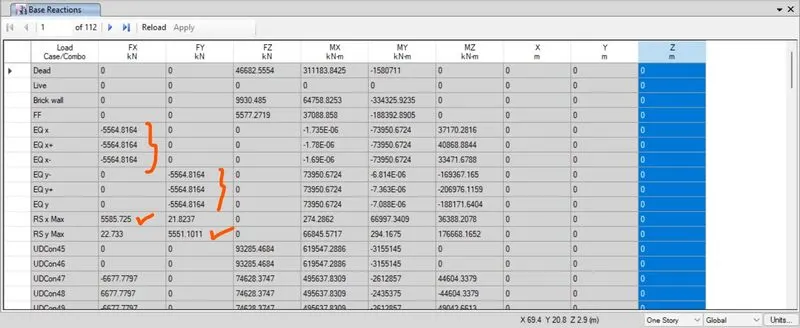

Base reaction and Shear wall capacity is under control and SW contributing 80% of the Base reaction

• Strutural framing plan of the First floor

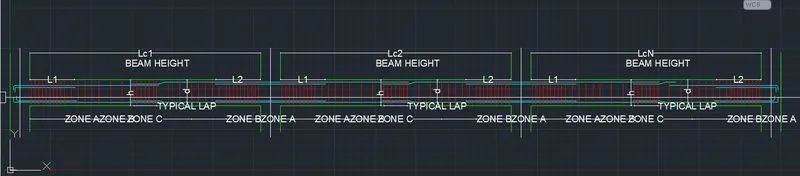

• Beam reinforcements for ground floor

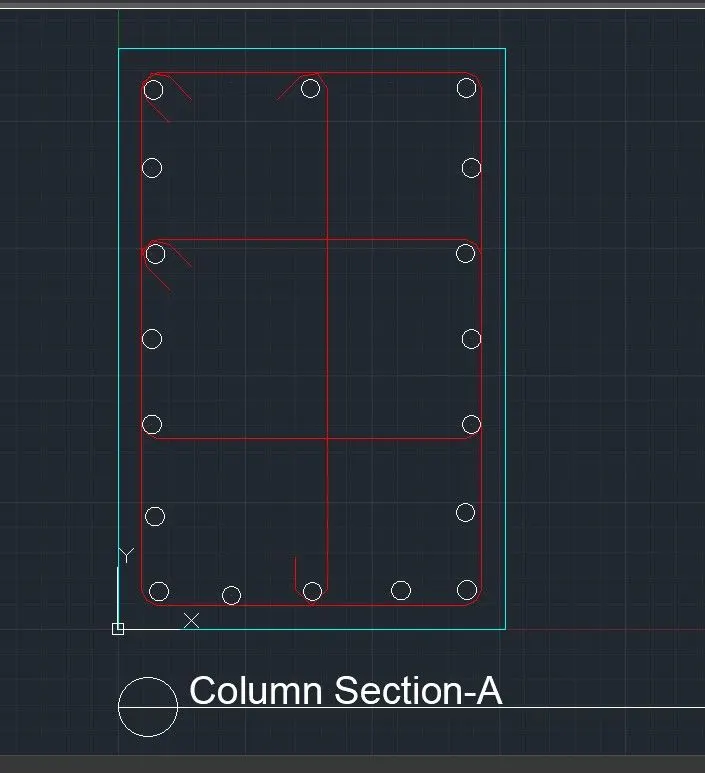

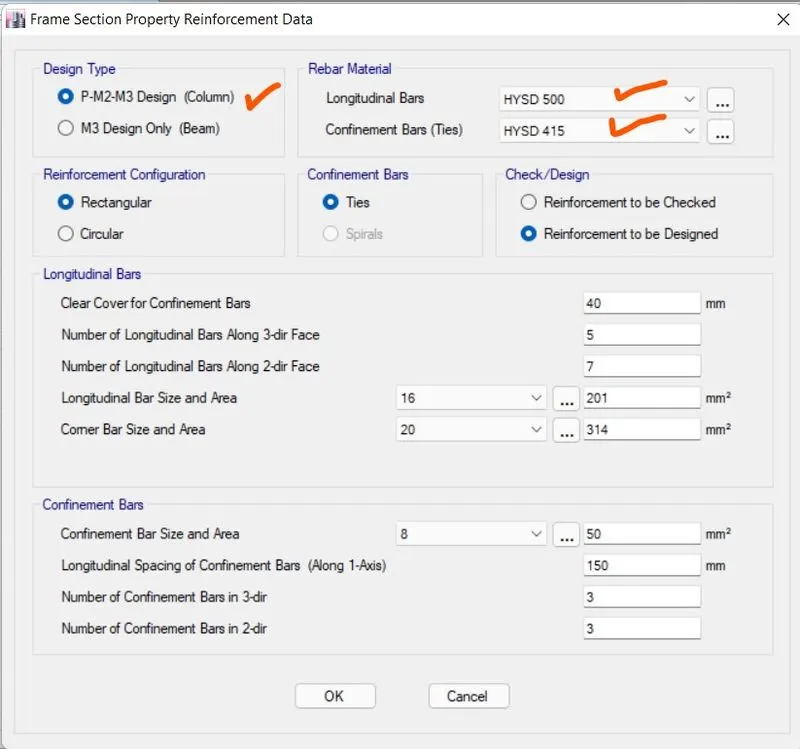

• Column reinforcement

• Exporting the File to the SAFE software

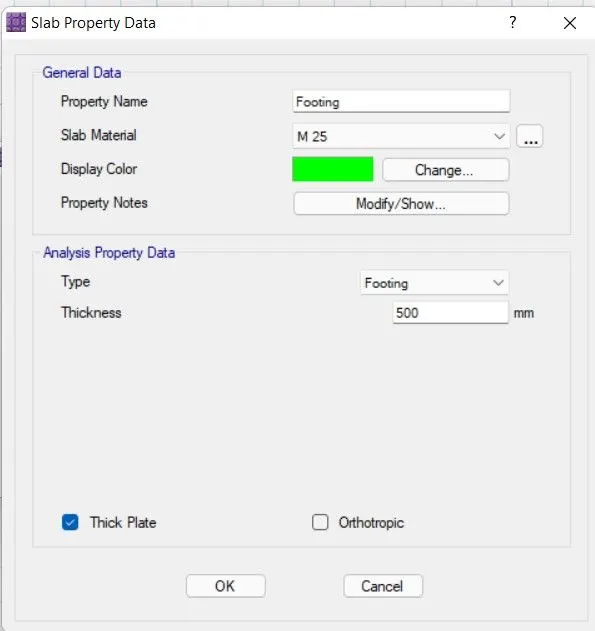

Define the material

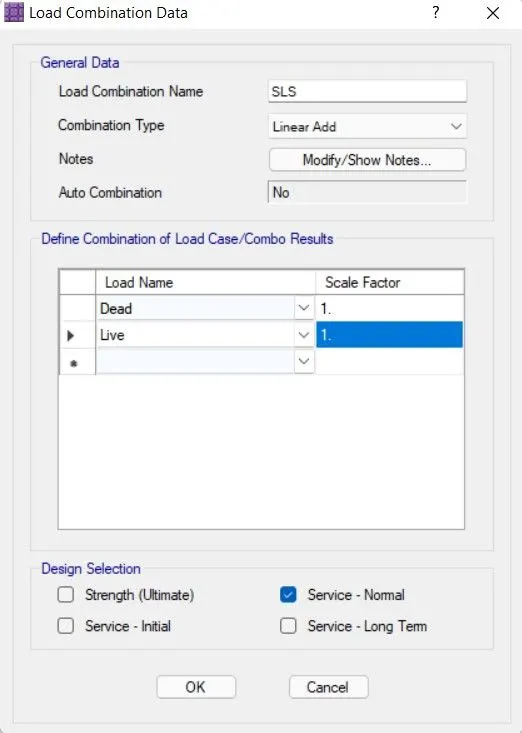

Load comb. for the Service state

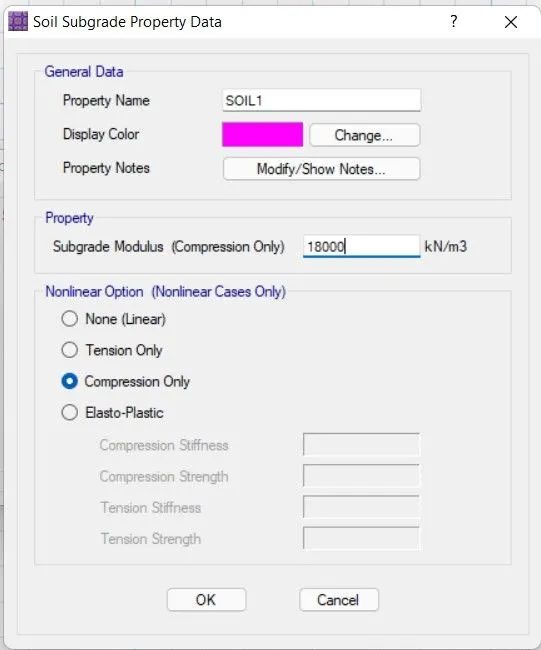

Soil subgrade

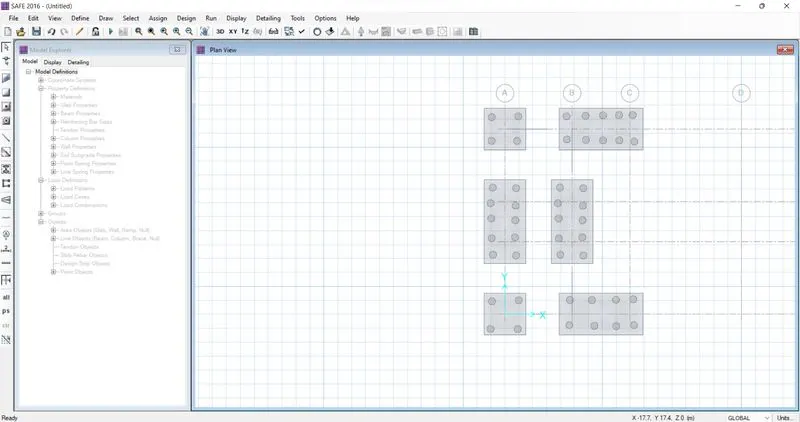

Pile Foundation plan

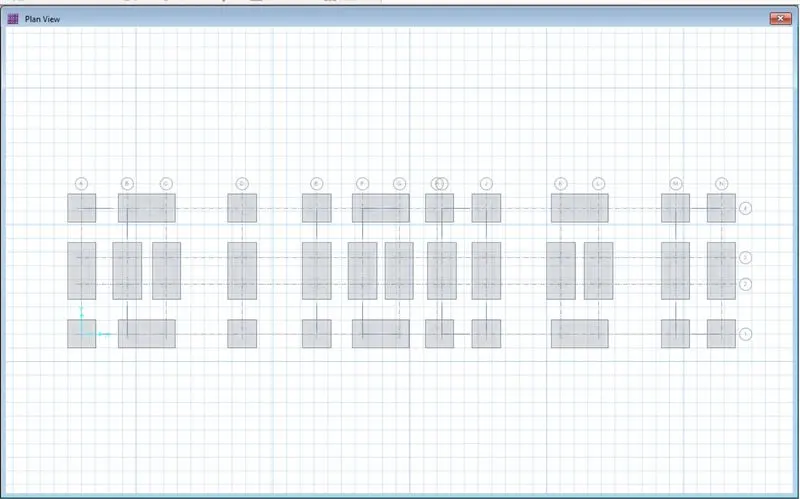

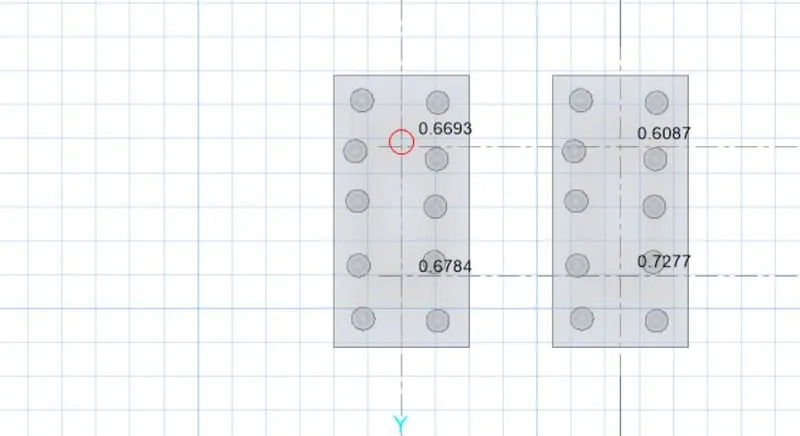

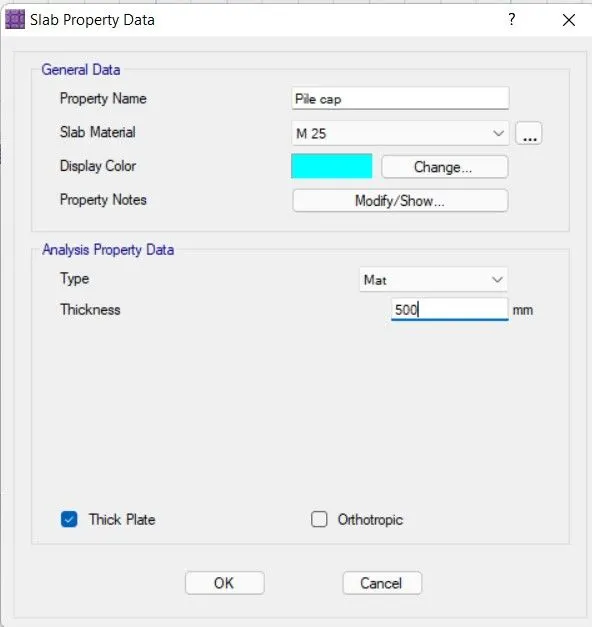

Assign the pile cap

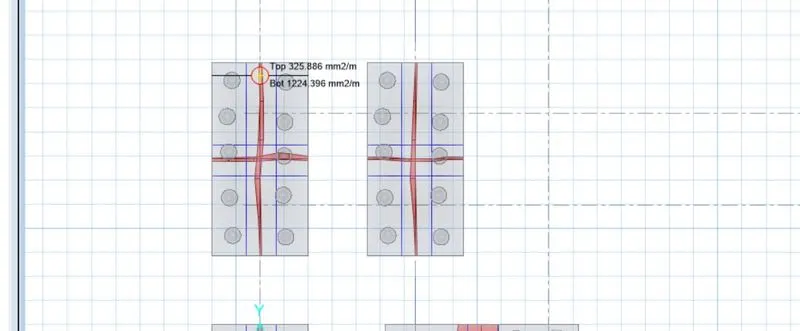

Reinforcement detail in top and bottom

Punching shear check OK

Result

Provided the following detailswith the refrence of the IS code :

• Etabs model for the two blocks on either side of the expansion gap
• Foundation details illustrating the pile & pile cap reinforcement
• Tie beam details connecting the pile caps

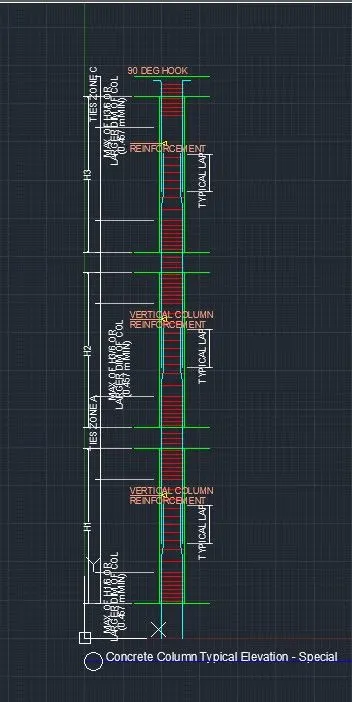

• Column reinforcement

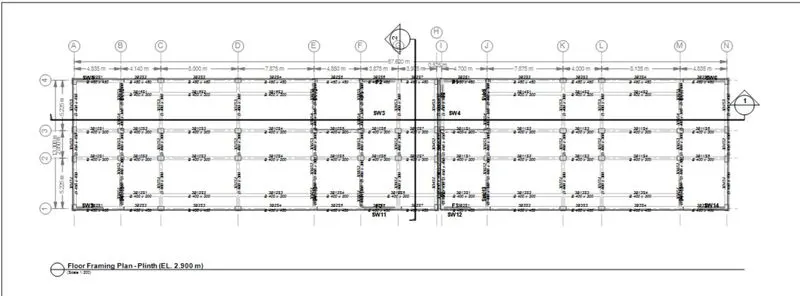

• Framing plan for typical floor
• Beam reinforcements for ground floor
