Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

1.Design & Analysis of a Hostel building at Guwahati, Assam

Procedure -

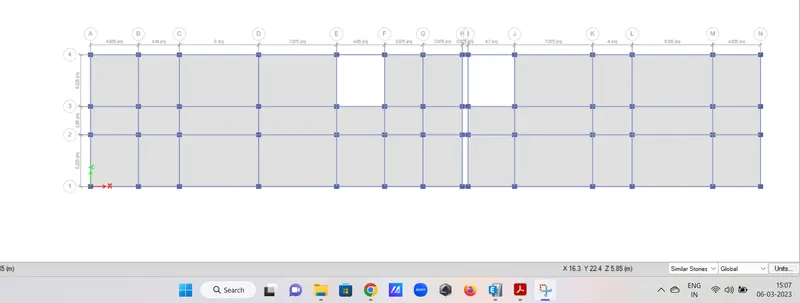

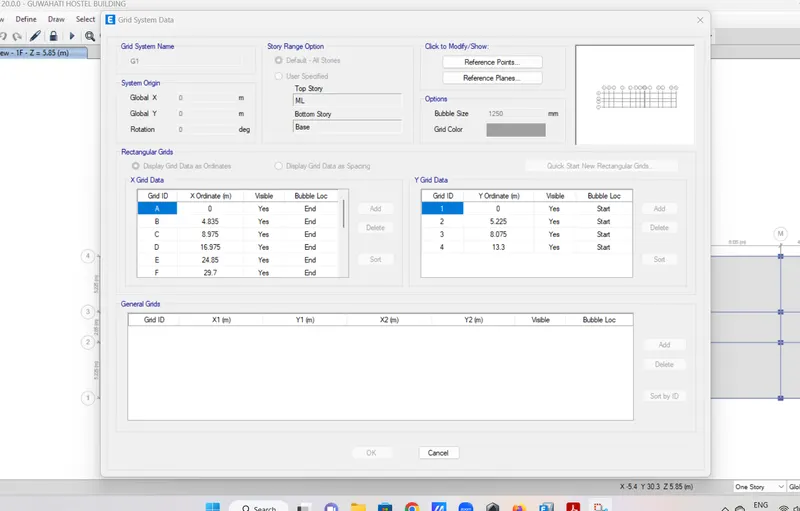

select a grid and draw plan according to the plan

then design column and beam and floor and add material to it

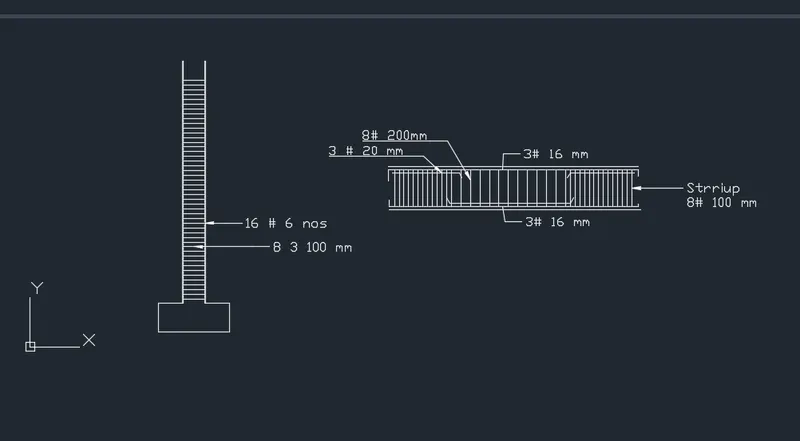

then run analysis and check the result

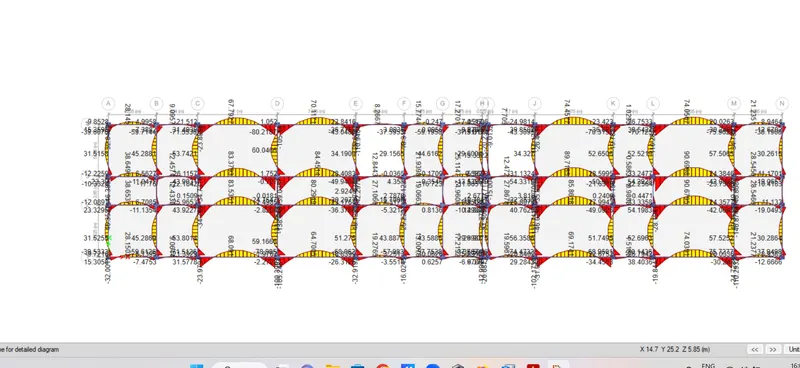

bending moment

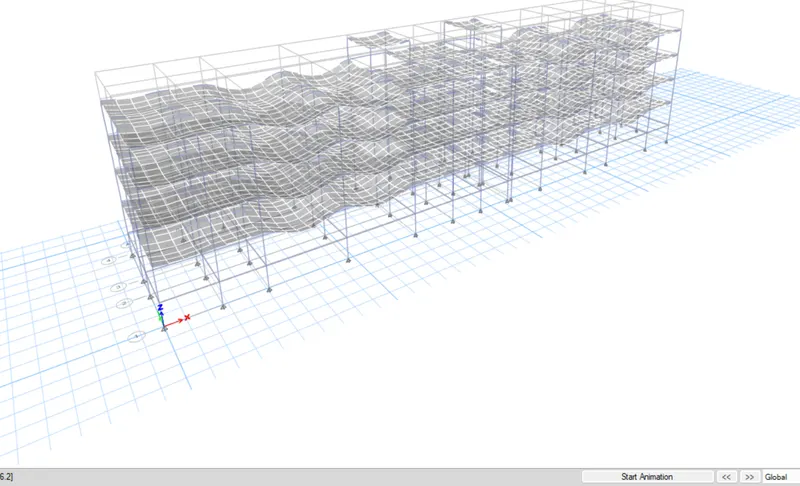

deformed shape

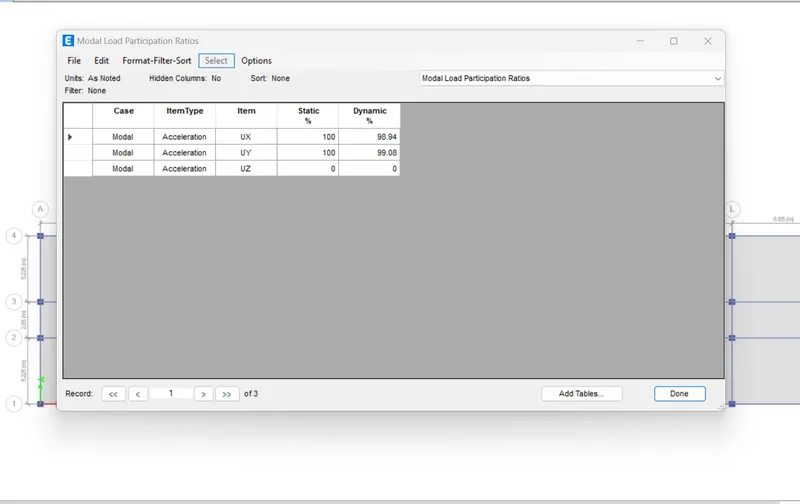

Modal load participating ratio

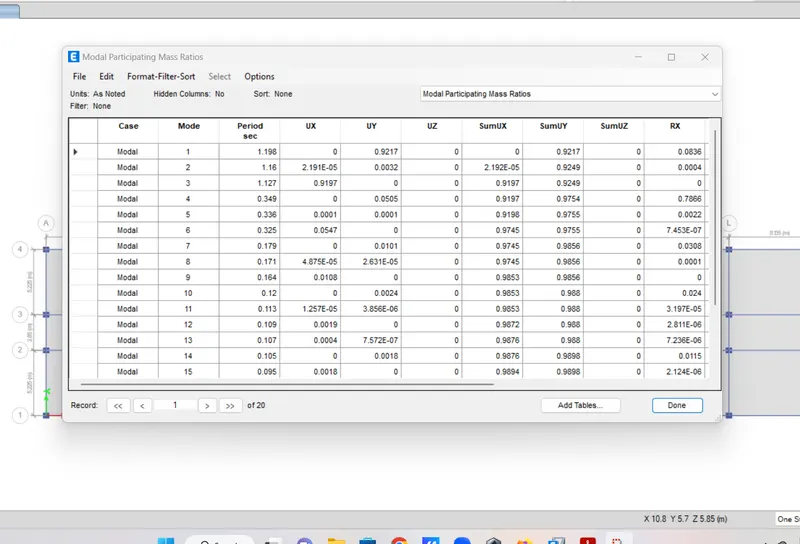

Modal participating mass ratio

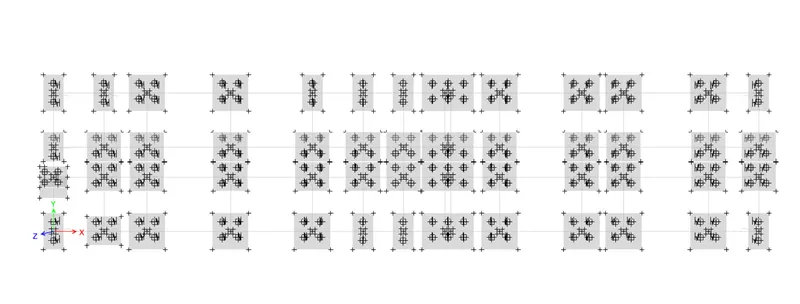

Pile Foundation

Typical beam layout
