Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

Aim

To create the ETABS model for the two blocks and then to create the coloumn and beam details for the two blocks in the structure

Procedure

Pinned Support Base + 5 Storey (Plinth to Roof ) + 1 Mumty

Coloumn 450mm * 650 mm, Beam 400 mm * 500 mm , Slab 150 mm thick , No shear wall necessary

Floor live load 2 kN/m^2

Terrace live load 1 kN/m^2

Floor finish + Ceiling finish 1 kN/m^2

Partition wall load 3.5 kN/m

Balcony wall load 1 kN/m

Guwahati seisimic Zone- V

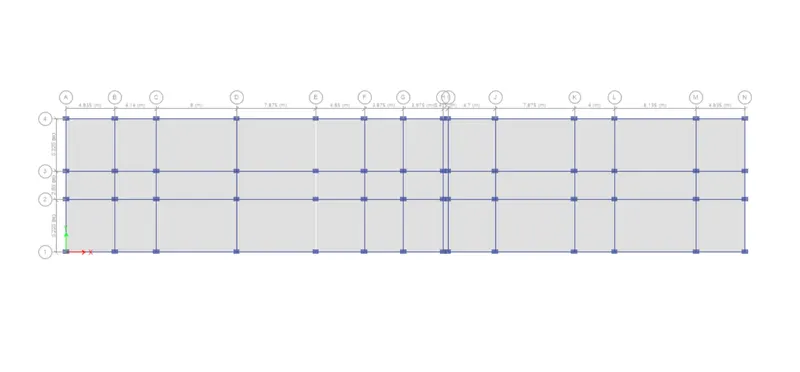

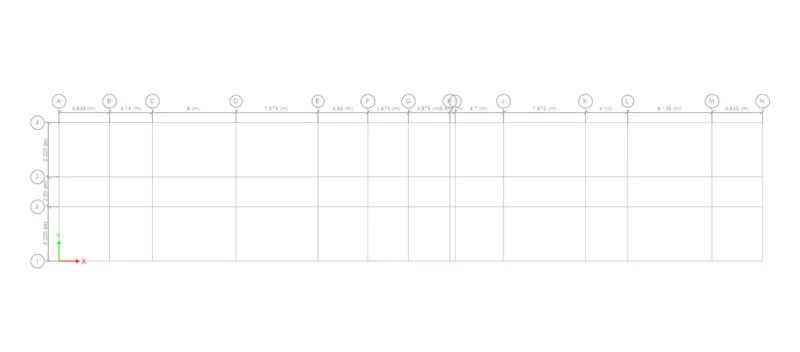

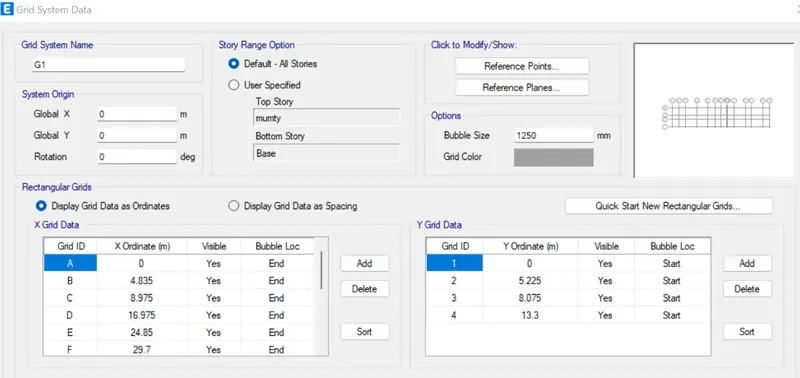

To create the ETABS model by using the following plan diagram we have to create the grid view in the ETABS

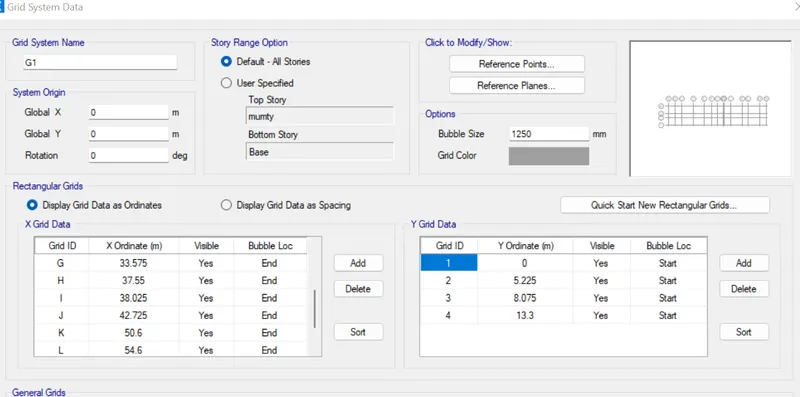

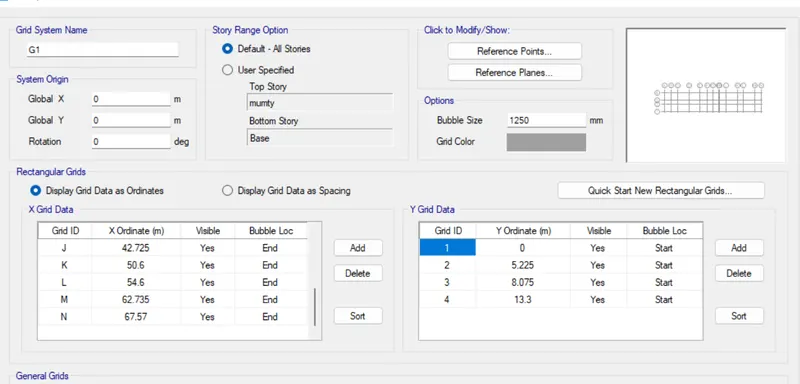

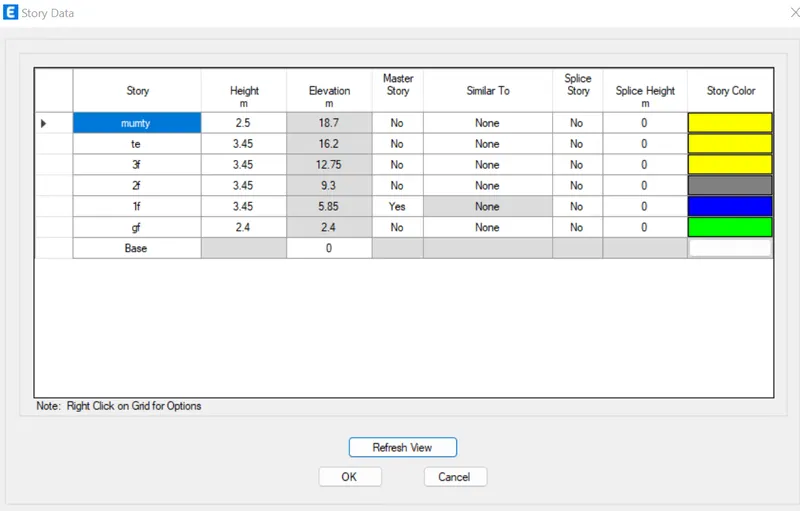

After the creation of the GRID we have to create the storey height and then we have to create the X & Y Coordinate in the ETABS

After the creation we have to define the load combination and then load pattern details in the ETABS

To create the material propety in the ETABS

To create the frame sections in the ETABS and then to create the beam and coloumn size in the frame section

After the creation of beam and coloumn size we have to assign the slab thickness

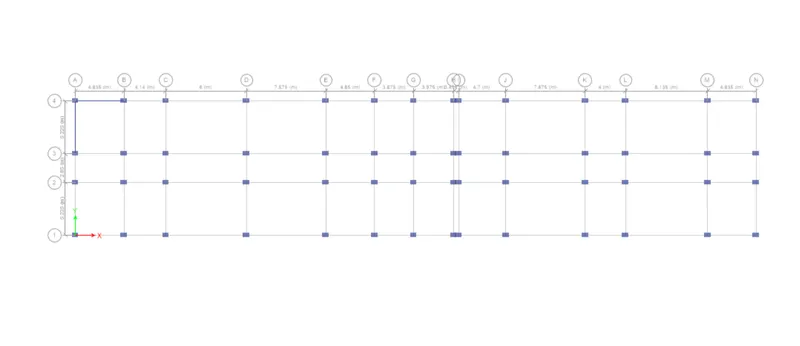

Creation of coloumn

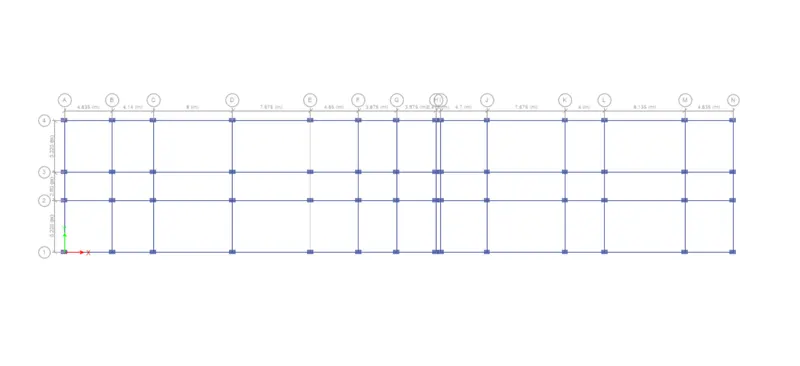

Creation of beam

Creation of slab

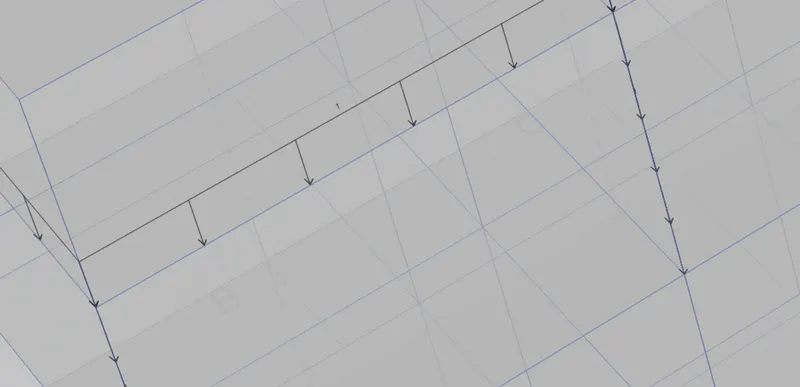

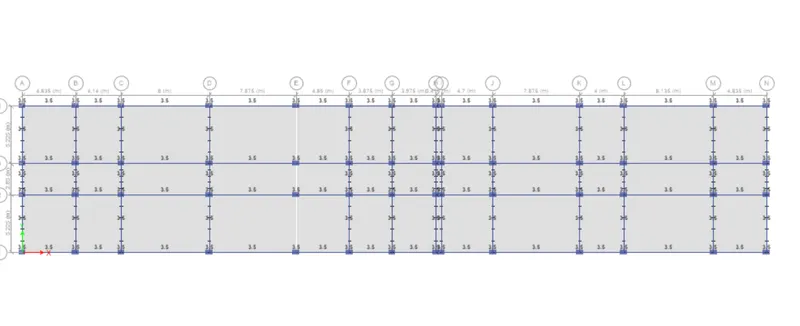

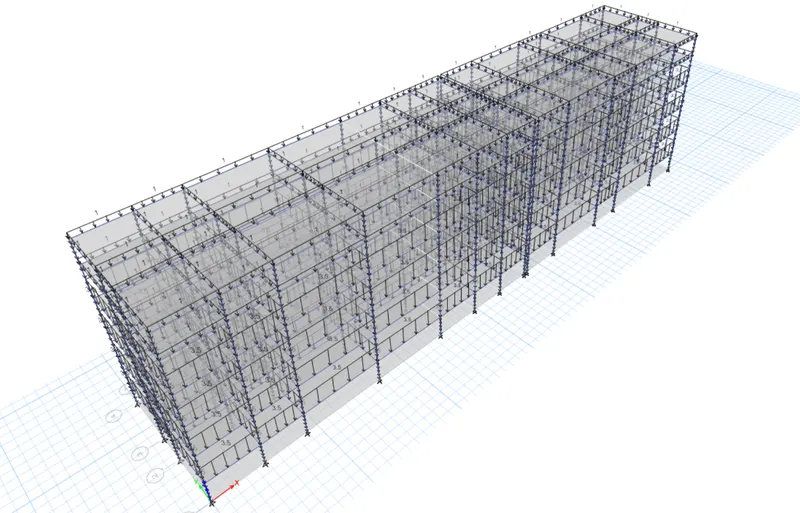

After the creation of slab we have to create the loading details in the structure

For three floors 3.5 kN/m

for mumty level 1 kN/m

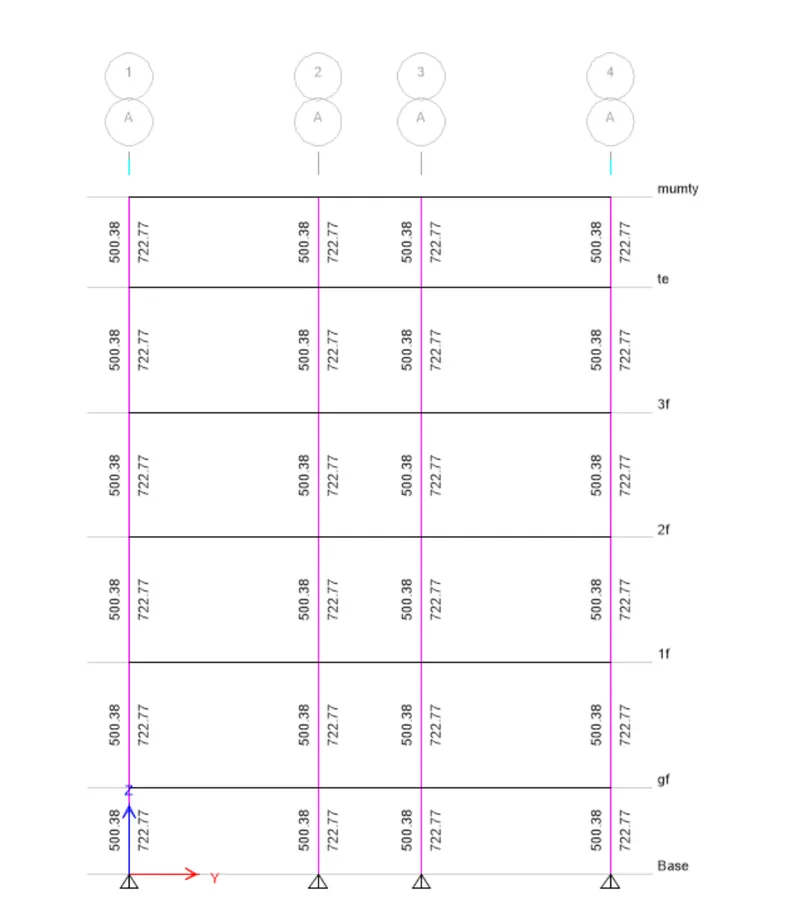

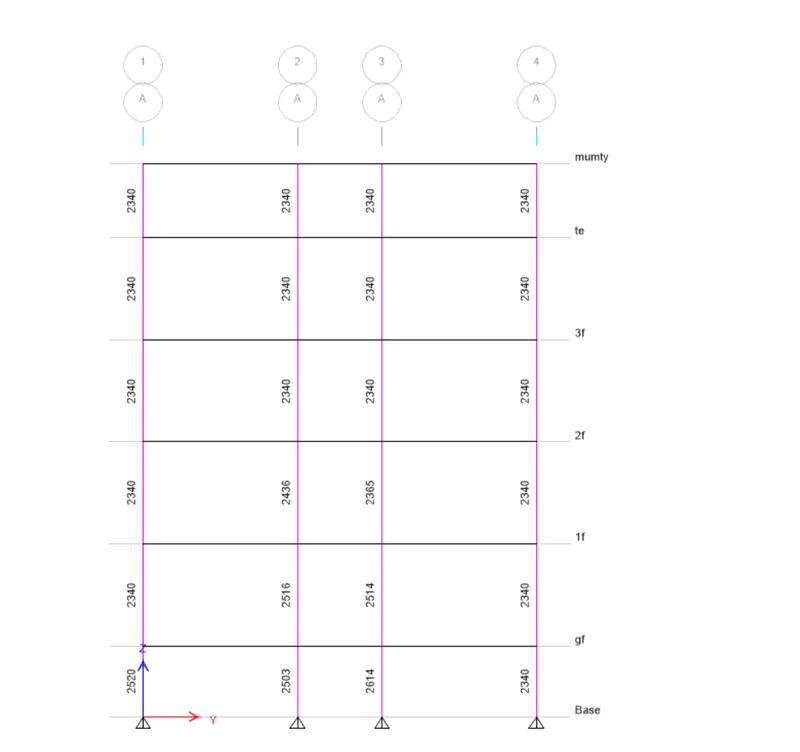

After the creation of the loading details we have to check the longitudina and shear reinforcement in the structure

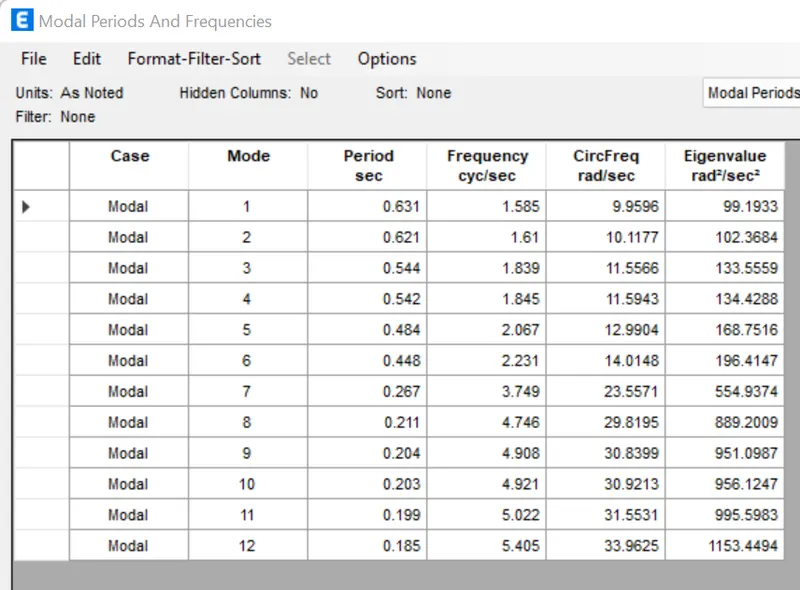

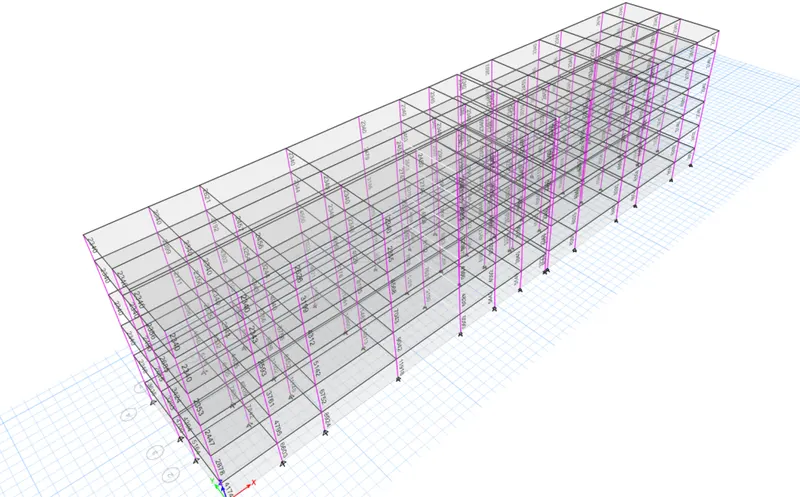

For that run the structure after that concrete member - display design info - longitudinal/shear reinforcement

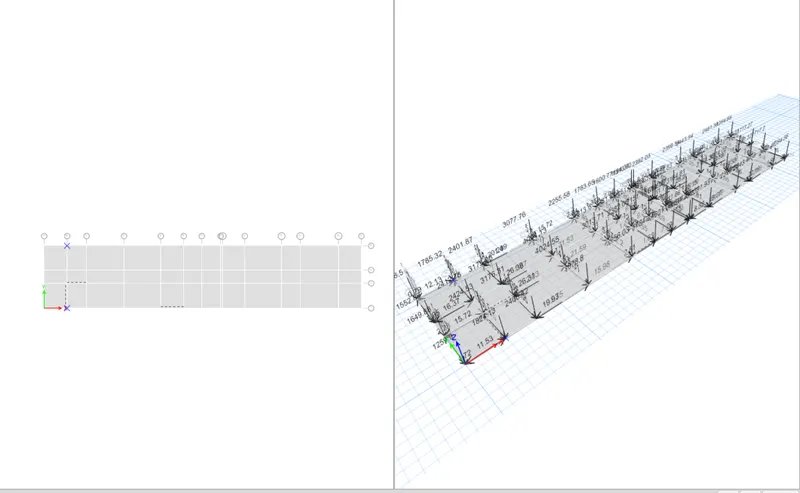

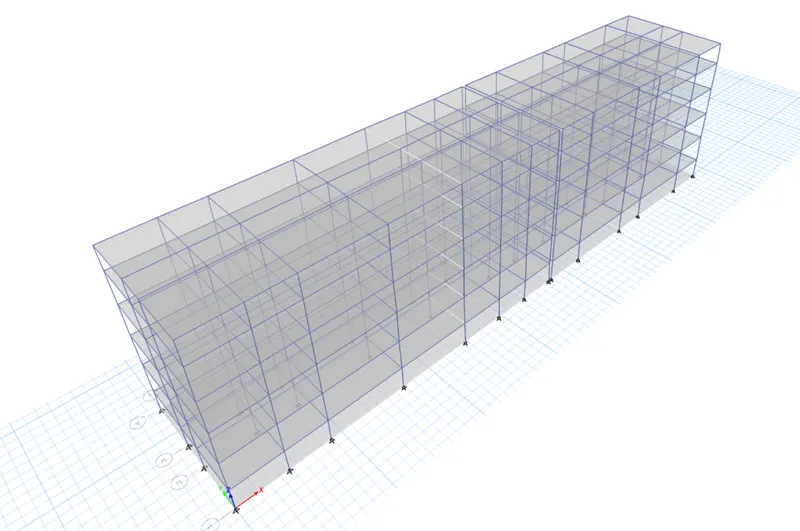

After the creation of the structure in the ETABS we have export the file into the SAFE software and then import into the SAFE

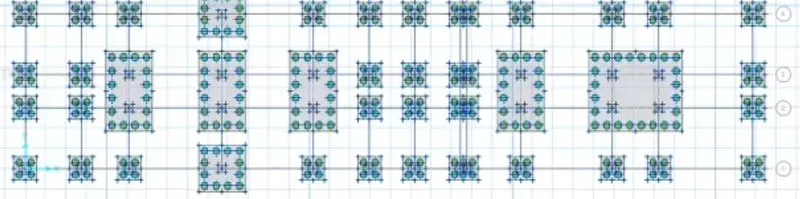

After the importing the file we have to design the pila cap in the SAFE software
