Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

1. AIM - 3D MODEL OF RESIDENTIAL BUILDING

PROCEDURE-

• SELECT A UNIT FROM UNIT COMMAND.
• THEN DRAW A 2D LAYOUT WITH ELEVATION.
• THEN SHIFT TO 3D MODELLING THEN SELECT THE GROUNG LAYOUT.
• THEN PICK THE BOUNDARY TO EXTRUDE WALL OF HEIGHT 10'.
• THEN EXTRUDE WINDOW HEIGHT TO SEAL LEVEL.
• THEN TAKE A RECTANGLE ON TOP OF WALL AND EXTRUDE DOWNWARD FOR 3'.
• THEN UNION AL WALL AND WINDOW AND DOOR.
• THEN DRAW RECT AT FLOOR LEVEL AND EXTRUDE DOWNWARD FOR 2' THAT WILL BE PLINTH LEVEL.
• THEN DRAW RECT AT TOP LEVEL AND EXTRUDE IT FOR 6" THAT WILL BE SLAB THCK.
• THEN FROM PLAN COPY TERRACE LAYOUT AND EXTRUDE PARAPET FOR 3'.
• THEN EXTRUDE FRONT SIDE DESIGN AND MOVE ON TOP OF THE SLAB.
• THEN FOR DOOR AND WINDOW TAKE THEN OUT OF PLAN AND EXTRUDE THEM.
• THEN MOVE THEM TO THERE POSITION.
• NOW MATERIAL BROWSER AND SLELCT REQUIRED MATERIAL ACC TO NEEDS LIKE WALL PAINT, WINDOW FRAME ETC.
• THEN SELECT A CAMERA GIVE HIM A SPECIFICATION AND PLACE ACC SO THAT WHOLE BUILDING GET CAPTURED.
• THEN SELECT A RENDERING WITH ENVIRONMENT AND EXPOSURE OPTION AND SELECT DRY LAKE.

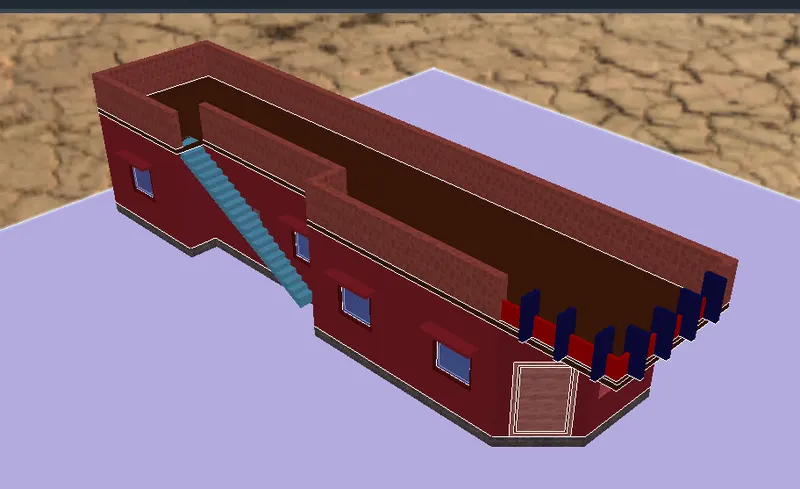

• THEN SELECT RENDERING IN SIZE AND DONE.
