Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM : TO DRAW 3 DIMENTION MODEL RESIDENTIAL BUILDING WITH RENDERED VIEW

PROCEDURE:

DRAW 2D PLAN OF RESIDENTIAL BUILDING

FIRST DRAW GROUND FLOOR

EXTRUDE THE PLAN AT THE SPECIFIED HEIGHT

MAKE THE DOOR AND WINDOWS

IN WINDOWS FRAME MULLIEN PANEL

IN DOOR FRAME AND PANEL

DRAW SALB

AFTER THAT TAKE G+1 FLOOR

IF NECCESORY PROVIDE THE LIGHT

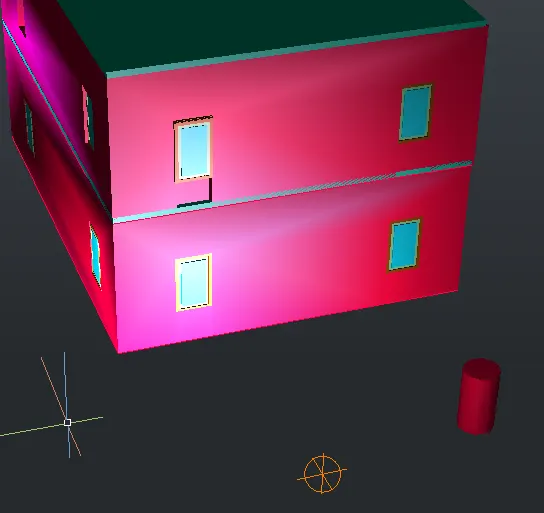

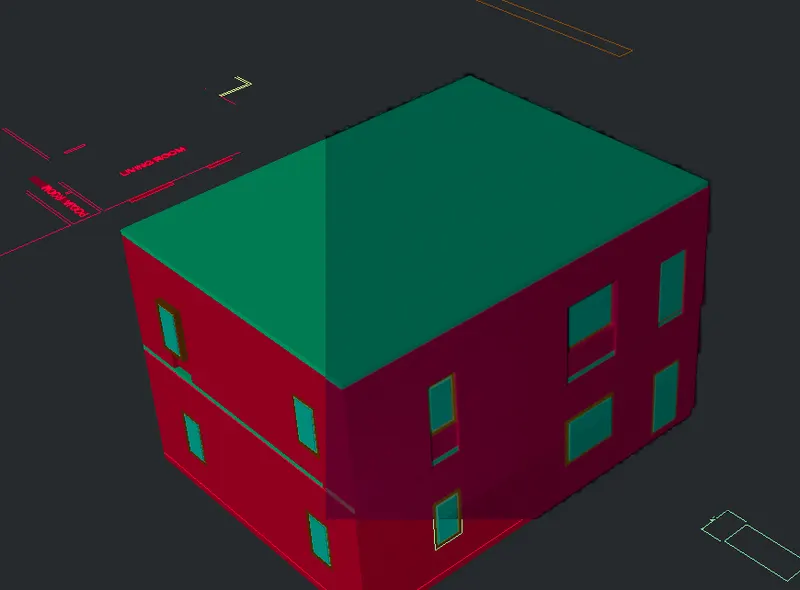

TAKE THE FINALLY RENDERED VIEW

RENDERING

RESULT DRAWEN 3DMODELING OF RESIDENTIAL BUILDING & RENDERING OF 3D VIEW
