Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM

By using the software to create a model of residential building with a rendred view

PROCEDURE

To create a 3D model in autodesk softaware

By using the software commands to create a rendered 3D model

By using the commands at first the limits should be given for that LIMAX command is to be used

After creating the limit value the Xline option is to be used

Offset is the command is used to create the lines with horizontal as wella as vertically after the offest for the staright horzintal and vertical ortho is the command is used

Trimming is the command is mainly used for erasing the particular unwanted objects

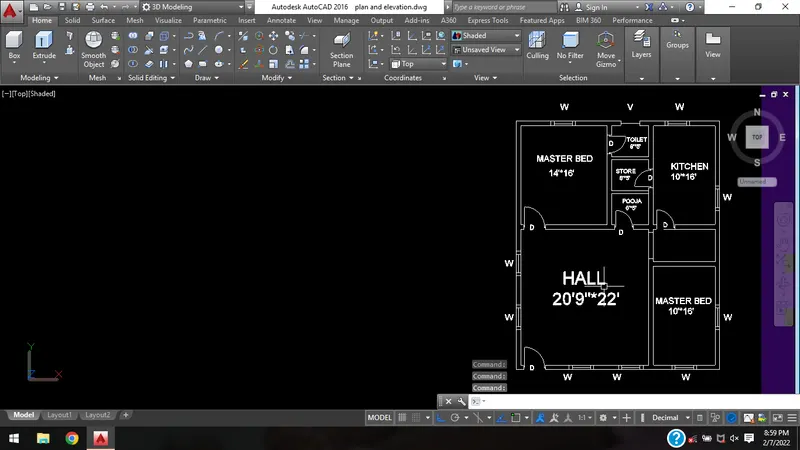

After creating the plan we have to mark the dimension for that distyle ,dimlin, are the commands is used

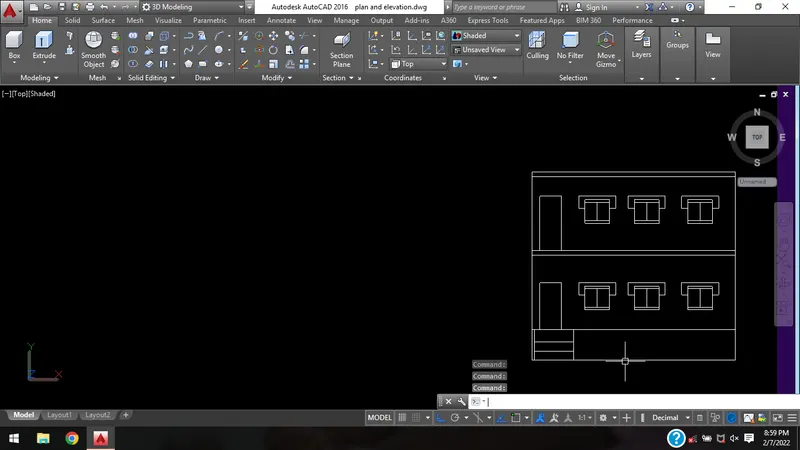

After that plan is to be projected and then elevation is to be created and then after the elevation work is done we have to project the plan

By using the plan view the autocadd 3D modelling is to be done for that at first we have to create the layer for that 3D residential building

After that boundary is the command is to be used by selecting boundary and then by clicking region we have select the wall layers of the plan and then it is to be extruded

After the extrusion the separation of door, window and wall should be created in different layers

And then we have to use parallel command and the the elevation portion is to projected towards the plan and the elevation is to be rotated by using the command rotate 3D and then by clicking the two ends the angle is to be given and then doors and window is projected according to the elevation view

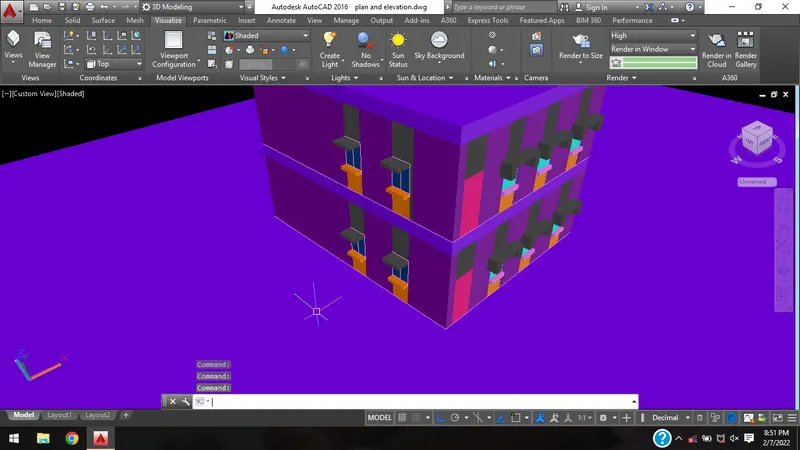

After that floor level is to be created and then after the completion of 3D building we have to set the camera view in the building after that ligthning work is to be done

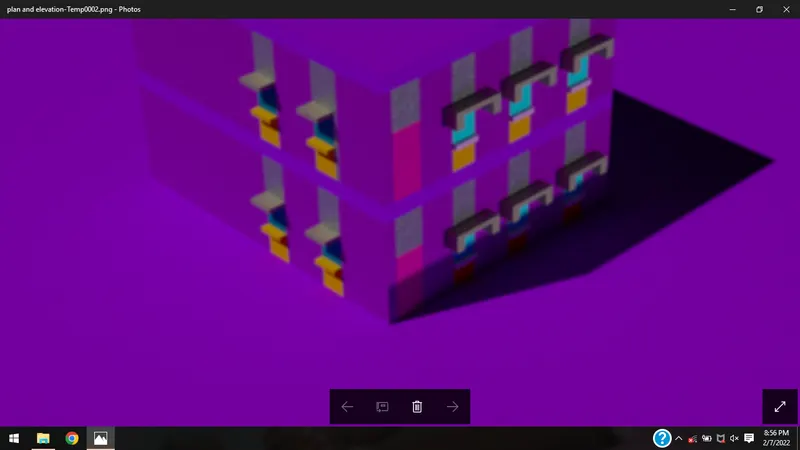

And finally rendered view is to be done in different proportions
