Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER
Aim : Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading.
Report of each member to be generated and extract drawings for structural plans, beam reinforcement details from the software.
Procedure:

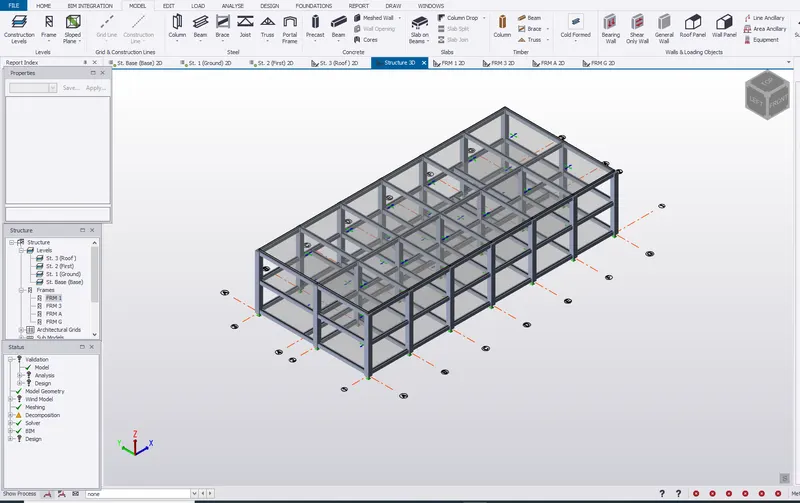

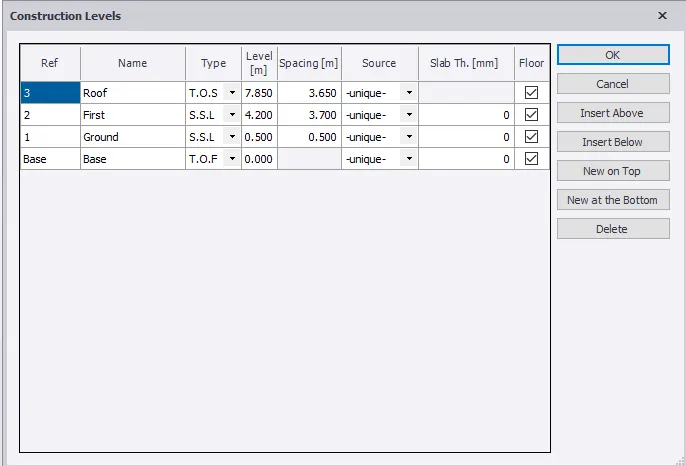

- Construction Levels are created as per the given Elevation.

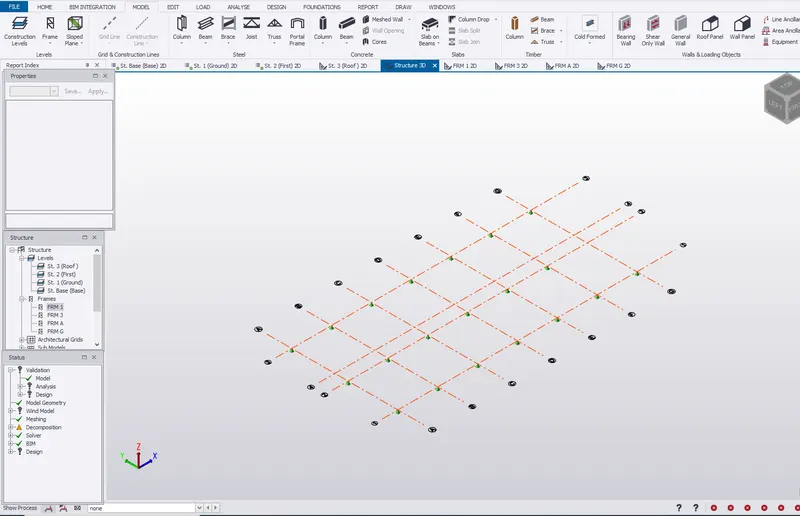

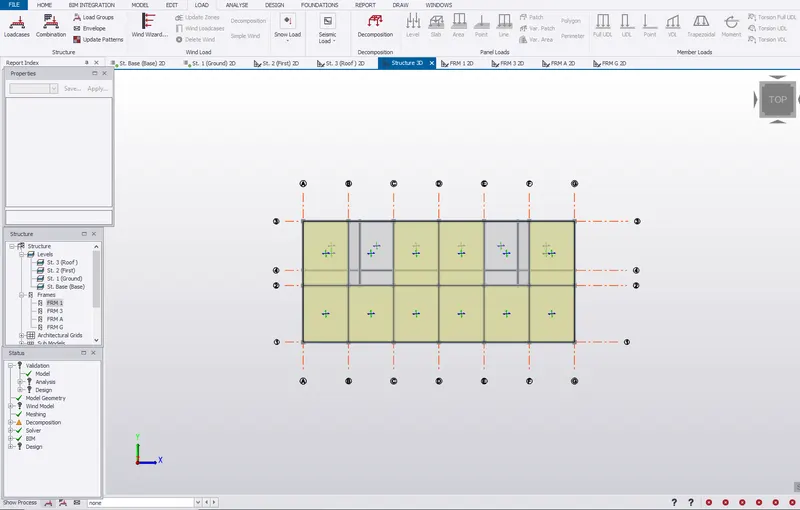

- Grid Lines are generated as per the plan view

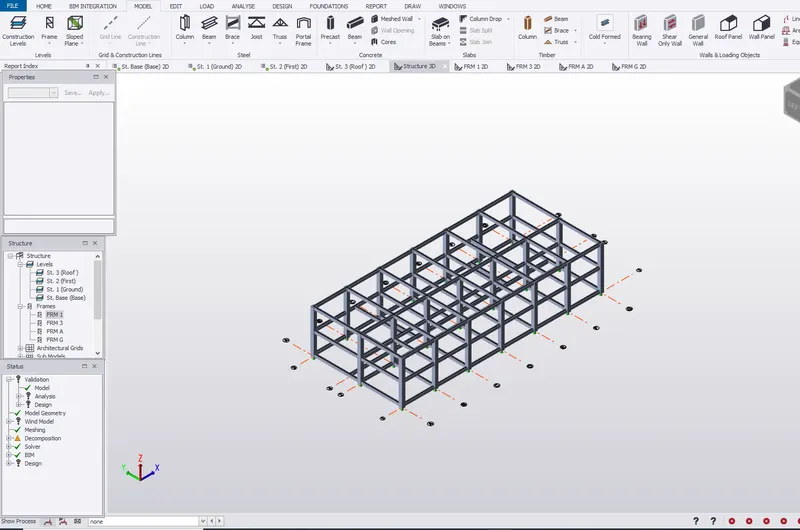

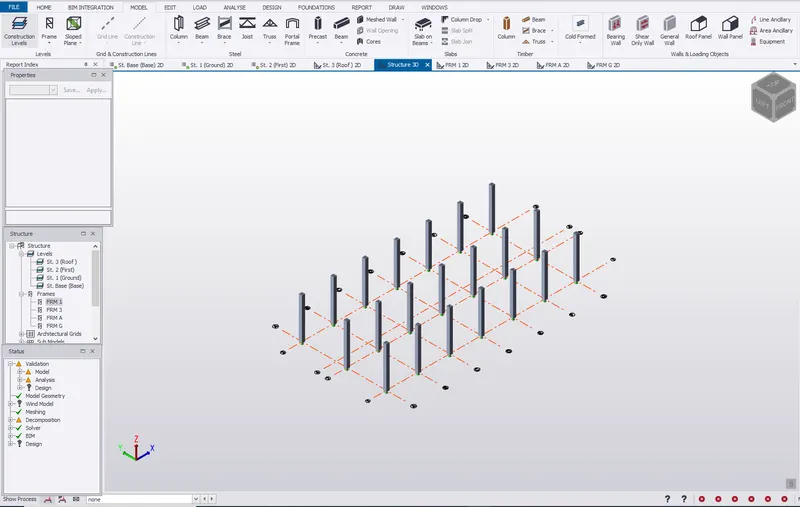

- Column of size 600x600 is created from base to roof level

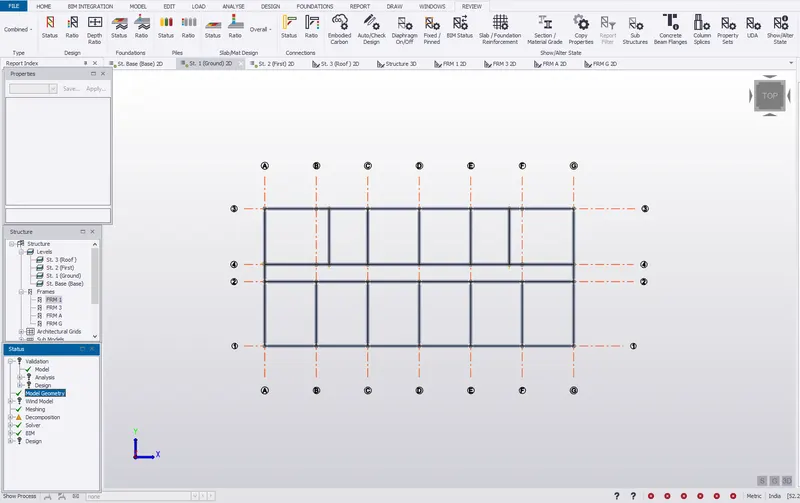

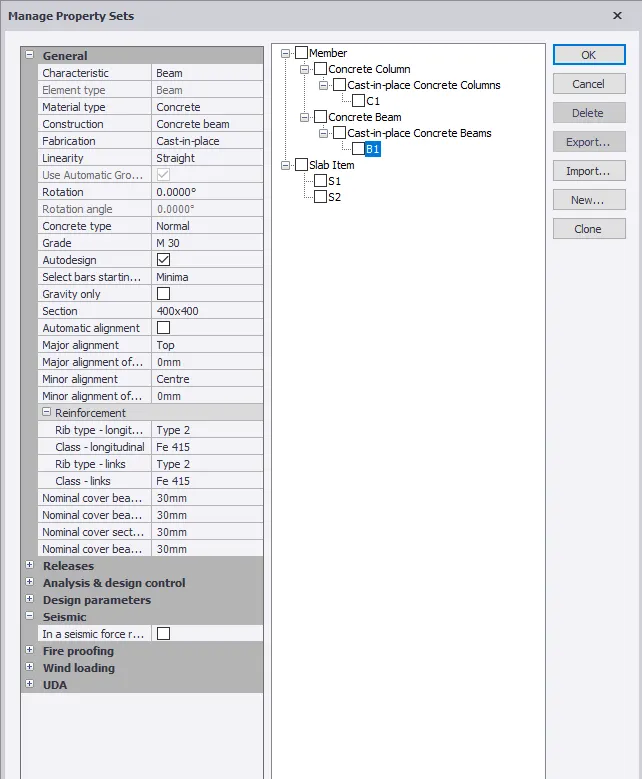

- Beam of size 400x400 are created in the ground floor as per the given plan
- Beams are drawn for first and roof floor as well
- Now Slab property S1 is apllied for ground floor,first floor and roof floor.

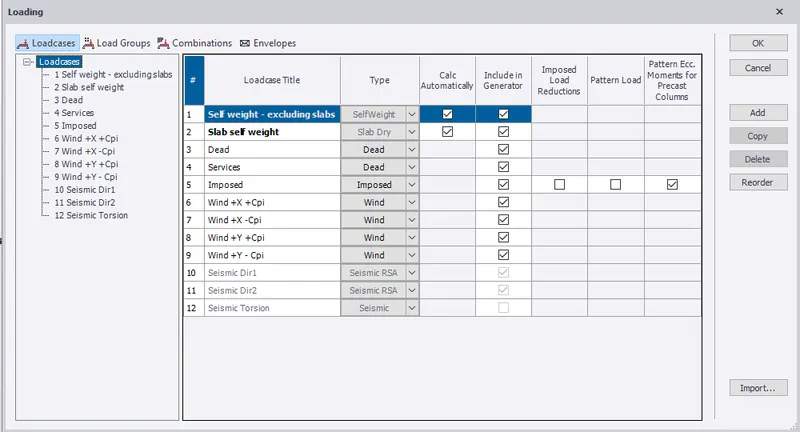

Loadings on the model:
Unit weight of concrete=24 KN/m^3
Dead load:
1. Finishes loading=0.05x24=1.2 KN/m^2(Area loading)
2. Slab load will be designed by software
Brickwall loading
Thickness of brickwall=150 mm
Unit weight= 20 KN/m^3
Dead load=1.2 KN/m is applied on slabs
Dead load of 12 KN/m is applied on the beams of ground floor and first floor

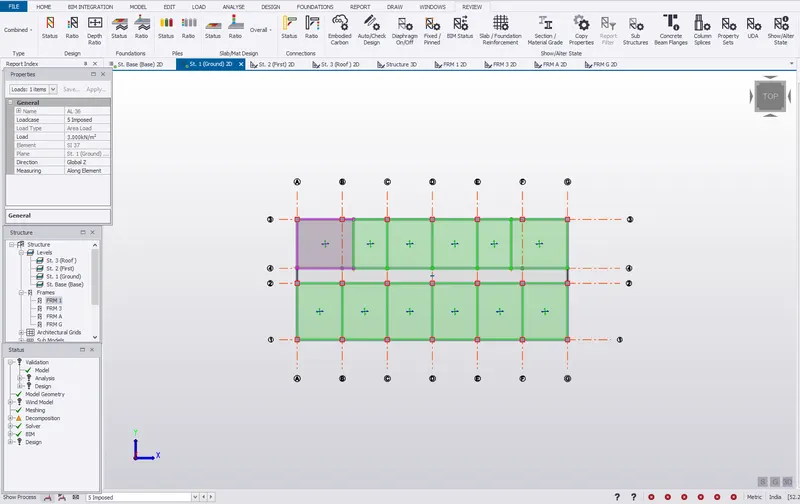

Imposed load:
Griund Floor Rooms:
Office= 3KN/m^2
Staircase= 5KN/m^2
Pantry= 3KN/m^2
Conference room= 5KN/m^2
Control room= 5KN/m^2
Lobby= 5KN/m^2
Toilet= 2KN/m^2
M&E room= 5KN/m^2

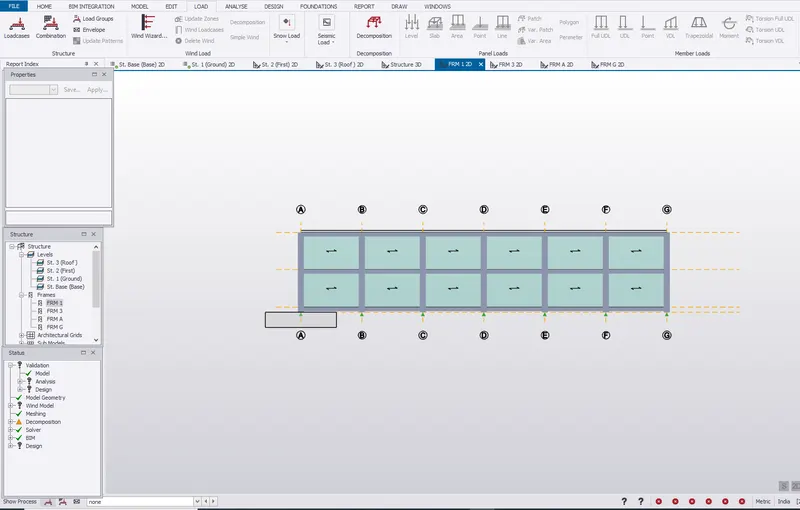

Wind Load

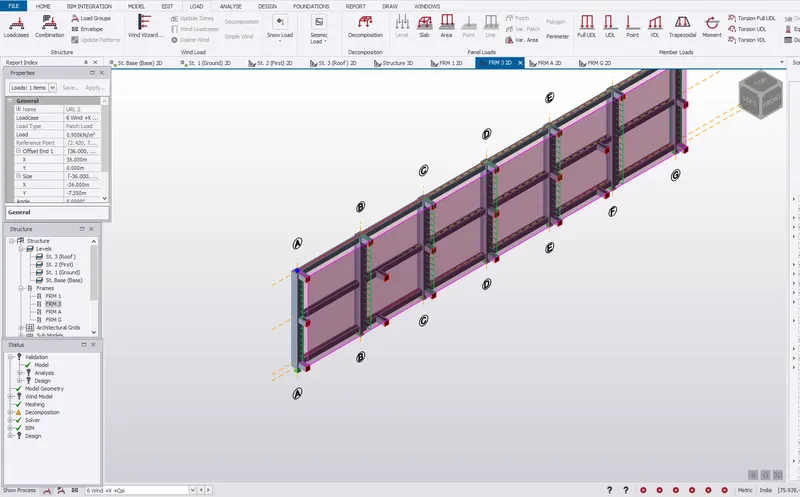

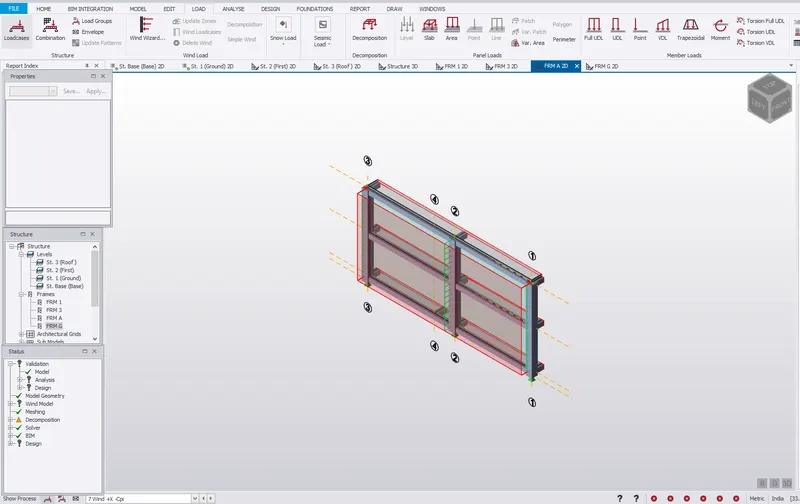

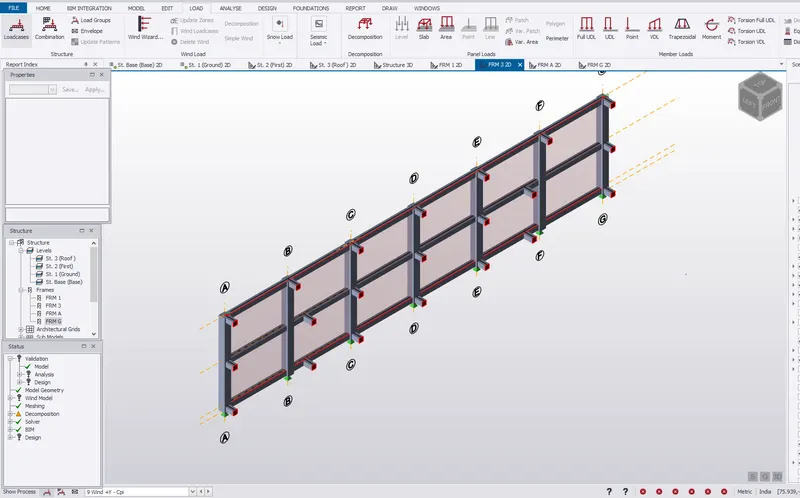

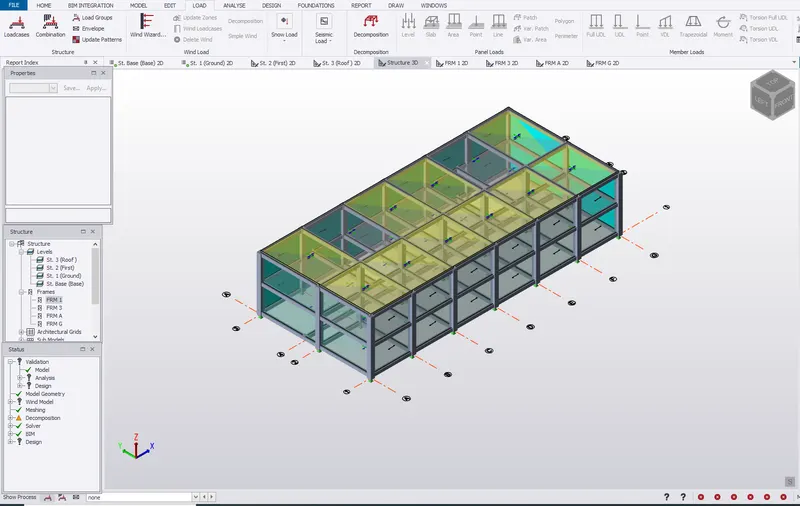

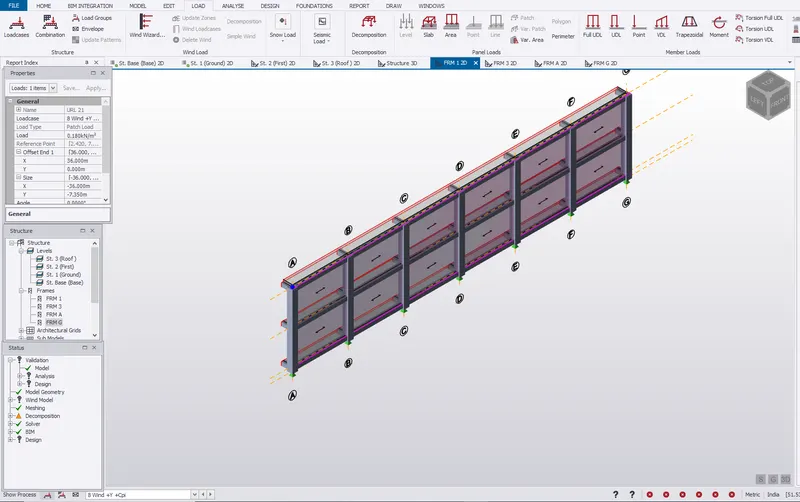

For the application of Wind loading Create the wall panels and roof panels

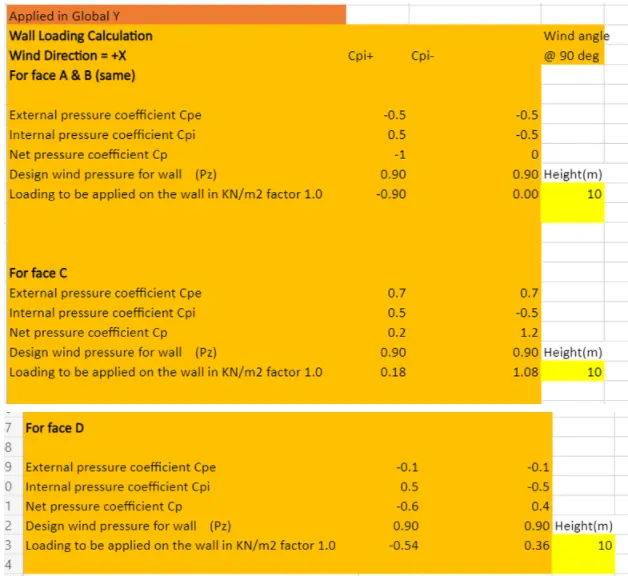

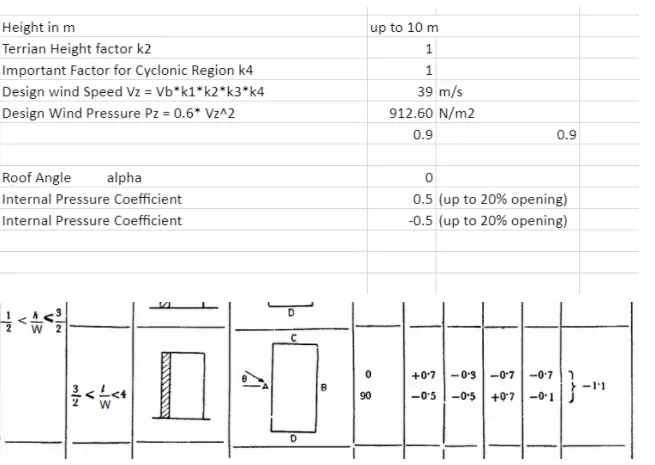

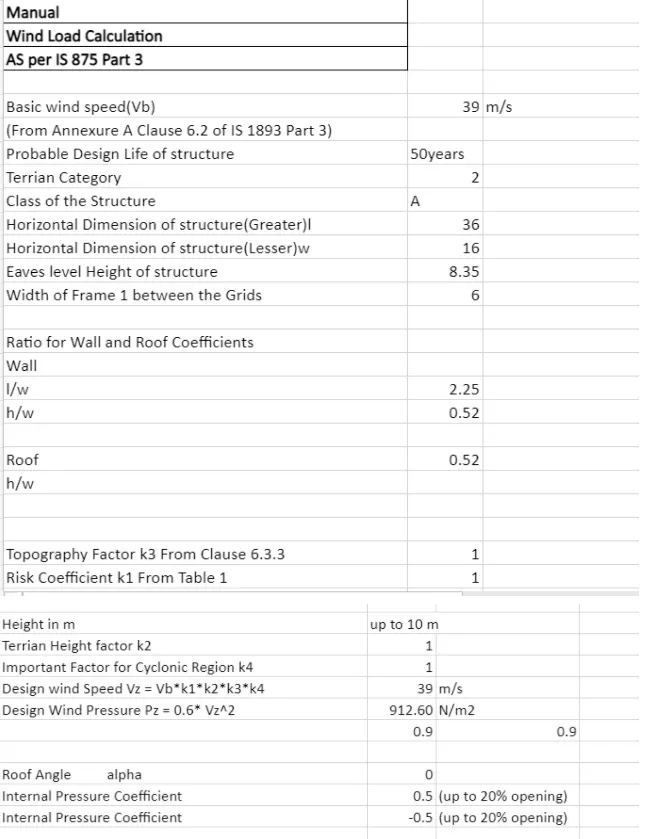

Wind load calculation:
For Face A and B apply in Global Y
For Face C and D apply in Global X

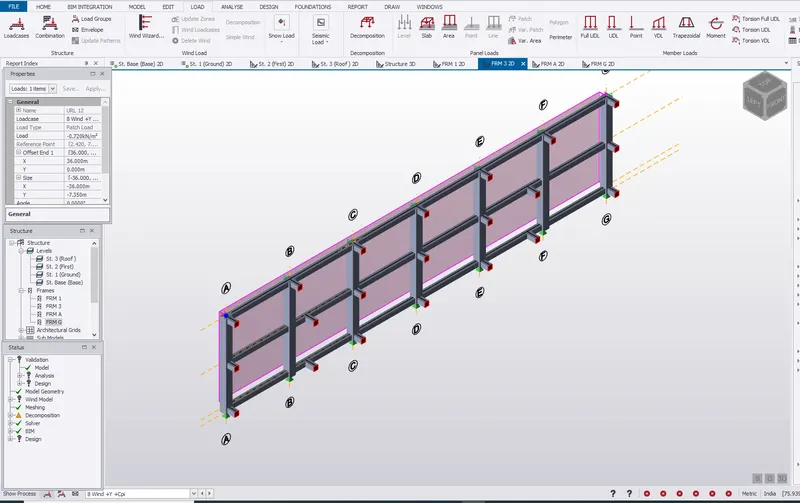

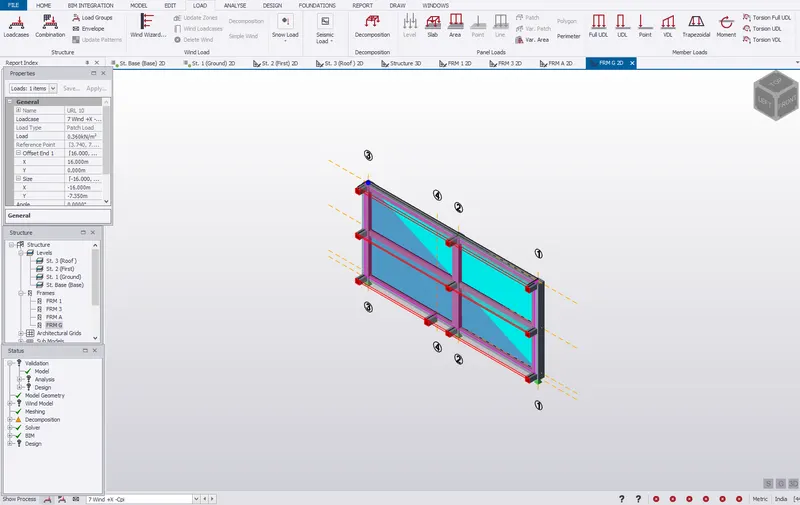

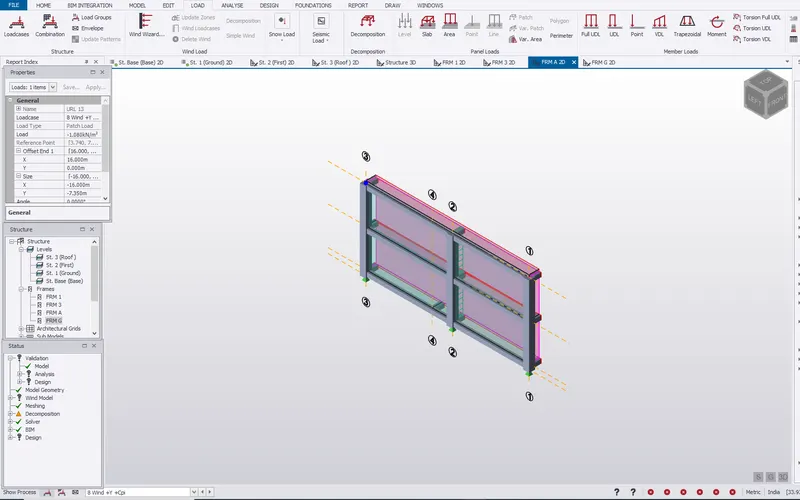

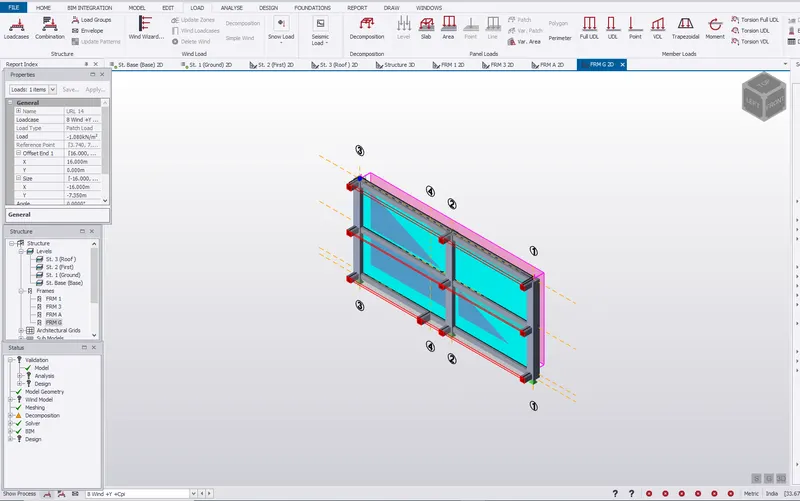

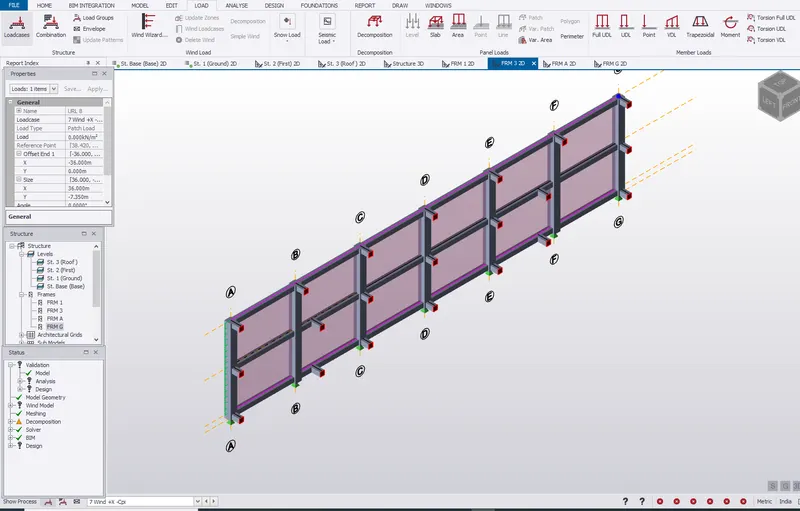

Wind load is applied as Patch load only

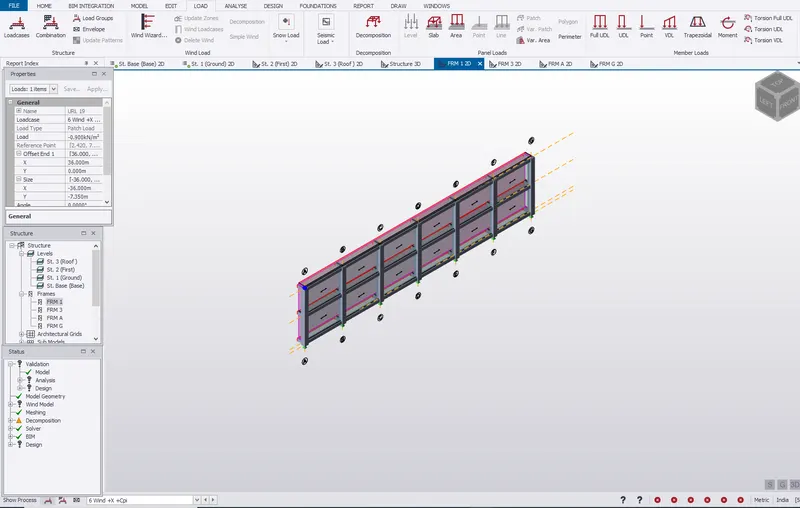

Wind +X+Cpi: Face A= Frame 1
Wind +X+Cpi: Face B= Frame 3

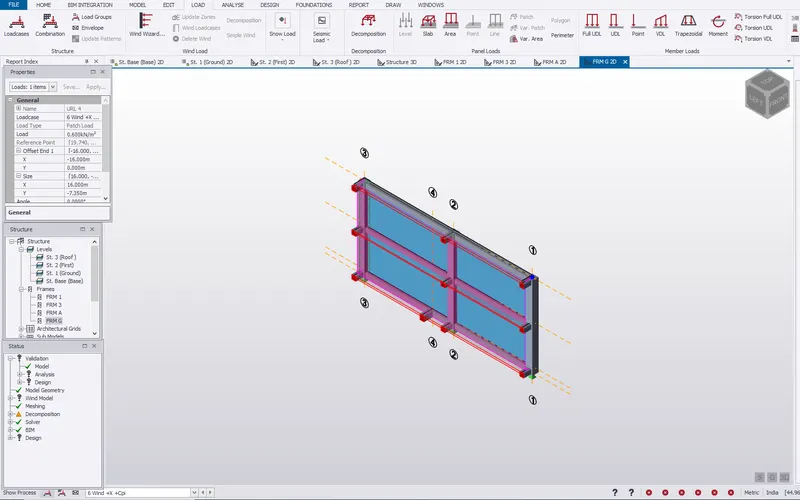

Wind +X+Cpi: Face D= Frame G
Wind +X -Cpi: Face A= Frame 1
Wind +X -Cpi: Face B= Frame 3
Wind +X -Cpi: Face C= Frame A
Wind +X -Cpi: Face D= Frame G

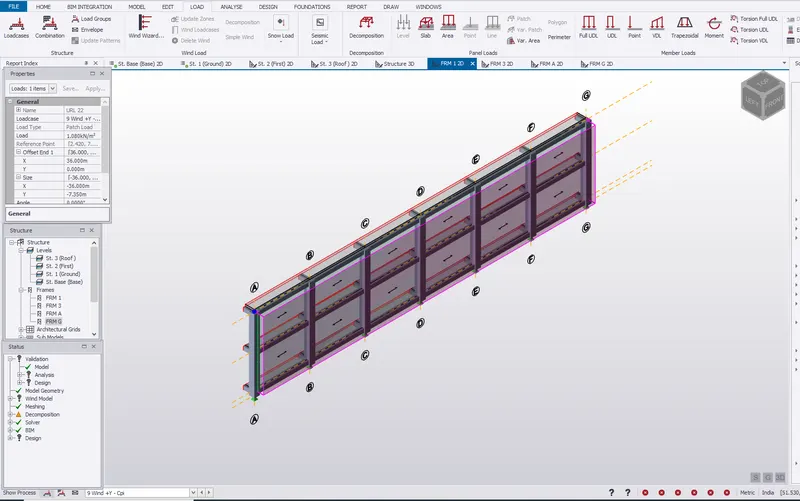

Wind +Y +Cpi: Face A= Frame 1
Wind +Y +Cpi: Face B= Frame 3
Wind +Y +Cpi: Face C= Frame A
Wind +Y +Cpi: Face D= Frame G
Wind +Y -Cpi: Face A= Frame 1
Wind +Y -Cpi: Face B= Frame 3
Wind +Y -Cpi: Face C= Frame A
Wind +Y -Cpi: Face D= Frame G

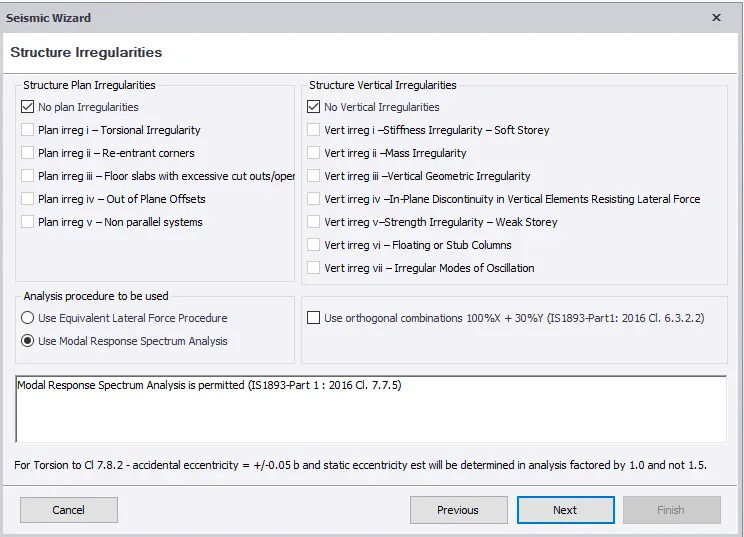

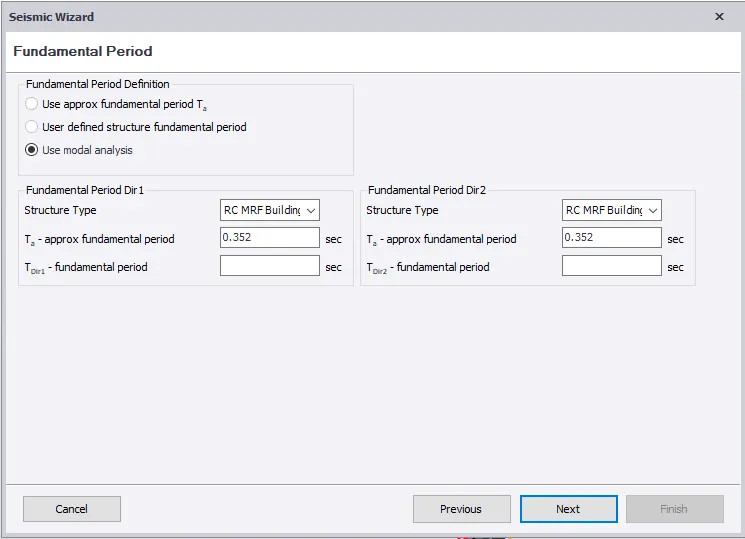

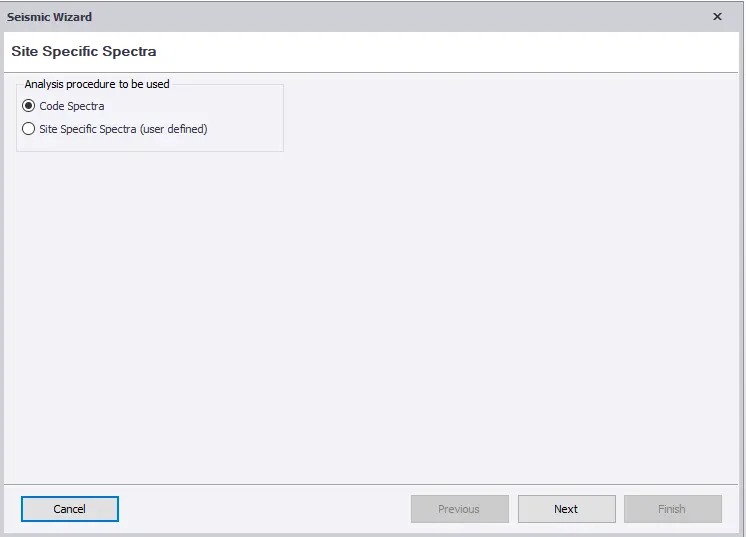

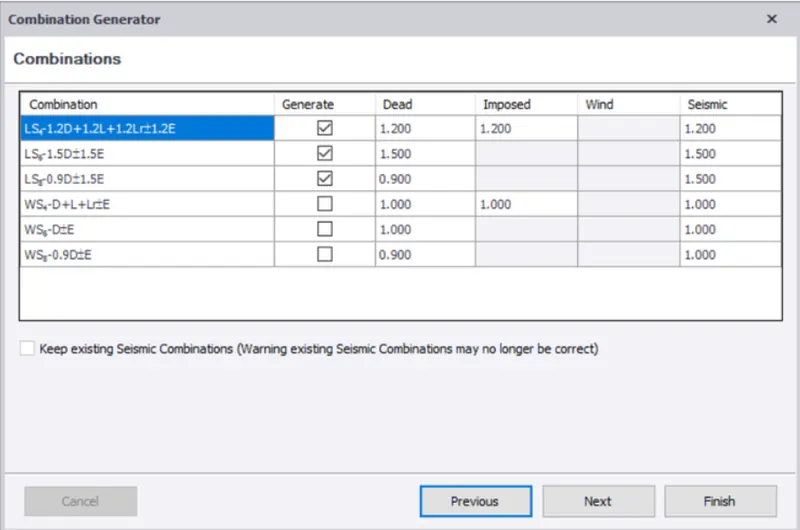

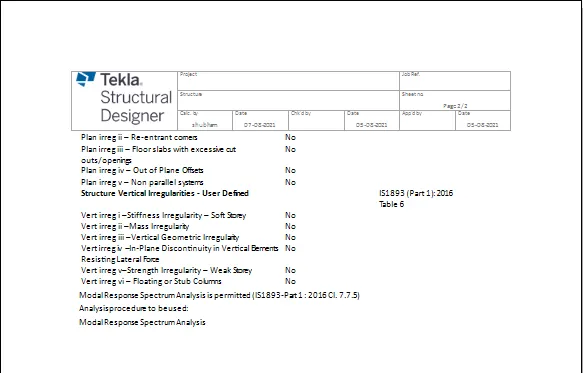

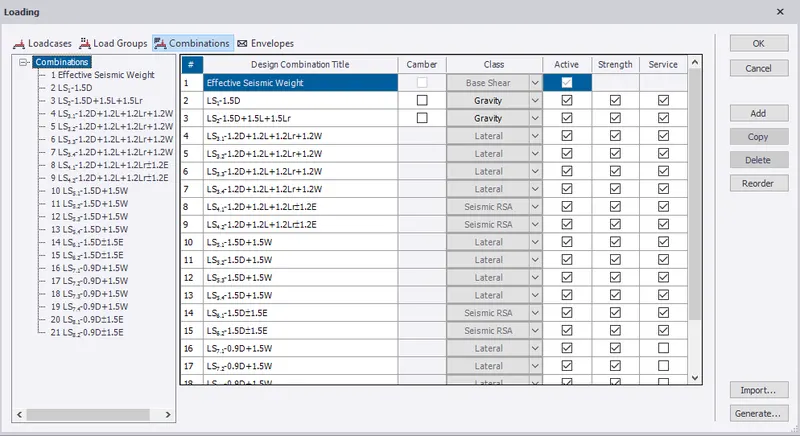

Seismic Load
Design of Members
Columns:

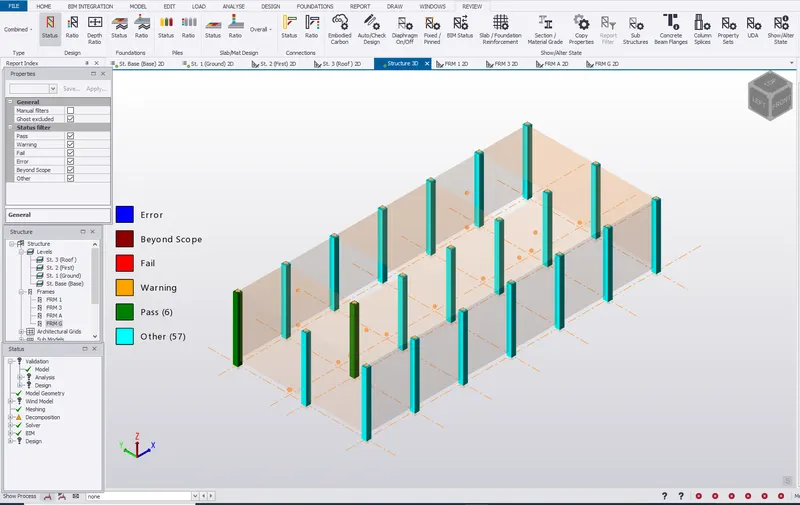

Columns are passed

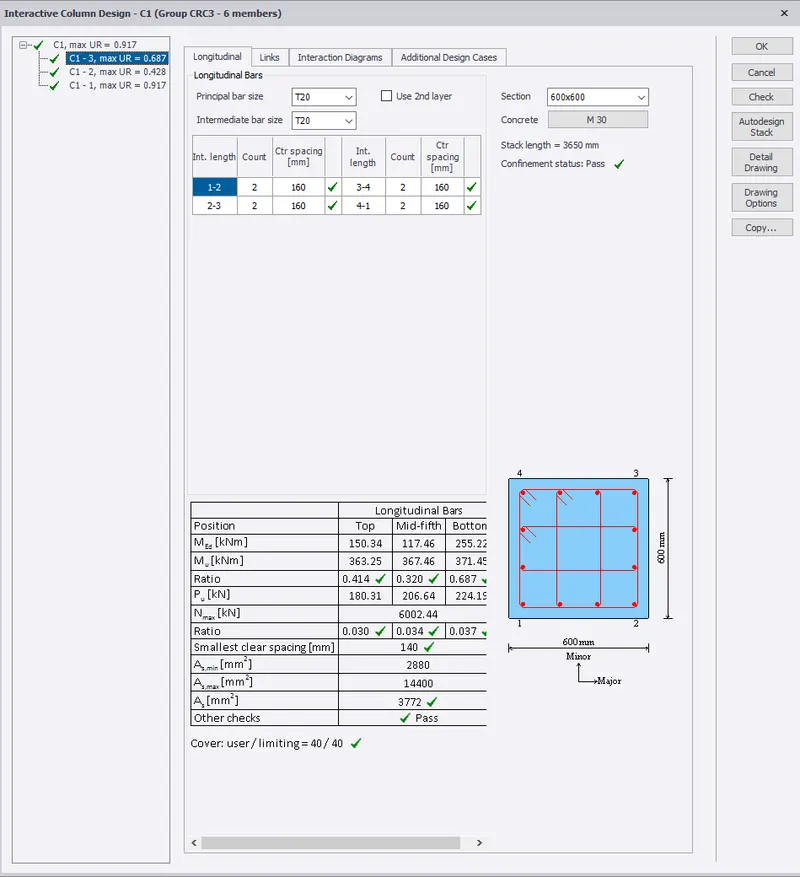

Interactive design check:

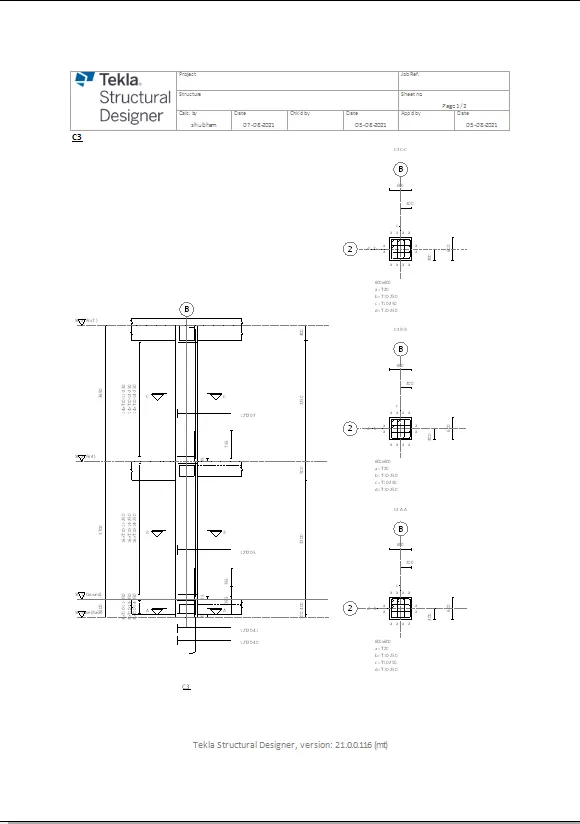

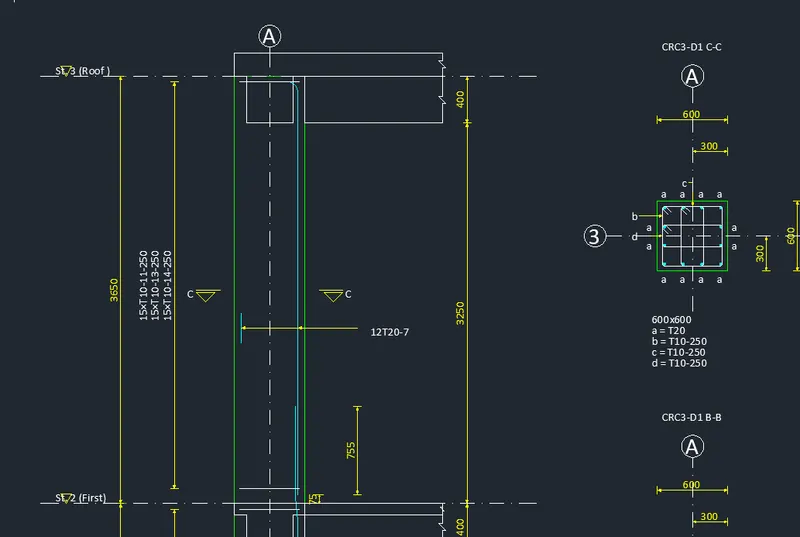

AutoCAD drawing detailing of column

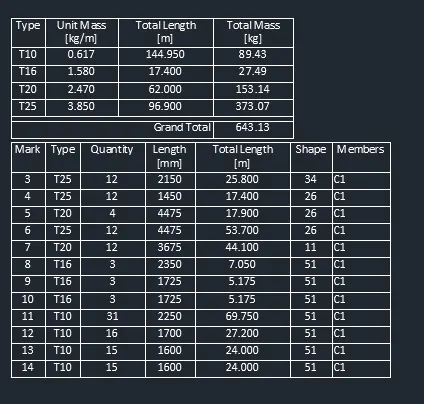

Column Schedule
Beam Design

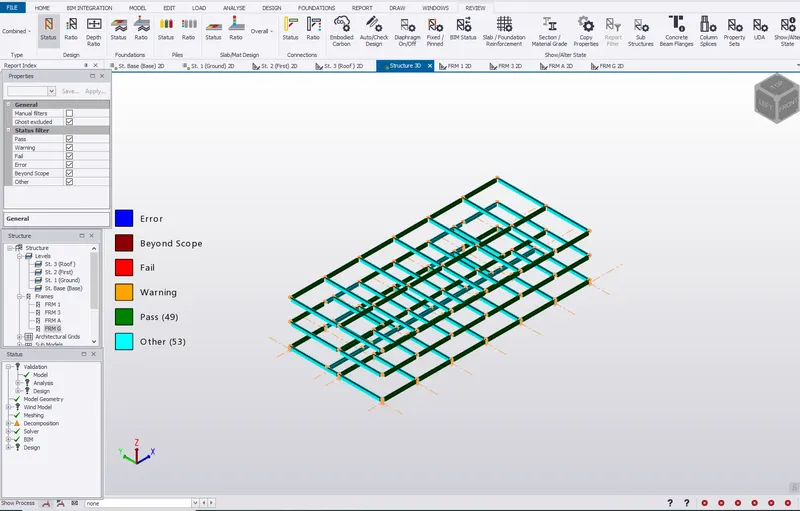

All Beams have passed

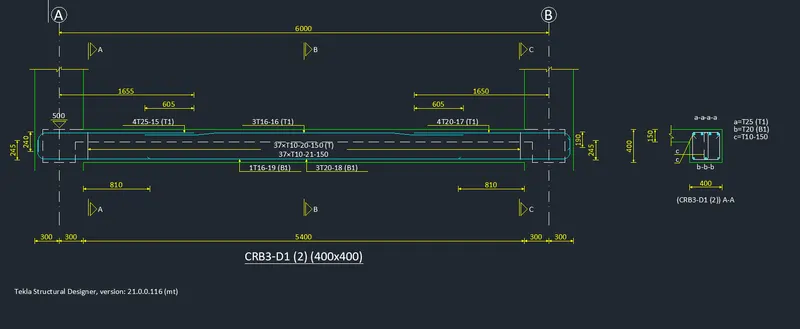

AutoCAD drawing detailing of Beam

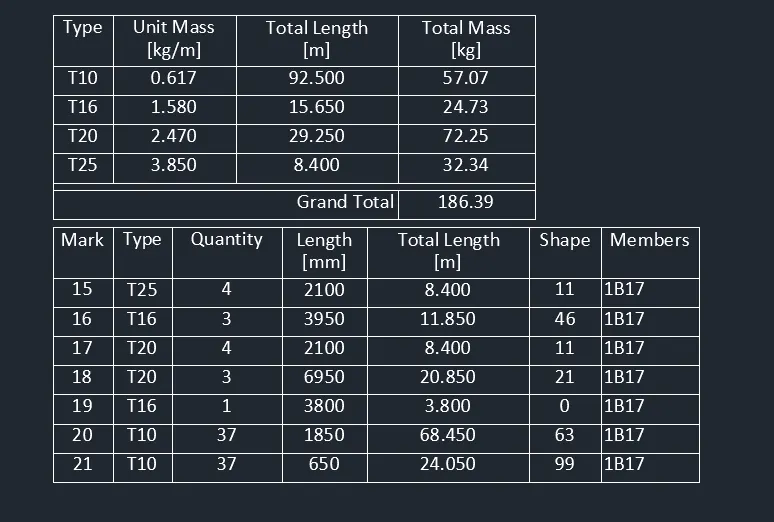

Beam Schedule

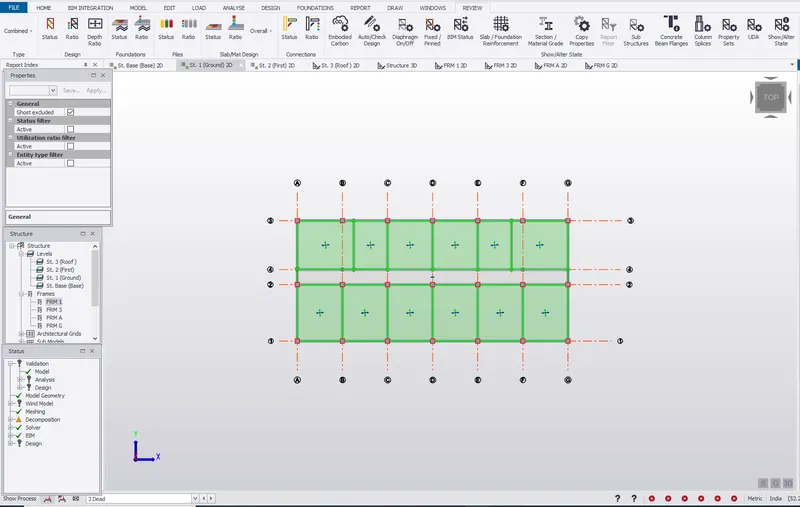

Slabs

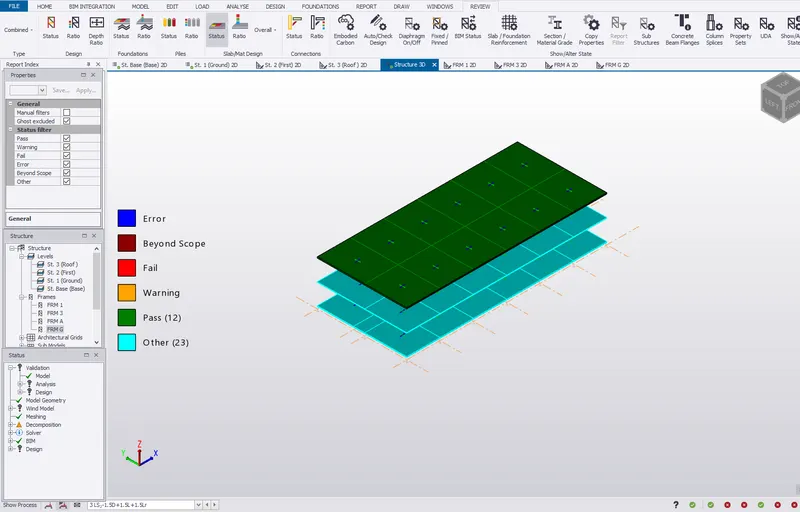

All slabs have passed

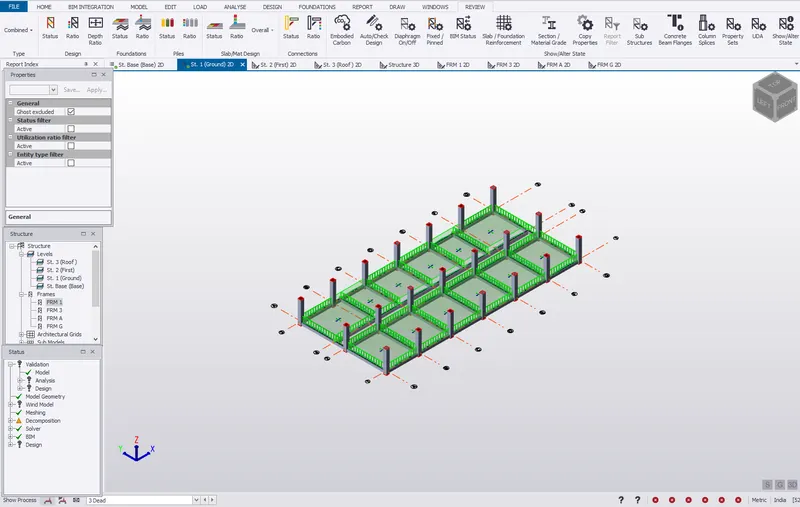

Foundations

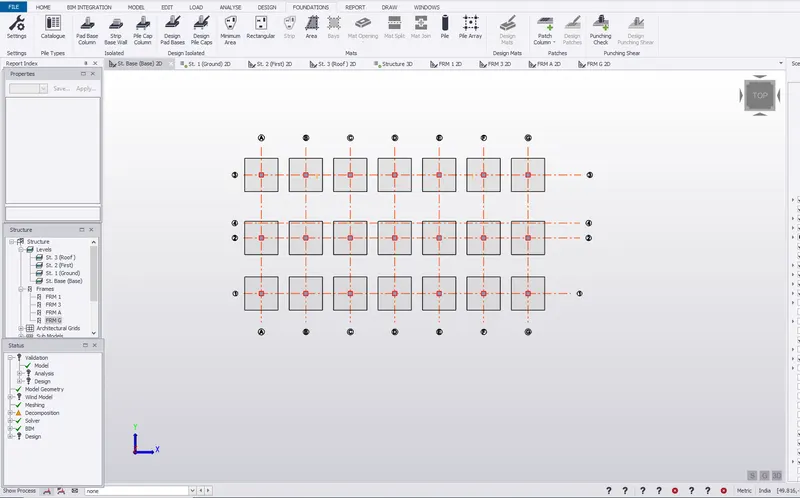

Pad Foundations Isolated Footing is provided.
Isolated Footing Details

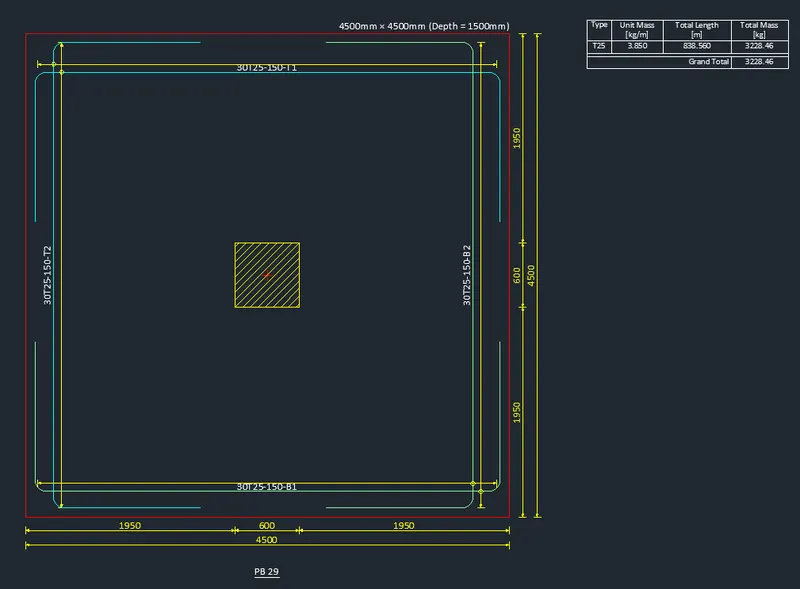

AutoCAD drawing of Foundation

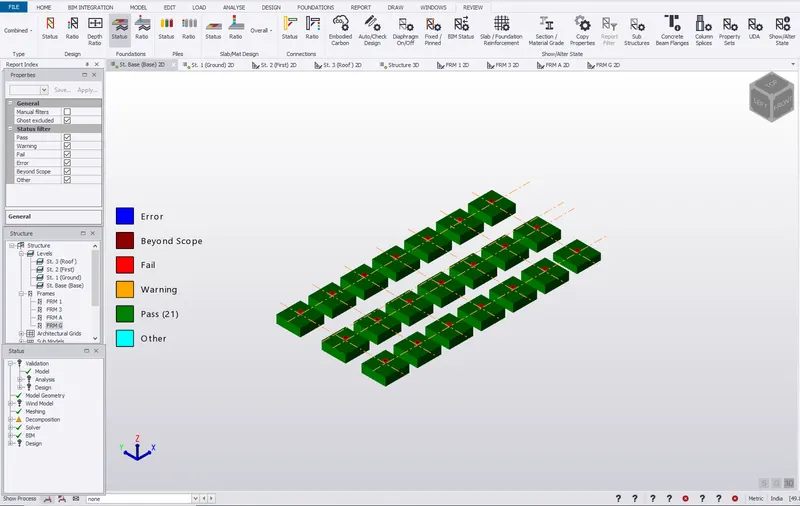

All the Foundation have passed
Report for each member

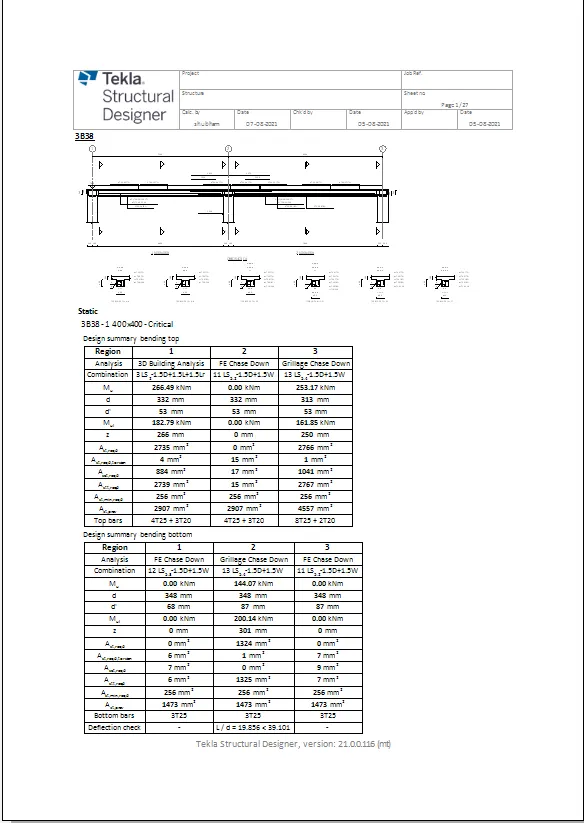

Beam Report

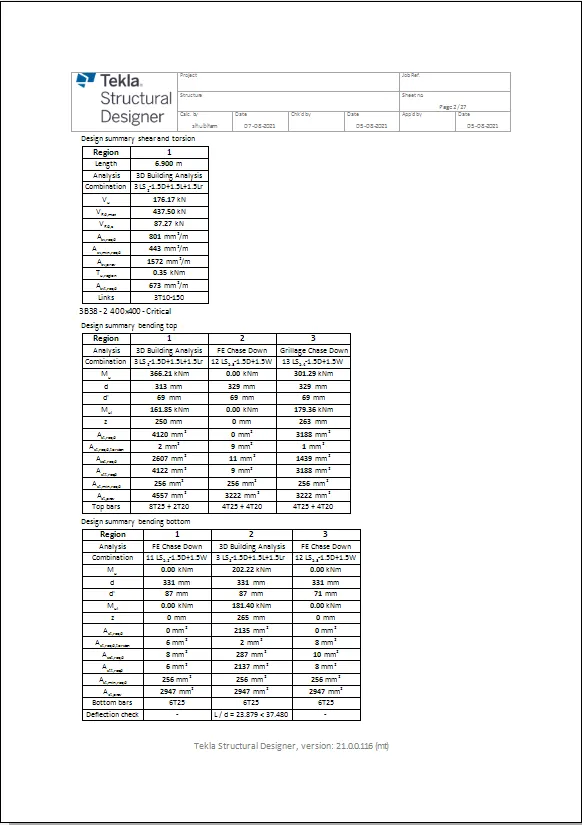

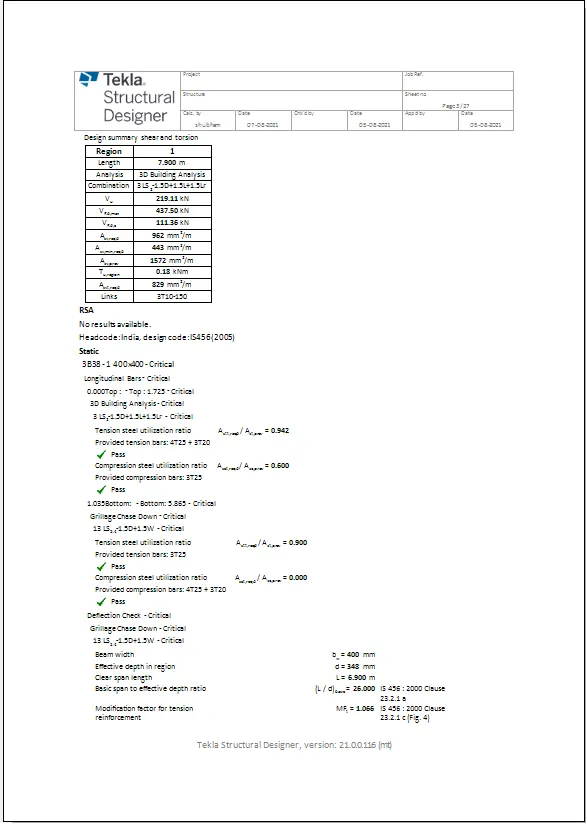

Design Summary Shear and Torsion
Design Summary

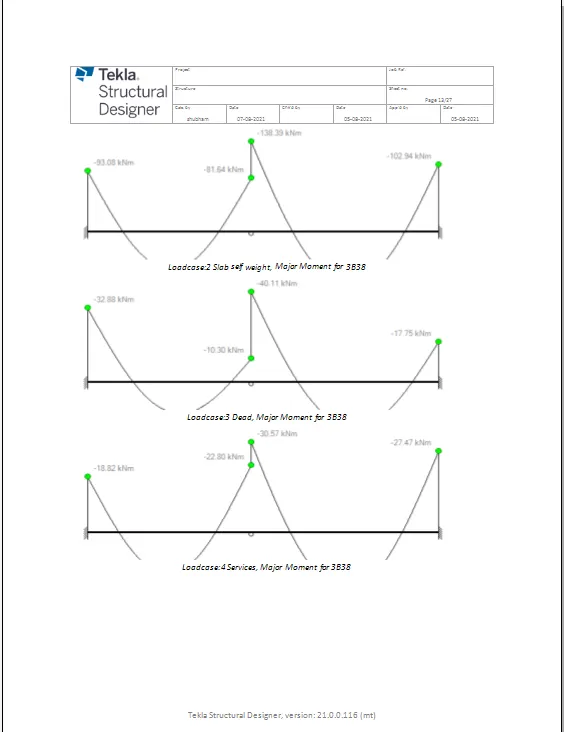

Bending Moment Diagram

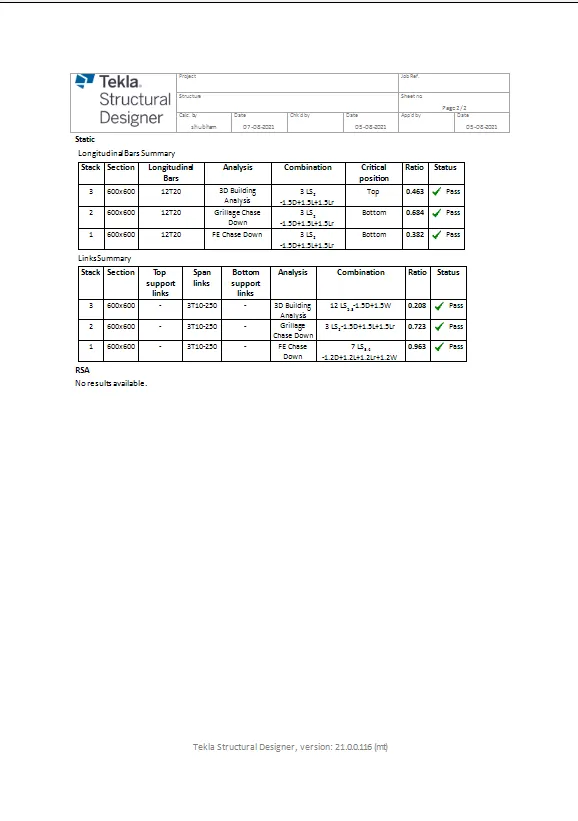

Column Report
Longitudnal Bars Summary

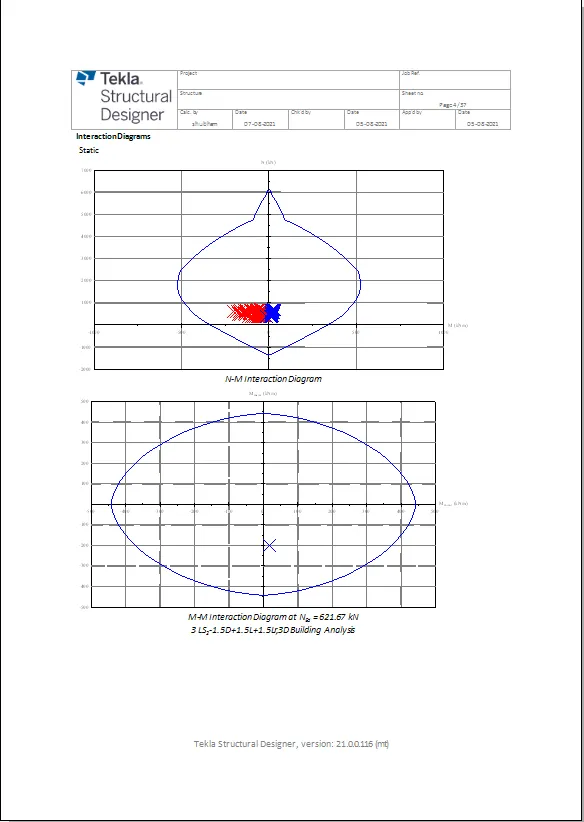

Interaction Diagram

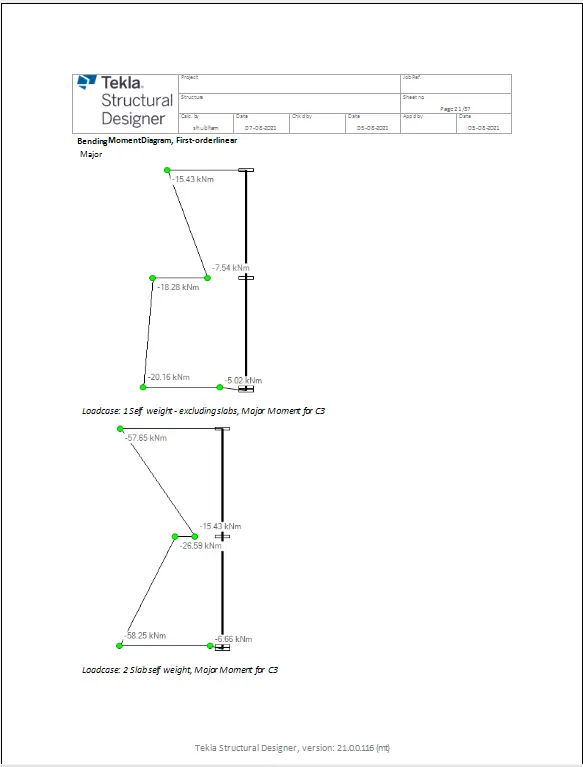

Bending Moment Diagram

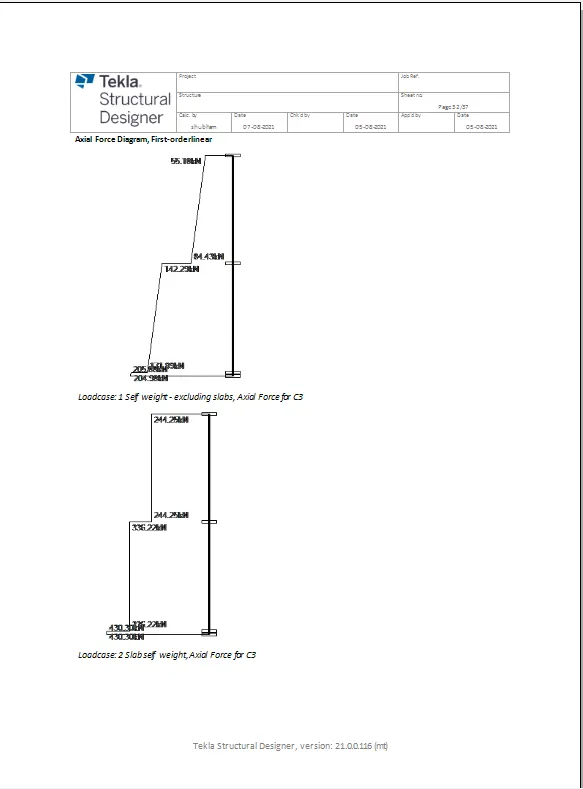

Axial Force Diagram

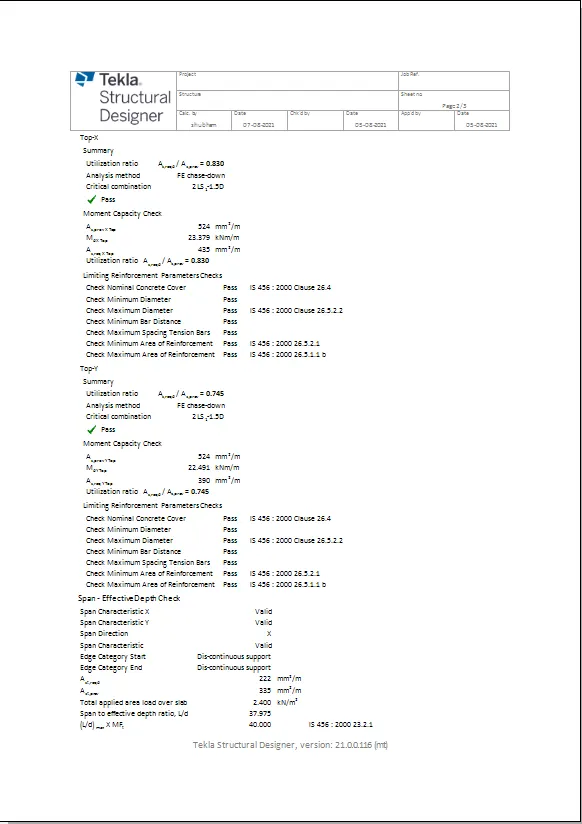

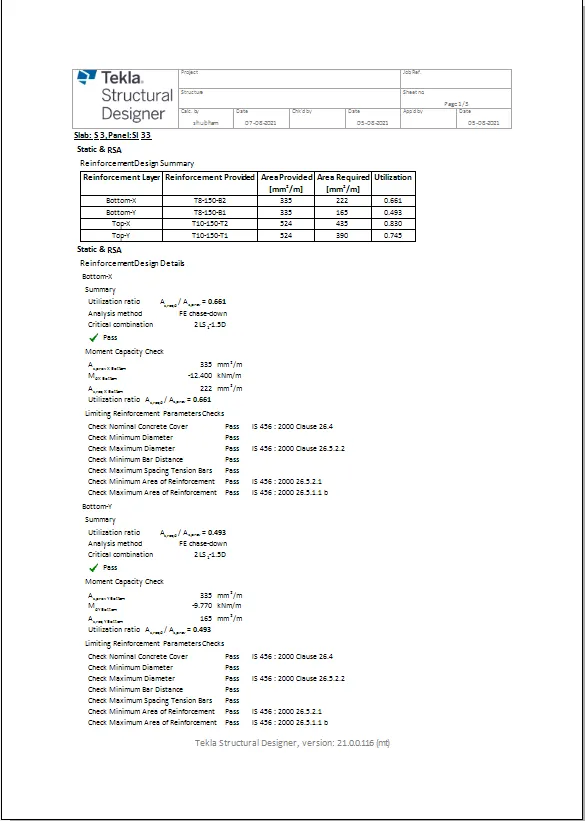

Slab Report
Reinforcement Details
Summary

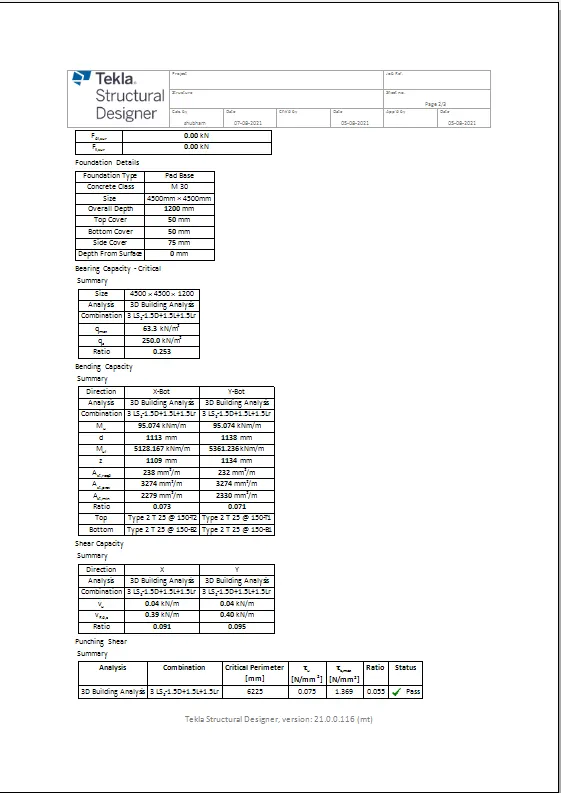

Foundation Details

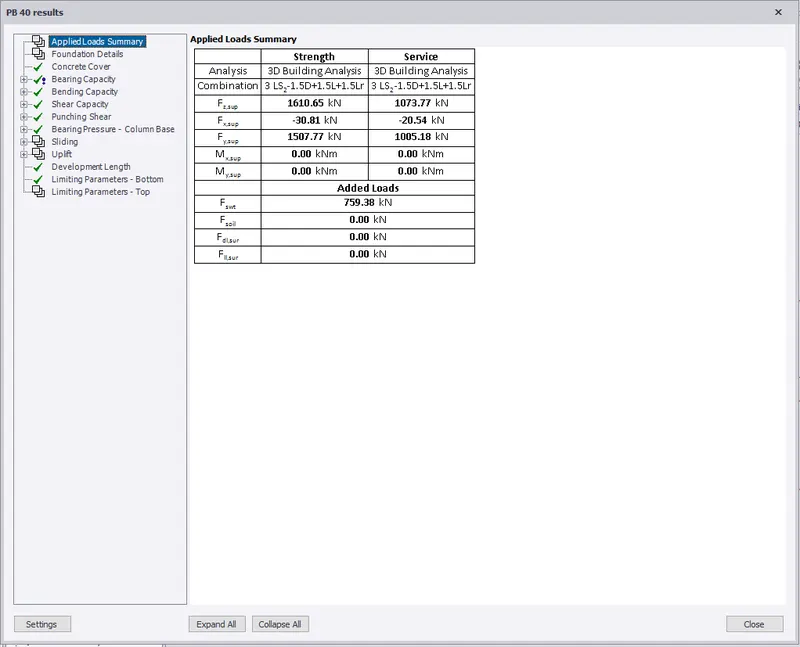

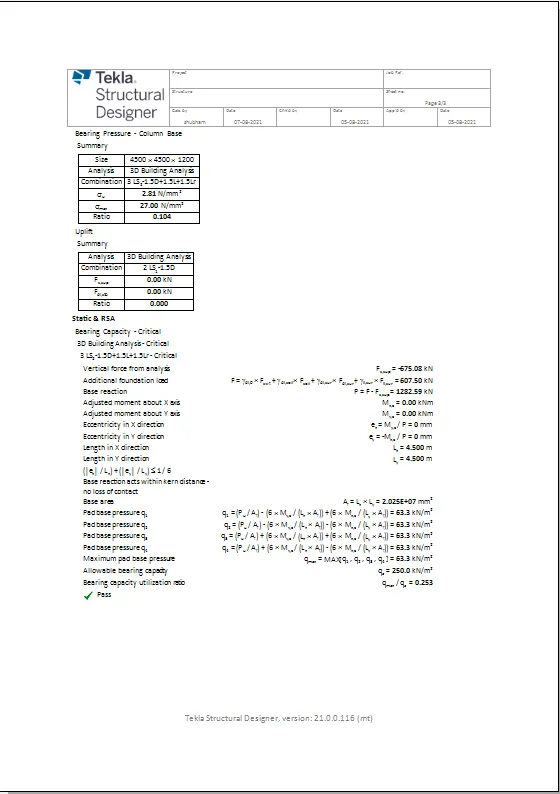

Bearing Pressure Summary

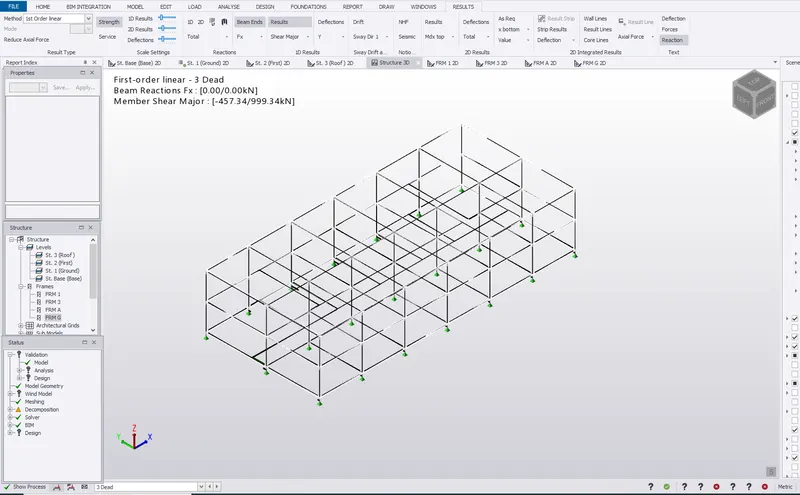

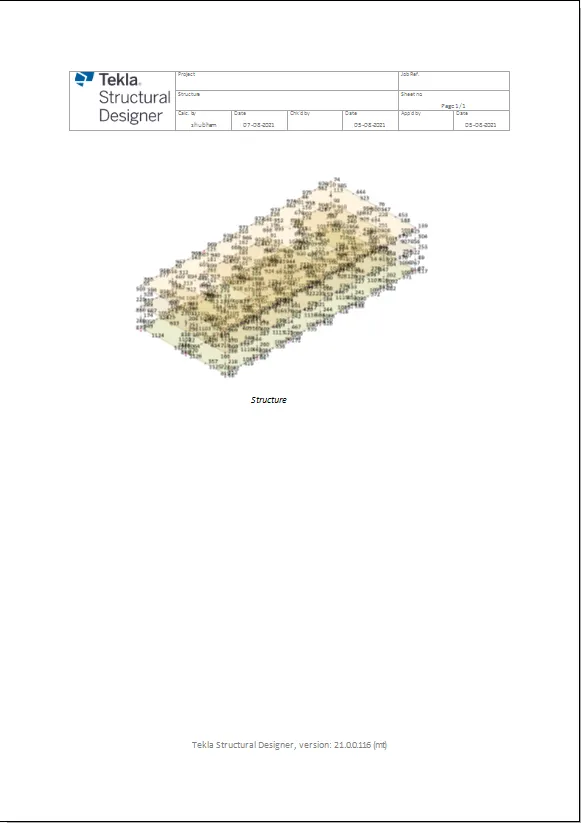

Model in Solver mode

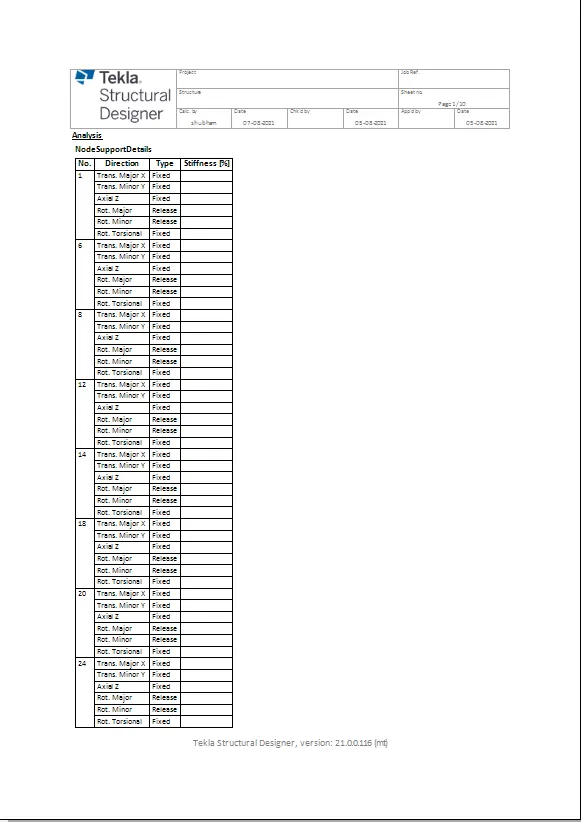

Node Support Details

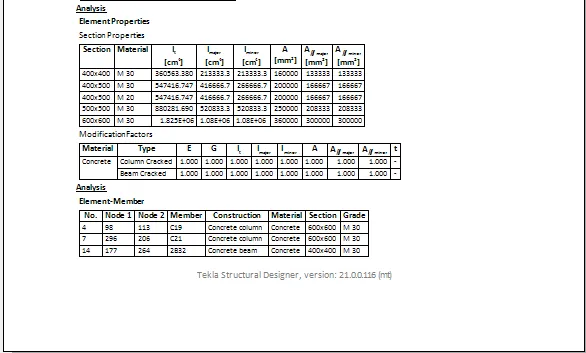

Element Properties

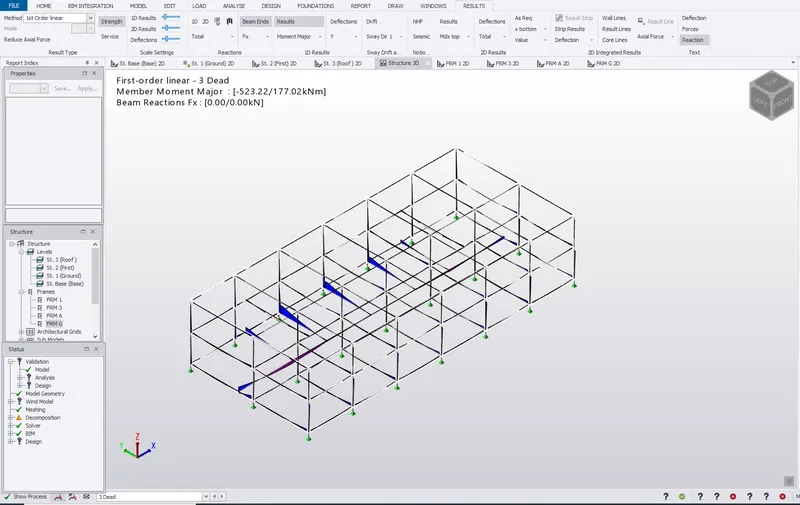

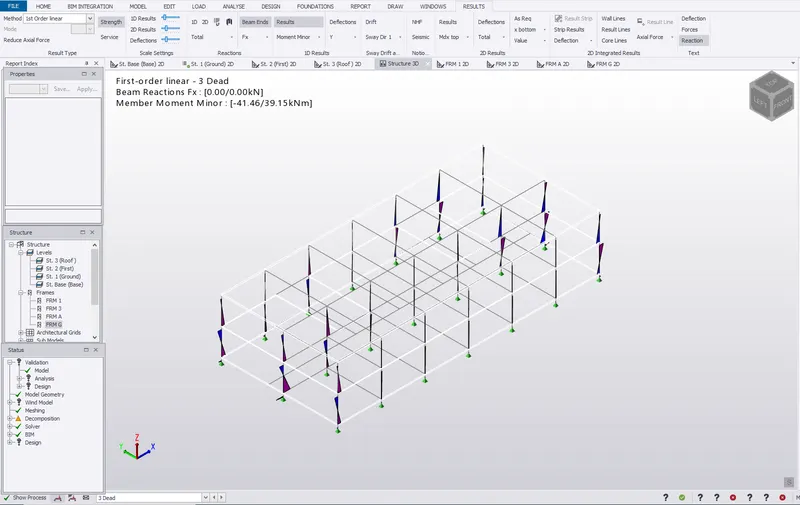

Analysis Result

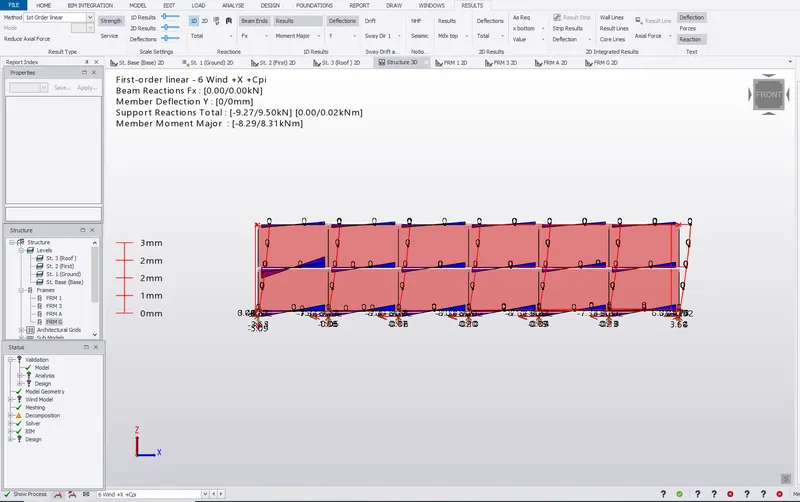

Wind +X +cpi
Moment Major
Shear Major
Moment Minor
Conclusion : Challenge Completed
