Project 2 Adaptive Cruise Control

AIM:To create a simulink model of Adaptive cruise control for Given requirements,

PROCEDURE:

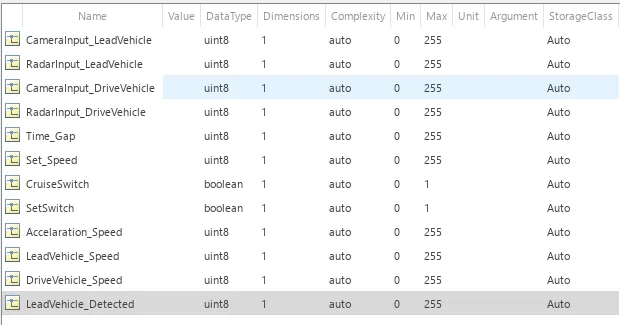

SLDD FILE:

To create a simulink data dictonary file.

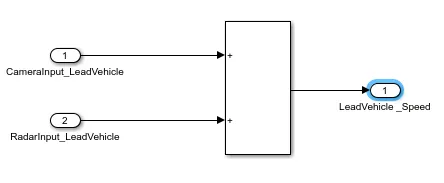

Requirment 1:

To ceate a model of requirement 1 for camera input vehicle & Radar input vehicle is input. Lead vehicle speed is output.

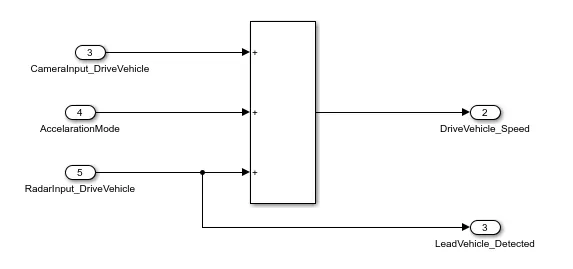

Requirment:2

To create a model of requirment 2 for camera input device,accelaration mode & Radar input Drive vehicle is input , Drive vehicle speed & Leadvehicle detected is output.

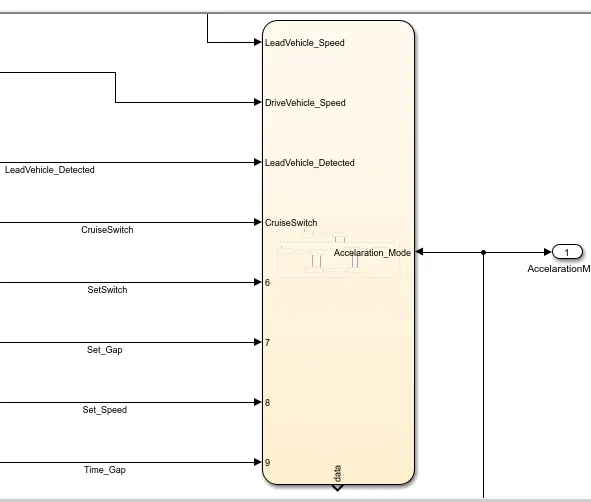

Requirement:3

To create a state flow of requiremnt 3 for Requirment 1 & 2 output, Cruise switch,setswitch,set gap,set speed, time gap as a input & accelaration mode is output.

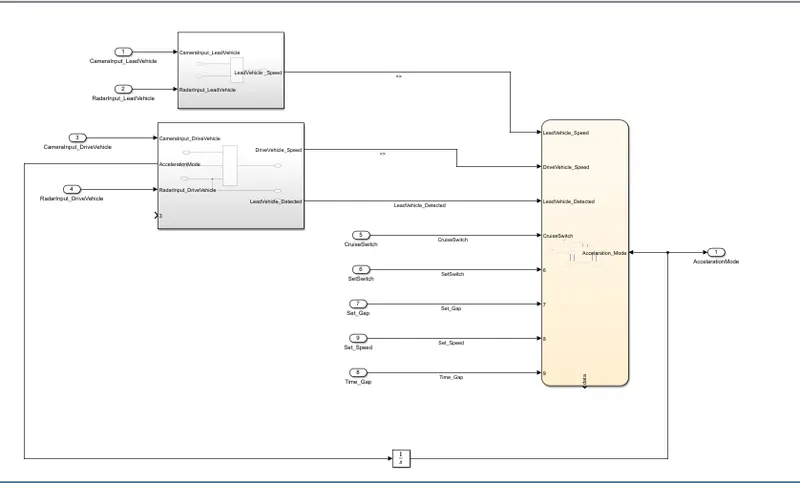

Final:

CONCLUSION:

we have suceesfully create a model of Adaptive cruise control
