Project 2

The max heat generation of the battery :

We know the formula,

max heat generation =max joul's heat+max entropic heat

Given that,entropic factor=2

max joul's heat=(max current)^2*battery resistance(R)*time(T)

                      =(-0.896^2)*(0.002)*2.6[As R=2 mili ohm,T=2.6]

                      =0.004174

Therefore,max heat generation=0.004174+2

                                              =2.004174

The SOC of the battery at 2 *104second of the battery operation:

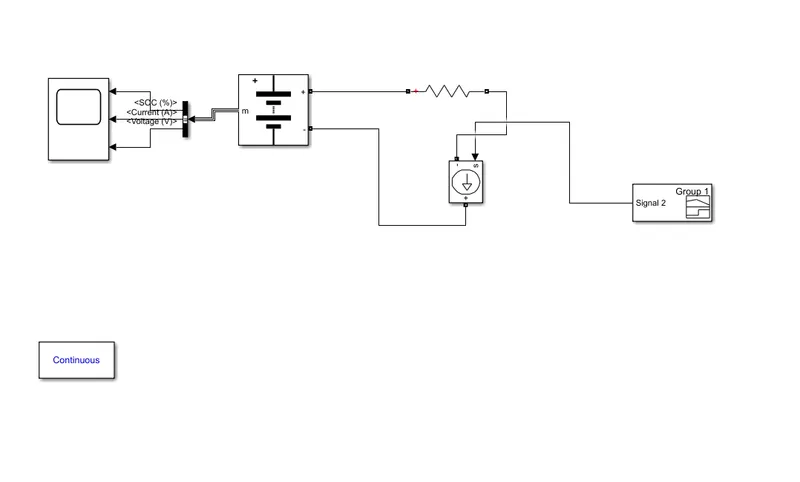

 Here ,single battery used,a series rlc bruch used,but the load is only resistive type.A controlled current source is used and it is used as a load because current is leaving from positive end.A signal builder is also used which have the given data.A scope and a bus selector is also used to determine soc ,current,voltage.

It is the customized signal builder with the given data.

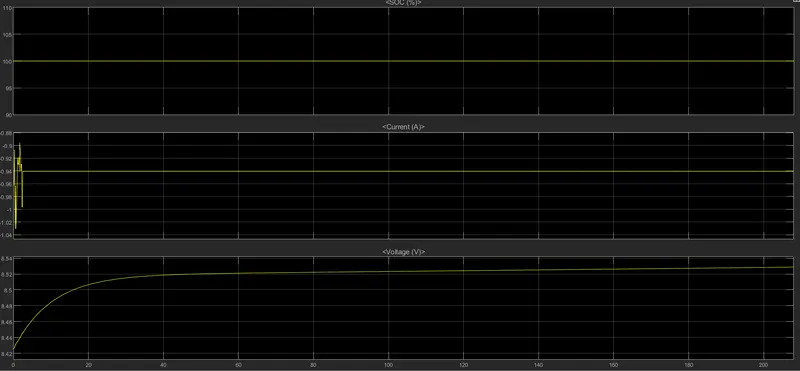

 plot1:soc graph,it is always 100% because the current is in negative.

plot2:It is the current graph.

plot3:It is the voltage graph.
