Project 2

• Given Back Door data is downloaded from website.
• Requirment connectors are downloaded te.com and electrically defined in Electrical Part Design Workbench.
• Electrically defined connectors is positioned in Part Assembly workbench
• The following connectors & mounting parts are used

                     1. Inter connection connector

                     2. 8 pole connector for wiper motor

                     3. 3 pole connector (4EA) used for  Tail Lamps, Sensors

                     4. 2 pole connector used for License plate

                     5. Rubber grommet

                     6. 16 EA Stur tree clips is used for routing

• Stur tree clip distance maintained greater than 50mm diastance and less than 200 mm distance
• Then goto Wiring Harness aseeembly work bench
• Multibrancable tool used to define mechanical product to electrical product
• Routing process done in Branch definition & Add branch point tool in Wiring Harness installation workbench
• wiring production purpose add some cot tubes in bundle segment

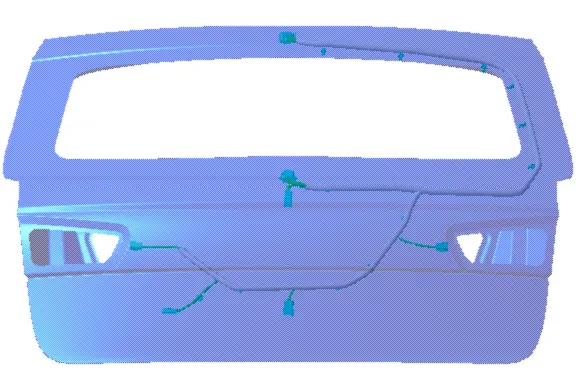

CAR Back Door WH Context Assembly

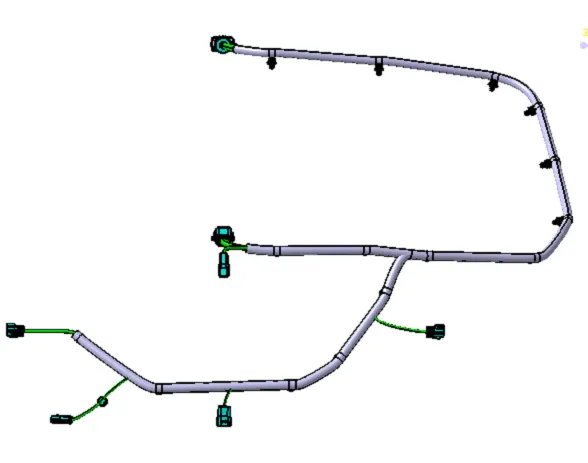

CAR Back Door WH Multi Branchable

• Afterwards checking the Bundle connectivity using EDIT --> Search--> Advanced -->Attribute --> False

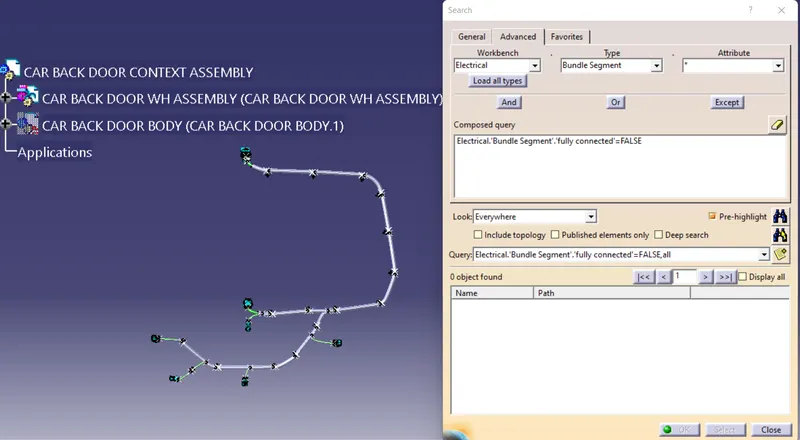

CAR Back Door WH Connectivity Check

• Then switch to Wiring Harness Flattening Workbench
• Add flattening parameters
• Extact tool used to bring the geometric bundle of context assembly to WH Flattenging workbench.
• Flatten tool used to flatten the WH assembly

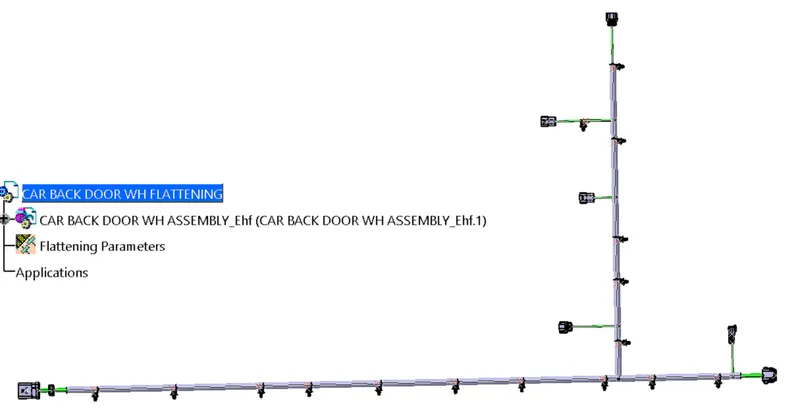

CAR Back Door WH Flattening

• Finally drawing is done in Drawing workbench
• Wiring dimension also provided

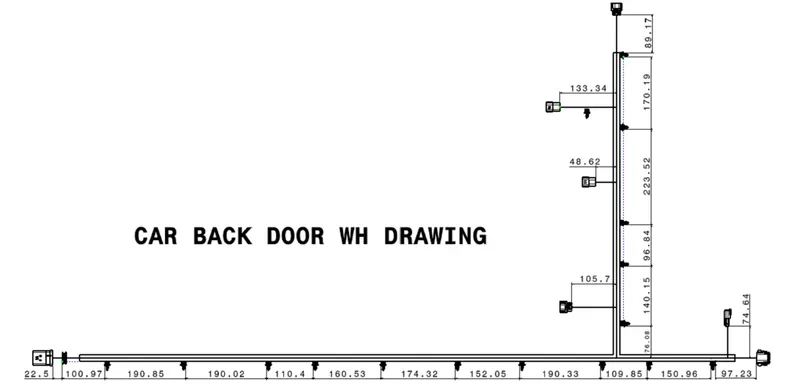

CAR Back Door WH Drawing
