Project 2

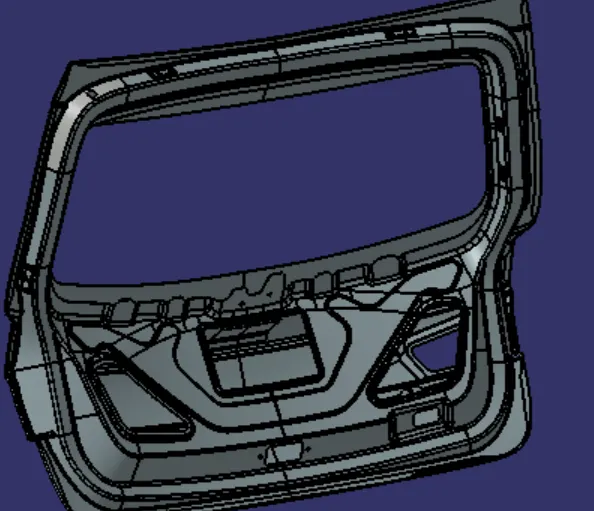

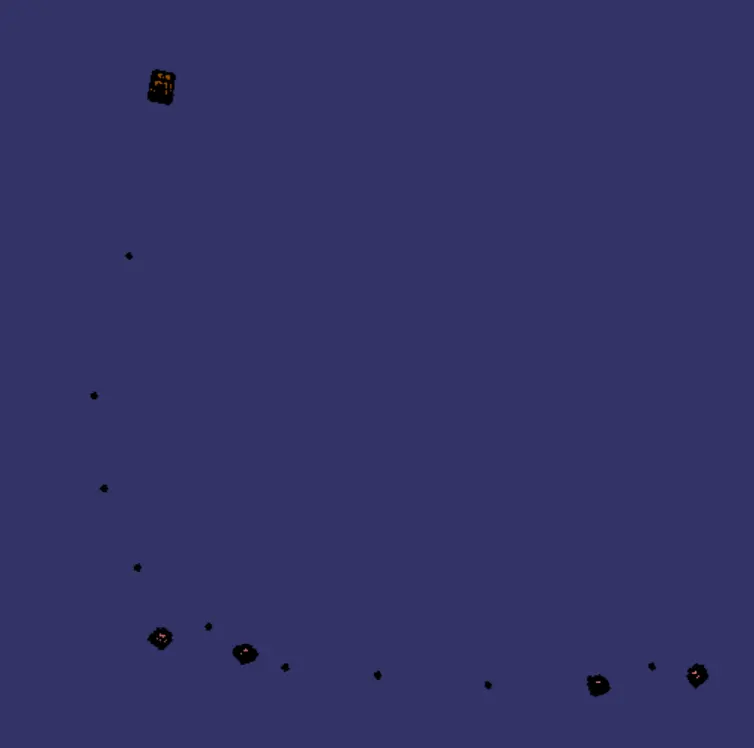

First open the part model theni study that model then going for roting plan using the furr clip and conacters are located bu using constrain points



then go for the electrical harness assy to defin the geomintrical bundle then i start my routing use size in 12 mm fo wire diameter used for main bundle and 6 mm wire diameter is givenfor sub lines to conect the main bundle to electrical conacters

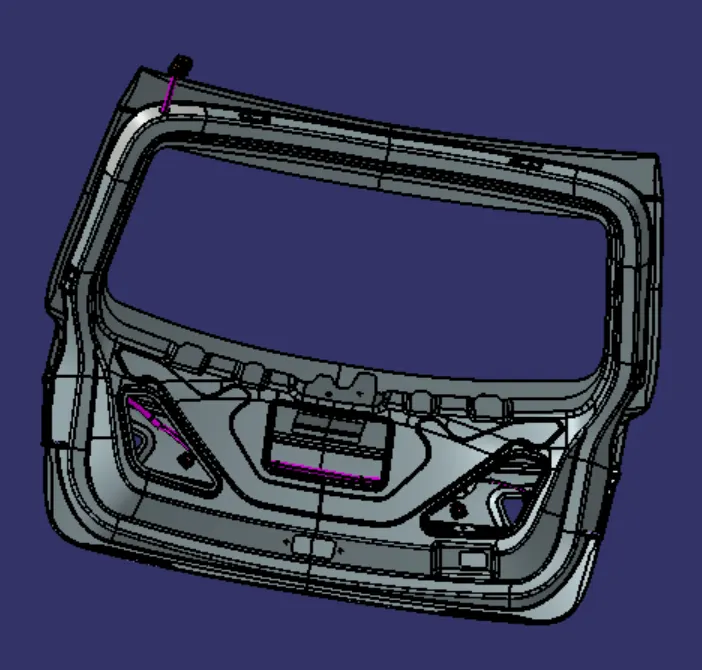

i make the wire entring hole in door fixed side

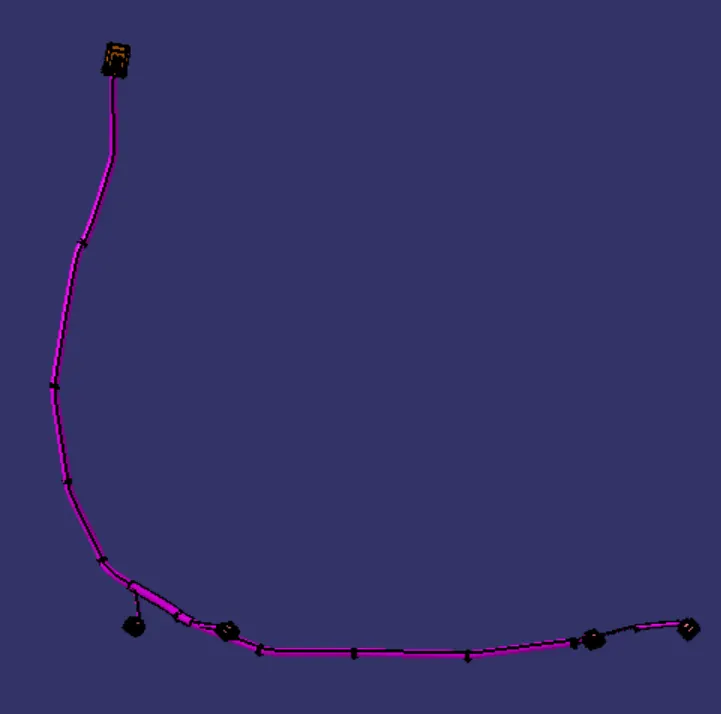

finnaly make a wire routing then go for the  Electrical flataning assy to make a flatening. go for the application and define the wire hardaning
