Project 2

Report :

1. Our Aim is to desing the Wiring harness routing for Back Door

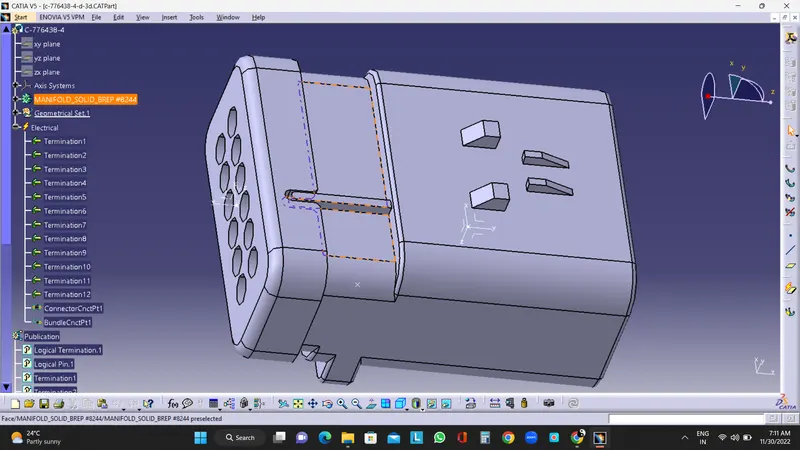

2. First We need to defing connector , points & Axis system

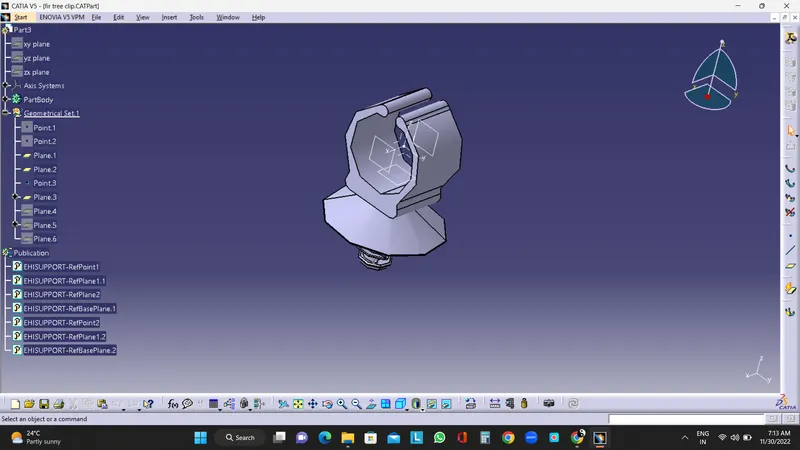

3. Then we need to define the Free tree Clip as a support part

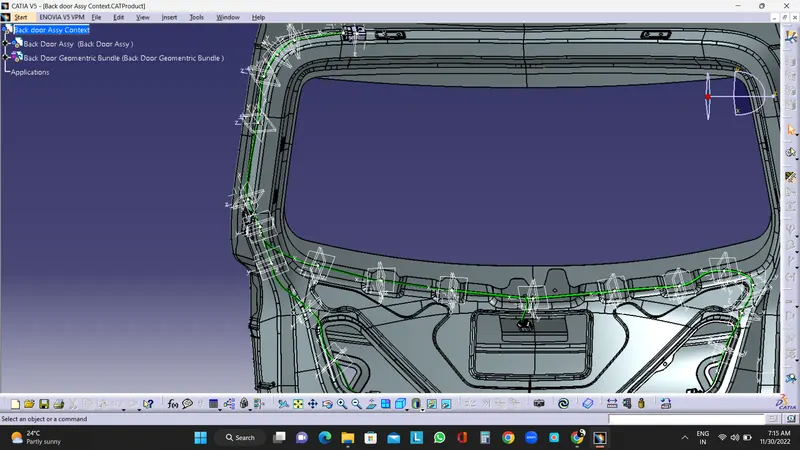

4. Then we need to create , the Wiring harness Context ASSY

A) In which we need to create the sub assy Back door & Geomentric bundle

5. Then we need to place the connector & free tree clip in Required Place

6. Then we move to the Wirin Harness ASSy , Then we route the wiring harness

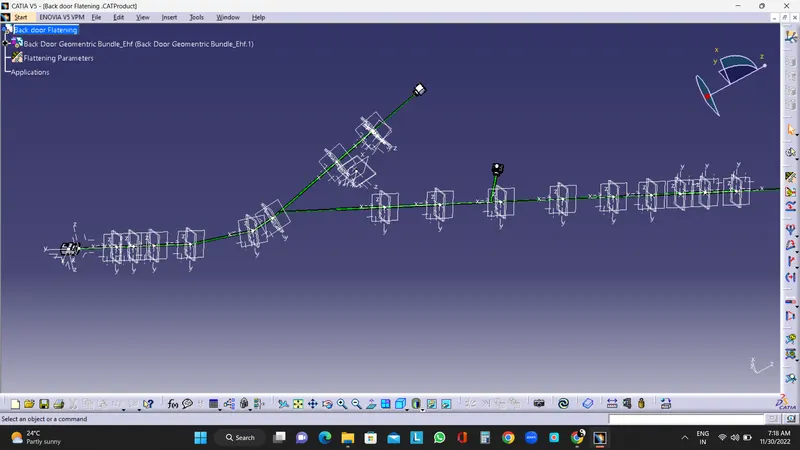

7.Then we move to the flatening Module

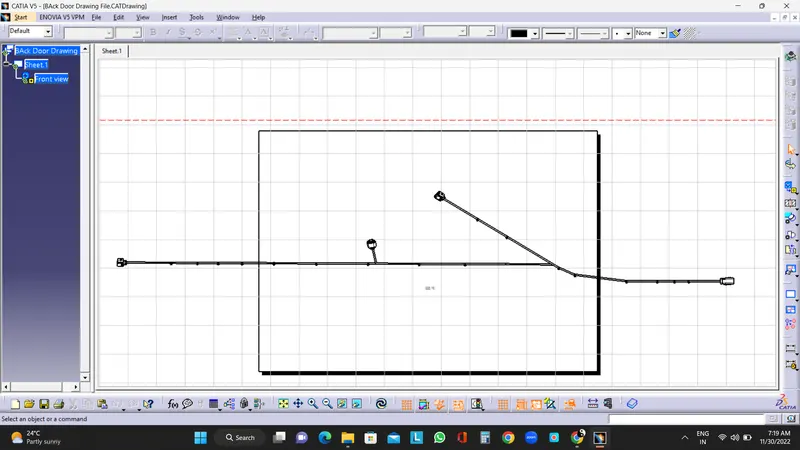

8. Then we ceate the Drawing file
