Project 2

OBJECTIVE

To generate a 2-D mesh With target size of 5mm for the floor panel with the following criteria

Target Element Length = 5mm

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2mm
6	Max. Length	8mm
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

CAD

PROCEDURE

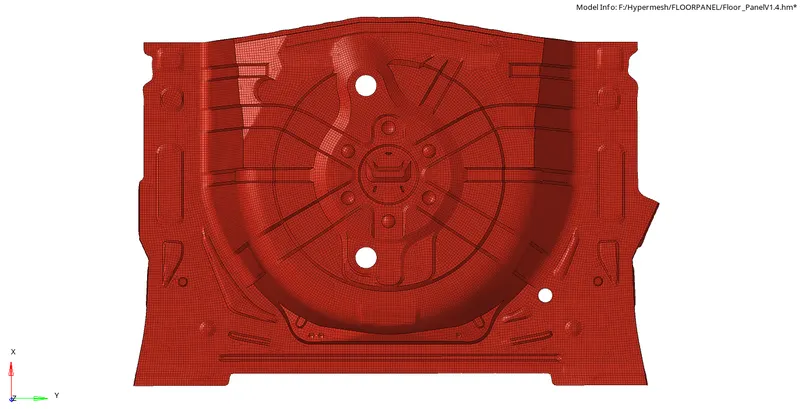

• The floorpanel.iges file is imported in hypermesh using import geometry panel then the file type is defined as IGES and imported

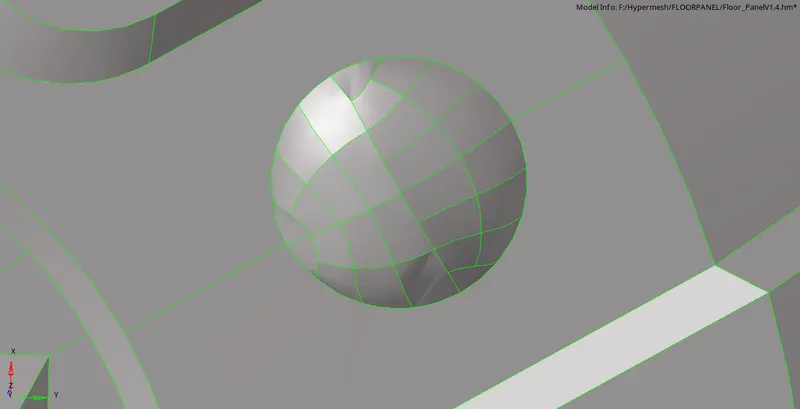

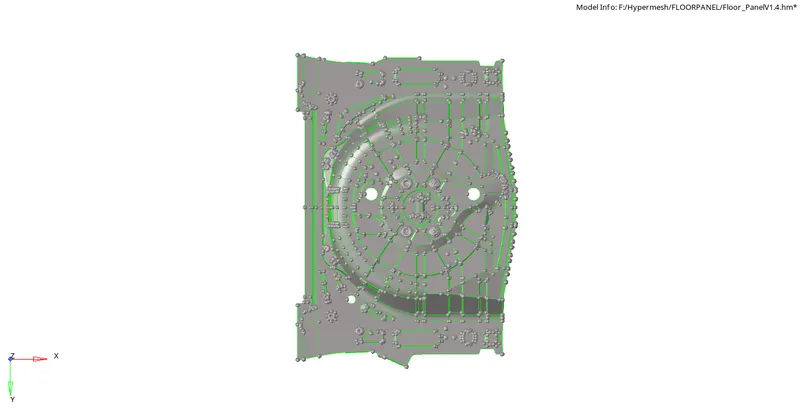

• Then the model is been examined in way of reducing the meshing time and features that should be defeatured from this observation i can conclude that 30% of the model is actually symmetric in global y-axis from the below figure there were lot of pinholes and punches with the dia of 1mm and length is >2mm which doesn't cause major fluctuation in the result so those pinholes and punches were suppressed

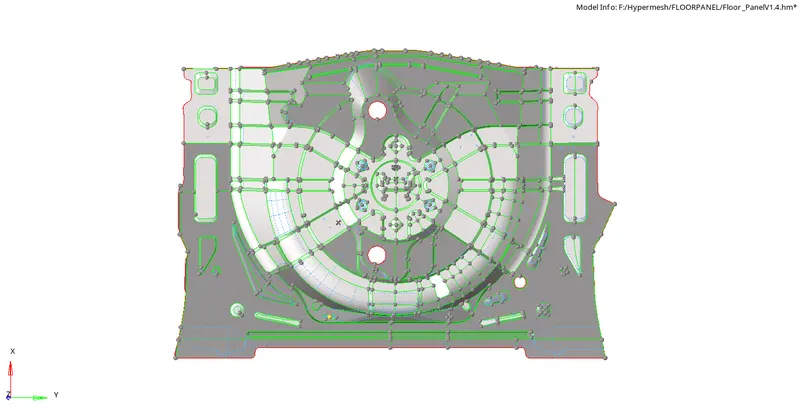

Middle Surface

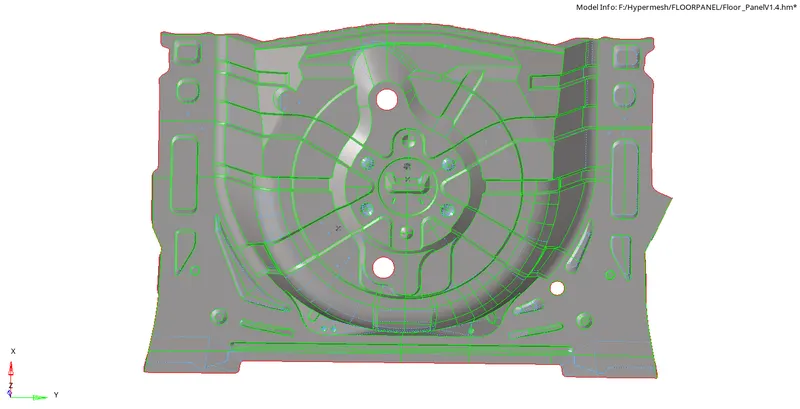

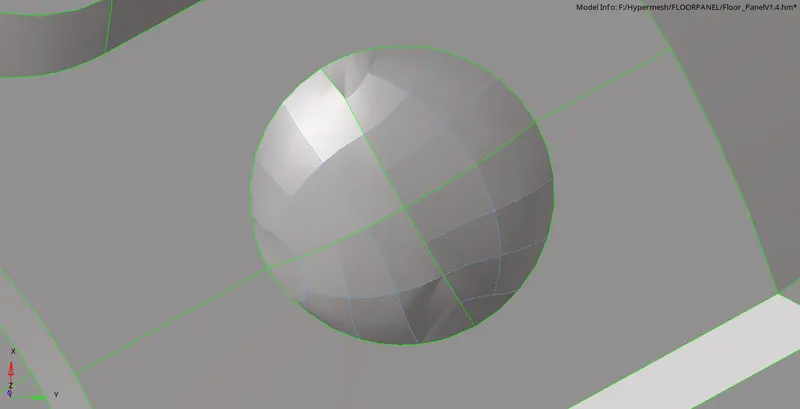

Then the unwanted lines were toggled and split accordingly so that it doesn't affect the flow of the mesh and geometry

Before

After

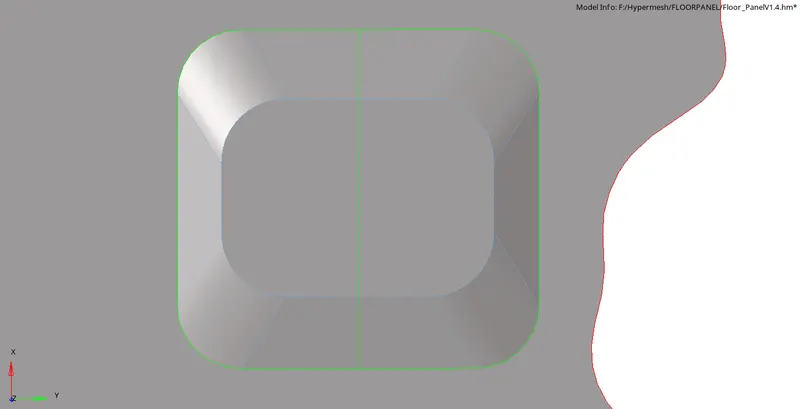

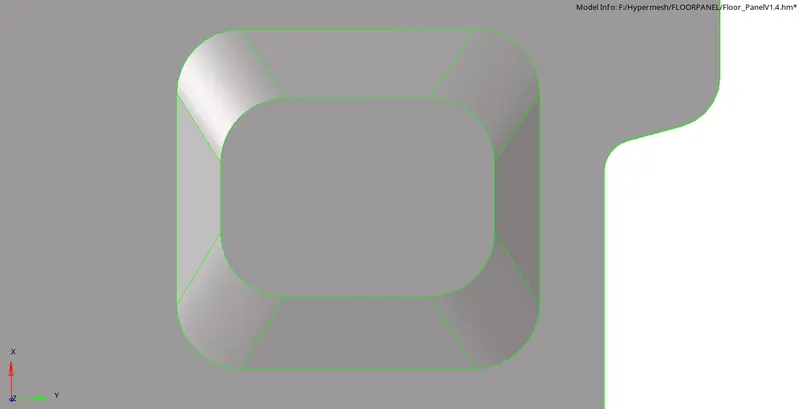

It is important to capture the depth of the Stamped features so

Before

After

Similarly the other features were edited

MESH GENERATION

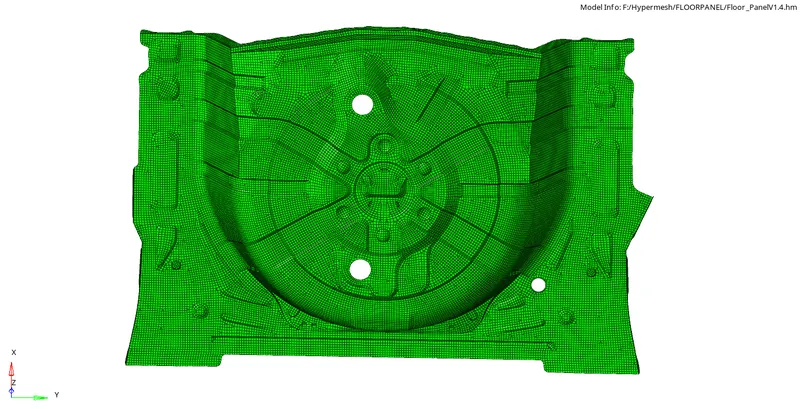

First, the surface which were not symmetric is meshed starting from the center so it doesn't affect the connectivity of the mesh between the symmetric and asymmetric surface while reflecting the mesh

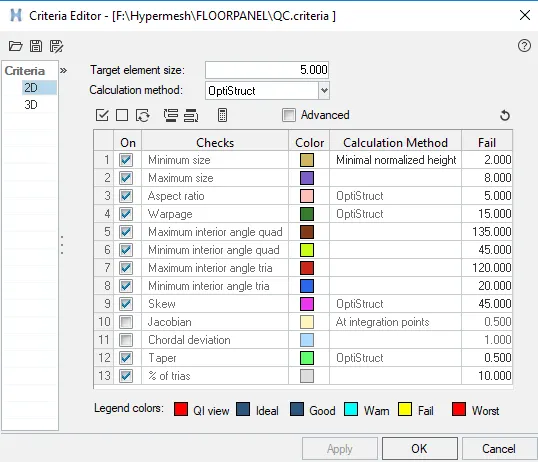

Quality Criteria

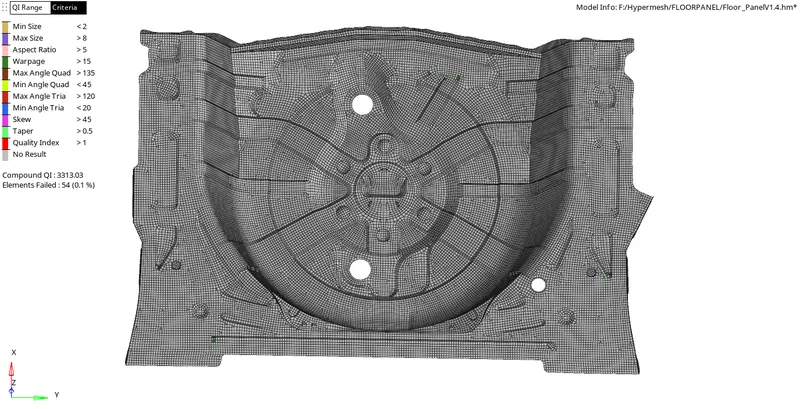

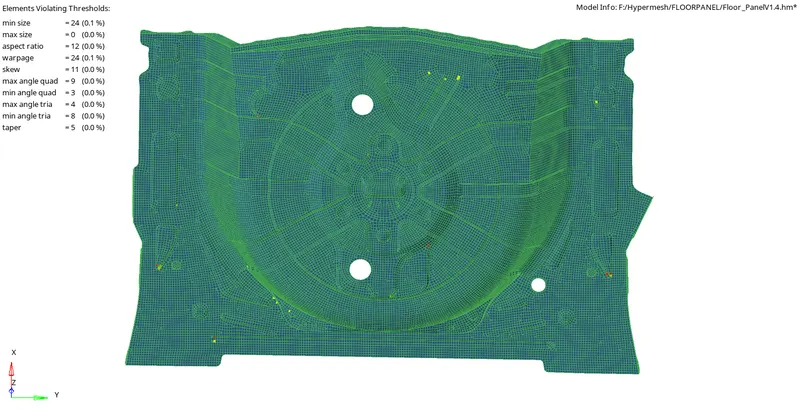

Here totally 54 element fails for the minimum length, warpage, aspect ratio which couldn't be optimised without affecting the geometry

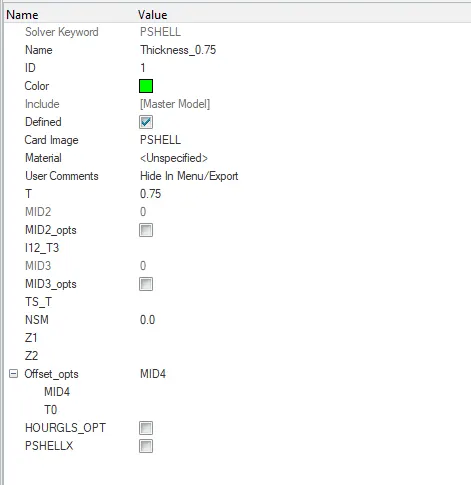

Then finally thickness is been assigned by creating a property for p-shell with a thickness value of 0.75mm
