Project 2

Using MATLAB/simulink and the drive cycle from the attached excel sheet, find-

1. The max heat generation of the battery
2. The SOC of the battery at 2 *104second of the battery operation

Time	Time Step	Battery Current
00:00.4	0.1	-0.9632
00:00.5	0.2	-0.952
00:00.6	0.3	-0.9072
00:00.7	0.4	-0.9632
00:00.8	0.5	-1.0304
00:00.9	0.6	-0.9632
00:01.0	0.7	-1.0304
00:01.1	0.8	-1.008
00:01.2	0.9	-0.9856
00:01.3	1	-0.9632
00:01.4	1.1	-0.9184
00:01.5	1.2	-0.9296
00:01.6	1.3	-0.9296
00:01.7	1.4	-0.9296
00:01.8	1.5	-0.9184
00:01.9	1.6	-0.9408
00:02.0	1.7	-0.896
00:02.1	1.8	-0.9072
00:02.2	1.9	-0.9072
00:02.3	2	-0.9408
00:02.4	2.1	-0.9296
00:02.5	2.2	-0.9296
00:02.6	2.3	-0.9968
00:02.7	2.4	-0.9968
00:02.8	2.5	-0.9408
00:02.9	2.6	-0.9408

Battery resistance

2 milli ohm

Consider the battery resistance is 0.5 mOhm, delta time is 0.1 and entropic factor is 2

Ans-

a) Maximum heat generated = maximum joule heat + 2(maximum joule heat)

Imax = -0.896 A

tmax = 1.7 sec

Rint = 0.002 ohm

maximum joule heat = (Imax)^2 * R * tmax

maximum joule heat = (-0.896)^2 * 0.002 * 1.7 = 0.0027295 J = 2.7295 mJ

Maximum heat generated = maximum joule heat + 2(maximum joule heat)

Maximum heat generated = 0.002795 + (2*0.0027295) = 0.0173195 J = 17.3195 mJ

b) The SOC of the battery at 2 *104second of the battery operation

SOC = State of Charge is defines the how energy is usable for application

SOC = Q / Qmax

where,

Q = Available capacity

Qmax = Overall capacity

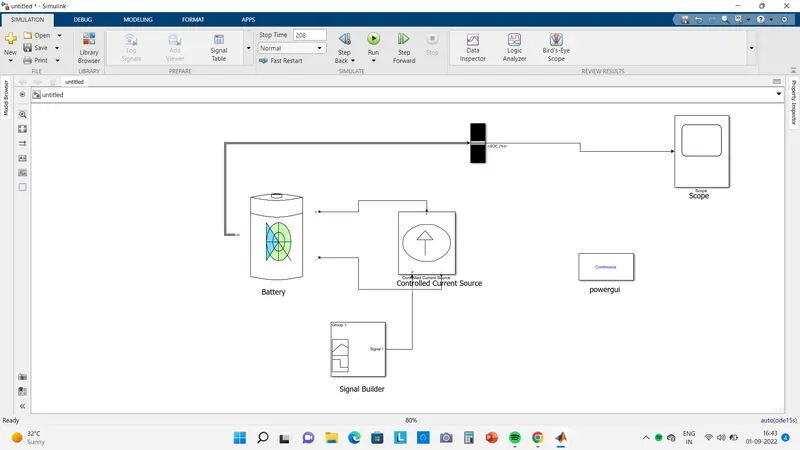

for the simulation model following blocks are used

1. Generic Battery - Implements a generic battery model for most popular battery types. Temperature and aging (due to cycling) effects can be specified for Lithium-Ion battery type.

2. Controlled current source - Converts the Simulink input signal into an equivalent current source. The generated current is driven by the input signal of the block.

You can initialize your circuit with a specific AC or DC current. If you want to start the simulation in steady-state, the block input must be connected to a signal starting as a sinusoidal or DC waveform corresponding to the initial values.

3. Bus Selector - This block accepts a bus as input which can be created from a Bus Creator, Bus Selector or a block that defines its output using a bus object. The left listbox shows the elements in the input bus. Use the Select button to select the output elements. The right listbox shows the selections. Use the Up, Down, or Remove button to reorder the selections. Check 'Output as virtual bus' to output a single bus.

4. Signal Builder Block - To use any type of signal till 208 stop time.

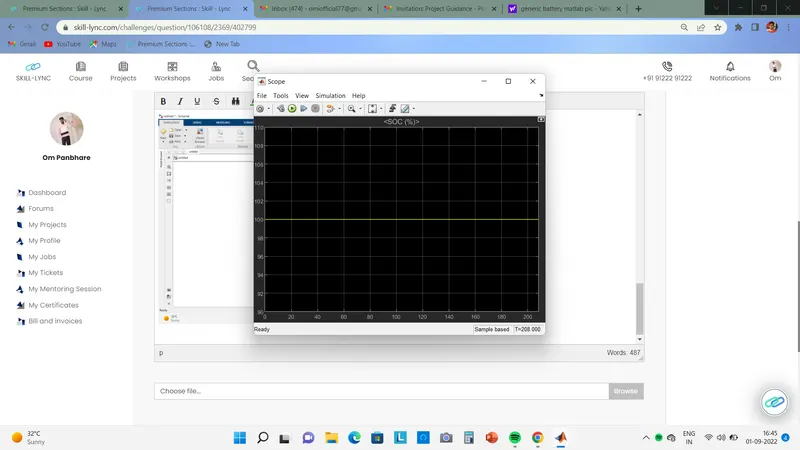

5. Scope - to Display the output graph

6. Powergui - Set simulation type, simulation parameters, and preferences
