Project 2 - 2D meshing on the instrumental Panel

Aim :

To check for the geometrical errors and mesh with the given element Quality criteria. After meshing the component the thickness has to be assigned. Using casting method mesh flow to be created.

Operations performed:

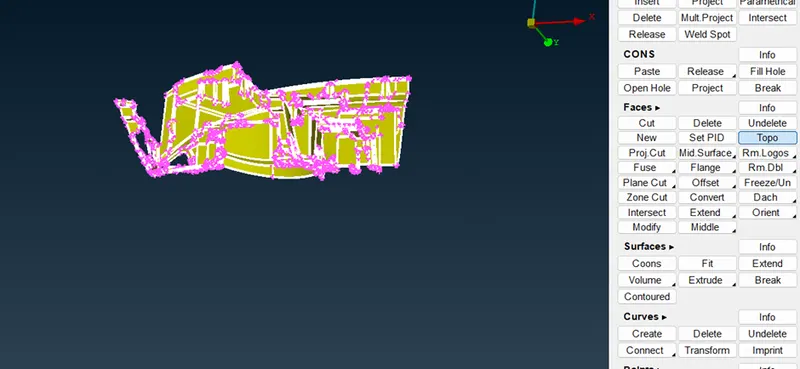

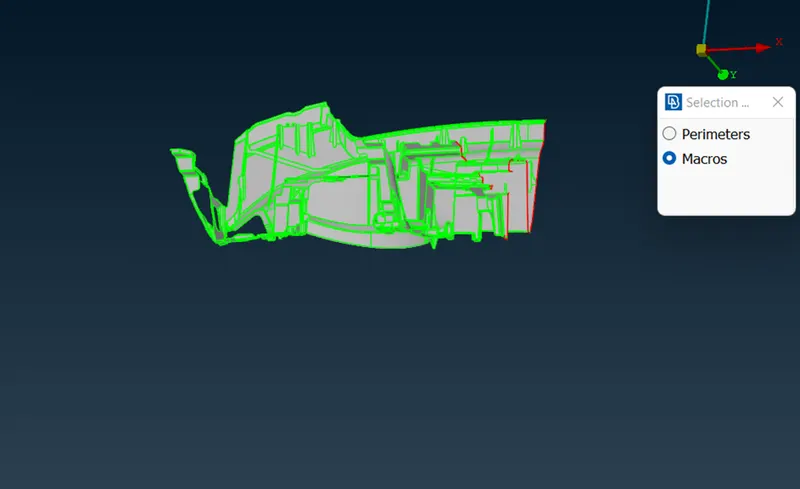

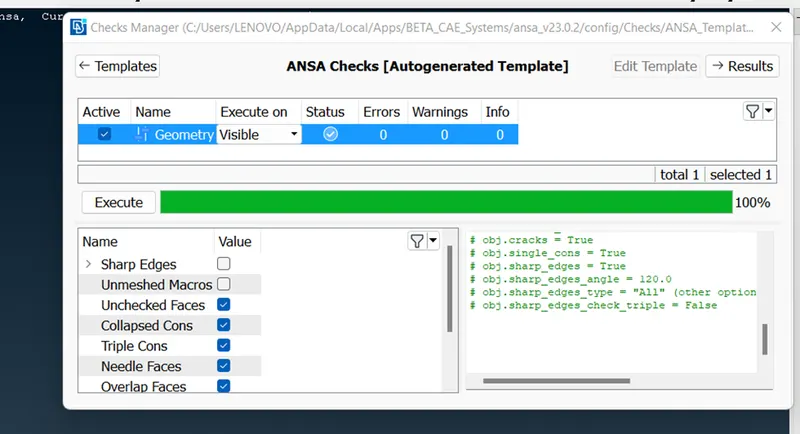

1.Checked geometrical cleanup and rectify the errors.

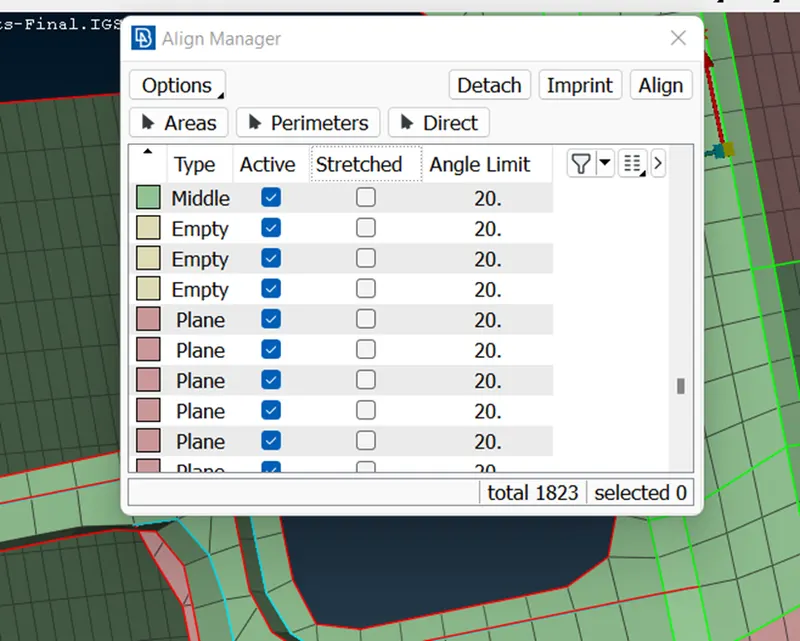

2.using casting method mesh flow was created.

3.Eliminated the empty areas and perimeter in mesh flow.

4.Using paste,shell mesh fill,imprint,detach operations off elemens was eliminated.

5.After eliminating off elements assigning thickness to the model.

Images captured:

project link

https://drive.google.com/file/d/10AvRkHgCNPnfmGB_-J78M3B7-fUU5W2_/view?usp=share_link

Result:

After eliminating errors, assigning thcknesss to the model.

Thanks,
